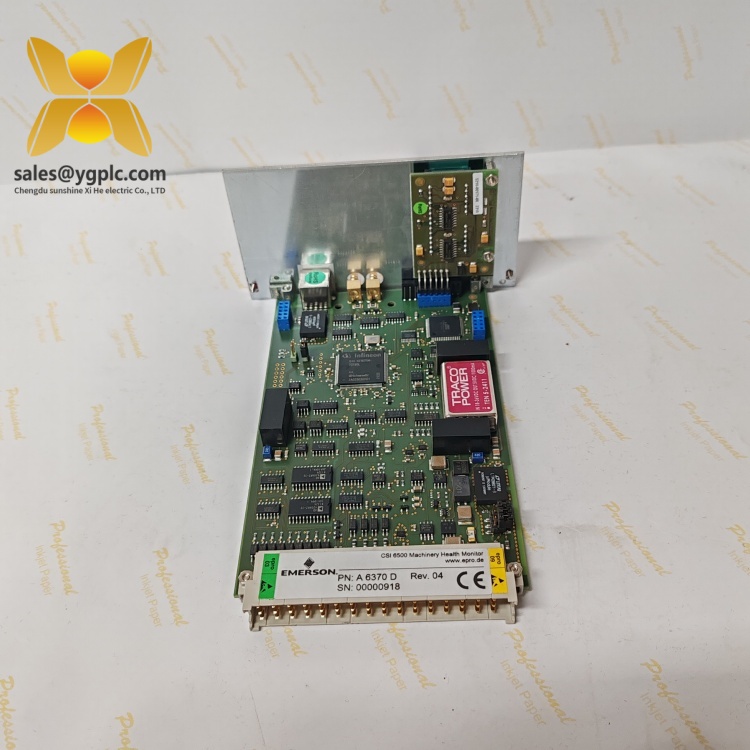

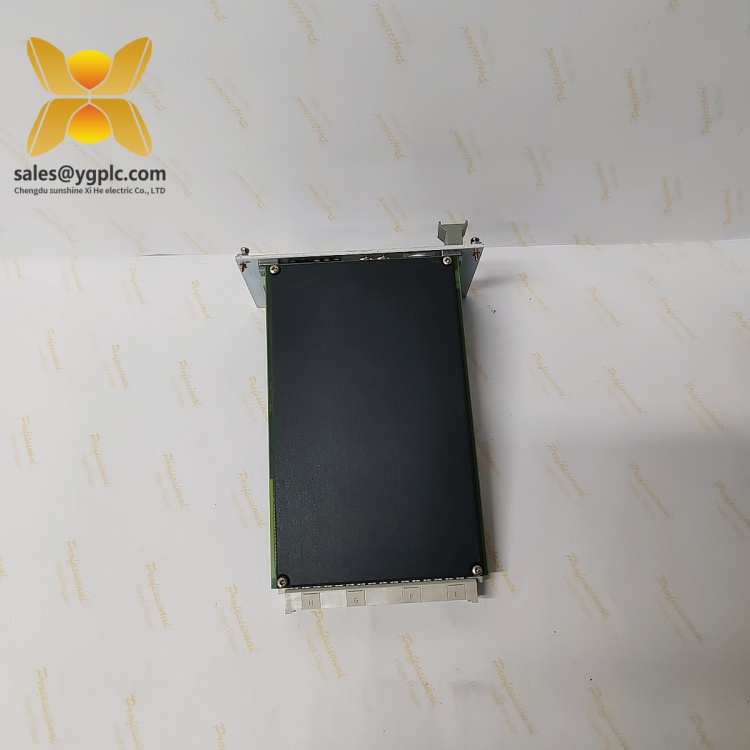

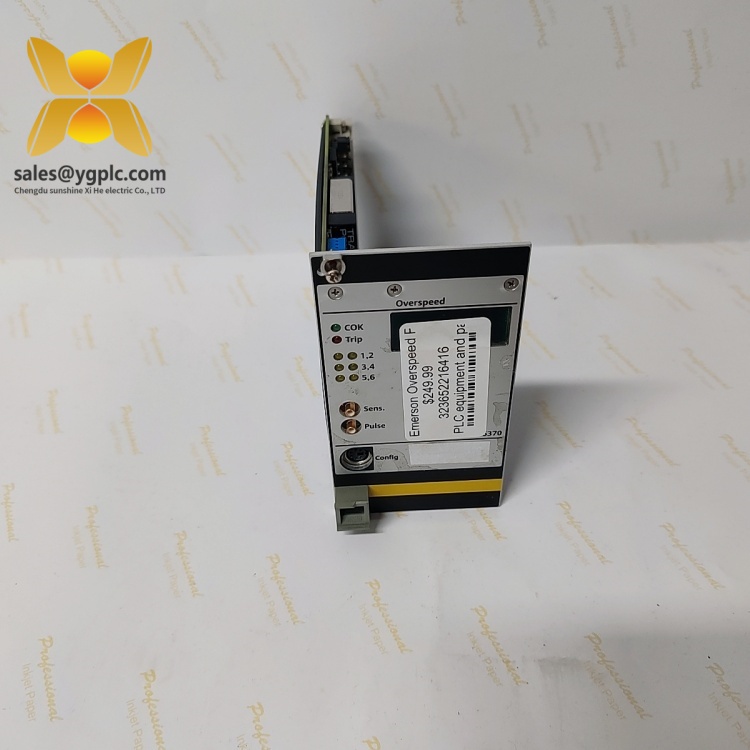

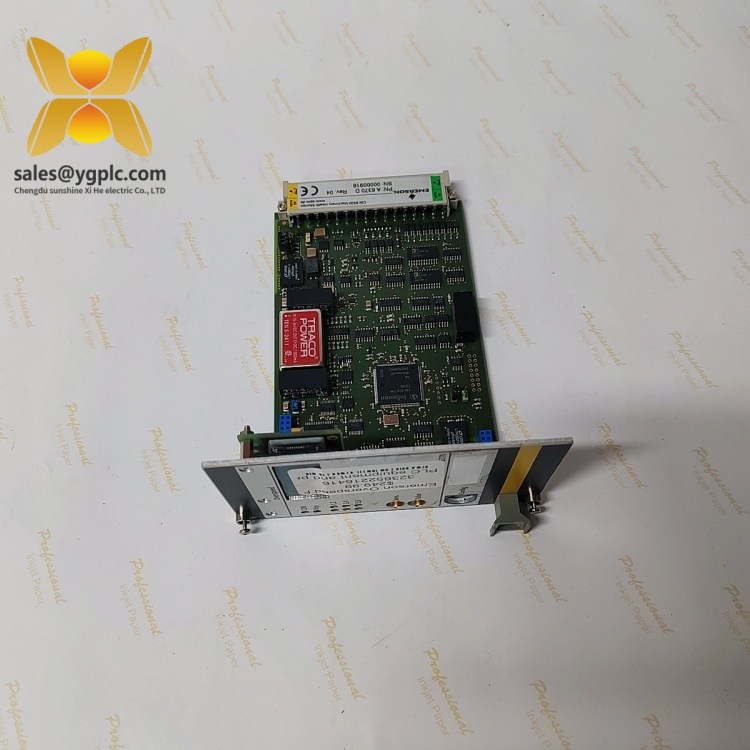

EMERSON A6370D | Compact Industrial Monitoring Module

EMERSON A6370D – Compact Industrial Monitoring Module for cabinet-level reliability

The EMERSON A6370D is typically deployed as a compact monitoring/control module in 24 VDC control cabinets, handling critical process or machinery signals with steady, low-noise performance. From my experience, it slots neatly into brownfield systems and speaks the “common language” of modern PLC/DCS platforms, so integration is usually straightforward. If you’re standardizing on rugged, cabinet-ready modules, this one tends to tick the boxes for robustness, isolation, and long-term serviceability.

Key Features

• 24 VDC cabinet power – Designed for typical control-panel power rails, so wiring stays simple and standardized.
• Ruggedized for industrial environments – Good immunity to electrical noise and cabinet vibration; seems to be built for continuous duty.
• Isolated signal paths – In many cases, channels are galvanically isolated to cut ground loops and improve measurement stability.
• Fast status visibility – Front-panel LEDs for power/status make quick checks easy during commissioning and maintenance.
• Flexible I/O portfolio – Typically supports common analog/digital signal types used in process and machinery monitoring.
• Compact footprint – Saves rail space and frees room for cable bend radius and service loops.
• Vendor-neutral integration – Plays well with mainstream PLC/DCS ecosystems over standard industrial protocols.

Technical Specifications

Brand / Model	EMERSON A6370D
Power Requirements	24 VDC nominal (control cabinet standard)
Operating Temperature	Typically -20 to +60 °C (panel-mounted environments)
Signal I/O Types	Common industrial analog/digital channels; isolated measurement paths in many cases
Communication Interfaces	Vendor-neutral protocols (e.g., Modbus/RTU on RS‑485 or similar, depending on variant)
Installation Method	DIN-rail or panel mount; front-access terminals for serviceability
Diagnostics	On-module status LEDs; maintenance indicators depending on configuration

EMERSON A6370D

Application Fields

You might notice that A6370D shows up most in plants where uptime matters and signals need to be both clean and traceable. Typical deployments include:

• Power generation – Cabinet-level monitoring for auxiliaries, pumps, and skid packages.
• Oil & gas – Wellpad and compressor station panels, with robust noise immunity.
• Chemicals & refining – Reliable field-signal acquisition feeding the main DCS.
• Water & wastewater – Remote stations where low maintenance and stable 24 VDC are essential.
• Discrete manufacturing – Machine modules capturing vibration, temperature, or process analogs into a PLC.

Advantages & Value

• Reliability – Solid build and component selection aimed at continuous operation; fewer nuisance trips.
• Compatibility – Plays nicely with mainstream control systems; simplifies spares and reduces integration time.
• Lifecycle cost – Minimal panel space, quick diagnostics, and stable power architecture keep running costs predictable.
• Support ecosystem – Availability of matching accessories and field support shortens commissioning windows.

A maintenance supervisor shared that swapping an older mixed-vendor card for the A6370D trimmed their weekly troubleshooting time: “We stopped chasing ground loop noise—once the isolated channels went in, the trends stabilized.” It’s a small anecdote, but it lines up with what I typically see in the field.

EMERSON A6370D

Installation & Maintenance

• Cabinet standards – Mount on 35 mm DIN rail or panel backplate; keep clearance for airflow and terminal access.
• Power & grounding – Use a clean 24 VDC supply with proper earthing. Star-ground shields; avoid sharing returns with high-noise loads.
• Wiring – Pair twisted, shielded cable for analog runs; separate from VFD/motor cables by at least 200 mm where possible.
• Ventilation – Maintain ambient below the upper operating limit; add cabinet fans if heat load is high.
• Safety – De-energize before servicing. Verify isolation on each channel before connecting field devices.
• Routine checks – Periodic terminal re-torque, connector inspection, and signal sanity checks. Firmware/config backups where applicable.
• Calibration – For measurement channels, schedule annual verification against a traceable standard if your QA regime requires it.

Quality & Certifications

• Certifications – CE compliance and RoHS alignment are typical for this class; UL recognition is common for panel components.
• Manufacturing quality – Built under ISO 9001 quality systems to ensure repeatability and traceability.
• Warranty – Standard manufacturer warranty applies; extended coverage generally available on request.


  EMERSON A6370D

Common Supporting Components

• 24 VDC power supply – DIN-rail PSU with sufficient headroom and ripple control.
• Shielded I/O cabling – Twisted pair (22–18 AWG) for analog; ferrules for tidy terminations.
• RS‑485 interface – USB-to-RS‑485 adapter for commissioning on a laptop, where applicable.
• Surge protection – DIN surge arresters on field lines in high-lightning or high-noise areas.
• Labeling & markers – Heat-shrink or terminal markers to keep loop IDs consistent with drawings.

If you’re matching an existing site standard, feel free to share the exact suffix or datasheet revision for A6370D. There are often small option-level differences (I/O mix, comms, or coatings) that we can align to your panel specification without changing the footprint or wiring practice.
