Description

EMERSON 1C31192G01 – Ovation Speed Detector Personality Module

Product Overview

The EMERSON 1C31192G01 is an Ovation Speed Detector Personality Module used as part of Emerson Process Management’s Ovation DCS I/O architecture. Emerson’s Ovation I/O Reference Manual identifies it as the personality module paired with the 1C31189G01 electronic module for an 8-channel Speed Detector Interface. The module is used in speed-monitoring applications where the control system needs reliable frequency or pulse-train information from rotating equipment.

The associated Speed Detector subsystem can provide speed information for applications such as turbine and rotating-machinery monitoring. Emerson documentation describes both 16-bit and 32-bit speed measurement functions, including overspeed-related status information.

Technical Specifications — 1C31192G01

Emerson’s reference documentation confirms the 8-channel configuration and the 1C31189G01 / 1C31192G01 module pairing. Third-party physical specifications report approximately 0.1 kg and the dimensions above.

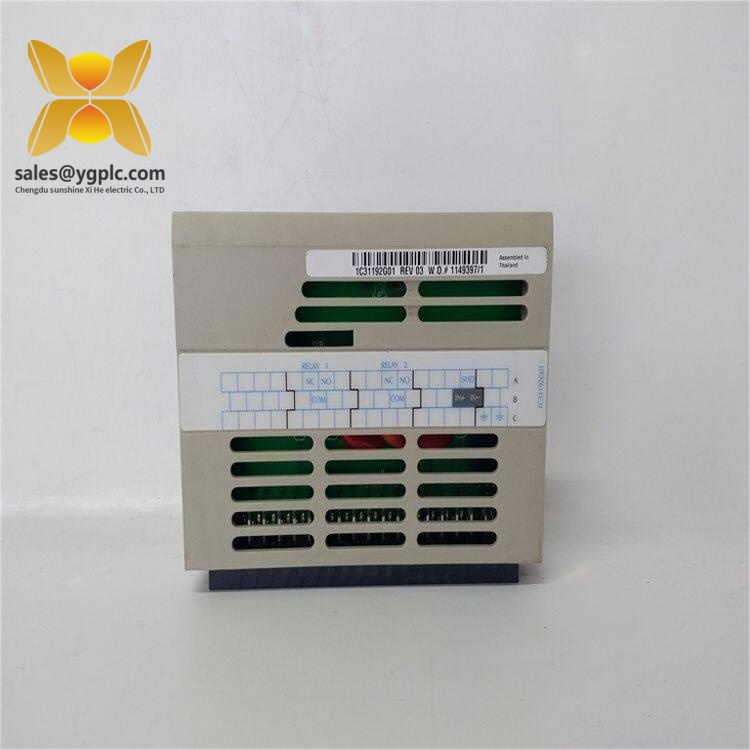

EMERSON 1C31192G01

Key Features and Benefits — 1C31192G01

• Designed specifically for the Emerson Ovation Speed Detector Interface.
• Supports an 8-channel I/O configuration when paired with the correct electronic module.
• Used for frequency and pulse-train measurements associated with rotating machinery.
• Supports speed-monitoring functions used in industrial control and turbine applications.
• Maintains the defined wiring and signal-interface configuration of the Ovation system.
• Suitable for critical MRO inventories where exact module identification is required.

Personally, I would verify the electronic module and personality module as a pair before replacement. The part is not simply a generic speed sensor interface; Emerson documents a defined module combination for the Ovation system.

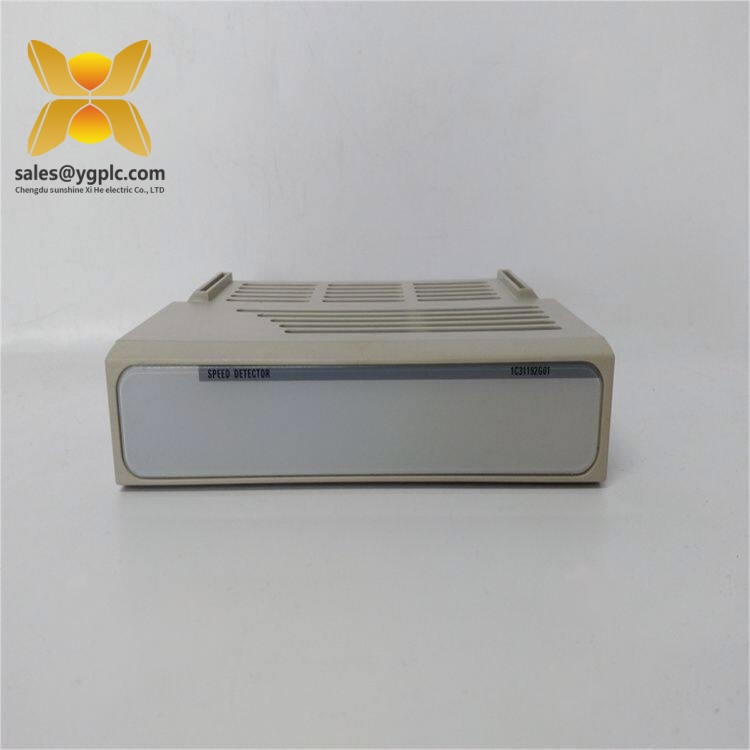

EMERSON 1C31192G01

Related Models

1C31189G01 — The electronic module paired with the personality module for the Ovation 8-channel Speed Detector Interface.

1C31189G03 — A related Speed Detector electronic module used with the same personality module for configurations supporting acceleration and high-resolution speed measurements.

1C31194G01 — Ovation electronic module used for valve-position applications rather than speed detection.

1C31197G01 — Related Ovation personality module for a specific valve-positioner configuration.

Installation and Maintenance — 1C31192G01

Before replacement, verify the complete catalog number, associated electronic module, I/O location, wiring configuration, and configured speed channels. Follow the site’s approved isolation procedure before removing the module.

Inspect the connector, module housing, and mating interface for contamination, oxidation, or mechanical damage. After installation, confirm the configured speed range, signal status, diagnostic information, and overspeed-related indications. For turbine or other critical rotating-equipment applications, complete the approved functional test before returning the system to service.

Product Warranty — 1C31192G01

Warranty coverage depends on supplier condition and sales terms. Confirm whether the unit is new, refurbished, or surplus, and request serial-number traceability, inspection or functional-test records, and the applicable warranty period.

The EMERSON 1C31192G01 should be maintained as an exact Ovation Speed Detector personality-module spare, with compatibility against the installed electronic module verified before procurement.
