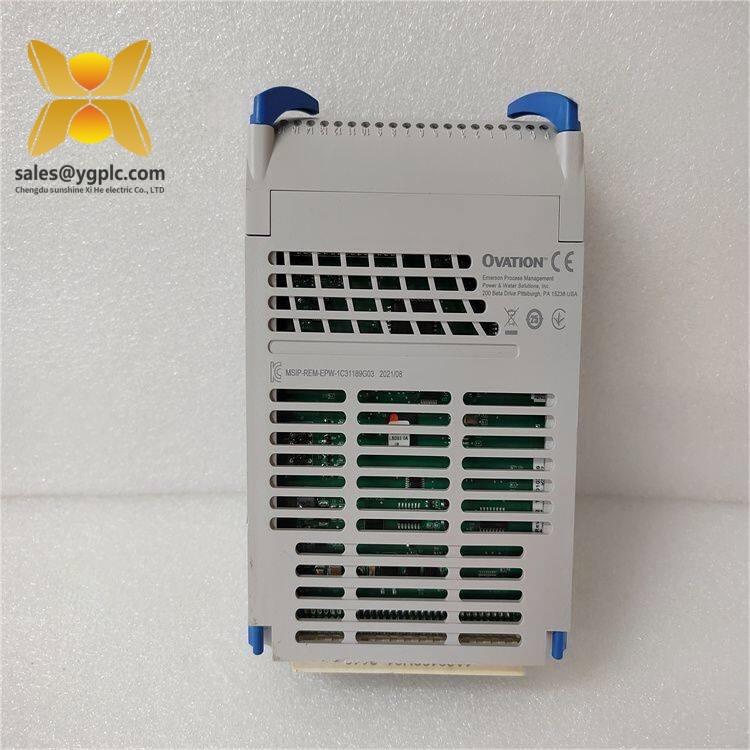

Emerson 1C31189G03 – Ovation Speed Detector Module

Product Overview

The Emerson 1C31189G03 is an Ovation Speed Detector Module designed to measure rotational speed and acceleration signals within an Emerson Ovation DCS. It interfaces with a speed sensor and provides processed speed information to the controller for monitoring, regulation, and protection functions. Emerson Ovation documentation identifies the G03 configuration as supporting high-resolution 32-bit speed measurement and 16-bit acceleration measurement, with a 0.1 Hz to 30,000 Hz speed range and acceleration measurement up to ±32,767 RPM/min.

This makes the module particularly relevant to turbine and other rotating-equipment applications where speed feedback is part of the control or protection strategy. The module is applicable to Ovation software release 3.3.1 and later according to the referenced documentation.

Technical Specifications — 1C31189G03

The G03 version differs functionally from the G01 configuration: the G03 provides high-resolution speed plus acceleration measurement, whereas the documented G01 configuration includes overspeed-related functionality.

Emerson 1C31189G03

Key Features and Benefits — 1C31189G03

• High-resolution 32-bit speed measurement
• 16-bit acceleration measurement
• Suitable for rotating machinery monitoring
• Single speed-sensor interface
• Supports speed regulation applications
• Provides acceleration data for condition and control logic
• Designed for integration with Emerson Ovation systems
• Applicable to Ovation 3.3.1 and later software releases

A useful maintenance point is that the module should not be treated as a generic frequency-input card. Sensor characteristics, signal range, terminal-block arrangement, and Ovation configuration all affect correct operation.

Related Models

Emerson 1C31189G01: Ovation Speed Detector configuration supporting low- and high-resolution speed measurements and overspeed detection.

Emerson 1C31192G01: Speed Detector Personality Module used with compatible speed-detector configurations.

Emerson 1C31189G04: Related Speed Detector configuration providing high-resolution speed and acceleration measurement.

Emerson Ovation I/O Modules: The wider Ovation I/O family provides dedicated interfaces for analog, discrete, speed, and valve-positioning functions.

Installation and Maintenance — 1C31189G03

Before replacement, record the existing module position, terminal-block configuration, sensor wiring, and Ovation software configuration. Verify that the replacement is the correct G03 version and that the associated personality module is compatible.

Follow site electrical isolation and ESD procedures during installation. Inspect the sensor connections and terminal contacts for contamination, corrosion, or mechanical damage. After installation, confirm that the controller receives a stable speed value and that acceleration data is updating correctly.

Personally, I would compare the displayed speed against an independent reference during commissioning. This is a simple way to detect sensor or configuration problems before the equipment returns to normal operation.

Product Warranty — 1C31189G03

Warranty terms depend on the supplier, equipment condition, and purchase agreement. For new, surplus, or refurbished inventory, confirm the hardware revision, serial number, test status, and warranty period before purchase. Functional testing is recommended for units used in critical rotating-equipment applications.

The Emerson 1C31189G03 is best specified together with its Ovation configuration and associated speed-sensor hardware, particularly where speed and acceleration data contribute to turbine control or protection logic.
