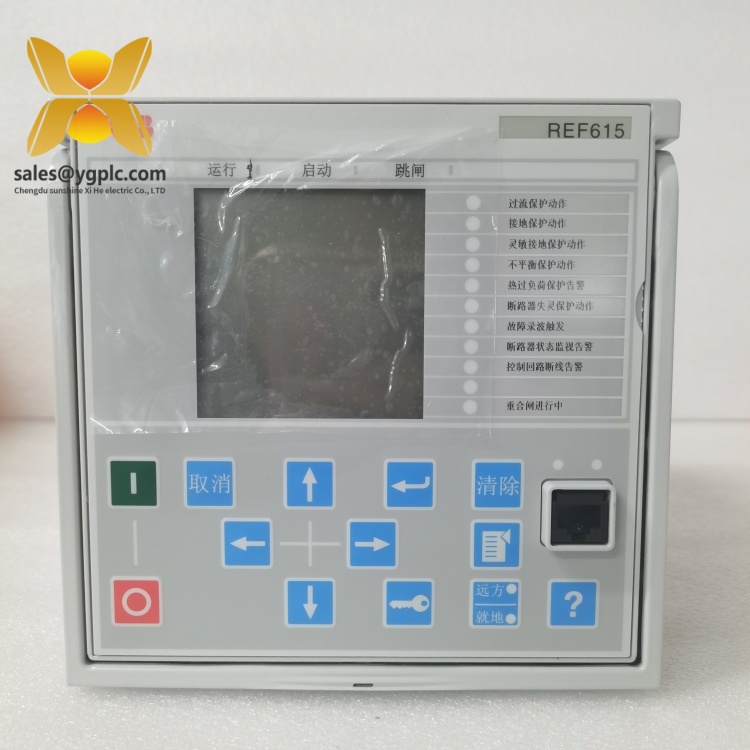

ABB REF615E_E HBFEAEAGABCCANC11E | Feeder Protection & Control Relay

Description

ABB REF615E_E HBFEAEAGABCCANC11E – Feeder Protection & Control Relay

(Warranty Provided by Our Company, Not ABB)

Product Overview

The ABB REF615E_E HBFEAEAGABCCANC11E is a high-performance, digital feeder protection and control relay, tailored for medium-voltage distribution networks. As a member of ABB’s Relion® 615 series, the REF615E_E delivers dependable protection, measurement, control, and supervisory capabilities for a variety of power distribution topologies—be it radial, looped, or meshed configurations, including those with distributed power generation

Compact and built with a plug-in design, the REF615E_E streamlines installation and commissioning, offering rapid deployment and simplified testing workflows. It supports advanced communication standards, including IEC 61850, Modbus, DNP3, and IEC 60870-5-103, enabling seamless integration with modern substation automation systems  Designed for operators seeking high reliability, flexibility, and interoperability, the REF615E_E is a solid choice in protective relay solutions.

Technical Specifications

Parameter	Specification
Manufacturer	ABB (design origin; warranty provided by our company, not ABB)
Model Number	REF615E_E HBFEAEAGABCCANC11E
Product Type	Feeder Protection & Control Relay
Product Series	Relion® 615
Protection Capabilities	Directional & non-directional overcurrent, earth-fault, voltage, frequency, and power-based protection
Measurement Functions	Voltage, current, power, power factor
Communication Interfaces	IEC 61850, DNP3, IEC 60870-5-103 (optional)
Installation Method	DIN-rail or panel mount
Warranty	12 months (provided by our company)
Product Origin	Sweden
Weight (approx.)	1 kg; shipping weight ~2 kg

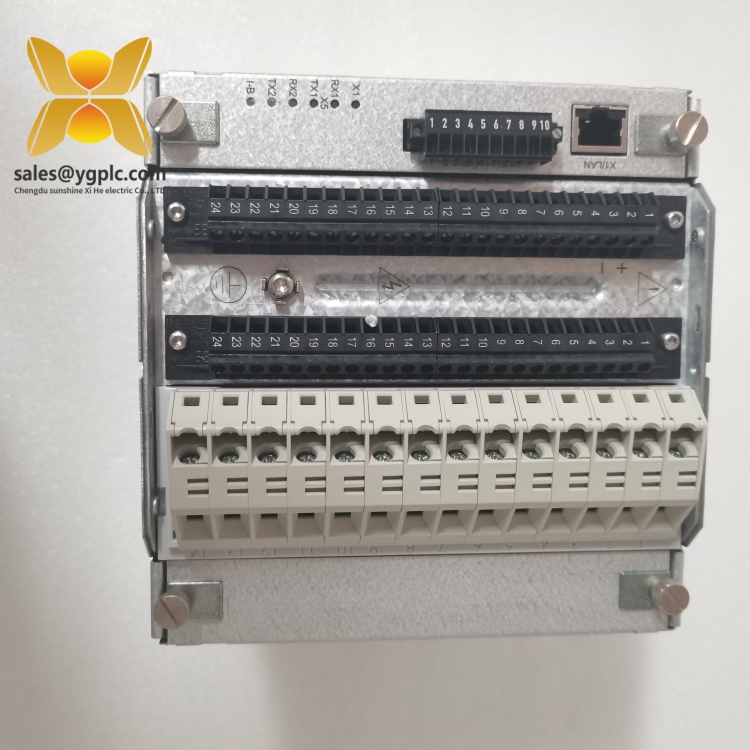

ABB REF615E_E HBFEAEAGABCCANC11E

Key Features & Benefits

• Comprehensive Protection Suite: Offers overcurrent, earth-fault, voltage/frequency, and power quality protections tailored for feeder-level applications.

• Integrated Measurement Tools: Enables in-depth monitoring with built-in metrics for voltage, current, active power, and power factor

• Modern Communication Support: Streams data via IEC 61850 (with HSR/PRP, GOOSE messaging), IEC 60870-5-103, and DNP3, aligning with smart grid architecture

• Quick Configuration and Maintenance: The compact, plug-in module design enables fast module exchange and reduces downtime.

• Preset Functionality: Supports standard protection profiles with easy customization to suit specific system layouts.

• High Reliability and Safety: Engineered with selectivity, sensitivity, and fault localization for robust feeder operation.

• Seamless Lifecycle Integration: Supports remote firmware updates, diagnostics, and lifecycle management.

• Proven Relion® Architecture: Built on ABB’s trusted series for substation protection and control

Applications

The REF615E_E HBFEAEAGABCCANC11E is well suited for:

• Feeder protection in utility substations, including overhead lines and cable feeders.

• Industrial power distribution networks requiring supervisory control, measurement, and automation.

• Smart grid and digital substation deployments leveraging IEC 61850 and other communication protocols.

• Systems requiring compact relay designs and high system availability.



  ABB REF615E_E HBFEAEAGABCCANC11E

Installation & Maintenance

• Mount the relay using standard DIN-rail or panel fixtures for streamlined integration.

• Configure protection logic via ABB’s engineering tools, such as PCM600 or Relay Configuration Manager.

• Use IEC 61850 for synchronized, automated communication, or set up Modbus/DNP3 for SCADA compatibility.

• Routine maintenance includes firmware updates, periodic diagnostic checks, and reviewing protection events and logs.

Warranty & After-Sales Service

The ABB REF615E_E HBFEAEAGABCCANC11E comes with a 12-month warranty provided by our company, not ABB. We ensure each unit undergoes rigorous testing to guarantee quality and reliability. Technical support, configuration assistance, and prompt replacement services are available to help maintain uninterrupted operations.

Related Models

• REF615E-D / REF615E-1G: Alternative protection relays in the 615 family for varied IEC 61850 communication or interface needs

• Other Relion® 615 relays with extended I/O or arc-fault protection are available for advanced system design.

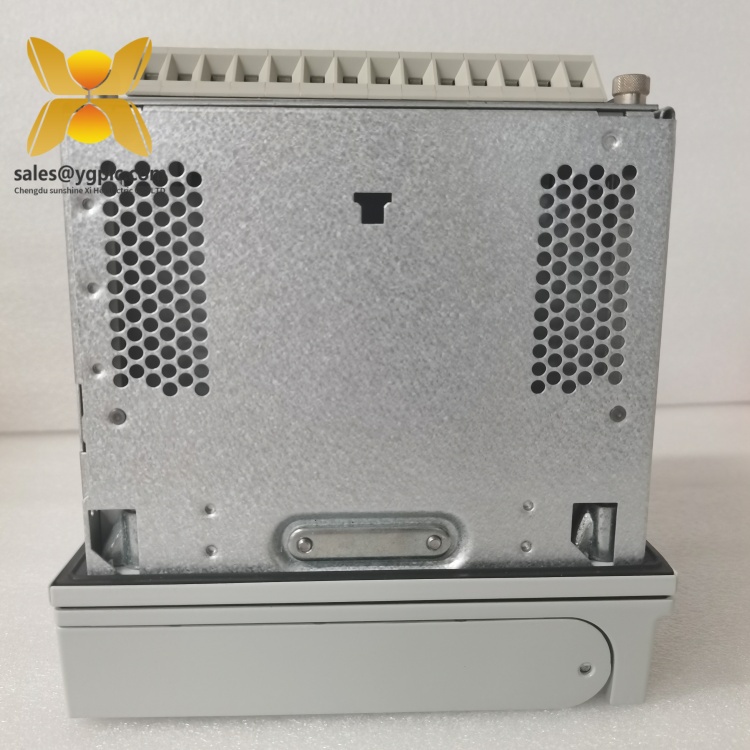

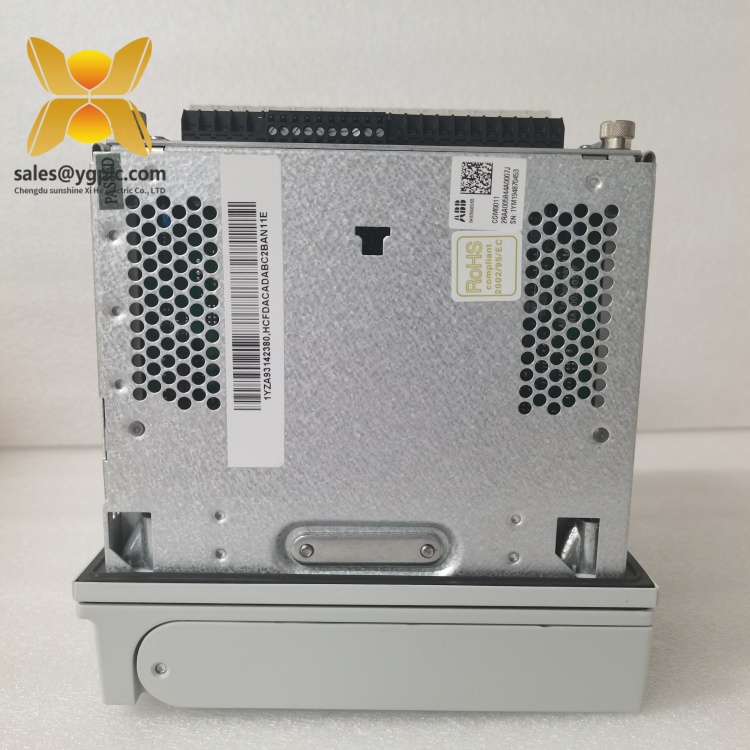

  ABB REF615E_E HBFEAEAGABCCANC11E

Conclusion & Call-to-Action

The ABB REF615E_E HBFEAEAGABCCANC11E delivers advanced feeder protection, measurement, and substation control in a compact and capable relay. With a 12-month company-backed warranty and full technical support, this module bridges reliable protection and future-ready communication—perfect for utilities and industrial automation needs.

Contact us now for pricing, stock availability, or tailored support to enhance your distribution network with the REF615E_E relay.
