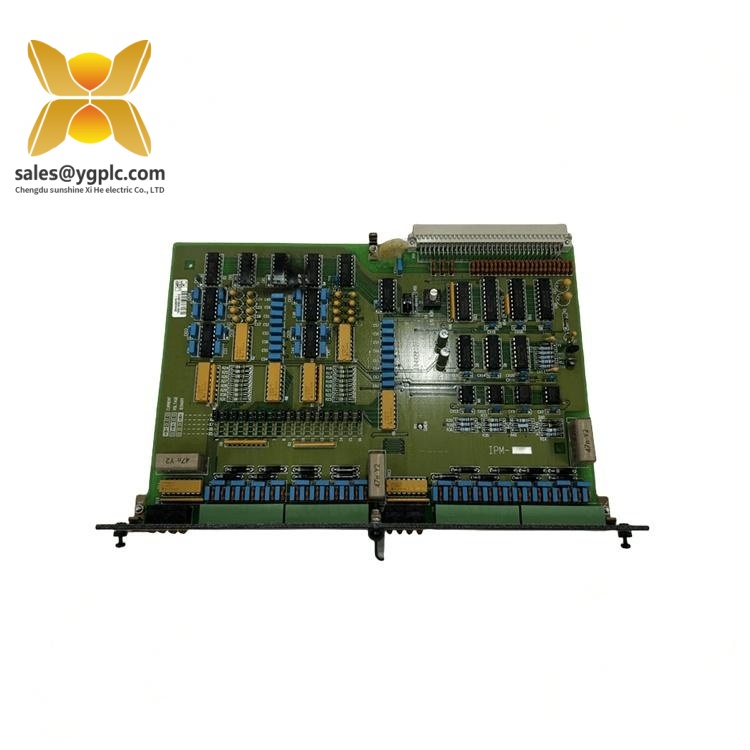

DEIF IPM-1 – Intelligent Power Management Controller for Multi-Source Electrical Systems
Product Overview
The DEIF IPM-1 is a high-performance intelligent power management controller designed for centralized monitoring and control of distributed power systems in marine, industrial, and power generation applications. It addresses the challenge of optimizing power distribution, load sharing, and system reliability across multiple energy sources including generators, grid connections, and renewable energy systems. This controller delivers precise electrical measurements, automatic load shedding, black start capabilities, and peak shaving functionality while ensuring compliance with industry safety standards. Its modular design and extensive communication options make it suitable for both new installations and retrofits in critical power infrastructure.
Technical Specifications — IPM-1
| Parameter | Value |
|---|---|
| Product Model | IPM-1 |
| Manufacturer | DEIF Controls A/S |
| Product Type | Intelligent Power Management Controller |
| Power | 100-240V AC input, 24V DC (12-36V DC operating range) |
| Communication / Protocol | Modbus TCP/RTU, CAN/CANopen, OPC UA, RS-485, Ethernet |
| Operating Temperature | -20°C to +60°C (-4°F to 140°F) |
| Mounting | 35mm DIN rail or panel backplate, control cabinet installation |
| Dimensions (HxWxD) | 145 x 210 x 75 mm (5.71″ x 8.27″ x 2.95″) |
| Weight | 0.8 kg (1.76 lbs) |
| Typical Interfaces | 8 analog inputs (0-20mA/0-10V), 16 digital inputs (24VDC), 8 digital outputs (24VDC, 0.5A per channel) |
| Compliance | IEC 61010, IEC 61131-2, CE, RoHS |
DEIF IPM-1
Key Features and Benefits — IPM-1
- Centralized Power Management: Provides unified control of multi-source electrical systems, optimizing load distribution and reducing operational costs.
- Advanced Load Management: Automates load sharing, load shedding, black start, and peak shaving functions to maintain system stability during fluctuating demand.
- Precise Electrical Monitoring: Delivers real-time measurements of voltage, current, frequency, power, energy, and power factor for comprehensive system oversight.
- Extensive Communication Options: Supports multiple industry-standard protocols for seamless integration with existing SCADA, DCS, and PLC systemsDEIF.
- Modular Expandability: Accommodates system growth with additional I/O modules and communication interfaces without major infrastructure changes.
- Robust Industrial Design: Engineered for reliable operation in harsh environments with high noise immunity and wide temperature tolerance.
Related Models
IPM-2: Enhanced power management controller with increased I/O capacity (16 analog inputs, 32 digital inputs) for large-scale systems.
PPM 300: Marine-focused power management system with dedicated vessel operation modes (auto, secure, harbour, shore).
AGC 150: Advanced genset controller optimized for synchronization and protection in standalone or parallel generator applicationsDEIF.
iE 250 PLC: Linux-based programmable automation controller for seamless integration of power management with process control functions.
Installation and Maintenance
- Mount the controller on a 35mm DIN rail or panel backplate in a control cabinet with proper ventilation and protection from dust and moisture.
- Connect power sources, sensors, and control devices to designated I/O terminals, ensuring correct polarity and signal type matching.
- Configure communication parameters via the built-in HMI or web interface to enable data exchange with supervisory systems.
- Utilize LED indicators and diagnostic tools to monitor system status, power quality, and communication health.
- Perform regular firmware updates and calibration checks according to manufacturer guidelines to maintain optimal performance and complianceDEIF.
- Follow recommended wiring practices to segregate power and signal cables, minimizing electrical interference and ensuring measurement accuracy.
