BENTLY 3500/92 136180-01 | Communication Gateway Module | 3500/93 135785-01 Bently Nevada

Original price was: $1,500.00.Current price is: $1,200.00.

Brand model:Bently Nevada
Product Name:3500/92 136180-01
Warranty: 1 year
Size:10.16 cm (H) × 16.51 cm (W) × 22.86 cm (D)
Weight:0.9kg
Origin:USA
Inventory: Spot/Futures
Goods condition: Brand new
Delivery time: 3-4days/1month

Get a Quote
Category: Brand:

Description

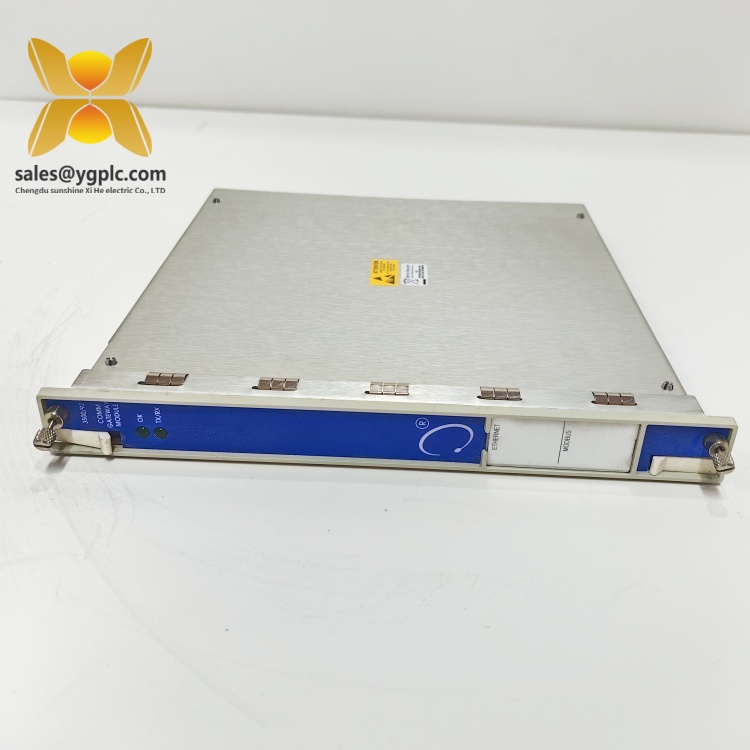

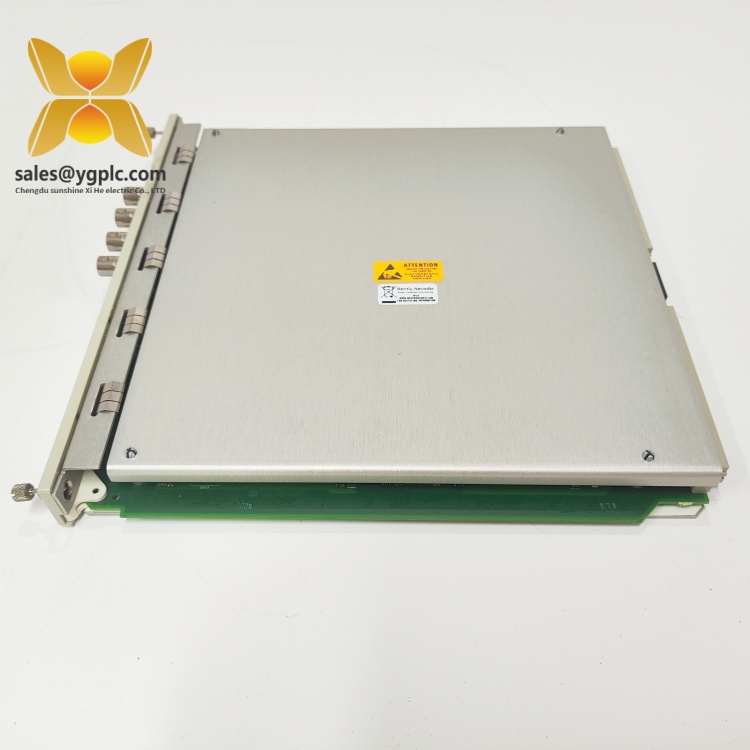

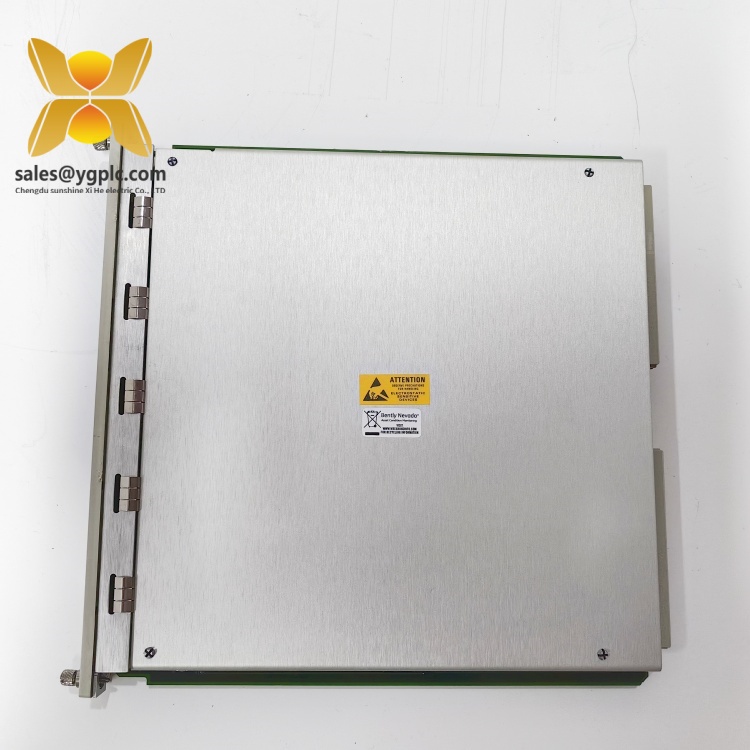

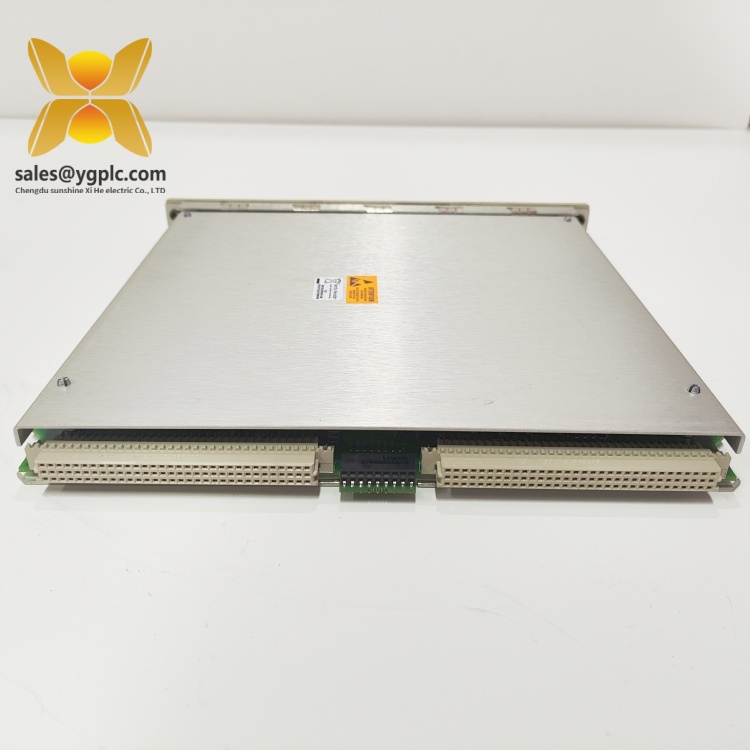

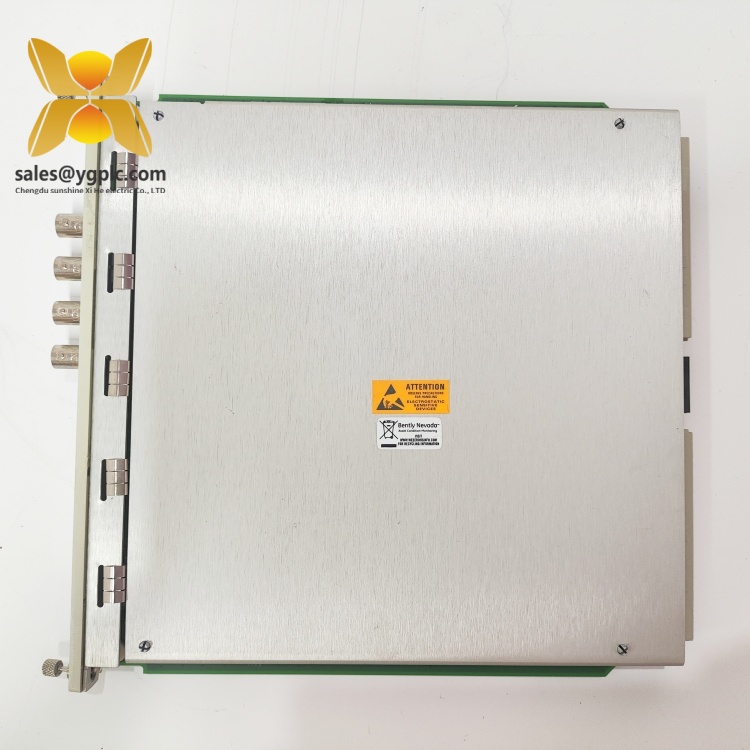

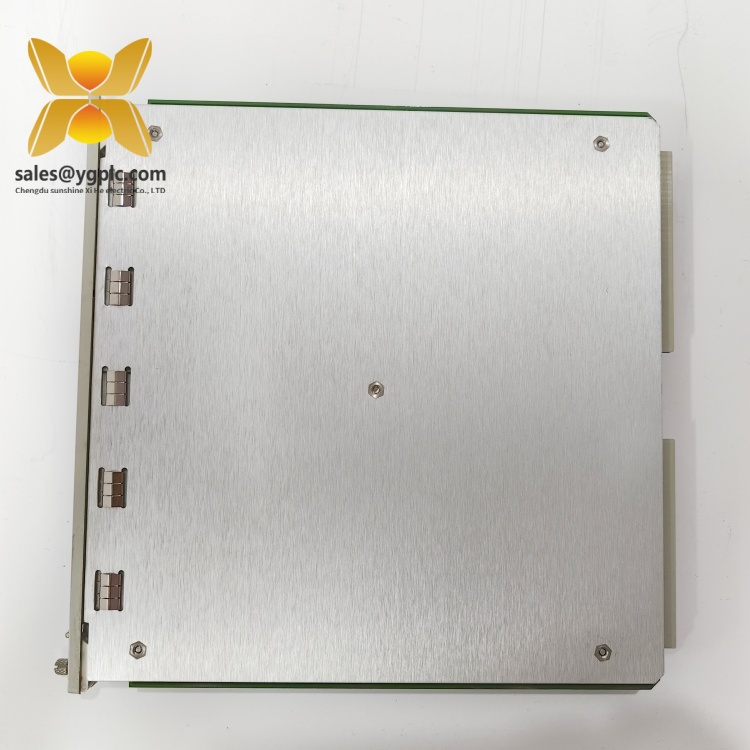

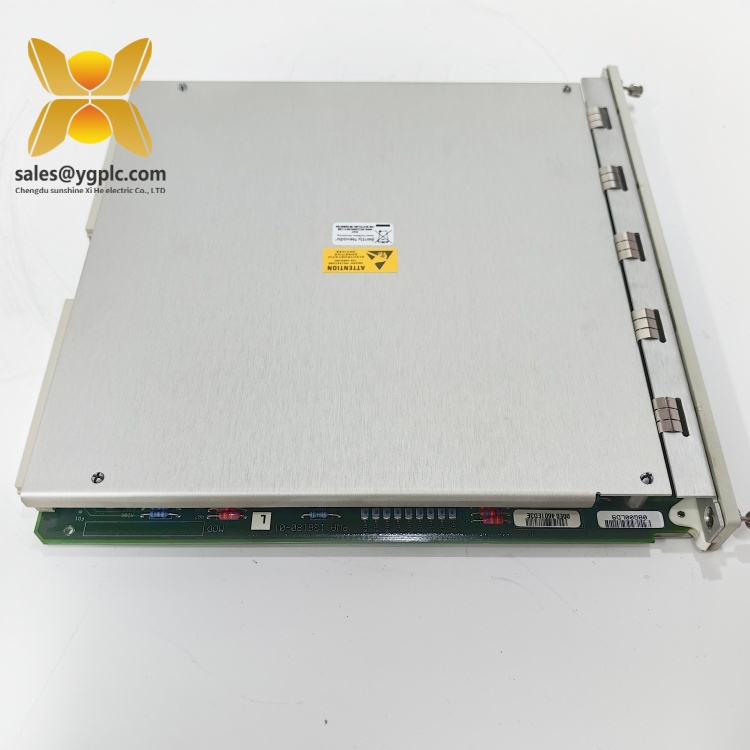

BENTLY 3500/92 136180-01 Communication Gateway Module

Product Overview：BENTLY 3500/92 136180-01

The BENTLY 3500/92 136180-01 is a high-performance Communication Gateway Module designed as a critical component of Bently Nevada’s 3500 Series Machinery Protection System, a leading platform for monitoring and protecting rotating equipment in industrial automation. Engineered to facilitate seamless data exchange between the 3500 Series rack and higher-level control systems, this module serves as a bridge between proprietary machinery protection networks and open industrial communication protocols. The 3500/92 136180-01 enables real-time transmission of vibration, temperature, and speed data to DCS, SCADA, or PLC systems, empowering operators to make informed decisions for predictive maintenance and process optimization.



As part of the 3500 Series ecosystem, the 3500/92 136180-01 supports multiple communication protocols, including MODBUS RTU, MODBUS TCP, and Ethernet/IP, ensuring compatibility with diverse automation environments. Its dual Ethernet ports enable redundant network configurations, enhancing system reliability in mission-critical applications such as oil & gas refineries, power plants, and manufacturing facilities. The module’s configurable data mapping features allow users to customize which parameters are transmitted, reducing network traffic and focusing on critical machinery health indicators.



In industrial systems, the BENTLY 3500/92 136180-01 plays a pivotal role in centralizing machinery diagnostics, enabling remote monitoring via enterprise-level software. Its rugged design (IP54-rated enclosure) and wide operating temperature range (-40°C to +85°C) ensure reliable performance in harsh environments, while built-in cybersecurity features (e.g., firewall, encryption) protect against unauthorized access. By integrating advanced communication capabilities with robust industrial durability, this module enhances the scalability and intelligence of machinery protection systems, reducing downtime and extending asset lifespan.

Technical Specifications：BENTLY 3500/92 136180-01

Parameter Name Parameter Value
Product Model 3500/92 136180-01
Manufacturer Bently Nevada
Product Type Communication Gateway Module
Protocol Support MODBUS RTU, MODBUS TCP, Ethernet/IP, Bently Nevada Proprietary Bus
Network Interfaces 2 × 10/100 Mbps Ethernet ports (RJ45), 1 × RS-485 (MODBUS RTU)
Data Throughput Up to 1000 data points per second
Configuration Tool 3500 Series Configuration Software (3500/44M)
Physical Dimensions 10.16 cm (H) × 16.51 cm (W) × 22.86 cm (D)
Weight 0.9 kg
Power Supply 19.2–26.4 VDC (derived from 3500 Series rack)
Operating Temperature -40°C to +85°C
Mounting Rack-mounted in 3500 Series enclosure
Certifications CE, UL, cUL
3500/92 136180-01

3500/92 136180-01

Key Features and Advantages：BENTLY 3500/92 136180-01

Multi-Protocol Connectivity: The 3500/92 136180-01 supports simultaneous communication over multiple protocols, allowing integration with both legacy and modern control systems. This flexibility eliminates the need for dedicated gateways, reducing hardware complexity and costs.



Redundant Network Design: With dual Ethernet ports, the module supports network redundancy (e.g., ring topology), ensuring continuous data transmission even if one network path fails. This is critical for maintaining uninterrupted monitoring in high-stakes environments.



Advanced Data Mapping: Users can configure which parameters (e.g., vibration amplitude, bearing temperature) are transmitted and how they are formatted, optimizing network efficiency and focusing on relevant machinery health data. This feature simplifies integration with SCADA systems by aligning with existing tag structures.



Rugged Industrial Compliance: Built to withstand extreme environmental conditions, the module’s metal enclosure and conformal-coated circuitry resist vibration, moisture, and electromagnetic interference, making it suitable for harsh industrial settings such as offshore platforms and steel mills.



Cybersecurity Features: The module includes built-in security protocols to prevent unauthorized access, including IP filtering, password protection, and secure data encryption, ensuring compliance with modern industrial cybersecurity standards.



Plug-and-Play Integration: Designed specifically for the 3500 Series, the 3500/92 136180-01 requires no additional software licenses for basic functionality. Its intuitive configuration interface via the 3500 Series software reduces setup time and minimizes configuration errors.

3500/92 136180-01

3500/92 136180-01

Application Areas：BENTLY 3500/92 136180-01

The BENTLY 3500/92 136180-01 is indispensable in industries where centralized monitoring and remote diagnostics are critical:



  • Oil & Gas: Transmits real-time vibration data from compressors and turbines to central control rooms in refineries and pipelines, enabling early detection of mechanical issues and preventing costly shutdowns.
  • Power Generation: Integrates with DCS systems in thermal, hydro, and nuclear power plants to monitor generator health, optimize maintenance schedules, and ensure grid stability.
  • Manufacturing: Connects machinery protection systems to enterprise-level ERP systems in automotive and pharmaceutical facilities, providing actionable insights for predictive maintenance and production optimization.
  • Mining & Metals: Supports remote monitoring of heavy machinery (e.g., crushers, conveyors) in harsh outdoor environments, reducing downtime and improving operational safety.



Specific applications include:



  • Predictive Maintenance Platforms: Feeds real-time machinery data into analytics tools (e.g., AI-driven condition monitoring systems) to identify trends and predict component failures.
  • Remote Operations Centers: Enables operators in centralized hubs to monitor multiple sites globally, reducing the need for on-site personnel and enhancing response times to critical events.
  • Compliance Reporting: Provides traceable data for regulatory audits, ensuring adherence to safety standards in industries like chemical processing and aerospace.

Related Products：BENTLY 3500/92 136180-01

  1. 3500/22M Keyphasor Module: Works alongside the 3500/92 136180-01 to provide rotational speed and phase data, forming the basis for vibration analysis in 3500 Series systems.
  2. 3500/42M Vibration Monitor: Captures vibration data and transmits it to the 3500/92 136180-01 for onward communication to control systems.
  3. 3500/05 Rack Enclosure: Houses the 3500/92 136180-01 and other 3500 Series modules, providing a unified and protected hardware platform.
  4. 3500/32M Relay Module: Triggers alarms or shutdowns based on data from the 3500/92 136180-01, enhancing safety by integrating communication with control actions.
  5. 3500/53 Speed/Torque Module: Expands the system’s data portfolio by measuring rotational speed and torque, with data transmitted via the 3500/92 136180-01.
  6. 3300 XL Proximity Probes: Sensors that feed displacement data to the 3500 Series, which is then communicated via the 3500/92 136180-01 to higher-level systems.
  7. 3500/94M Wireless Gateway: Complements the 3500/92 136180-01 in wireless monitoring setups, enabling data transmission in areas with limited wired connectivity.
    3500/92 136180-01

    3500/92 136180-01

Installation and Maintenance：BENTLY 3500/92 136180-01

Pre-installation Preparations:
Before installing the BENTLY 3500/92 136180-01, ensure the 3500 Series rack is powered and grounded. Connect the module to the rack’s backplane and secure it with the provided screws. Use shielded Ethernet cables for network connections to minimize interference. Configure the module’s IP address, protocols, and data mapping using Bently Nevada’s 3500 Series Configuration Software, ensuring compatibility with the target control system’s network parameters.



Maintenance Suggestions:



  • Routine Checks: Monthly inspections should verify network connectivity via the module’s status LEDs and ensure no loose connections. Monitor data transmission logs for errors or anomalies using the configuration software.
  • Firmware Updates: Periodically update the module’s firmware to access new protocol support or security patches, following Bently Nevada’s documented procedures to avoid data loss or system disruptions.
  • Redundancy Testing: Quarterly tests of dual Ethernet ports and protocol failover mechanisms ensure reliable operation. Document test results to maintain compliance with maintenance standards.
  • Spare Parts Management: Store spare 3500/92 136180-01 modules in a static-free environment with controlled temperature and humidity to ensure rapid deployment during unexpected failures.
    3500/92 136180-01

    3500/92 136180-01

Product Guarantee：BENTLY 3500/92 136180-01

Our company provides a 12-month quality warranty for the BENTLY 3500/92 136180-01, covering hardware defects under normal use. In the event of performance issues, we offer prompt replacement services to minimize downtime. For legacy or discontinued models like the 3500/92 136180-01, our global supply chain network specializes in sourcing rare industrial control components, ensuring quick delivery for urgent needs. Our technical support team is available 24/7 to assist with network configuration, troubleshooting, and system integration, delivering tailored solutions to keep your communication infrastructure reliable.
