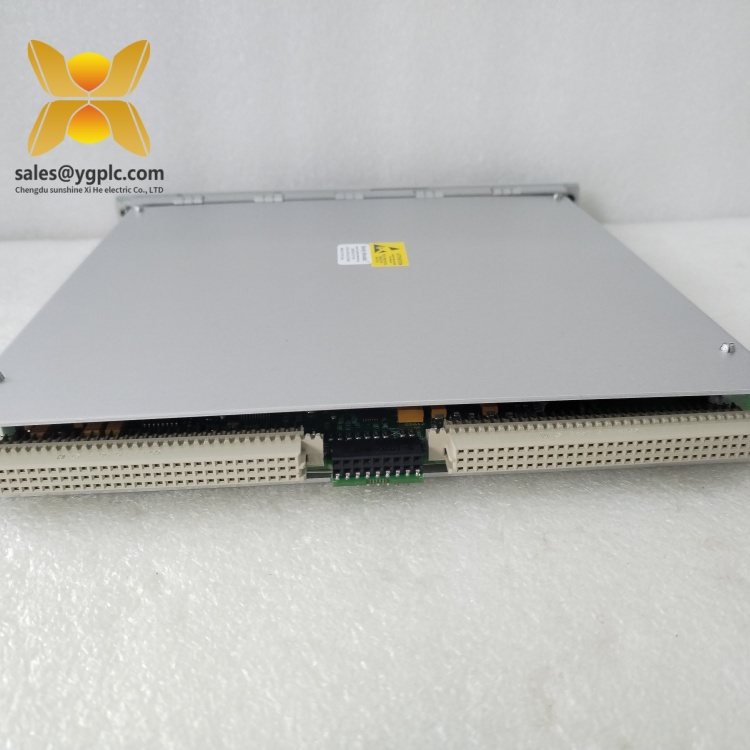

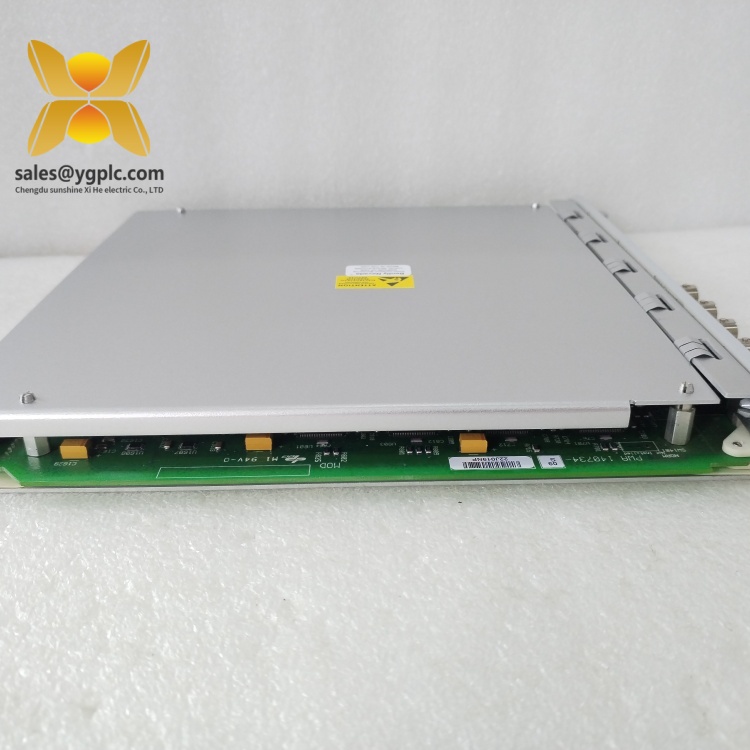

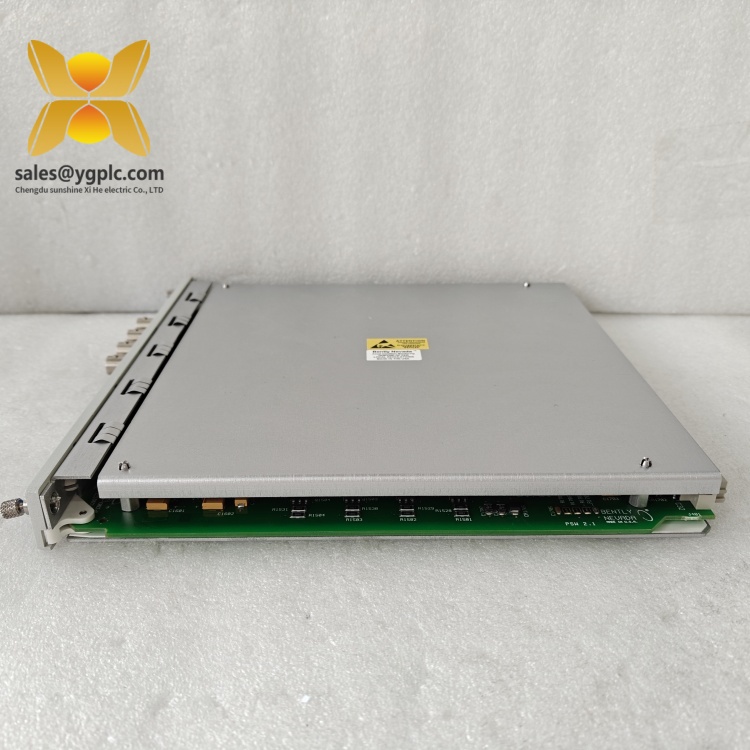

BENTLY 3500/77M 176449-07 Dual-Channel Vibration Monitoring Module
Product Overview: BENTLY 3500/77M 176449-07
The BENTLY 3500/77M 176449-07 dual-channel vibration monitoring module is a high-precision industrial component designed for real-time mechanical health assessment within Bently Nevada’s 3500 Series Machinery Health Monitoring System. Engineered to detect and analyze vibration patterns in rotating equipment, this module serves as a critical component for predictive maintenance in mission-critical applications. The 3500/77M 176449-07 integrates two independent channels for simultaneous monitoring of vibration velocity and acceleration, enabling comprehensive diagnostics of machinery such as turbines, compressors, and motors.
Featuring advanced signal processing algorithms, the 3500/77M 176449-07 converts raw vibration data from proximity probes and accelerometers into actionable insights, supporting early fault detection for issues like misalignment, bearing wear, or imbalance. Its 4–20 mA analog outputs and Modbus RTU/TCP digital communication ensure seamless integration with distributed control systems (DCS) and supervisory control networks. The module’s rugged metal enclosure and -40°C to +85°C operating range make it suitable for harsh industrial environments, from power plants to offshore platforms.
As part of the 3500 Series, the 3500/77M 176449-07 enhances system reliability by providing real-time vibration trends and alarm conditions, minimizing unplanned downtime and optimizing maintenance schedules. Its compatibility with Bently Nevada’s 3500 Rack systems (e.g., 3500/05) and compliance with API 670 standards solidify its role as a trusted solution for industries reliant on precise machinery monitoring.
Technical Specifications: BENTLY 3500/77M 176449-07
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3500/77M 176449-07 |
| Manufacturer | BENTLY NEVADA |
| Product Type | Dual-Channel Vibration Monitoring Module |
| Input Channels | 2 independent channels (velocity/acceleration) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Output Signals | 2 x 4–20 mA, Modbus RTU/TCP |
| Physical Dimensions | 160 mm (H) × 110 mm (W) × 250 mm (D) |
| Weight | 1.3 kg |
| Operating Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | 3500 Rack (slot-compatible) |
| Compliance | API 670, IEC 61000-6-2 |
| Country of Origin | United States |
Main Features and Advantages: BENTLY 3500/77M 176449-07
Dual-Channel Precision Monitoring: The 3500/77M 176449-07 simultaneously measures vibration velocity and acceleration on two channels, providing comprehensive data for detailed machinery analysis. This dual capability enables users to detect both low-frequency imbalance and high-frequency bearing defects, enhancing fault diagnosis accuracy.
Reliable Signal Conditioning: Advanced filtering and amplification ensure accurate vibration data even in high-noise environments. The module’s 16-bit analog-to-digital conversion maintains measurement fidelity, critical for early fault detection in rotating equipment.
Seamless System Integration: With native support for Modbus communication and 4–20 mA outputs, the module integrates effortlessly with PLCs, SCADA systems, and Bently Nevada’s System 1 software for centralized monitoring. Its hot-swappable design allows replacement without system shutdown, minimizing downtime.
Industrial-Grade Durability: The module’s rugged enclosure and wide temperature tolerance withstand harsh conditions, including vibration, dust, and moisture. This durability reduces maintenance needs and extends service life in demanding industrial settings.
Configurable Alarm Thresholds: Users can define custom alarm and trip levels for each channel, triggering both local indicators and remote notifications. This proactive feature enables timely response to developing issues, preventing catastrophic failures.
Application Areas: BENTLY 3500/77M 176449-07
The BENTLY 3500/77M 176449-07 is essential for industries requiring continuous machinery health monitoring:
- Power Generation: Monitors steam turbines, generators, and auxiliary pumps in thermal and renewable energy plants, ensuring optimal performance and grid stability.
- Oil and Gas: Deployed in refineries, pipelines, and offshore platforms to monitor compressors, motors, and rotating equipment in harsh, corrosive environments.
- Manufacturing: Integrates with CNC machines, robotic arms, and conveyor systems to maintain production quality by detecting vibration-induced anomalies early.
- Water Treatment: Controls pumps and blowers in water/wastewater plants, supporting continuous operation and regulatory compliance.
- Aerospace and Defense: Used in aircraft ground support equipment and military machinery, where reliable vibration data is critical for mission readiness.
Related Products: BENTLY 3500/77M 176449-07
- 3500/42M Vibration Monitoring Module: A single-channel variant for basic vibration analysis, complementing the 3500/77M 176449-07 in simpler setups.
- 3500/92M Communication Gateway (136180-01): Enables Ethernet connectivity for the 3500/77M 176449-07, facilitating remote data access and cloud integration.
- 3500/05 Rack Enclosure: Houses the 3500/77M 176449-07 and other 3500 Series modules, providing power distribution and mechanical support.
- 3500/32 Relay Module (125712-01): Triggers alarms/trips based on 3500/77M 176449-07 data, enhancing safety interlock systems.
- 3500/22M Proximitor Interface Module: Processes proximity probe signals for shaft displacement, working alongside the 3500/77M 176449-07 for comprehensive machinery analysis.
- 106M1081-01 Vibration Proximity Probe: A 配套使用 sensor that feeds vibration data to the 3500/77M 176449-07 for accurate measurement.
Installation and Maintenance: BENTLY 3500/77M 176449-07
Pre-installation Preparations:
Before installing the 3500/77M 176449-07, verify the 3500 Rack is properly grounded and powered (24V DC). Clean the rack slot and align the module with the guides, securing it with retention brackets. Connect vibration sensor cables to the terminal block, ensuring shielded wiring to minimize EMI. Configure channel parameters (e.g., measurement units, alarm thresholds) using Bently Nevada’s 3500 Configuration Software and test signal integrity before commissioning.
Before installing the 3500/77M 176449-07, verify the 3500 Rack is properly grounded and powered (24V DC). Clean the rack slot and align the module with the guides, securing it with retention brackets. Connect vibration sensor cables to the terminal block, ensuring shielded wiring to minimize EMI. Configure channel parameters (e.g., measurement units, alarm thresholds) using Bently Nevada’s 3500 Configuration Software and test signal integrity before commissioning.
Maintenance Recommendations:
- Routine Checks: Monthly visual inspections for loose connections, damaged cables, or overheating. Use the module’s LED indicators to verify operational status.
- Calibration: Annually calibrate the module with a certified vibration source to maintain measurement accuracy. Reference Bently Nevada’s procedures for step-by-step guidance.
- Firmware Updates: Periodically update firmware via the rack’s communication interface to access new features and bug fixes.
- Spare Parts Management: Keep a spare 3500/77M 176449-07 on hand, leveraging our global supply chain for quick replacement of discontinued or urgent components.
Product Guarantee: BENTLY 3500/77M 176449-07
Our company provides a 12-month quality warranty for the BENTLY 3500/77M 176449-07 dual-channel vibration monitoring module, covering non-human-induced hardware defects. During the warranty period, we will replace any module with abnormal output, communication failures, or physical damage at no cost. For urgent needs or discontinued models, our extensive inventory and global logistics network ensure prompt fulfillment, minimizing downtime and supporting continuous industrial operation.
With 17 years of expertise in industrial control distribution, we are committed to reliable products and exceptional service. The 3500/77M 176449-07 exemplifies our dedication to quality, offering precise vibration monitoring for critical machinery. Contact us today to optimize your predictive maintenance strategy with this advanced module.
Note: All product names, logos, and brands are property of their owners. This document is informational and does not substitute for Bently Nevada’s official technical manuals.
