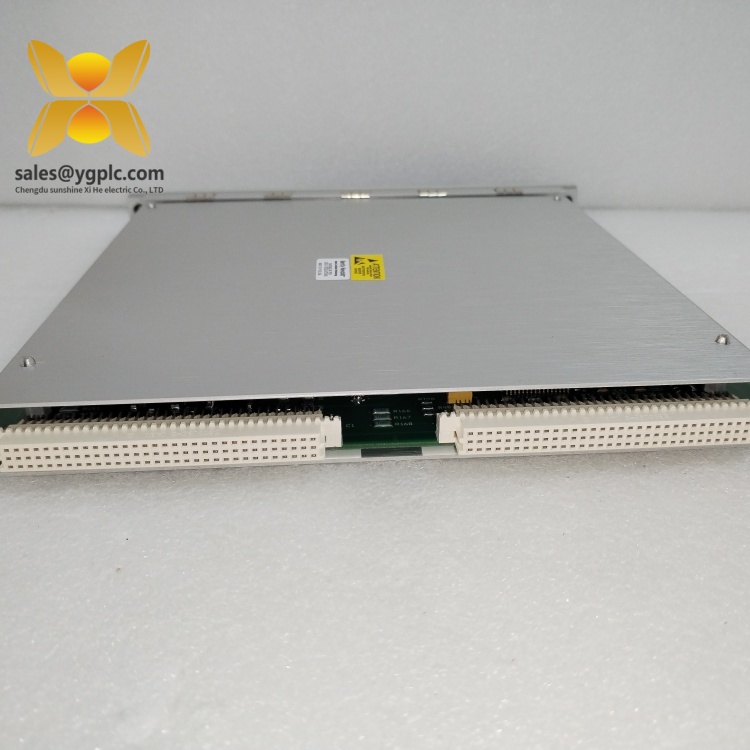

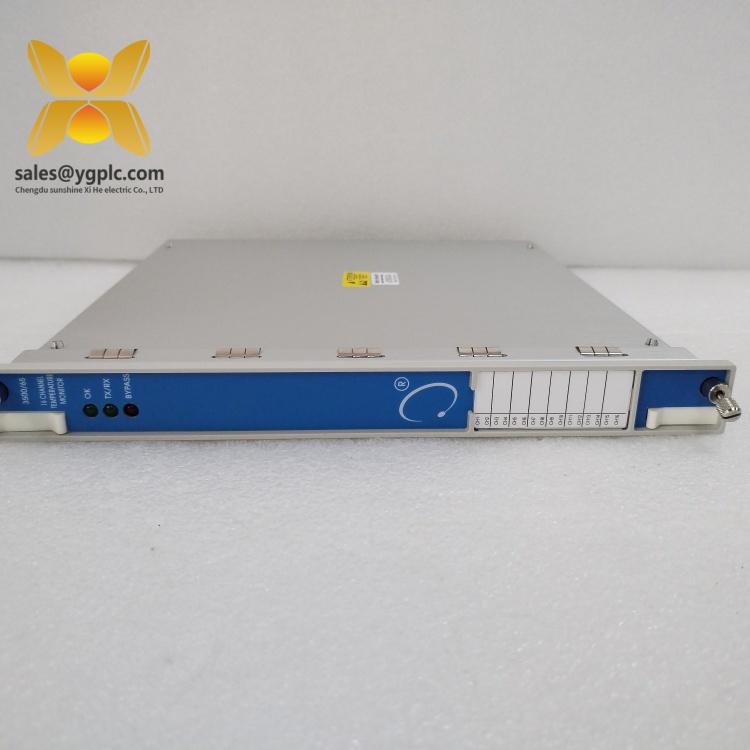

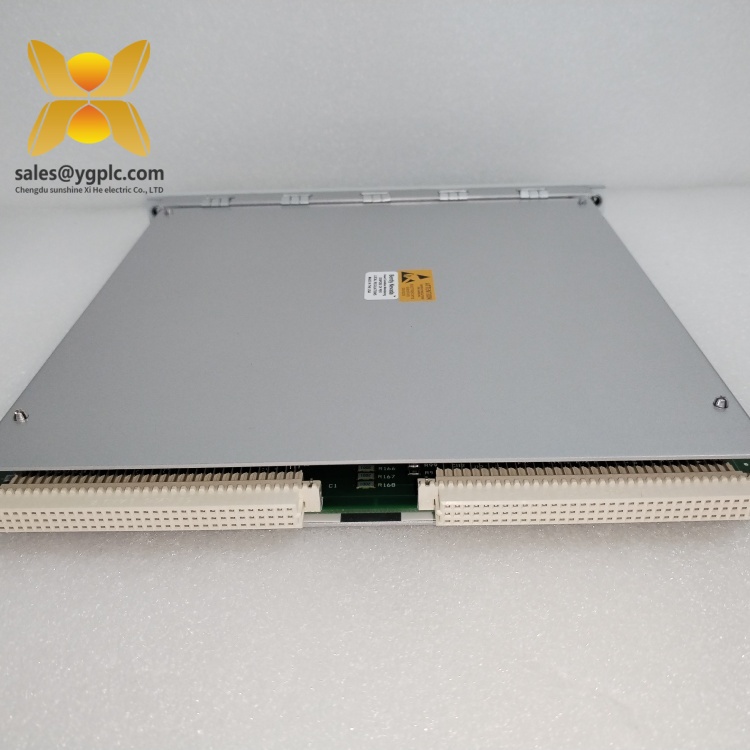

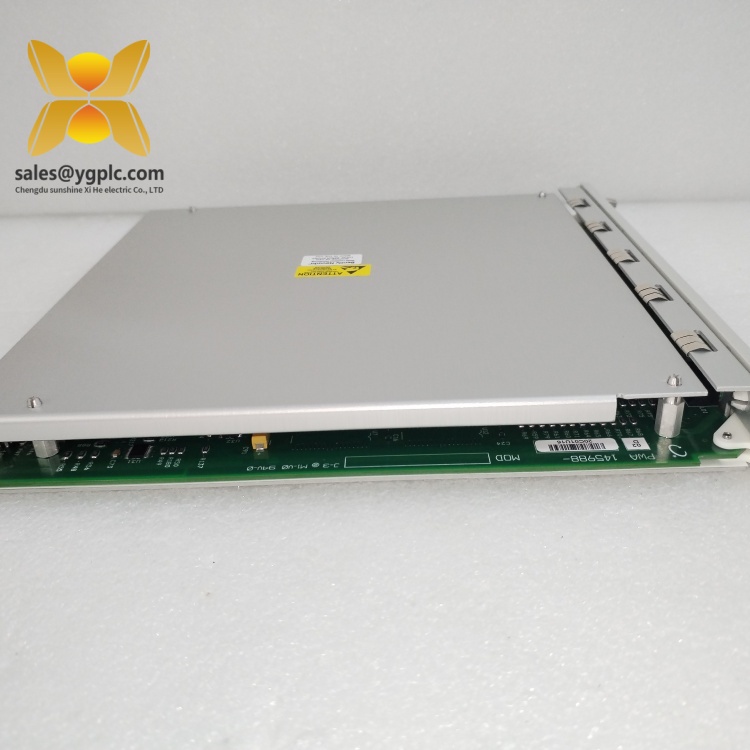

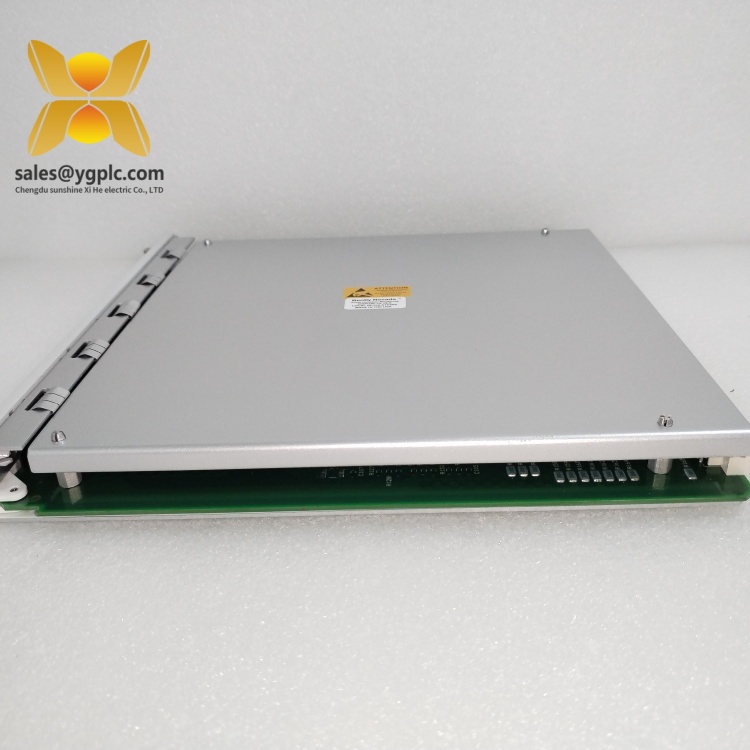

BENTLY 3500/65 145988-02 02D Machinery Protection Module
Product Overview
The BENTLY 3500/65 145988-02 02D is a high-precision Machinery Protection Module designed as a critical component of Bently Nevada’s 3500 Series Machinery Protection System. Engineered to monitor and analyze vibration signals from rotating equipment, this module plays a pivotal role in detecting mechanical issues such as imbalance, misalignment, and bearing wear in turbines, compressors, and generators. As part of the 3500 Series, the 3500/65 145988-02 02D integrates seamlessly with other 3500 modules (e.g., power supplies, communication gateways) to form a comprehensive monitoring ecosystem for industrial applications requiring high reliability and safety.
Featuring a rugged industrial design, the BENTLY 3500/65 145988-02 02D supports up to four channels of vibration measurement, converting analog signals from proximity probes or accelerometers into digital data for real-time analysis. Its advanced signal processing algorithms enable frequency-domain analysis, trend monitoring, and alarm triggering based on API 670 standards. The module’s dual-channel redundancy ensures continuous operation even during component failures, while its hot-swappable architecture allows maintenance without system shutdown. With a wide operating temperature range (-40°C to +70°C) and IP65 environmental rating, the 3500/65 145988-02 02D withstands harsh industrial environments, making it indispensable for sectors like oil & gas, power generation, and manufacturing.
In automation systems, the 3500/65 145988-02 02D serves as the backbone of machinery health monitoring, providing actionable insights to prevent catastrophic failures and optimize maintenance schedules. Its compatibility with BENTLY’s 3500/92 Communication Gateway enables remote data access and integration with SCADA/DCS systems, enhancing operational visibility and efficiency. By combining precise vibration analysis with robust fault tolerance, this module delivers unparalleled value in protecting high-value industrial assets.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3500/65 145988-02 02D |
| Manufacturer | Bently Nevada |
| Product Type | Machinery Protection Module (Vibration Monitoring) |
| Input Channels | 4 channels (proximity probe/accelerometer) |
| Measurement Range | 0–100 mils (0–2.54 mm) displacement, 0–100 in./sec (0–2540 mm/sec) velocity |
| Frequency Response | 0.1–10,000 Hz |
| Output Signal | 4–20 mA, 0–10 V DC |
| Communication | Proprietary 3500 Series bus (MODBUS via gateway) |
| Physical Dimensions | 10.16 cm (H) × 16.51 cm (W) × 22.86 cm (D) |
| Weight | 0.8 kg |
| Operating Temperature | -40°C to +70°C |
| Mounting | Rack-mounted in 3500 Series enclosure |
| Certifications | CE, UL, API 670, IEC 61508 (SIL 2) |
Key Features and Advantages
Multi-Channel Vibration Analysis: The 3500/65 145988-02 02D monitors up to four vibration channels simultaneously, supporting both displacement and velocity measurements to detect diverse mechanical faults. This multi-channel capability reduces hardware requirements and simplifies system integration.
Advanced Signal Processing: Equipped with FFT-based spectral analysis and time-waveform monitoring, the module identifies fault signatures such as resonance, looseness, and bearing defects with high precision. Its trend analysis tools enable predictive maintenance by tracking gradual performance degradation.
Dual-Channel Redundancy: Each channel features independent signal conditioning and processing, ensuring continuous operation if one channel fails. This redundancy meets SIL 2 safety requirements for critical applications.
Hot-Swap Capability: The module can be replaced without powering down the rack, minimizing downtime during maintenance. This feature is essential for 24/7 industrial operations where system availability is critical.
Rugged Environmental Design: With an IP65-rated enclosure and conformal-coated circuitry, the 3500/65 145988-02 02D withstands dust, moisture, and vibration, making it suitable for offshore platforms, refineries, and other harsh environments.
Seamless System Integration: Compatible with BENTLY’s 3500 Series software and hardware ecosystem, the module interfaces with HMIs, data historians, and enterprise systems via open protocols, enabling comprehensive asset management.
Application Areas
The BENTLY 3500/65 145988-02 02D is vital for vibration monitoring in industries where equipment reliability is non-negotiable:
- Oil & Gas: Monitors compressors, pumps, and turbines in refineries, pipelines, and offshore rigs to detect early signs of mechanical degradation, preventing unplanned shutdowns and production losses.
- Power Generation: Installed on steam turbines, generators, and auxiliary equipment in thermal, hydro, and nuclear plants to ensure grid stability and optimize maintenance cycles.
- Manufacturing: Used in high-speed rotating machinery (e.g., motors, fans, conveyors) in automotive, chemical, and food processing facilities to maintain production continuity and product quality.
- Mining and Metals: Deployed on crushers, mills, and ventilation systems to monitor equipment health in harsh mining environments, reducing maintenance costs and improving operational efficiency.
Specific applications include:
- Turbine Health Monitoring: Analyzes rotor vibrations in steam turbines to detect imbalance or misalignment, preventing catastrophic failures.
- Compressor Protection: Monitors bearing vibrations in natural gas compressors to trigger alarms before component failure.
- Predictive Maintenance: Tracks vibration trends in critical equipment to schedule maintenance proactively, reducing downtime and repair costs.
Related Products
- 3500/42M Vibration Monitor: A single-channel variant for basic vibration analysis, complementing the 3500/65 145988-02 02D in multi-channel setups.
- 3500/22M Keyphasor Module: Provides rotational reference signals for phase-locked vibration analysis with the 3500/65 145988-02 02D.
- 3500/15 Power Supply Module: Ensures redundant power for the 3500/65 145988-02 02D and other 3500 Series modules.
- 3500/92 Communication Gateway: Enables Ethernet connectivity for remote monitoring of the 3500/65 145988-02 02D via Modbus TCP.
- 3300 XL Proximity Probe System: Supplies vibration signals to the 3500/65 145988-02 02D for displacement measurement.
- 3500/32M Relay Module: Triggers alarms or shutdowns based on vibration data from the 3500/65 145988-02 02D in safety-critical applications.
Installation and Maintenance
Pre-installation Preparations:
Before installing the BENTLY 3500/65 145988-02 02D, ensure the 3500 Series rack is properly grounded and ventilated. Verify compatibility with vibration sensors (proximity probes or accelerometers) and route shielded cables away from high-voltage lines to minimize interference. Mount the module in the rack using provided hardware, ensuring adequate spacing for heat dissipation. Configure channel parameters (e.g., sensor type, alarm thresholds) using BENTLY’s 3500 Configuration Software and calibrate each channel with a known vibration source to validate accuracy.
Before installing the BENTLY 3500/65 145988-02 02D, ensure the 3500 Series rack is properly grounded and ventilated. Verify compatibility with vibration sensors (proximity probes or accelerometers) and route shielded cables away from high-voltage lines to minimize interference. Mount the module in the rack using provided hardware, ensuring adequate spacing for heat dissipation. Configure channel parameters (e.g., sensor type, alarm thresholds) using BENTLY’s 3500 Configuration Software and calibrate each channel with a known vibration source to validate accuracy.
Maintenance Suggestions:
- Routine Inspections: Quarterly visual checks of LED indicators to verify module health and signal status. Use BENTLY’s diagnostic tools to review channel performance and trending data.
- Calibration: Annually calibrate the 3500/65 145988-02 02D using a vibration shaker table to maintain measurement accuracy. Document calibration results for compliance.
- Environmental Management: Clean module vents monthly to prevent dust accumulation, especially in dusty environments. Ensure the control room maintains stable temperature (20–25°C) and humidity (40–60%).
- Spare Parts Management: Store spare 3500/65 145988-02 02D modules in static-free packaging at room temperature, testing them periodically to ensure functionality.
Product Guarantee
Our company provides a 12-month quality warranty for the BENTLY 3500/65 145988-02 02D, covering hardware defects under normal use. In the event of abnormal performance—such as signal instability or measurement errors—we offer prompt replacement services to minimize downtime. For legacy or urgent requirements, our global supply chain ensures rapid delivery of the 3500/65 145988-02 02D and related spares. Our technical support team assists with installation, calibration, and troubleshooting, ensuring reliable operation to protect your industrial assets.
