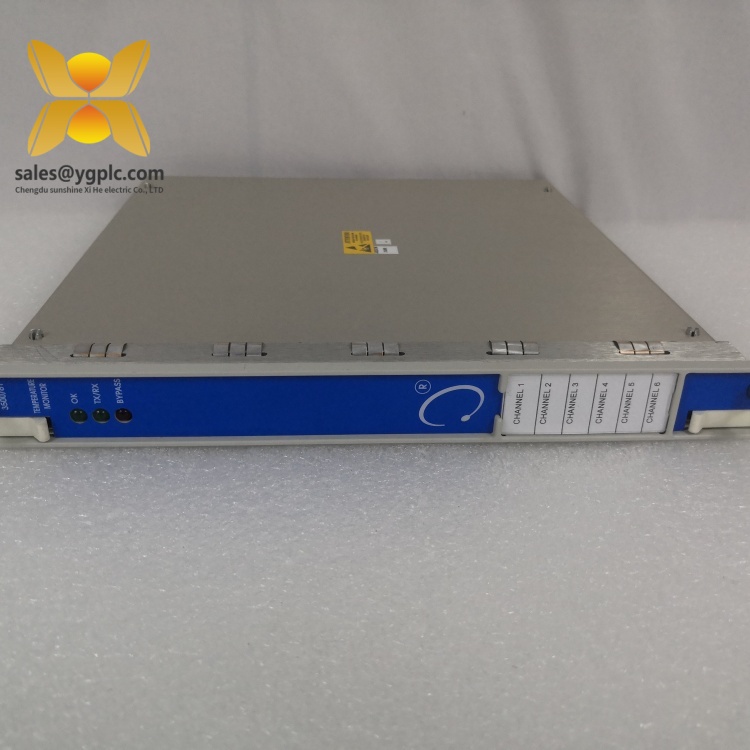

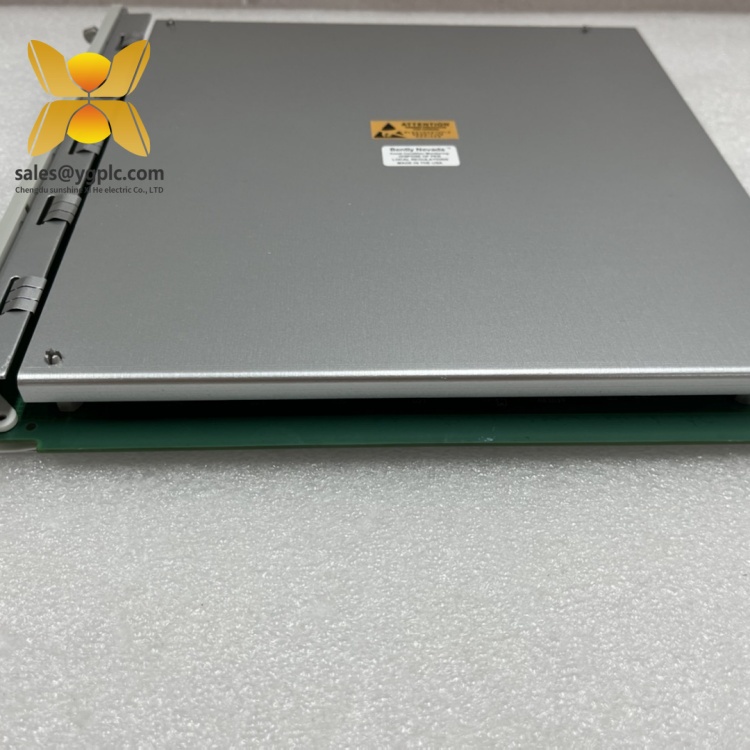

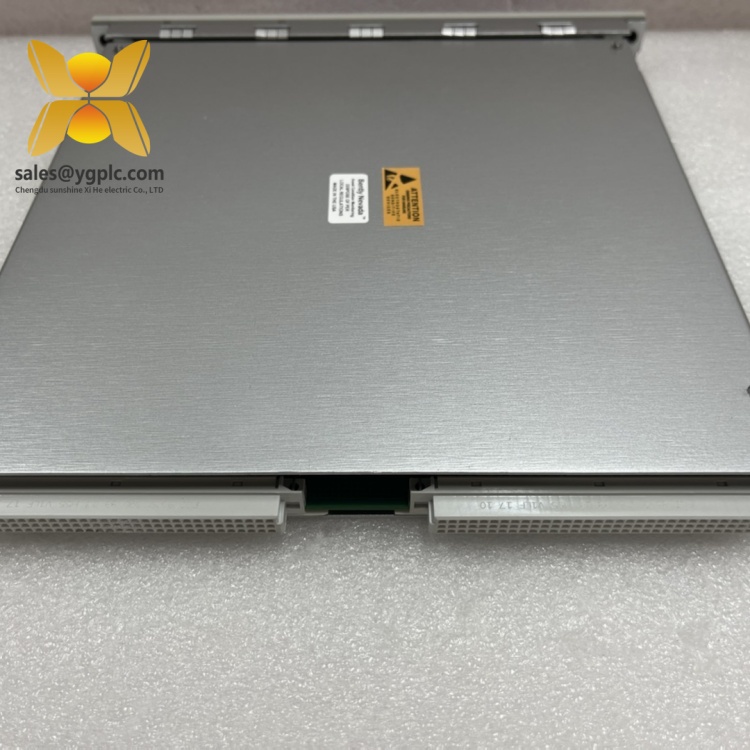

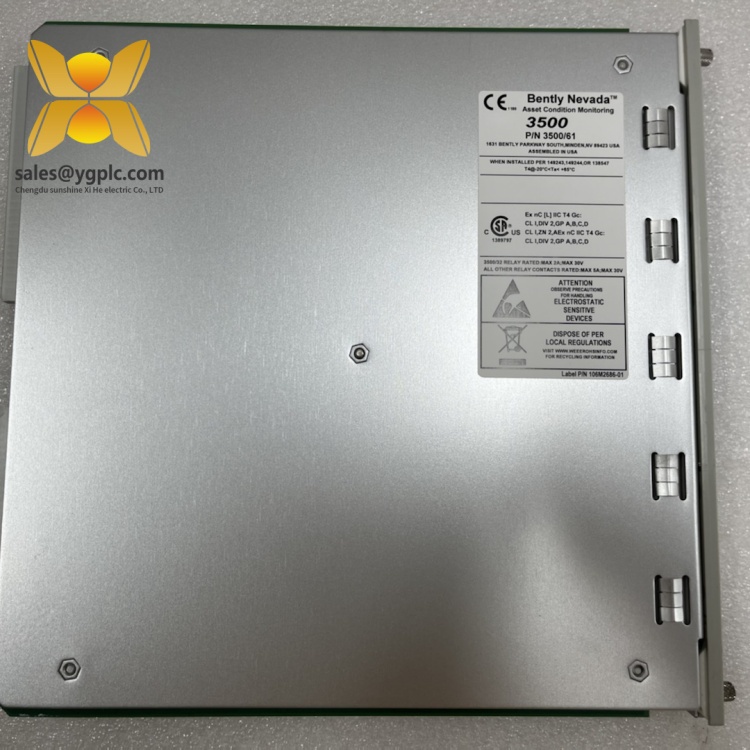

BENTLY 3500/61 Process Variable Module
Product Overview: BENTLY 3500/61
The BENTLY 3500/61 process variable module is a high-precision industrial component designed for real-time monitoring of critical process parameters within Bently Nevada’s 3500 Series Machinery Health Monitoring System. As a versatile module in this advanced platform, the 3500/61 interfaces with sensors measuring temperature, pressure, flow, and level, converting analog signals into digital data for comprehensive machinery diagnostics. Engineered for reliability in harsh industrial environments, this module serves as a bridge between field instruments and supervisory control systems, enabling proactive maintenance and process optimization.
Featuring four isolated analog input channels, the 3500/61 supports multiple signal types (4–20 mA, 0–10 V DC, thermocouples, RTDs), ensuring compatibility with diverse sensors. Its 16-bit analog-to-digital conversion ensures high-resolution measurements, while built-in linearization and scaling functions simplify data interpretation. The module’s dual redundant communication paths (Modbus RTU/TCP) enable seamless integration with distributed control systems (DCS) and supervisory control and data acquisition (SCADA) platforms, making it an essential component for industries requiring precise process monitoring.
In automation ecosystems, the 3500/61 enhances system intelligence by combining process variables with mechanical health data from other 3500 Series modules (e.g., vibration monitors). Its -40°C to +85°C operating range and IP20 protection rating ensure durability in demanding settings, from power plant turbines to offshore compressors. By providing real-time insights into process conditions, the module helps operators identify anomalies early, reducing unplanned downtime and optimizing operational efficiency.
Technical Specifications: BENTLY 3500/61
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3500/61 |
| Manufacturer | BENTLY NEVADA |
| Product Type | Process Variable Module |
| Input Channels | 4 isolated analog inputs |
| Signal Types | 4–20 mA, 0–10 V DC, thermocouples, RTDs |
| Resolution | 16-bit ADC |
| Communication Protocol | Modbus RTU/TCP |
| Physical Dimensions | 160 mm (H) × 110 mm (W) × 250 mm (D) |
| Weight | 1.2 kg |
| Operating Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | 3500 Rack (slot-compatible) |
| Compliance | API 670, IEC 61000-6-2 |
| Country of Origin | United States |
Main Features and Advantages: BENTLY 3500/61
Multi-Signal Compatibility: The 3500/61 supports a wide range of input signals, eliminating the need for multiple specialized modules. This versatility reduces hardware costs and simplifies inventory management in complex industrial setups.
High-Accuracy Measurement: With 16-bit resolution and built-in signal conditioning, the module ensures precise data acquisition, the critical for detecting subtle process changes that could indicate developing issues in machinery or processes.
Redundant Communication: Dual Modbus channels provide fault-tolerant data transmission, maintaining connectivity with supervisory systems even if one path fails. This feature is essential for applications where data loss could lead to safety risks or production losses.
User-Configurable Scaling: Operators can customize signal scaling and engineering units directly via the module’s configuration software, adapting to specific process requirements without additional programming.
Rugged Industrial Design: The module’s metal enclosure and wide temperature tolerance make it suitable for harsh environments. Its IP20 rating protects against dust and accidental contact, while robust circuitry resists electromagnetic interference (EMI).
Application Areas: BENTLY 3500/61
The BENTLY 3500/61 process variable module is widely used in industries where precise process monitoring is critical:
- Power Generation: Monitors steam pressure, temperature, and flow in turbines and boilers, enabling real-time adjustments to optimize energy production and prevent overloading.
- Oil and Gas: Deploys in refineries and pipelines to track pressure, flow rates, and liquid levels in storage tanks, supporting safe operations and regulatory compliance.
- Manufacturing: Integrates with production lines to monitor process variables like temperature in ovens, pressure in hydraulic systems, or liquid levels in mixing tanks, ensuring product quality and consistency.
- Water Treatment: Manages parameters such as pH, chlorine levels, and flow rates in water/wastewater plants, supporting efficient treatment processes and environmental regulations.
- Aerospace and Defense: Used in testing facilities to monitor environmental conditions and equipment performance, ensuring mission-critical systems meet operational standards.
Related Products: BENTLY 3500/61
- 3500/42M Vibration Monitoring Module: Works alongside the 3500/61 to combine vibration data with process variables for comprehensive machinery health analysis.
- 3500/22M Proximitor Interface Module: Supplies proximity probe signals to the 3500/61, enabling integrated mechanical and process monitoring.
- 3500/92M Communication Gateway: Connects the 3500/61 to Ethernet networks, facilitating remote data access and cloud-based analytics.
- 3500/32 Relay Module (125712-01): Triggers alarms or trips based on 3500/61 data, enhancing safety and process control.
- 3500/53 Displacement Module: Monitors shaft displacement, complementing the 3500/61 in rotating equipment health assessments.
- 3500/05 Rack Enclosure: Houses the 3500/61 and other modules, providing mechanical support and power distribution.
Installation and Maintenance: BENTLY 3500/61
Pre-installation Preparations:
Before installing the 3500/61, verify the 3500 Rack is properly grounded and powered (24V DC). Clean the rack slot and ensure no debris is present. Slide the module into the designated slot, securing it with retention brackets. Connect sensor cables to the terminal block, following Bently Nevada’s wiring diagram to ensure correct polarity and signal type. Configure the module’s address and input parameters using the 3500 Configuration Software, calibrating each channel to match connected sensors.
Before installing the 3500/61, verify the 3500 Rack is properly grounded and powered (24V DC). Clean the rack slot and ensure no debris is present. Slide the module into the designated slot, securing it with retention brackets. Connect sensor cables to the terminal block, following Bently Nevada’s wiring diagram to ensure correct polarity and signal type. Configure the module’s address and input parameters using the 3500 Configuration Software, calibrating each channel to match connected sensors.
Maintenance Recommendations:
- Routine Checks: Monthly visual inspections for loose connections, damaged cables, or overheating. Use the module’s diagnostic LEDs to identify 异常 (abnormalities) early.
- Calibration: Annually calibrate input channels using certified signal sources to maintain measurement accuracy. Reference Bently Nevada’s procedures for step-by-step guidance.
- Firmware Updates: Periodically update the module’s firmware to access new features and bug fixes, ensuring optimal performance.
- Spare Parts: Keep a spare 3500/61 on hand, leveraging our global supply chain for quick replacement of discontinued or urgent components.
Product Guarantee: BENTLY 3500/61
Our company offers a 12-month quality warranty for the BENTLY 3500/61 process variable module, covering hardware defects from non-human causes. During the warranty period, we will replace any module with signal instability, communication failures, or physical damage at no cost. For urgent needs or discontinued models, our extensive inventory and global logistics network ensure prompt delivery, minimizing downtime and supporting continuous operation.
With 17 years of expertise in industrial control distribution, we prioritize reliable solutions and exceptional service. The 3500/61 exemplifies our commitment to quality, delivering precise process monitoring for critical industrial applications. Contact us today to enhance your machinery health strategy with this advanced module.
Note: All product names, logos, and brands are property of their owners. This document is informational and does not substitute for official technical manuals.
