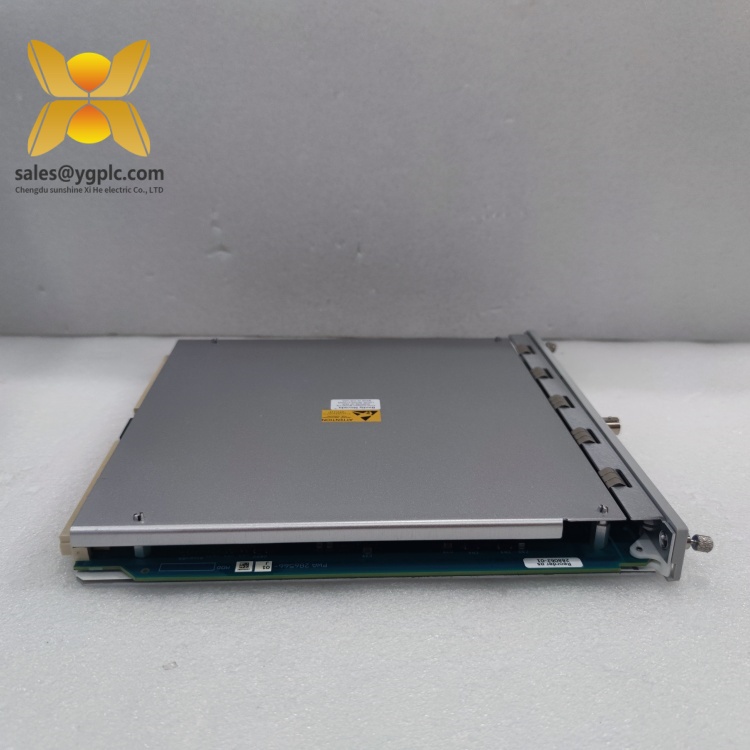

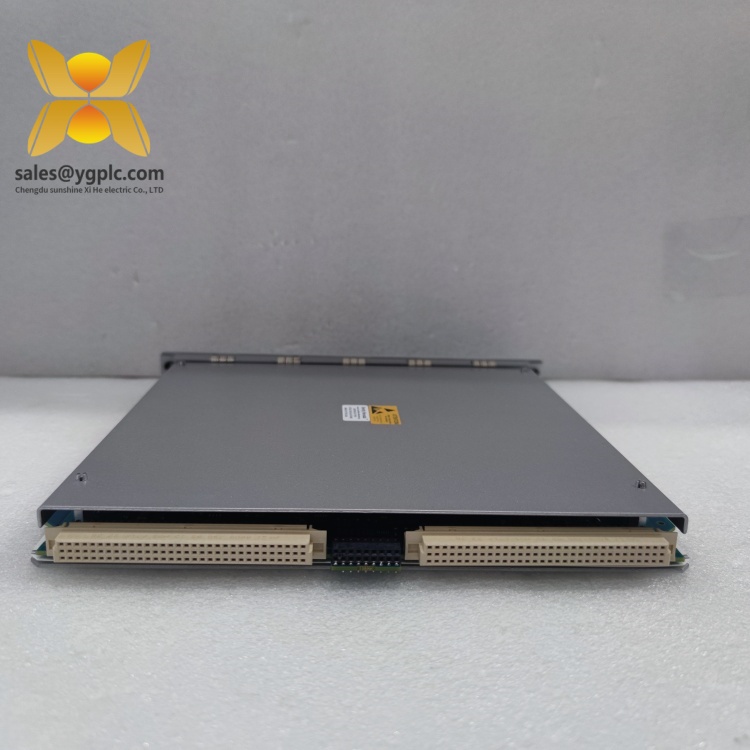

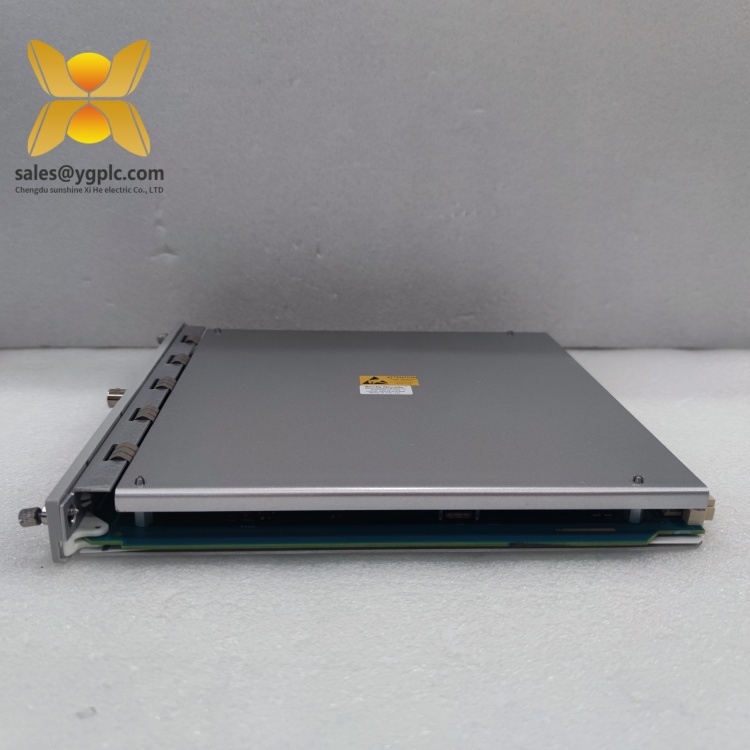

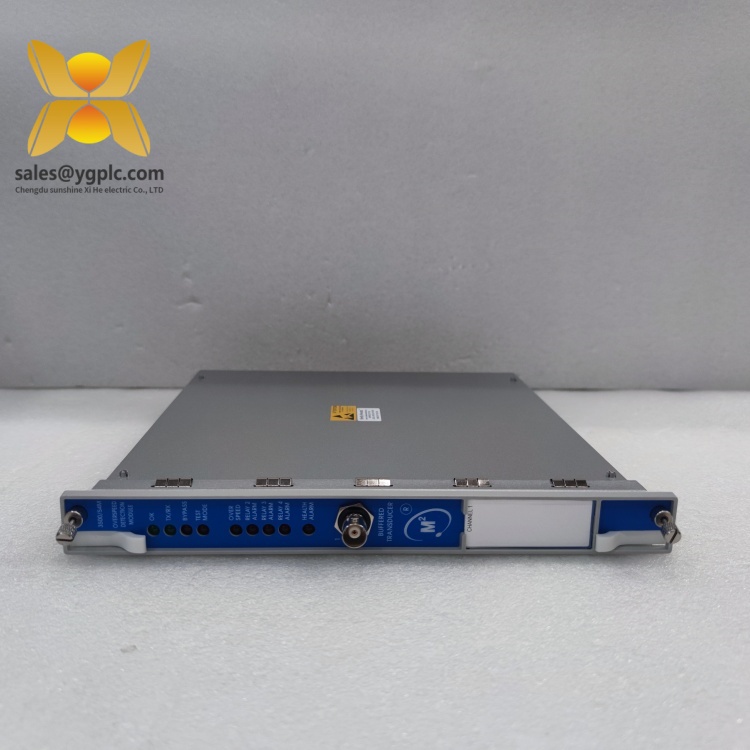

BENTLY 3500/54 133396-01 Process Variable Module
Product Overview: BENTLY 3500/54 133396-01
The BENTLY 3500/54 133396-01 process variable module is a high-precision industrial automation component designed for real-time monitoring of critical process parameters within Bently Nevada’s 3500 Series Machinery Health Monitoring System. As a specialized module in this advanced platform, the 3500/54 133396-01 translates analog signals from sensors (e.g., temperature, pressure, flow) into digital data for comprehensive machinery health analysis. Engineered to integrate seamlessly with other 3500 Series components, this module plays a pivotal role in converting raw process data into actionable insights for predictive maintenance and operational optimization.
Featuring four isolated analog input channels, the 3500/54 133396-01 supports standard industrial signals (4–20 mA, 0–10 V DC) and offers configurable scaling, linearization, and alarm thresholds. Its hot-swappable design allows replacement without system shutdown, minimizing downtime in mission-critical applications. The module’s -40°C to +85°C operating temperature range and IP20 protection rating ensure reliability in harsh industrial environments, from power plant turbines to offshore compressors. With Modbus RTU/TCP communication protocols, it enables seamless data integration with supervisory control and data acquisition (SCADA) systems, enhancing system-wide visibility.
Within automation ecosystems, the 3500/54 133396-01 acts as a bridge between field sensors and control systems, enabling real-time monitoring of parameters that impact machinery performance. Its high-resolution analog-to-digital conversion (16-bit ADC) and built-in diagnostics ensure accurate, noise-free data transmission, supporting early detection of process anomalies and preventing unplanned downtime.
Technical Specifications: BENTLY 3500/54 133396-01
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3500/54 133396-01 |
| Manufacturer | BENTLY NEVADA |
| Product Type | Process Variable Module |
| Input Channels | 4 isolated analog inputs |
| Input Signal Range | 4–20 mA, 0–10 V DC |
| Communication Protocol | Modbus RTU/TCP |
| Resolution | 16-bit ADC |
| Physical Dimensions | 177.8 mm (H) × 48.3 mm (W) × 254 mm (D) |
| Weight | 1.2 kg |
| Operating Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | 3500 Rack (slot-compatible) |
| Compliance | API 670, IEC 61000-6-2 |
| Country of Origin | United States |
Main Features and Advantages: BENTLY 3500/54 133396-01
Multi-Channel Process Monitoring: The 3500/54 133396-01 supports four independent input channels, enabling simultaneous monitoring of multiple process parameters (e.g., temperature, pressure, level) in complex machinery setups. This capability reduces the need for additional modules, simplifying system design and costs.
High-Accuracy Signal Conditioning: With 16-bit resolution and built-in linearization, the module ensures precise conversion of analog signals to digital data, minimizing measurement errors. Configurable scaling allows customization to match sensor characteristics, enhancing data accuracy for critical process control.
Rugged Industrial Design: Engineered for harsh environments, the module’s metal enclosure and wide temperature range withstand vibration, dust, and extreme temperatures. Its IP20 rating protects against accidental contact and dust ingress, ensuring reliable operation in manufacturing plants, refineries, and power stations.
Seamless System Integration: Compatible with Bently Nevada’s 3500 Series racks and communication protocols, the 3500/54 133396-01 integrates effortlessly with existing automation infrastructure. This compatibility supports system scalability and reduces integration complexity for large-scale projects.
Proactive Diagnostic Capabilities: Built-in self-diagnostics and LED status indicators enable real-time monitoring of module health, identifying issues such as signal loss or power fluctuations. This feature reduces troubleshooting time and supports proactive maintenance, minimizing unplanned downtime.
Application Areas: BENTLY 3500/54 133396-01
The BENTLY 3500/54 133396-01 process variable module is essential for industries requiring precise process parameter monitoring:
- Power Generation: Monitors steam pressure, cooling water temperature, and lubricant levels in turbines and generators, enabling optimal performance and early fault detection in power plants.
- Oil and Gas: Deployed in refineries and offshore platforms to monitor flow rates, pressure differentials, and temperature in pipelines and processing equipment, supporting safety and efficiency.
- Manufacturing: Integrates with CNC machines, robotic systems, and production lines to monitor hydraulic pressure, coolant levels, and ambient conditions, ensuring consistent product quality.
- Water Treatment: Manages process variables in water/wastewater plants, such as pH levels, flow rates, and chemical concentrations, supporting regulatory compliance and operational efficiency.
- Aerospace and Defense: Used in ground support equipment and military machinery to monitor fuel levels, hydraulic pressures, and environmental conditions for mission-critical operations.
Related Products: BENTLY 3500/54 133396-01
- 3500/15 Power Supply Module (127610-01): Supplies stable power to the 3500/54 133396-01 and other 3500 Series modules, ensuring continuous operation.
- 3500/42M Vibration Monitoring Module: Works alongside the 3500/54 133396-01 to provide comprehensive machinery health data, combining vibration and process variable insights.
- 3500/92M Communication Gateway: Enables Ethernet-based data transmission from the 3500/54 133396-01 to SCADA systems, supporting remote monitoring and analytics.
- 3500/05 Rack Enclosure: Houses the 3500/54 133396-01 and other modules, providing mechanical support and power distribution.
- 3500/32 Relay Module (125712-01): Triggers alarms or trips based on process variable thresholds from the 3500/54 133396-01, enhancing safety protocols.
- 3500/22M Proximitor Interface Module: Complements the 3500/54 133396-01 by monitoring shaft vibration, creating a comprehensive machinery health solution.
Installation and Maintenance: BENTLY 3500/54 133396-01
Pre-installation Preparations:
Before installing the 3500/54 133396-01, verify the 3500 Rack is properly grounded and powered (24V DC). Clean the rack slot and ensure no debris is present. Slide the module into the designated slot, securing it with retention brackets. Connect sensor cables to the terminal block, following Bently Nevada’s wiring diagram to ensure correct polarity and signal integrity. Configure the module’s address and input parameters using the 3500 Configuration Software, calibrating each channel to match the connected sensors.
Before installing the 3500/54 133396-01, verify the 3500 Rack is properly grounded and powered (24V DC). Clean the rack slot and ensure no debris is present. Slide the module into the designated slot, securing it with retention brackets. Connect sensor cables to the terminal block, following Bently Nevada’s wiring diagram to ensure correct polarity and signal integrity. Configure the module’s address and input parameters using the 3500 Configuration Software, calibrating each channel to match the connected sensors.
Maintenance Recommendations:
- Routine Inspections: Monthly checks include verifying LED status indicators, tightening cable connections, and cleaning the module’s surface to prevent dust accumulation.
- Calibration Verification: Annually calibrate input channels using a certified signal source to ensure measurement accuracy. Reference Bently Nevada’s calibration procedures for step-by-step guidance.
- Firmware Updates: Periodically update the module’s firmware via the 3500 Rack software to access new features and bug fixes, enhancing performance and compatibility.
- Spare Parts Management: Keep a spare 3500/54 133396-01 on hand, leveraging our global supply chain for quick replacement of discontinued or urgent components.
Product Guarantee: BENTLY 3500/54 133396-01
Our company provides a 12-month quality warranty for the BENTLY 3500/54 133396-01 process variable module, covering hardware defects from non-human causes. During the warranty period, we will replace any module with abnormal signal processing, communication failures, or physical damage at no cost. For urgent
