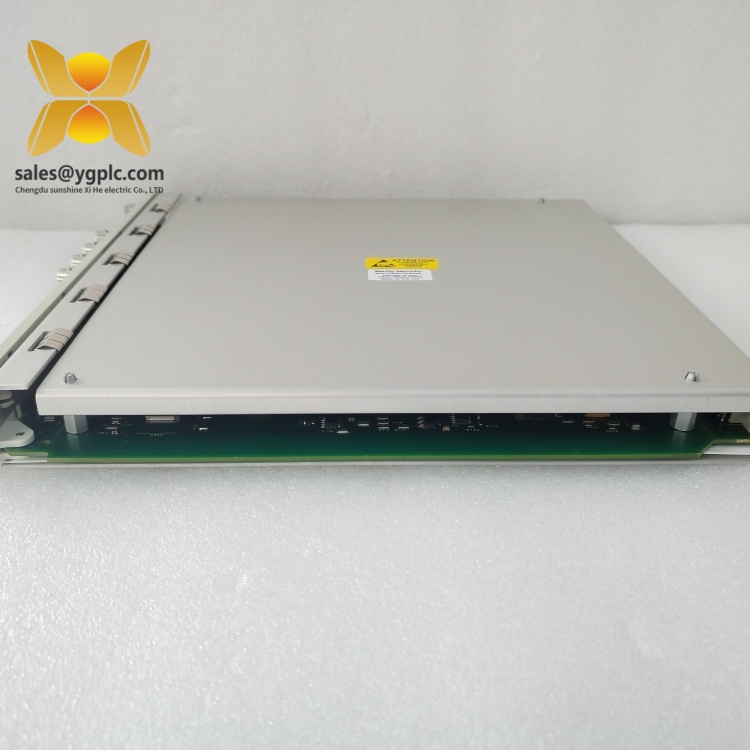

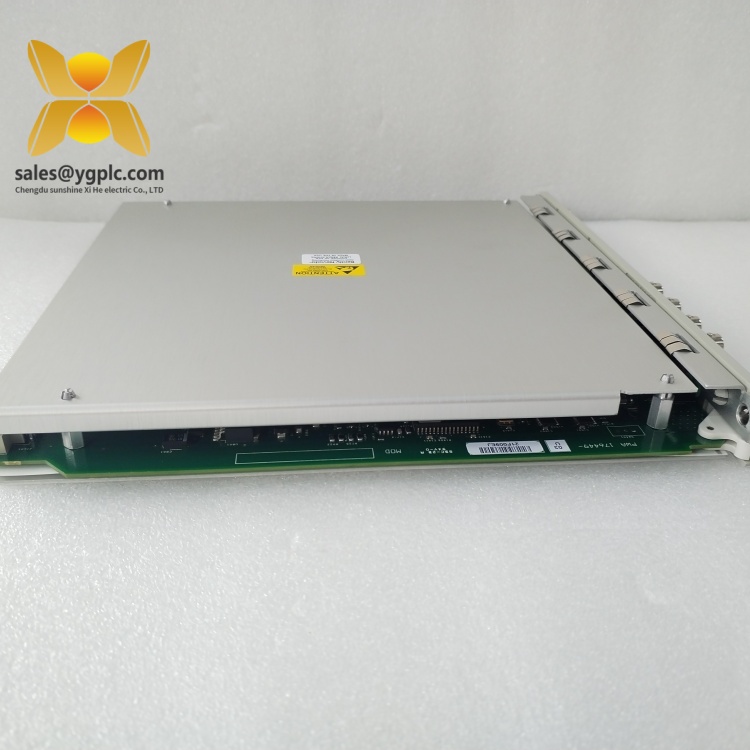

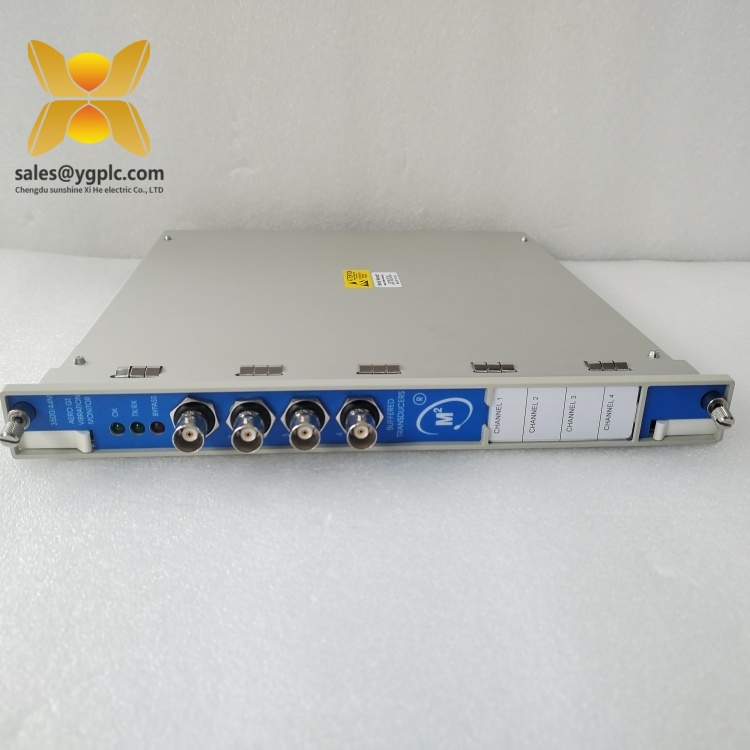

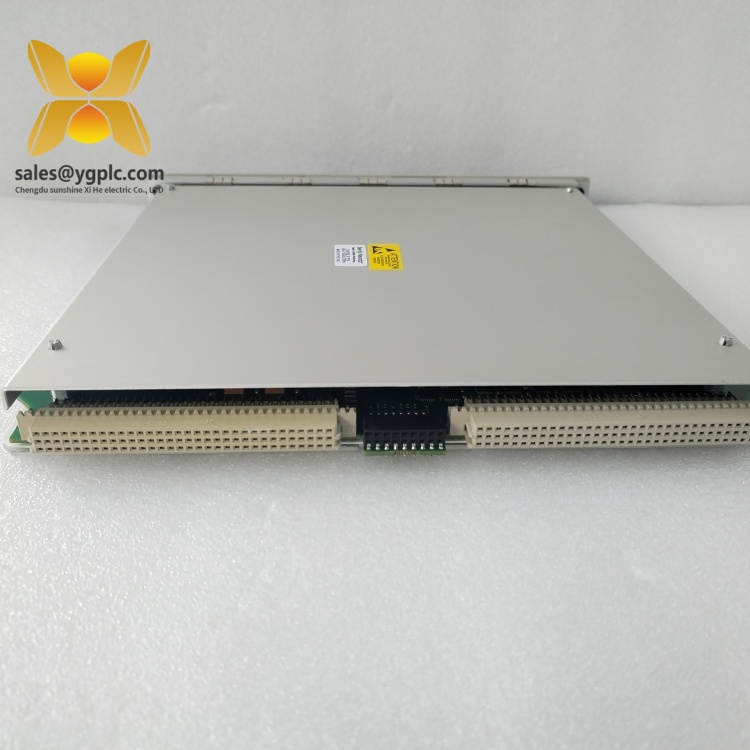

BENTLY 3500/44M 140734-03 03B Vibration Monitoring Module
Product Overview: BENTLY 3500/44M 140734-03 03B
The BENTLY 3500/44M 140734-03 03B vibration monitoring module is a high-precision industrial component designed for real-time mechanical health assessment within Bently Nevada’s 3500 Series Machinery Health Monitoring System. As a critical element of this advanced platform, the 3500/44M 140734-03 03B specializes in measuring vibration parameters of rotating equipment, such as turbines, compressors, and motors, enabling predictive maintenance and early fault detection in mission-critical applications. Engineered for reliability and accuracy, this module integrates seamlessly with other 3500 Series components to provide comprehensive monitoring of shaft vibration, casing vibration, and dynamic displacement.
Featuring four independent channels for simultaneous vibration analysis, the 3500/44M 140734-03 03B supports both proximity probes and accelerometers, offering versatile measurement capabilities. Its 16-bit analog-to-digital conversion ensures high-resolution data acquisition, while FFT (Fast Fourier Transform) analysis enables detailed spectral diagnostics for identifying issues like imbalance, misalignment, or bearing wear. The module’s dual redundant communication ports (Modbus RTU/TCP) facilitate seamless integration with supervisory control systems, while its -40°C to +85°C operating range and IP20 protection rating make it suitable for harsh industrial environments.
Within automation ecosystems, the 3500/44M 140734-03 03B acts as a cornerstone of predictive maintenance strategies, translating vibration data into actionable insights to reduce unplanned downtime. Its compatibility with Bently Nevada’s 3500 Rack enclosures (e.g., 3500/05) and compliance with API 670 standards positions it as a trusted solution for industries requiring precise machinery health monitoring.
Technical Specifications: BENTLY 3500/44M 140734-03 03B
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3500/44M 140734-03 03B |
| Manufacturer | BENTLY NEVADA |
| Product Type | Vibration Monitoring Module |
| Input Channels | 4 channels (proximity/accelerometer) |
| Measurement Range | 0–5000 mm/s² (vibration velocity) |
| Communication Protocol | Modbus RTU/TCP, Ethernet/IP |
| Resolution | 16-bit ADC |
| Physical Dimensions | 177.8 mm (H) × 48.3 mm (W) × 254 mm (D) |
| Weight | 1.3 kg |
| Operating Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | 3500 Rack (slot-compatible) |
| Compliance | API 670, IEC 61000-6-2 |
| Country of Origin | United States |
Main Features and Advantages: BENTLY 3500/44M 140734-03 03B
Multi-Channel Vibration Analysis: The 3500/44M 140734-03 03B processes up to four vibration channels simultaneously, enabling comprehensive monitoring of complex machinery. This capability is critical for identifying multi-point issues in high-value assets like steam turbines or centrifugal compressors.
High-Resolution Data Acquisition: With 16-bit ADC and advanced filtering, the module delivers precise vibration measurements, allowing detection of minor anomalies before they escalate. Its FFT analysis provides spectral insights to differentiate between normal and abnormal vibration patterns.
Redundant Communication Design: Dual Modbus and Ethernet interfaces ensure reliable data transmission, with built-in redundancy to maintain connectivity during network interruptions. This feature is essential for continuous monitoring in remote or harsh environments.
Rugged Industrial Durability: Engineered for harsh conditions, the module withstands extreme temperatures, vibrations, and electromagnetic interference. Its IP20-rated enclosure and rugged circuitry make it suitable for deployment in oil refineries, power plants, and heavy manufacturing facilities.
Easy System Integration: As part of the 3500 Series, the 3500/44M 140734-03 03B integrates seamlessly with other 3500 modules (e.g., relays, communication gateways) and Bently Nevada’s System 1 software, simplifying setup and reducing integration complexity.
Application Areas: BENTLY 3500/44M 140734-03 03B
The BENTLY 3500/44M 140734-03 03B vibration monitoring module is vital for industries where machinery reliability is non-negotiable:
- Power Generation: Monitors steam turbines, generators, and auxiliary pumps in thermal, hydro, and renewable energy plants. The module’s precision helps optimize energy production and prevent costly breakdowns.
- Oil and Gas: Deployed in offshore platforms, refineries, and pipelines to monitor compressors, motors, and pumps. Its durability ensures reliable operation in corrosive and high-vibration environments.
- Manufacturing: Integrates with CNC machines, robotic arms, and conveyor systems in automotive and pharmaceutical production, ensuring product quality by detecting equipment degradation early.
- Water Treatment: Manages vibration analysis for pumps and blowers in water/wastewater plants, supporting continuous operation and regulatory compliance.
- Aerospace and Defense: Used in aircraft ground support equipment and military machinery, where precise vibration data is critical for mission readiness and safety.
Related Products: BENTLY 3500/44M 140734-03 03B
- 3500/22M Proximitor Interface Module: Connects proximity probes to the 3500/44M 140734-03 03B, providing signal conditioning for shaft displacement measurements.
- 3500/32 Relay Module (125712-01): Triggers alarms/trips based on vibration data from the 3500/44M 140734-03 03B, enhancing safety and downtime prevention.
- 3500/92M Communication Gateway: Enables Ethernet connectivity for the 3500/44M 140734-03 03B, supporting remote monitoring and cloud-based analytics.
- 3500/05 Rack Enclosure: Houses the 3500/44M 140734-03 03B and other 3500 modules, providing mechanical support and power distribution.
- 3500/53 Displacement Module: Complements the 3500/44M 140734-03 03B by monitoring shaft displacement, offering a comprehensive machinery health solution.
- 3500/15 Power Supply Module (127610-01): Ensures stable power for the 3500/44M 140734-03 03B, with redundant design for continuous operation.
Installation and Maintenance: BENTLY 3500/44M 140734-03 03B
Pre-installation Preparations:
Before installing the 3500/44M 140734-03 03B, verify the 3500 Rack is properly grounded and powered (24V DC). Clean the rack slot and ensure no debris is present. Slide the module into the designated slot, securing it with retention brackets. Connect proximity probes or accelerometers to the input terminals, following Bently Nevada’s wiring diagrams. Configure communication parameters (IP address, baud rate) via the module’s dip switches or software, and test connectivity with the host system.
Before installing the 3500/44M 140734-03 03B, verify the 3500 Rack is properly grounded and powered (24V DC). Clean the rack slot and ensure no debris is present. Slide the module into the designated slot, securing it with retention brackets. Connect proximity probes or accelerometers to the input terminals, following Bently Nevada’s wiring diagrams. Configure communication parameters (IP address, baud rate) via the module’s dip switches or software, and test connectivity with the host system.
Maintenance Recommendations:
- Routine Inspections: Monthly checks include verifying LED status indicators, tightening cable connections, and cleaning dust from ventilation slots. Use Bently Nevada’s System 1 software to monitor module health and data accuracy.
- Calibration Verification: Annually calibrate the module using a vibration calibrator to ensure measurement precision. Reference the user manual for step-by-step procedures.
- Firmware Updates: Periodically update firmware to access new features and bug fixes, ensuring optimal performance. Maintain a backup of module configurations before updates.
- Spare Parts Management: Keep a spare 3500/44M 140734-03 03B on hand, leveraging our global supply chain for quick replacement of discontinued or urgent components.
Product Guarantee: BENTLY 3500/44M 140734-03 03B
Our company provides a 12-month quality warranty for the BENTLY 3500/44M 140734-03 03B vibration monitoring module, covering hardware defects from non-human causes. During the warranty period, we will replace any module with abnormal data output, communication failures, or physical damage at no cost. For urgent needs or discontinued models, our extensive inventory and global logistics network ensure prompt fulfillment, minimizing downtime and supporting continuous industrial operation.
With 17 years of expertise in industrial control distribution, we prioritize reliable products and exceptional service. The 3500/44M 140734-03 03B exemplifies our commitment to quality, offering the precision and durability required for critical machinery monitoring. Contact us today to optimize your predictive maintenance strategy with this advanced vibration module.
Note: All product names, logos, and brands are property of their owners. This document is informational and does not substitute for Bently Nevada’s official technical manuals.
