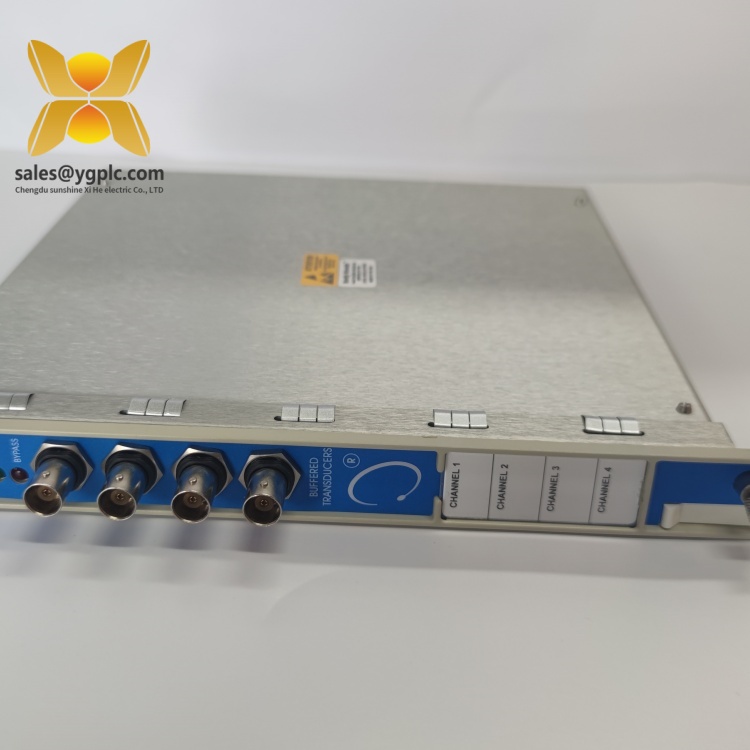

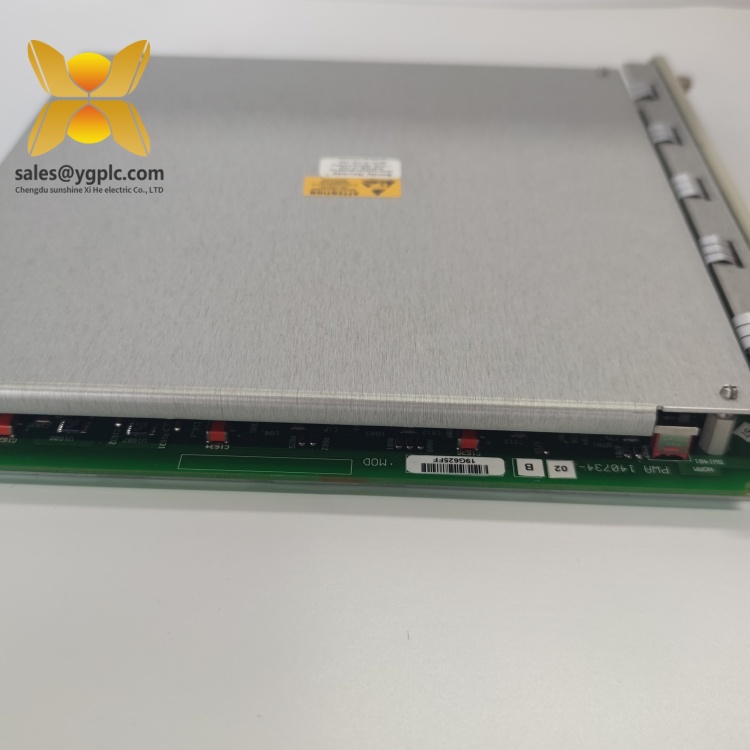

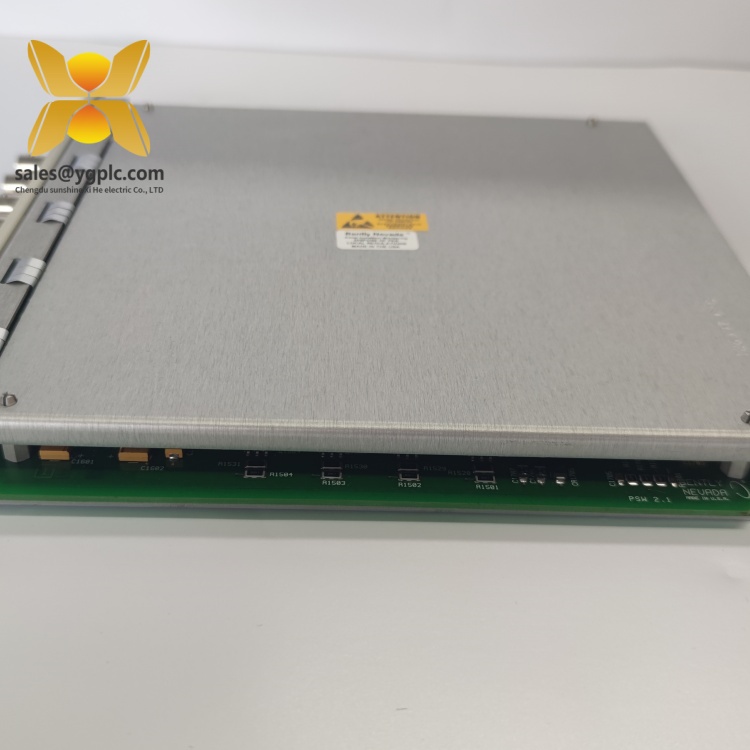

BENTLY 3500/42M 140482-01 Vibration Monitor
Product Overview
The BENTLY 3500/42M 140482-01 is a high-precision Vibration Monitor designed as a core component of Bently Nevada’s 3500 Series Machinery Protection System, a leading solution for rotating equipment health monitoring in industrial automation. Engineered to convert vibration signals from proximity probes and accelerometers into actionable data, this module plays a pivotal role in detecting mechanical issues such as imbalance, misalignment, and bearing wear in turbines, compressors, and generators. As part of the 3500 Series, the 3500/42M 140482-01 integrates seamlessly with other 3500 modules (e.g., keyphasor, communication gateways) to form a comprehensive machinery protection ecosystem, delivering real-time diagnostics for industries like oil & gas, power generation, and manufacturing.
Featuring a rugged industrial design, the BENTLY 3500/42M 140482-01 supports up to four channels of vibration measurement, with each channel accepting inputs from proximity probes or velocity transducers. Its advanced signal processing algorithms analyze vibration amplitude, frequency, and phase to identify early signs of equipment degradation, enabling predictive maintenance and reducing unplanned downtime. The module’s dual-channel redundancy ensures continuous operation even during component failure, while its compatibility with API 670 and IEC 61508 standards makes it suitable for safety-critical applications. The 3500/42M 140482-01 also features a user-configurable alarm system with relay outputs, allowing real-time fault notification and shutdown triggering when vibration levels exceed predefined thresholds.
In automation systems, the 3500/42M 140482-01 serves as the backbone of vibration analysis, converting raw sensor data into standardized outputs (4–20 mA, digital) for integration with DCS, SCADA, or PLC systems. Its modular design enables easy installation in 3500 Series racks, while the built-in LCD display and keypad facilitate on-site configuration and diagnostics. By combining high-accuracy measurement with robust fault tolerance, this vibration monitor enhances equipment reliability and extends operational lifespan, making it indispensable for industries reliant on critical rotating assets.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3500/42M 140482-01 |
| Manufacturer | Bently Nevada |
| Product Type | Vibration Monitor |
| Channels | 4 channels (proximity/velocity inputs) |
| Input Types | Proximity probe (8 mm, 5 mm), velocity transducer (IEPE) |
| Measurement Range | 0–500 mils (0–12.7 mm) peak-to-peak (proximity), 0–100 in./sec (0–2540 mm/sec) (velocity) |
| Frequency Response | 0.1–10,000 Hz |
| Output Signals | 4–20 mA (isolated), digital via 3500 bus |
| Alarm Relays | 2 normally open relays (user-configurable) |
| Physical Dimensions | 10.16 cm (H) × 16.51 cm (W) × 22.86 cm (D) |
| Weight | 0.9 kg |
| Power Supply | 24 V DC (from 3500 rack) |
| Operating Temperature | -40°C to +70°C |
| Mounting | Rack-mounted in 3500 Series enclosure |
| Certifications | API 670, IEC 61508 (SIL 2), CE, UL |
Key Features and Advantages
Multi-Channel Vibration Analysis: The 3500/42M 140482-01 supports up to four vibration channels, enabling simultaneous monitoring of radial and axial vibrations in complex machinery setups. This capability reduces the need for multiple standalone monitors, optimizing space and costs.
Advanced Signal Processing: The module’s digital signal processing (DSP) technology provides real-time analysis of vibration waveforms, spectral content, and trend data. This allows for precise identification of fault signatures, such as rotor imbalance or bearing damage, before they escalate into critical failures.
Redundant Design for Reliability: With dual-channel redundancy, the 3500/42M 140482-01 ensures continuous operation even if one channel fails, eliminating single points of failure in mission-critical applications. This design meets the highest safety integrity levels (SIL 2).
Flexible Input Compatibility: The module accepts both proximity probe and velocity transducer inputs, adapting to diverse sensor setups. This flexibility allows integration with existing monitoring systems, reducing retrofitting complexity.
User-Configurable Alarms: Two user-configurable alarm relays enable custom fault thresholds for different machinery states (warning, danger), with adjustable delay times to avoid false trips from transient vibrations.
Seamless System Integration: As part of the 3500 Series, the 3500/42M 140482-01 communicates via the 3500 bus to other modules (e.g., 3500/22M keyphasor, 3500/92 communication gateway), forming a unified monitoring network. This integration simplifies data aggregation and remote diagnostics.
Application Areas
The BENTLY 3500/42M 140482-01 is essential for vibration monitoring in industries where equipment reliability is non-negotiable:
- Oil & Gas: Monitors compressors, pumps, and turbines in refineries, pipelines, and offshore platforms to detect cavitation, misalignment, or bearing wear, preventing costly production interruptions.
- Power Generation: Installed on steam turbines, generators, and auxiliary equipment in thermal, hydro, and nuclear plants to ensure stable power output and grid synchronization.
- Manufacturing: Used in high-speed rotating machinery (e.g., motors, fans, extruders) in automotive, chemical, and food processing facilities to maintain production quality and reduce maintenance costs.
- Mining and Metals: Deployed on crushers, mills, and ventilation systems to monitor equipment health in harsh environments, optimizing maintenance schedules and minimizing downtime.
Specific applications include:
- Turbine Health Monitoring: Analyzes vibrations in steam turbine rotors to detect blade damage or shaft misalignment, supporting predictive maintenance.
- Compressor Protection: Monitors radial and axial vibrations in natural gas compressors to prevent seal failure and catastrophic breakdowns.
- Rotating Equipment Diagnostics: Provides real-time vibration data for gearboxes, pumps, and motors, enabling early fault detection and proactive repairs.
Related Products
- 3500/22M Keyphasor Module: Works with the 3500/42M 140482-01 to provide rotational reference signals for phase-locked vibration analysis.
- 3500/92 Communication Gateway: Enables Ethernet connectivity for the 3500/42M 140482-01, supporting remote monitoring via Modbus TCP or OPC UA.
- 3300 XL Proximity Probe System: Supplies vibration data to the 3500/42M 140482-01, with models like 330700 (5 mm tip) and 330500 (11 mm tip) for different shaft sizes.
- 3500/05 Rack Enclosure: Houses the 3500/42M 140482-01 and other 3500 modules, providing a structured and protected installation environment.
- 3500/32M Relay Module: Expands alarm capabilities of the 3500/42M 140482-01 with additional relay outputs for shutdown coordination.
- 123M4610 Velocity Transducer: A compatible velocity sensor for the 3500/42M 140482-01, suitable for high-temperature vibration measurements.
Installation and Maintenance
Pre-installation Preparations:
Before installing the BENTLY 3500/42M 140482-01, ensure the 3500 Series rack is properly grounded and ventilated. Verify sensor compatibility (proximity probe or velocity transducer) and route shielded cables away from high-voltage lines to minimize interference. Mount the module in the rack using provided hardware, ensuring secure connections to the 3500 bus and power supply. Use Bently Nevada’s 3500 Configuration Software to define input types, alarm thresholds, and output mappings, calibrating each channel with a known vibration source to validate accuracy.
Before installing the BENTLY 3500/42M 140482-01, ensure the 3500 Series rack is properly grounded and ventilated. Verify sensor compatibility (proximity probe or velocity transducer) and route shielded cables away from high-voltage lines to minimize interference. Mount the module in the rack using provided hardware, ensuring secure connections to the 3500 bus and power supply. Use Bently Nevada’s 3500 Configuration Software to define input types, alarm thresholds, and output mappings, calibrating each channel with a known vibration source to validate accuracy.
Maintenance Suggestions:
- Routine Inspections: Quarterly visual checks of LED indicators (power, channel status, alarms) and physical connections. Use the module’s LCD to review real-time vibration trends and compare with baseline data to identify anomalies.
- Calibration: Annually calibrate the 3500/42M 140482-01 using a vibration shaker table and precision reference sensor, documenting results for compliance.
- Firmware Updates: Periodically update the module’s firmware via the 3500 rack’s communication gateway to access bug fixes and new features, following Bently Nevada’s procedures to avoid configuration loss.
- Spare Parts Management: Store spare 3500/42M 140482-01 modules in a controlled environment (10–30°C, <50% humidity) and test them annually to ensure functionality, especially for critical applications.
Product Guarantee
Our company provides a 12-month quality warranty for the BENTLY 3500/42M 140482-01, covering hardware defects under normal use. In the event of abnormal performance—such as signal instability or alarm relay failure—we offer prompt replacement services to minimize downtime. For legacy or urgent requirements, our global supply chain ensures rapid delivery of the 3500/42M 140482-01 and related spares. Our technical support team assists with installation, calibration, and troubleshooting, delivering reliable solutions to maintain your machinery protection system’s integrity.
For inquiries, contact us via WhatsApp at +86 18859254943 or email at sales@ygplc.com.
