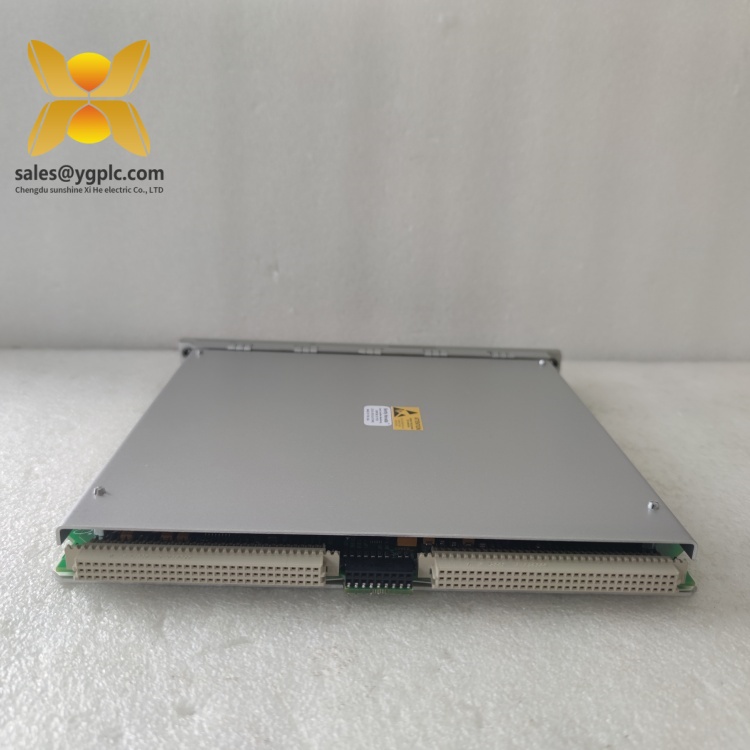

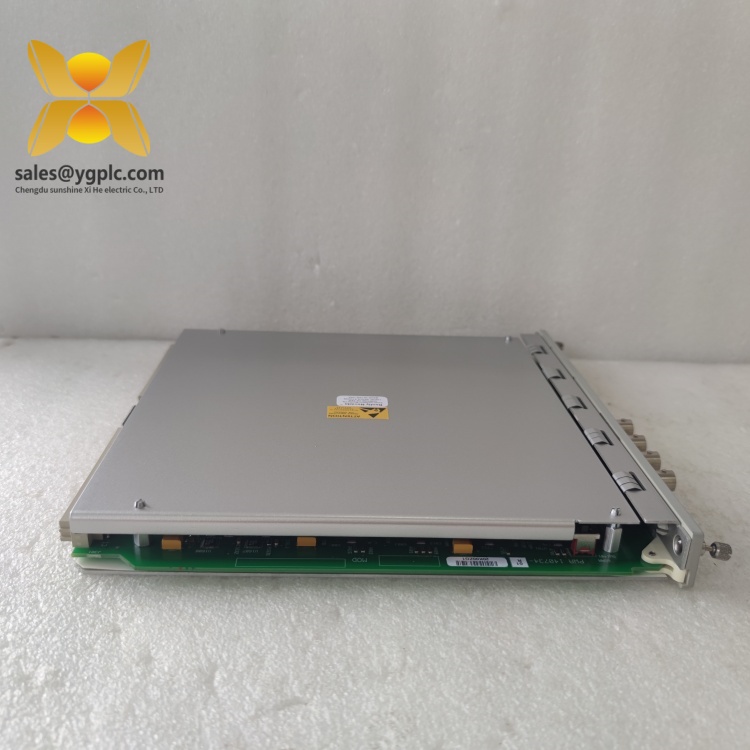

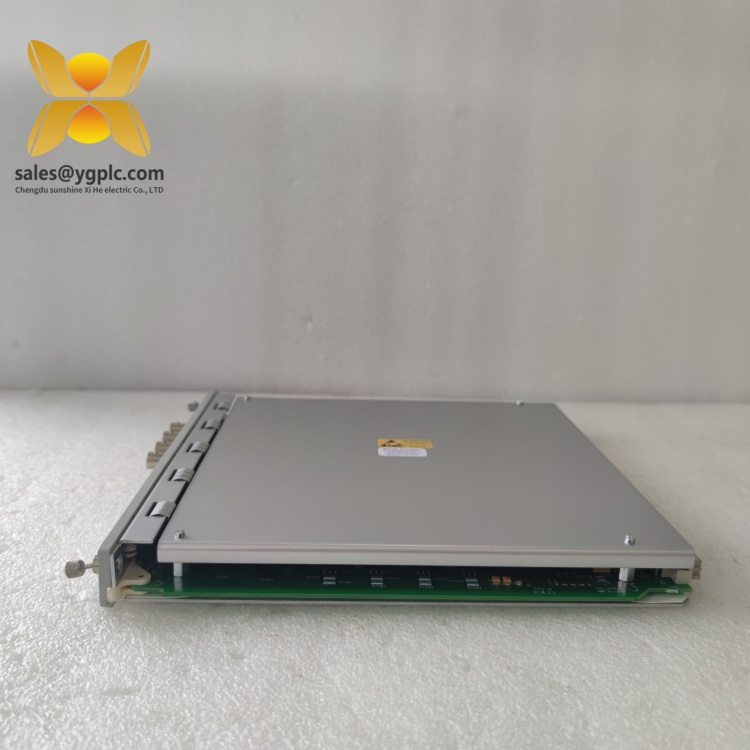

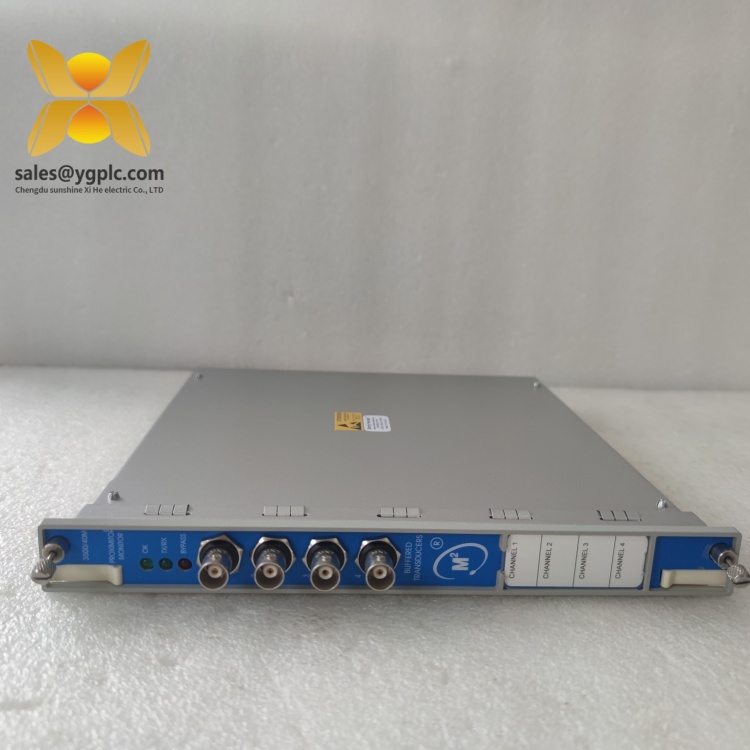

BENTLY 3500/40M 140734-01 Vibration Monitoring Module
Product Overview
The BENTLY 3500/40M 140734-01 is a high-precision Vibration Monitoring Module designed as a core component of Bently Nevada’s 3500 Series Machinery Protection System. Engineered to detect and analyze vibration patterns in critical rotating equipment, this module plays a pivotal role in preventing catastrophic failures in turbines, compressors, and generators across industries such as oil & gas, power generation, and manufacturing. As part of the 3500 Series, the 3500/40M 140734-01 integrates seamlessly with other 3500 modules (e.g., keyphasor and communication gateways), providing a comprehensive solution for machinery health monitoring.
Featuring a rugged industrial design, the BENTLY 3500/40M 140734-01 supports four independent channels for measuring vibration amplitude, velocity, and displacement from proximity probes or accelerometers. Each channel offers configurable alarm setpoints and trend analysis, enabling real-time detection of mechanical issues like imbalance, misalignment, or bearing wear. The module’s advanced signal conditioning ensures accurate measurements even in high-noise environments, while its hot-swappable architecture allows maintenance without system shutdown. With a wide operating temperature range (-40°C to +70°C) and compliance with API 670 standards, the 3500/40M 140734-01 delivers reliable performance in harsh industrial settings.
In automation ecosystems, the 3500/40M 140734-01 serves as the backbone of vibration analysis, converting sensor data into actionable insights for predictive maintenance. Its compatibility with BENTLY’s 3500 Series rack systems and integration with SCADA/DCS platforms enhance operational visibility, reducing unplanned downtime and extending equipment lifespan. By combining high-precision monitoring with robust fault tolerance, this module ensures continuous operation of critical assets, making it indispensable for industries reliant on reliable machinery performance.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3500/40M 140734-01 |
| Manufacturer | Bently Nevada |
| Product Type | Vibration Monitoring Module |
| Channels | 4 isolated channels |
| Input Signals | Proximity probes (8–24 VDC), accelerometers (IEPE), velocity transducers |
| Measurement Range | Displacement: 0–250 mils (0–6.35 mm); Velocity: 0–100 in/sec (0–2540 mm/sec); Acceleration: 0–100 g |
| Output Signals | 4–20 mA, 0–10 V DC, digital via 3500 bus |
| Resolution | 16-bit ADC |
| Physical Dimensions | 10.16 cm (H) × 16.51 cm (W) × 22.86 cm (D) |
| Weight | 1.1 kg |
| Operating Temperature | -40°C to +70°C |
| Mounting | Rack-mounted in 3500 Series enclosure |
| Certifications | CE, UL, API 670, IEC 61508 (SIL 2) |
Key Features and Advantages
Multi-Channel Vibration Analysis: The 3500/40M 140734-01 monitors up to four channels simultaneously, supporting a mix of displacement, velocity, and acceleration measurements. This versatility allows comprehensive analysis of complex machinery dynamics, from shaft vibrations to casing movements.
High-Accuracy Measurement: With 16-bit resolution and ±0.5% linearity, the module delivers precise vibration data for early fault detection. Its advanced filtering algorithms reduce noise interference, ensuring reliable measurements even in high-vibration environments.
Hot-Swap Capability: The module can be replaced without powering down the system, minimizing downtime during maintenance. This feature is critical for 24/7 operations where equipment shutdowns are costly.
Redundant Design: Built-in diagnostic tools continuously monitor channel health, power supply, and communication integrity. Redundant power inputs and error-checking mechanisms enhance system reliability, reducing the risk of false alarms or missed faults.
Wide Sensor Compatibility: Supports multiple sensor types (proximity probes, accelerometers, velocity transducers), eliminating the need for dedicated modules. This flexibility simplifies inventory management and system integration.
Rugged Environmental Tolerance: Engineered to withstand extreme temperatures, vibration, and electromagnetic interference, the module ensures consistent performance in offshore platforms, refineries, and other harsh settings.
Application Areas
The BENTLY 3500/40M 140734-01 is essential for vibration monitoring in industries where equipment reliability is non-negotiable:
- Oil & Gas: Monitors compressors, pumps, and turbines in refineries and offshore rigs to detect imbalance or bearing wear, preventing production disruptions and safety hazards.
- Power Generation: Installed on steam turbines, generators, and auxiliary equipment to maintain grid stability by analyzing rotor vibrations and ensuring compliance with safety standards.
- Manufacturing: Used in high-speed rotating machinery (e.g., motors, fans, extruders) to optimize maintenance schedules, reduce wear, and enhance production efficiency in automotive, chemical, and food processing plants.
- Mining: Deployed in crushers, mills, and conveyor systems to monitor equipment health in harsh environments, minimizing unplanned downtime and maintenance costs.
Specific applications include:
- Turbine Health Monitoring: Analyzes shaft vibrations in steam turbines to detect early signs of rubs or misalignment, enabling proactive maintenance.
- Compressor Protection: Monitors casing vibrations in natural gas compressors to prevent catastrophic failures and ensure regulatory compliance.
- Predictive Maintenance: Provides real-time vibration data for trend analysis, allowing data-driven decisions to optimize equipment lifecycle and reduce operational costs.
Related Products
- 3500/42M Vibration Monitor: A 2-channel variant of the 3500/40M 140734-01, suitable for smaller systems or distributed monitoring setups.
- 3500/22M Keyphasor Module: Works in tandem with the 3500/40M 140734-01 to provide rotational reference signals for phase-locked vibration analysis.
- 3500/15 Power Supply Module: Supplies redundant power to the 3500/40M 140734-01 and other 3500 Series modules, ensuring uninterrupted operation.
- 3500/92 Communication Gateway: Enables Ethernet connectivity for the 3500/40M 140734-01, supporting remote monitoring via SCADA systems.
- 3300 XL Proximity Probe System: Compatible sensors that interface with the 3500/40M 140734-01 for high-precision displacement measurements.
- 3500/32M Relay Module: Triggers alarms or shutdowns based on vibration data from the 3500/40M 140734-01 in safety-critical applications.
Installation and Maintenance
Pre-installation Preparations:
Before installing the BENTLY 3500/40M 140734-01, ensure the 3500 Series rack is properly grounded and ventilated. Verify sensor compatibility (proximity probes, accelerometers) and route shielded cables away from high-voltage lines to minimize interference. Mount the module in the rack using anti-vibration brackets, ensuring adequate spacing for heat dissipation. Configure channel parameters (sensor type, alarm thresholds) using BENTLY’s 3500 Configuration Software, and calibrate each channel with a known vibration source to validate accuracy.
Before installing the BENTLY 3500/40M 140734-01, ensure the 3500 Series rack is properly grounded and ventilated. Verify sensor compatibility (proximity probes, accelerometers) and route shielded cables away from high-voltage lines to minimize interference. Mount the module in the rack using anti-vibration brackets, ensuring adequate spacing for heat dissipation. Configure channel parameters (sensor type, alarm thresholds) using BENTLY’s 3500 Configuration Software, and calibrate each channel with a known vibration source to validate accuracy.
Maintenance Suggestions:
- Routine Inspections: Quarterly checks of LED indicators for channel status and fault alarms. Use diagnostic software to review vibration trends and ensure measurements fall within normal ranges.
- Calibration: Annually calibrate the 3500/40M 140734-01 using a vibration shaker table to maintain measurement accuracy. Document calibration results for compliance audits.
- Firmware Updates: Periodically update the module’s firmware to access new features and security patches, following BENTLY’s validated procedures to avoid system disruptions.
- Spare Parts Management: Store spare 3500/40M 140734-01 modules in a controlled environment (10–30°C, <50% humidity) to ensure rapid replacement during failures. Test spares annually to confirm functionality.
Product Guarantee
Our company provides a 12-month quality warranty for the BENTLY 3500/40M 140734-01, covering hardware defects under normal use. In the event of abnormal performance—such as signal instability or measurement errors—we offer prompt replacement services to minimize downtime. For legacy or urgent requirements, our global supply chain ensures rapid delivery of the 3500/40M 140734-01 and related components. Our technical support team is available 24/7 to assist with installation, calibration, and troubleshooting, ensuring reliable operation of your machinery protection system.
