Description

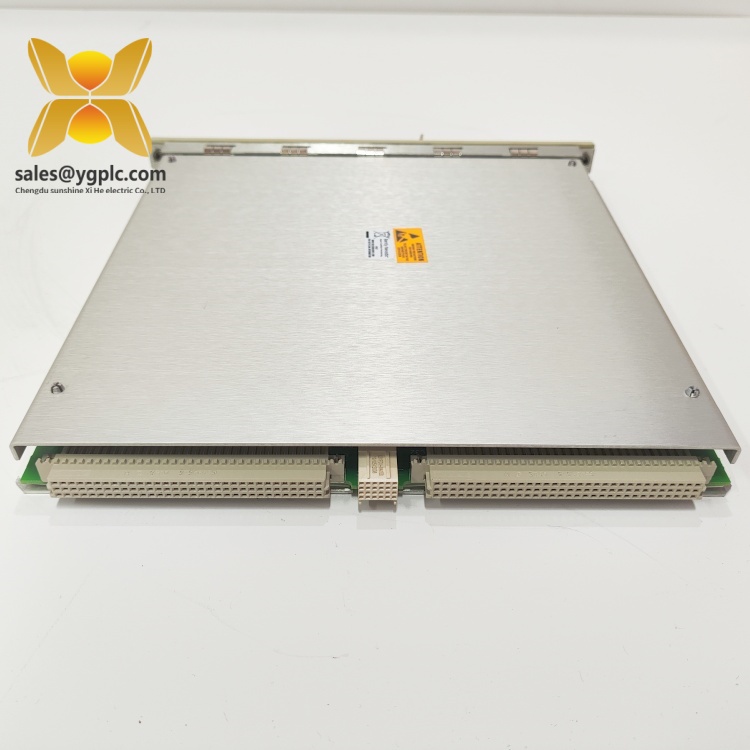

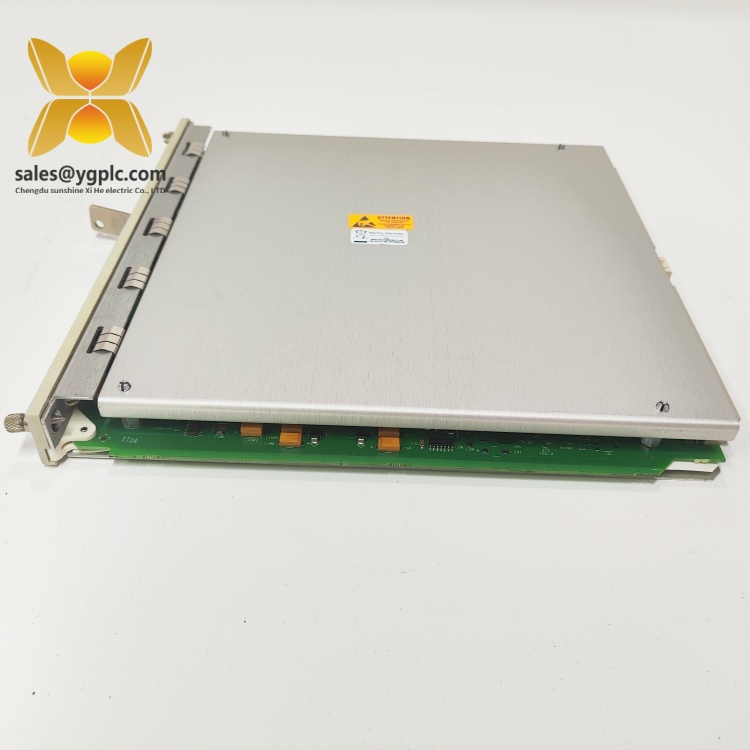

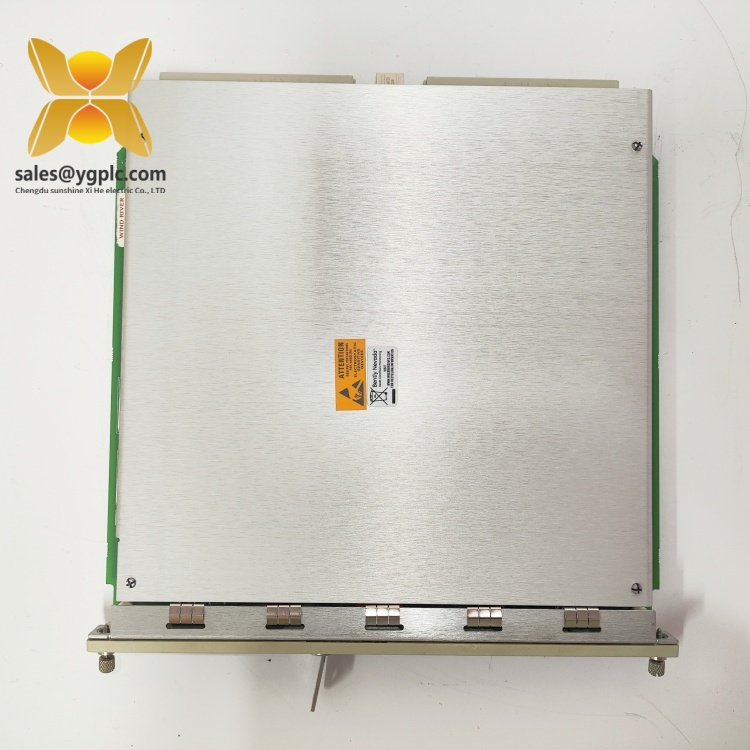

BENTLY 3500/22M 138607-01 Keyphasor Module

Product Overview：BENTLY 3500/22M 138607-01

The BENTLY 3500/22M 138607-01 is a high-precision Keyphasor Module designed as a critical component of Bently Nevada’s 3500 Series Machinery Protection System, a leading platform for rotating equipment health monitoring in industrial automation. Engineered to provide precise rotational speed and phase reference signals, this module plays a fundamental role in vibration analysis, balancing, and synchronization of turbines, compressors, and generators across industries such as oil & gas, power generation, and manufacturing. By delivering reliable keyphasor signals, the 3500/22M 138607-01 enables predictive maintenance, reduces mechanical stress, and prevents catastrophic failures in mission-critical systems.

As part of the 3500 Series, the 3500/22M 138607-01 integrates seamlessly with other modules (e.g., vibration monitors, communication gateways) to form a comprehensive machinery protection ecosystem. Its dual-channel design supports redundant input signals from proximity probes or optical sensors, ensuring robust performance even in harsh environments with high electromagnetic interference. The module’s configurable threshold settings and real-time diagnostic feedback via the 3500 Series rack interface enhance operational visibility, allowing engineers to detect early signs of equipment degradation and schedule proactive repairs.

In automation systems, the BENTLY 3500/22M 138607-01 serves as the timing reference for phase-locked vibration measurements, enabling accurate analysis of shaft dynamics and component alignment. Its compatibility with industry standards like API 670 ensures compliance with safety and reliability requirements, while the rugged enclosure (IP54-rated) and wide temperature range (-40°C to +85°C) make it suitable for both indoor and outdoor installations. By providing precise rotational data, this module optimizes machinery performance, minimizes unplanned downtime, and extends the lifecycle of high-value assets.

Technical Specifications：BENTLY 3500/22M 138607-01

Parameter Name	Parameter Value
Product Model	3500/22M 138607-01
Manufacturer	Bently Nevada
Product Type	Keyphasor Module
Input Signals	Proximity probes (8–24 VDC excitation) or optical sensors (NPN/PNP)
Output Signals	TTL/CMOS digital signals, 4–20 mA analog (optional)
Speed Range	0–50,000 RPM
Phase Accuracy	±0.1° at constant speed
Physical Dimensions	10.16 cm (H) × 16.51 cm (W) × 22.86 cm (D)
Weight	0.8 kg
Power Supply	19.2–26.4 VDC
Communication	Proprietary 3500 Series bus (compatible with MODBUS via 3500/92 gateway)
Operating Temperature	-40°C to +85°C
Mounting	Rack-mounted in 3500 Series enclosure

3500-22M 138607-01

Key Features and Advantages：BENTLY 3500/22M 138607-01

Dual-Channel Redundancy: The 3500/22M 138607-01 features two independent input channels, allowing simultaneous monitoring of primary and backup sensors. This redundancy eliminates single points of failure, ensuring continuous operation during sensor maintenance or replacement.

High-Precision Timing: With phase accuracy within ±0.1° and speed resolution down to 0.1 RPM, the module provides reliable reference signals for advanced vibration analysis, such as order tracking and modal testing. This precision is critical for identifying subtle mechanical issues like misalignment or bearing wear.

Flexible Sensor Compatibility: The module supports both proximity probes (for contactless metal detection) and optical sensors (for non-metallic targets), adapting to diverse machinery setups. Its configurable input filters reduce noise from harmonic interference, enhancing signal integrity in high-vibration environments.

Integrated Diagnostics: Built-in self-test features continuously monitor sensor health, power supply stability, and signal validity. Alarms and fault codes are transmitted to the rack’s main processor, enabling rapid troubleshooting and reducing mean time to repair (MTTR).

Rugged Industrial Design: The module’s reinforced metal enclosure and conformal-coated circuitry withstand extreme temperatures, humidity, and shock (up to 15 g), making it suitable for offshore platforms, refineries, and other harsh industrial environments.

Seamless System Integration: As part of the 3500 Series, the 3500/22M 138607-01 interfaces with Bently Nevada’s 3500/44M configuration software, allowing intuitive setup of trigger levels, signal scaling, and alarm parameters. Its compatibility with the 3500/92 communication gateway enables integration with DCS or SCADA systems for remote monitoring.

3500-22M 138607-01

Application Areas：BENTLY 3500/22M 138607-01

The BENTLY 3500/22M 138607-01 is essential in industries where precise rotational monitoring is non-negotiable:

Oil & Gas: Monitors shaft speed and phase in compressors, pumps, and turbines to detect imbalance or cavitation, ensuring safe and efficient operation in upstream, midstream, and downstream facilities.
Power Generation: Provides timing references for steam and gas turbines in power plants, supporting synchronization with the electrical grid and optimizing generator performance during load changes.
Manufacturing: Controls rotational speed in high-speed motors, fans, and conveyor systems, preventing mechanical overload and ensuring consistent production quality in automotive, chemical, and food processing plants.
Aerospace & Defense: Used in test stands and propulsion systems to analyze engine dynamics, ensuring compliance with rigorous safety and performance standards.

Specific applications include:

Vibration Analysis: Enables phase-locked data acquisition for accelerometers and displacement probes, facilitating detailed fault diagnosis through tools like orbit plots and waterfall diagrams.
Balancing Operations: Provides the reference signal for dynamic balancing of rotating components, reducing vibration levels and extending bearing life.
Machine Synchronization: Coordinates multiple drives in complex systems, such as multi-motor conveyor networks, to maintain precise speed matching and prevent material spillage or equipment damage.

Installation and Maintenance：BENTLY 3500/22M 138607-01

Pre-installation Preparations:
Before installing the BENTLY 3500/22M 138607-01, ensure the 3500 Series rack is properly grounded and powered. Verify sensor compatibility (proximity or optical) and route shielded cables to minimize electromagnetic interference. Use Bently Nevada’s 3500/44M software to configure channel parameters, such as sensor type, trigger level, and alarm setpoints. Mount the module in the rack using the provided hardware, ensuring adequate airflow for thermal management.

Maintenance Suggestions:

Routine Inspections: Perform quarterly checks to confirm secure connections, clean the module’s vents, and verify LED status indicators. Document any deviations from normal operating parameters.
Calibration: Annually calibrate the module using Bently Nevada’s calibration fixtures to ensure signal accuracy. Compare measured speed and phase values against reference standards and adjust as needed.
Firmware Updates: Periodically update the module’s firmware via the 3500 Series software to access bug fixes and new features, following the manufacturer’s step-by-step guidelines.
Spare Parts Management: Store spare 3500/22M 138607-01 modules in a controlled environment (temperature: 10–30°C, humidity: <50%) to ensure rapid replacement during unexpected failures.
3500-22M 138607-01

Product Guarantee：BENTLY 3500/22M 138607-01

Our company provides a 12-month quality warranty for the BENTLY 3500/22M 138607-01, covering hardware defects under normal use. In the event of performance issues, we offer prompt replacement services to minimize downtime. For discontinued or legacy models like the 3500/22M 138607-01, our global supply chain network specializes in sourcing rare and obsolete industrial control components, ensuring quick delivery for urgent needs. Our technical support team is available 24/7 to assist with installation, troubleshooting, and system optimization, delivering tailored solutions to keep your machinery protection systems operating reliably.

For sales inquiries, contact us via WhatsApp at +86 18859254943 or email at sales@ygplc.com.
