BENTLY 3500/15 127610-01 Power Supply Module
Product Overview: BENTLY 3500/15 127610-01
The BENTLY 3500/15 127610-01 power supply module is a critical component within Bently Nevada’s 3500 Machinery Health Monitoring System, designed to deliver reliable and redundant power to industrial automation setups. As a key member of the 3500 Series, this module serves as a dual-channel power source, ensuring uninterrupted operation of monitoring and control systems in mission-critical environments. Engineered for high availability, the 3500/15 127610-01 provides stable 24V DC power with built-in redundancy, making it essential for maintaining system integrity in applications where downtime is unacceptable.
Featuring a 100–240V AC wide-range input, the 3500/15 127610-01 adapts to diverse power grids while delivering 100W continuous output power. Its rugged design includes active power factor correction (PFC) and overvoltage protection, safeguarding connected components from electrical disturbances. The module’s hot-swappable architecture allows for seamless replacement without system shutdown, minimizing maintenance disruptions. With a MTBF (Mean Time Between Failures) of over 500,000 hours, this power supply ensures long-term reliability in harsh industrial conditions, such as those found in power plants, refineries, and heavy manufacturing facilities.
In automation systems, the 3500/15 127610-01 acts as a backbone for power distribution, supporting redundant configurations alongside other 3500 Series modules like vibration monitors and communication gateways. Its ability to maintain stable voltage under fluctuating loads and extreme temperatures (-40°C to +70°C) positions it as a cornerstone for predictive maintenance systems, where continuous power is non-negotiable. By combining robust hardware with intelligent power management, the module enhances system uptime and reduces operational risks, making it a strategic investment for industries reliant on uninterrupted machinery health monitoring.
Technical Specifications: BENTLY 3500/15 127610-01
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3500/15 127610-01 |
| Manufacturer | BENTLY NEVADA |
| Product Type | Redundant Power Supply Module |
| Input Voltage | 100–240V AC, 50/60 Hz |
| Output Voltage | 24V DC ±1% |
| Output Power | 100W continuous |
| Efficiency | 90% at full load |
| Redundancy | Dual-channel (1+1 redundancy) |
| Physical Dimensions | 177.8 mm (H) × 101.6 mm (W) × 254 mm (D) |
| Weight | 2.3 kg |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | Rack-mounted (3500 Series rack compatible) |
| Certifications | CE, UL, CSA |

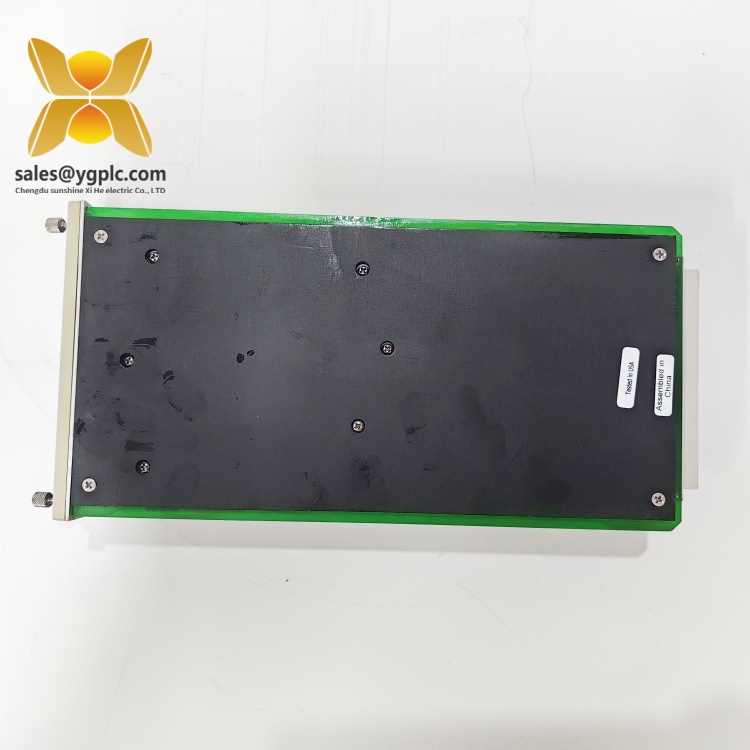

3500/15 125840-02
Main Features and Advantages: BENTLY 3500/15 127610-01
Redundant Power Architecture: The 3500/15 127610-01 supports 1+1 redundancy, allowing two modules to operate in parallel for fault tolerance. In the event of a primary module failure, the redundant unit seamlessly takes over, ensuring zero downtime. This feature is critical for systems monitoring high-value assets like turbines and compressors, where power interruptions could lead to catastrophic failures.
Wide Input Voltage Range: With compatibility across 100–240V AC, the module adapts to global power standards, eliminating the need for region-specific power converters. This flexibility simplifies inventory management and reduces installation complexity in multinational industrial setups.
Industrial-Grade Durability: Built with a steel enclosure and conformal coating, the 3500/15 127610-01 withstands vibration, shock, and corrosive atmospheres. Its IP20 protection rating and ability to operate at full load from -40°C to +70°C make it suitable for both indoor control rooms and harsh outdoor environments, such as offshore platforms or mining sites.
Intelligent Power Management: The module includes real-time diagnostics, such as voltage/frequency monitoring and fault signaling via front-panel LEDs. These features enable proactive maintenance by alerting operators to potential issues before they escalate, reducing mean time to repair (MTTR).
Easy Integration: Designed for the 3500 Series rack, the 3500/15 127610-01 installs quickly with plug-and-play connectivity. Its standardized form factor and pre-configured wiring harnesses minimize setup time, while hot-swappable design allows technicians to replace modules without powering down the entire system.

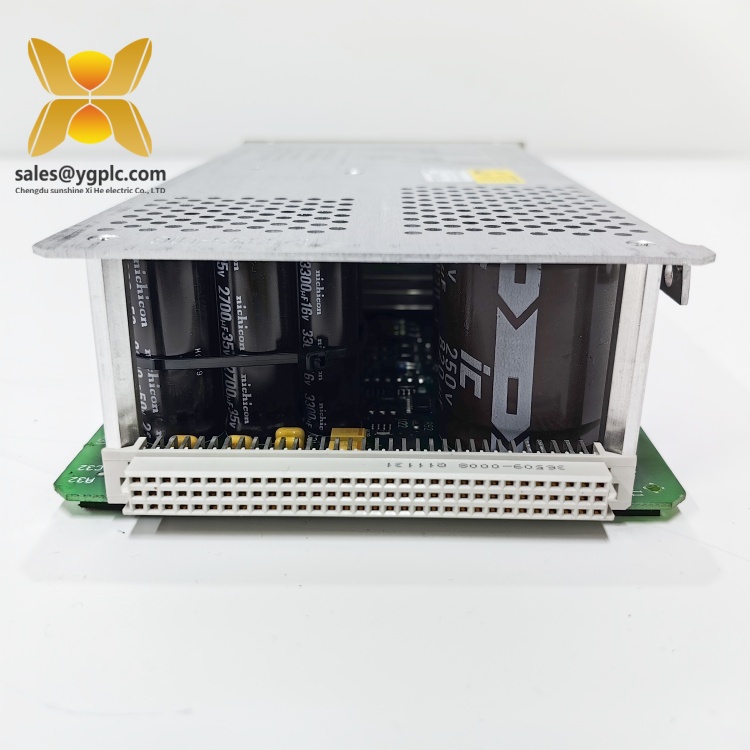

3500/15 125840-02
Application Areas: BENTLY 3500/15 127610-01
The BENTLY 3500/15 127610-01 is indispensable in industries where reliable power is non-negotiable:
- Power Generation: Supports turbine control systems in thermal, hydro, and gas power plants, ensuring continuous monitoring of shaft vibration, temperature, and speed. The module’s redundancy prevents power-related disruptions in grid-connected generators.
- Oil and Gas: Deployed in refineries, pipelines, and offshore platforms to power critical machinery health monitoring systems. Its ability to withstand extreme temperatures and vibrations makes it ideal for compressors, pumps, and rotating equipment in harsh oilfield environments.
- Manufacturing: Used in smart factories to maintain uninterrupted operation of CNC machines, robotics, and conveyor systems. The module’s stable power output ensures consistent performance in high-speed production lines.
- Water Treatment: Powers control systems in wastewater plants, ensuring reliable operation of pumps, valves, and analytical instruments. Its durability supports 24/7 monitoring in humid, chemically active environments.
- Aerospace and Defense: Integrates with test stands and ground support equipment to ensure precise power delivery for aircraft engine monitoring systems, where safety and reliability are paramount.
Related Products: BENTLY 3500/15 127610-01
- BENTLY 3500/15 127610-02: A higher-power variant (150W) for systems requiring increased energy output, suitable for large-scale industrial setups with expanded I/O configurations.
- BENTLY 3500/15 127610-03: Features enhanced surge protection for unstable power grids, ideal for regions with frequent voltage fluctuations.
- BENTLY 3500/22M: A communication interface module that pairs with the 3500/15 127610-01 to enable data transmission between the power supply and SCADA systems.
- BENTLY 3500/42M: A vibration monitoring module that relies on the 3500/15 127610-01 for stable power, ensuring accurate measurement of machinery health parameters.
- BENTLY 3500/92: A communication gateway module that integrates with the power supply to support Modbus TCP/IP connectivity, enabling remote monitoring of power status.
- BENTLY 3500/05 Rack: The standard enclosure for 3500 Series modules, compatible with the 3500/15 127610-01 for structured power distribution.

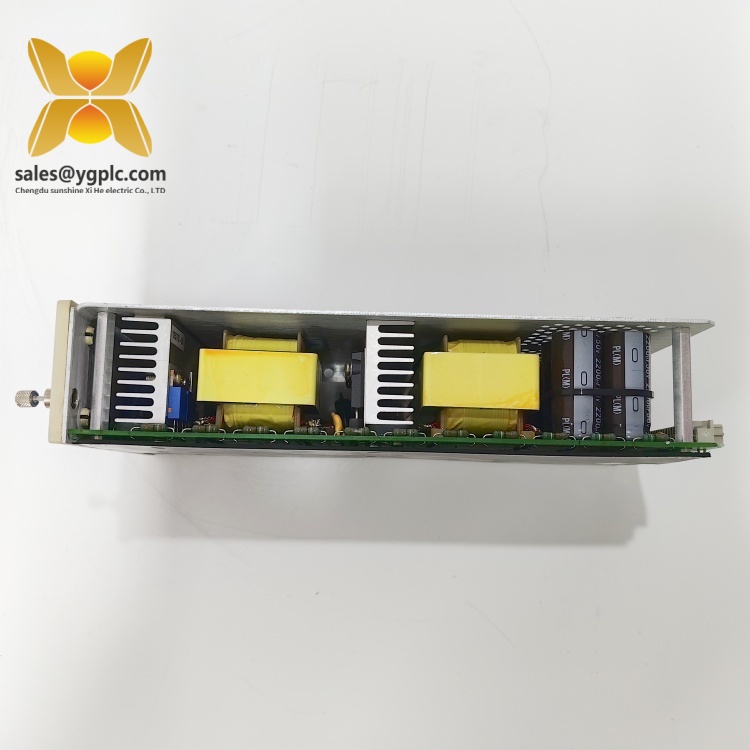

3500/15 125840-02
Installation and Maintenance: BENTLY 3500/15 127610-01
Pre-installation Preparations:
Before installing the 3500/15 127610-01, verify the input voltage matches the module’s specifications and ensure the 3500 Series rack is properly grounded. Clean the rack slots and inspect power cables for damage. For redundant configurations, install two 3500/15 127610-01 modules in adjacent slots, connecting them via the redundant power backplane. Secure the modules with rack screws and terminate power cables using the provided terminal blocks, ensuring proper polarity and torque.
Before installing the 3500/15 127610-01, verify the input voltage matches the module’s specifications and ensure the 3500 Series rack is properly grounded. Clean the rack slots and inspect power cables for damage. For redundant configurations, install two 3500/15 127610-01 modules in adjacent slots, connecting them via the redundant power backplane. Secure the modules with rack screws and terminate power cables using the provided terminal blocks, ensuring proper polarity and torque.
Maintenance Suggestions:
- Routine Inspections: Monthly visual checks of front-panel LEDs to confirm normal operation (green LED indicates stable power; amber signals a fault). Clean dust from ventilation slots using compressed air to maintain optimal heat dissipation.
- Redundancy Testing: Quarterly tests of redundant switching by simulating a primary module failure to ensure seamless failover. Document test results and replace any module that fails to switch properly.
- Component Replacement: If a module requires replacement, use only factory-certified spares to maintain system compatibility. After replacement, recalibrate voltage outputs and verify communication with connected modules.
- Lifespan Management: Monitor MTBF metrics and replace modules approaching 10 years of service to prevent unexpected failures. Leverage our global supply chain for quick delivery of discontinued or urgent spare parts.

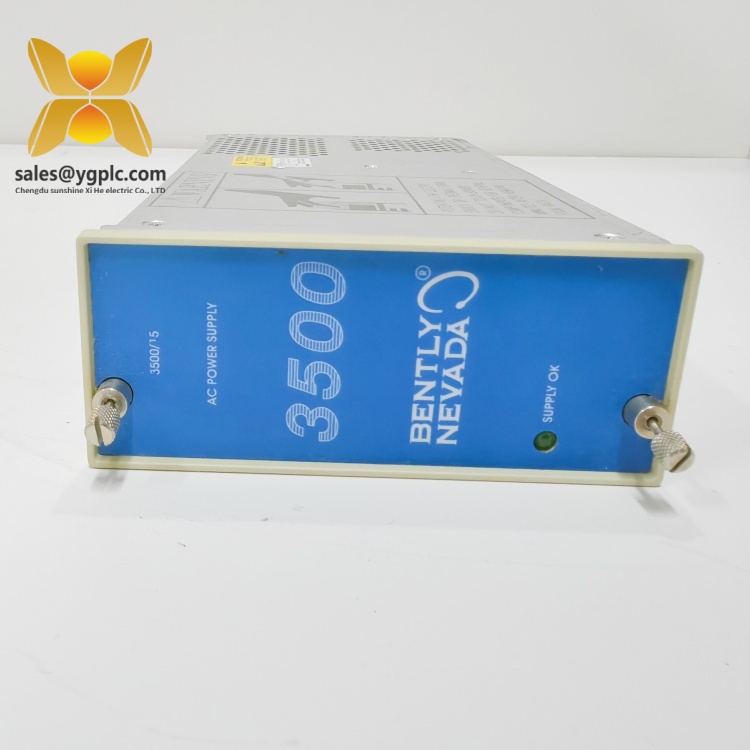

3500/15 125840-02
Product Guarantee: BENTLY 3500/15 127610-01
Our company provides a 12-month quality warranty for the BENTLY 3500/15 127610-01 power supply module, covering non-human-induced hardware defects. During the warranty period, we will replace any module experiencing voltage instability, communication failures, or physical damage at no cost. For discontinued models or urgent needs, our extensive inventory and global logistics network ensure rapid fulfillment, minimizing downtime and keeping your industrial systems operational.
With 17 years of expertise in industrial control distribution, we prioritize reliability and customer support. The 3500/15 127610-01 exemplifies our commitment to delivering robust, mission-critical components that meet the highest standards of performance. Contact us today to discuss how this power supply module can enhance the reliability of your automation infrastructure.
Note: All product names, logos, and brands are the property of their respective owners. This document is for informational purposes only and does not substitute for Bently Nevada’s official technical documentation. Always refer to the manufacturer’s guidelines for detailed installation and safety instructions.
