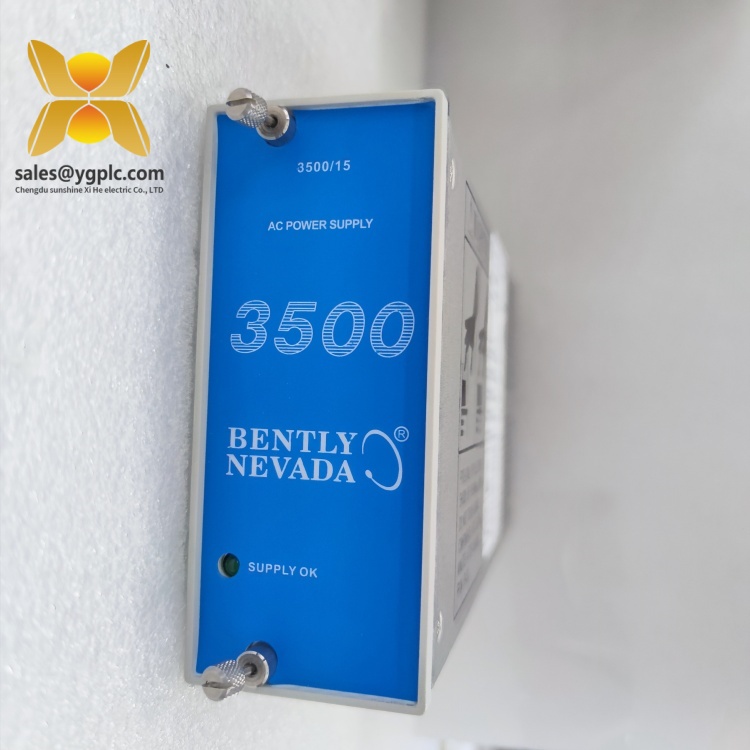

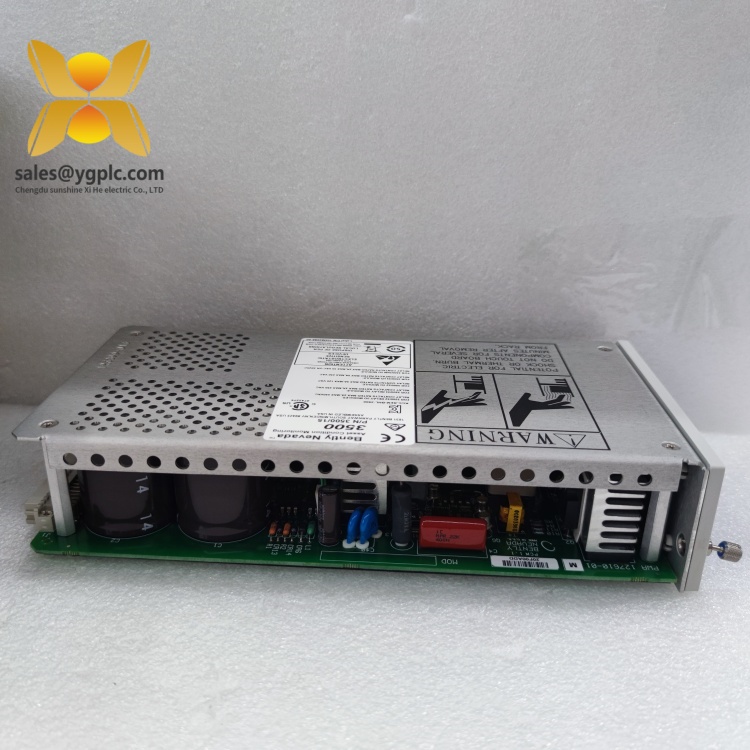

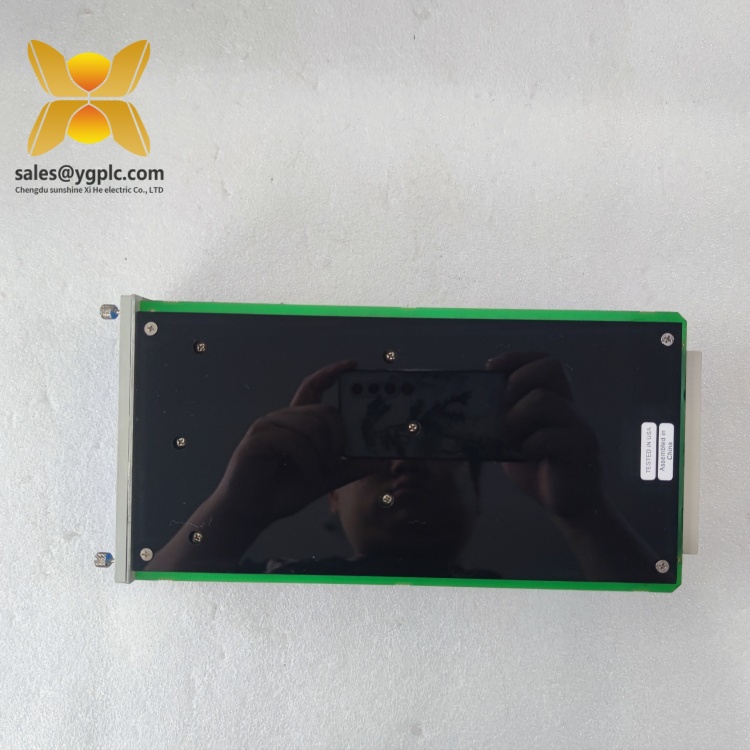

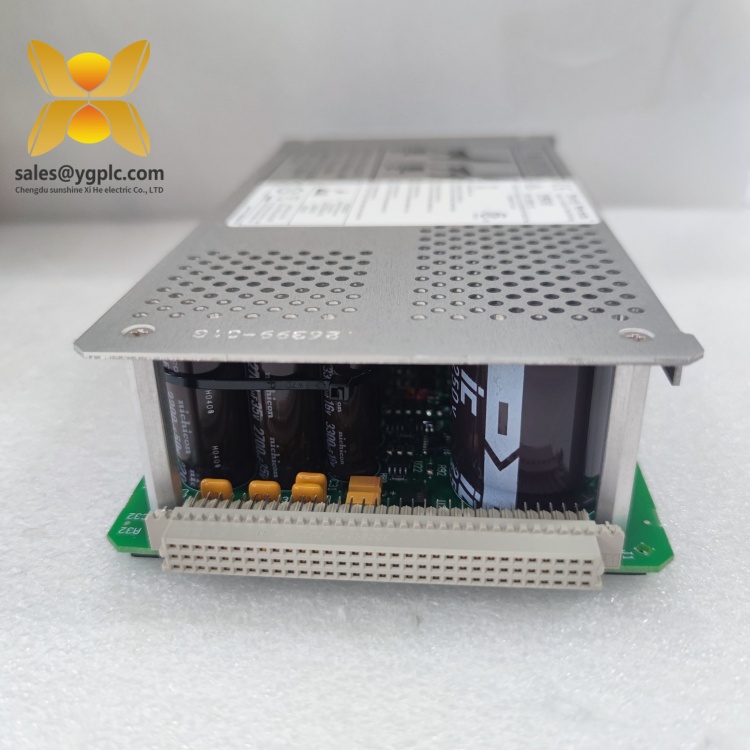

BENTLY 3500/15 127610-01 Power Supply Module
Product Overview: BENTLY 3500/15 127610-01
The BENTLY 3500/15 127610-01 power supply module is a high-reliability industrial power solution designed for Bently Nevada’s 3500 Series Machinery Health Monitoring System. As a critical component of this advanced platform, the 3500/15 127610-01 delivers stable DC power to 3500 Series racks, ensuring uninterrupted operation of vibration monitors, communication gateways, and I/O modules in mission-critical industrial environments. Engineered for redundancy and durability, this module combines dual-power input design with rugged construction to support 24/7 operation in harsh conditions.
Featuring a 100–240V AC universal input and 24V DC, 5A output, the 3500/15 127610-01 adapts to global power grids while maintaining precise voltage regulation. Its hot-swappable design allows replacement without system shutdown, minimizing downtime during maintenance, while built-in overload and short-circuit protection safeguards connected components. The module’s -40°C to +85°C operating temperature range and IP20 protection rating make it suitable for demanding settings, from power plant turbines to offshore compressors.
In automation systems, the 3500/15 127610-01 serves as the power backbone for Bently Nevada’s 3500 Series, ensuring consistent energy delivery to support real-time machinery health monitoring. Its compatibility with 3500 Rack enclosures (e.g., 3500/05) and compliance with API 670 standards make it a trusted choice for industries requiring reliable power management in critical infrastructure.
Technical Specifications: BENTLY 3500/15 127610-01
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3500/15 127610-01 |
| Manufacturer | BENTLY NEVADA |
| Product Type | Power Supply Module |
| Input Voltage | 100–240V AC (50/60 Hz) |
| Output Voltage/Current | 24V DC, 5A (120W) |
| Efficiency | Up to 89% |
| Redundancy | Dual redundant inputs |
| Physical Dimensions | 177.8 mm (H) × 48.3 mm (W) × 254 mm (D) |
| Weight | 1.8 kg |
| Operating Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | 3500 Rack (slot-compatible) |
| Compliance | API 670, IEC 61000-6-2 |
| Country of Origin | United States |
Main Features and Advantages: BENTLY 3500/15 127610-01
Dual Redundant Power Design: The 3500/15 127610-01 supports dual independent power inputs, ensuring continuous operation if one source fails. This redundancy is critical for applications where downtime risks significant losses, such as turbine control systems in power plants.
Hot-Swappable Functionality: The module can be replaced without powering down the rack, enabling maintenance during operation. This feature reduces mean time to repair (MTTR) and enhances system availability in continuous processes.
Wide Temperature Tolerance: With an operating range of -40°C to +85°C, the module withstands extreme environments, from arctic oil fields to high-temperature manufacturing zones, without performance degradation.
Robust Protection Mechanisms: Built-in overload, overvoltage, and short-circuit protection safeguards the module and connected monitoring components from electrical faults, extending equipment lifespan.
Universal Input Compatibility: The 100–240V AC input adapts to global power standards, eliminating the need for region-specific adapters and simplifying inventory management in multinational projects.
Application Areas: BENTLY 3500/15 127610-01
The BENTLY 3500/15 127610-01 power supply module is essential for industries relying on precise machinery health monitoring:
- Power Generation: Powers vibration monitoring systems in steam turbines, generators, and auxiliary equipment, ensuring continuous operation and early fault detection in power plants.
- Oil and Gas: Deployed in offshore platforms and refineries to supply stable power to compressor and pump monitoring systems, even in harsh, corrosive environments.
- Manufacturing: Supports health monitoring of CNC machines, robotic arms, and conveyor systems in automotive and pharmaceutical production, minimizing unplanned downtime.
- Water Treatment: Manages power for pump and agitator monitoring in water/wastewater plants, ensuring regulatory compliance and process efficiency.
- Aerospace and Defense: Used in aircraft ground support equipment and military machinery, where reliable power is non-negotiable for mission-critical operations.
Related Products: BENTLY 3500/15 127610-01
- 3500/05 Rack Enclosure: Houses the 3500/15 127610-01 and other 3500 Series modules, providing mechanical support and power distribution.
- 3500/22M Proximitor Interface Module: Works with the 3500/15 127610-01 to process vibration sensor signals for machinery health analysis.
- 3500/42M Vibration Monitoring Module: Integrates with the power module to monitor and analyze vibration data from rotating equipment.
- 3500/92M Communication Gateway: Connects the 3500/15 127610-01-powered system to supervisory networks via Modbus TCP/IP.
- 3500/32 Relay Module (125712-01): Uses power from the 3500/15 127610-01 to trigger alarms and trips based on monitoring data.
- 3500/53 Displacement Module: Monitors shaft displacement, powered by the 3500/15 127610-01 for precise mechanical analysis.
Installation and Maintenance: BENTLY 3500/15 127610-01
Pre-installation Preparations:
Before installing the 3500/15 127610-01, verify the input voltage (100–240V AC) matches the local power supply and that the 3500 Rack is properly grounded. Clean the rack slot and ensure no debris is present. Slide the module into the designated slot, securing it with retention brackets. Connect dual power cables to the terminal block, following Bently Nevada’s wiring diagram to ensure correct polarity. Test both power inputs to confirm redundancy functionality before commissioning.
Before installing the 3500/15 127610-01, verify the input voltage (100–240V AC) matches the local power supply and that the 3500 Rack is properly grounded. Clean the rack slot and ensure no debris is present. Slide the module into the designated slot, securing it with retention brackets. Connect dual power cables to the terminal block, following Bently Nevada’s wiring diagram to ensure correct polarity. Test both power inputs to confirm redundancy functionality before commissioning.
Maintenance Recommendations:
- Routine Inspections: Monthly checks include verifying power LED status, tightening cable connections, and cleaning dust from ventilation slots to maintain thermal efficiency.
- Redundancy Testing: Quarterly test both power inputs to ensure failover functionality. Use a multimeter to confirm 24V DC output stability under load.
- Environmental Monitoring: Regularly assess ambient temperature and humidity to prevent overheating or condensation, which could impact module performance.
- Spare Parts Management: Keep a spare 3500/15 127610-01 on hand, leveraging our global supply chain for quick replacement of discontinued or urgent components.
Product Guarantee: BENTLY 3500/15 127610-01
Our company provides a 12-month quality warranty for the BENTLY 3500/15 127610-01 power supply module, covering hardware defects from non-human causes. During the warranty period, we will replace any module with abnormal output, protection failures, or physical damage at no cost. For urgent needs or discontinued models, our extensive inventory and global logistics network ensure prompt fulfillment, minimizing downtime and supporting continuous industrial operation.
With 17 years of expertise in industrial control distribution, we prioritize reliable products and exceptional service. The 3500/15 127610-01 exemplifies our commitment to quality, offering the durability and redundancy required for critical machinery monitoring systems. Contact us today to optimize your power management with this robust module.
Note: All product names, logos, and brands are property of their owners. This document is informational and does not substitute for Bently Nevada’s official technical manuals.
