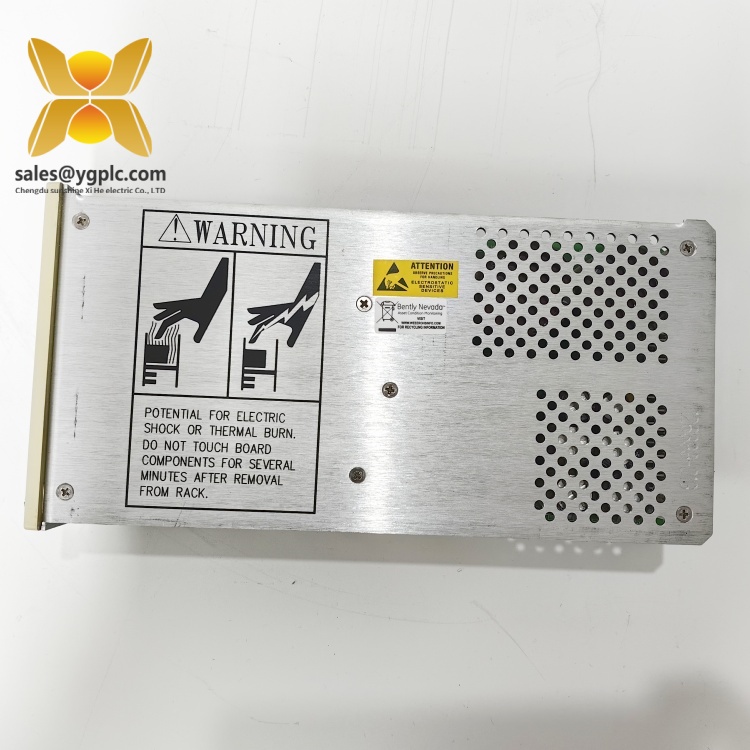

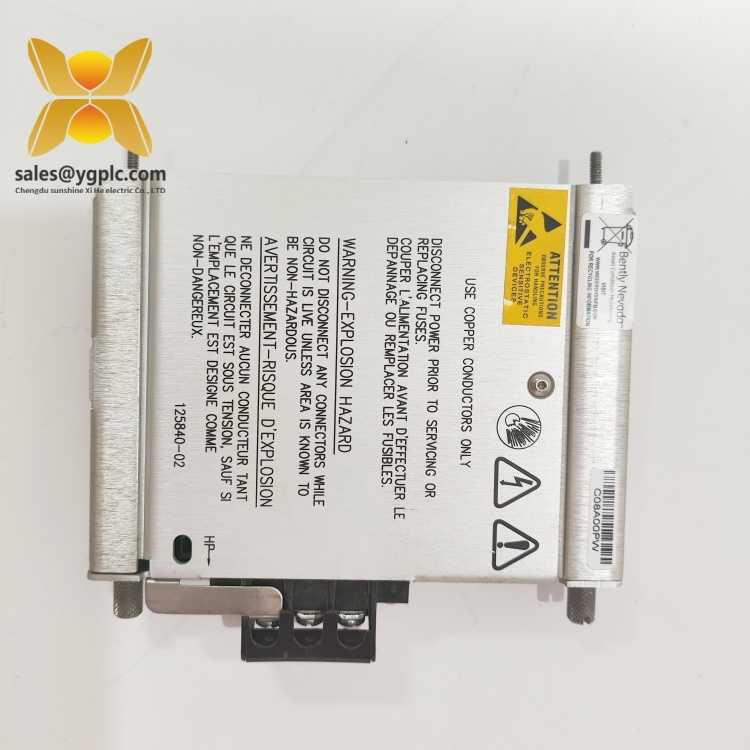

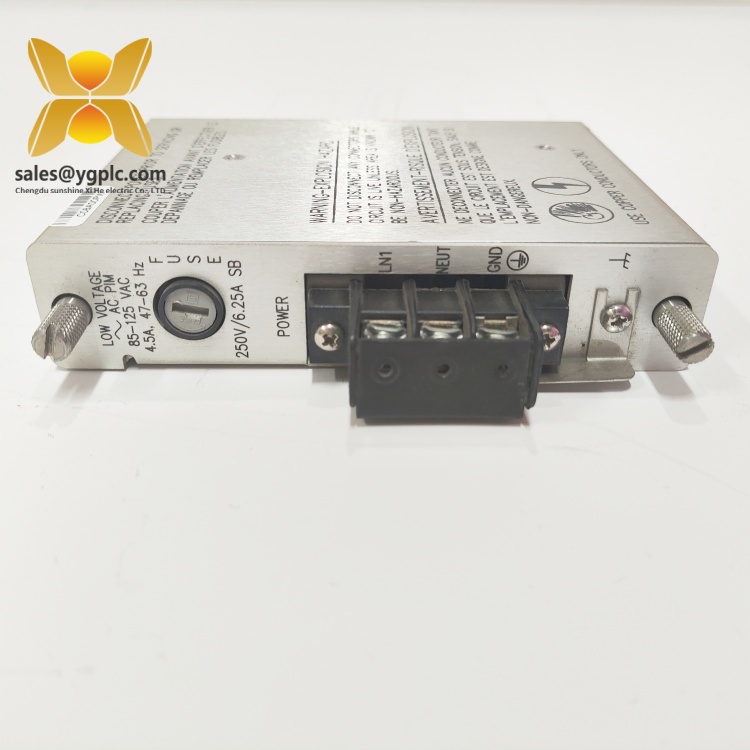

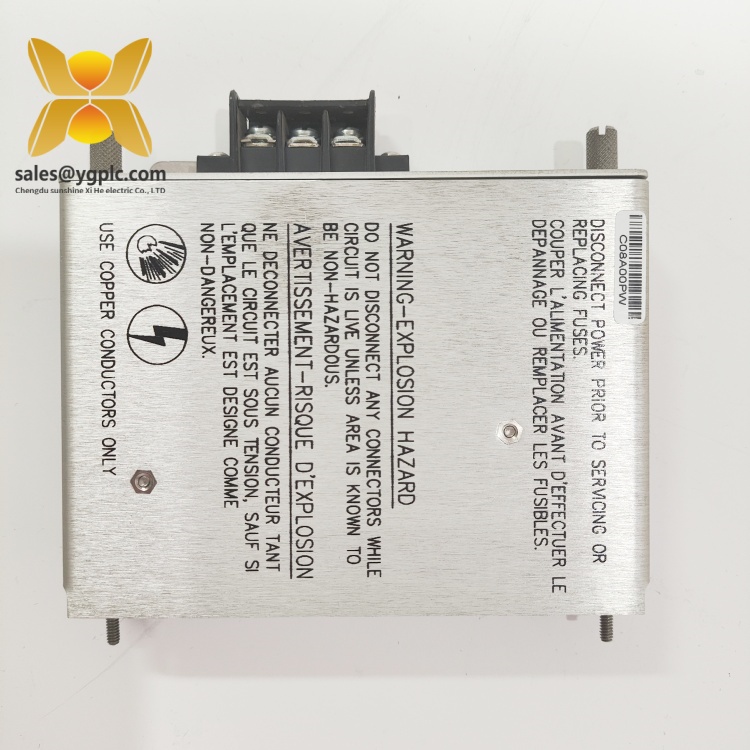

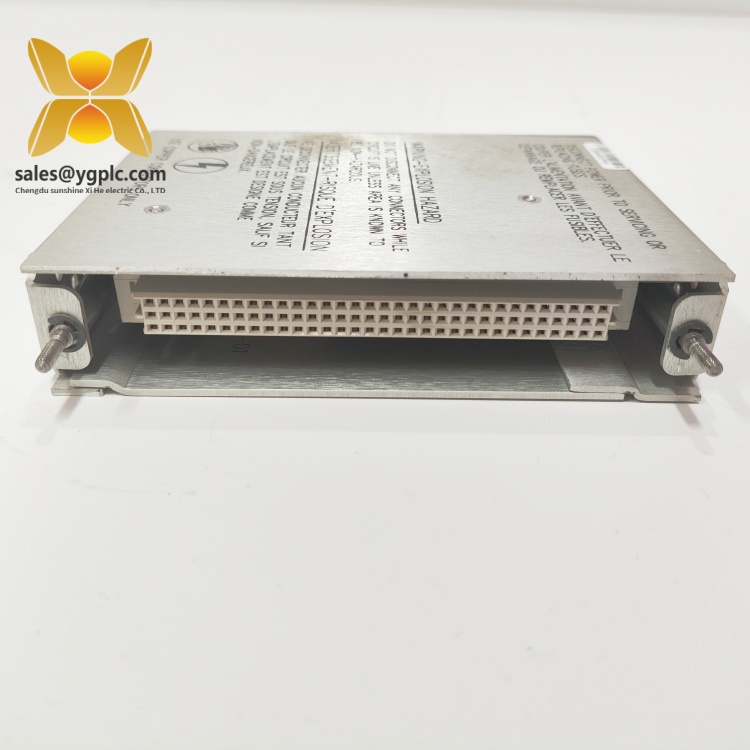

BENTLY 3500/15 125840-02 | low-voltage AC power input module | 3500/22M 138607-01 Bently Nevada

Original price was: $2,000.00.Current price is: $1,607.00.

Brand model:BENTLY
Product Name:3500/15 125840-02
Warranty: 1 year
Size:210 mm (W) × 150 mm (H) × 100 mm (D)
Weight:2.1kg
Origin:USA
Inventory: Spot/Futures
Goods condition: Brand new
Delivery time: 3-4days/1month

Get a Quote
Category: Brand:

Description

BENTLY 3500/15 125840-02 Product Specification

Product Overview ：BENTLY 3500/15 125840-02

The BENTLY 3500/15 125840-02 is a high-performance low-voltage AC power input module (PIM) designed for the BENTLY 3500 Series Machinery Protection System. As a critical component in industrial automation, this module converts incoming AC voltage into a stable DC power supply for other modules within the 3500 series rack, ensuring reliable operation of rotating machinery monitoring systems in harsh environments. The BENTLY 3500/15 125840-02 is engineered to deliver precise power management, making it essential for industries such as oil and gas, power generation, and manufacturing.



With a nominal input voltage range of 110–220 VAC (85–264 VAC RMS) and support for frequencies between 47–63 Hz, the BENTLY 3500/15 125840-02 offers flexibility in power supply configurations. It features an RS-485 communication interface (optional) for seamless integration with PLCs and HMIs, enabling real-time monitoring of power status and diagnostics. The module’s compact design (physical dimensions: 210 mm × 150 mm × 100 mm) and lightweight construction (2 kg) facilitate easy installation in 19″ racks, while its IP23-rated enclosure protects against dust and moisture.



In automation systems, the BENTLY 3500/15 125840-02 acts as a foundational element, providing stable power to vibration monitoring modules, temperature sensors, and other critical components. Its fail-safe design ensures continuous operation even under voltage fluctuations, minimizing downtime and enhancing system reliability. By integrating with BENTLY’s 3500 Series platform, the module supports predictive maintenance strategies, allowing engineers to detect anomalies in rotating machinery before they escalate into costly failures.

Technical Specifications ：BENTLY 3500/15 125840-02

Parameter Name Parameter Value
Product Model BENTLY 3500/15 125840-02
Manufacturer BENTLY NEVADA
Product Type Low-Voltage AC Power Input Module (PIM)
Input Voltage 110–220 VAC nominal (85–264 VAC RMS)
Input Frequency 47–63 Hz
Power Consumption <1 W
Communication Interface RS-485 (optional)
Physical Dimensions 210 mm (W) × 150 mm (H) × 100 mm (D)
Weight 2 kg
Enclosure Protection IP23
Operating Temperature -25°C to +60°C
Country of Origin United States
Certifications CE, UL
3500/15 125840-02

3500/15 125840-02

Main Features and Advantages ：BENTLY 3500/15 125840-02

Wide Voltage Compatibility: The BENTLY 3500/15 125840-02 supports a broad input voltage range, making it suitable for diverse power supply environments. This adaptability reduces the need for additional voltage converters, simplifying system design and lowering installation costs.



Reliable Power Regulation: The module ensures stable DC output voltage (24 VDC ±10%) to power downstream components, even during transient voltage spikes. Its built-in overcurrent and thermal protection mechanisms safeguard against damage, enhancing system longevity.



Seamless Integration: With optional RS-485 connectivity, the BENTLY 3500/15 125840-02 enables remote monitoring of power status and diagnostics. This feature allows engineers to proactively address issues, such as voltage drops or module failures, without physical intervention.



Compact and Rugged Design: The module’s IP23-rated enclosure and conformal-coated PCBs protect against environmental contaminants, ensuring reliable performance in high-dust or humid industrial settings. Its lightweight construction and standardized 19″ rack-mount form factor streamline installation and maintenance.



Modular Scalability: As part of BENTLY’s 3500 Series, the BENTLY 3500/15 125840-02 can be paired with other modules (e.g., vibration monitors, speed probes) to create a comprehensive machinery protection system. This scalability allows for easy system expansion as operational requirements evolve

3500/15 125840-02

3500/15 125840-02

Application Areas ：BENTLY 3500/15 125840-02

The BENTLY 3500/15 125840-02 is widely used in industries requiring robust power management for critical machinery:



  1. Oil and Gas:
    • Powers vibration monitoring systems in offshore platforms and refineries, ensuring safe operation of pumps, compressors, and turbines.
    • Supports emergency shutdown systems (ESD) by providing stable power to control valves and sensors.
  2. Power Generation:
    • Maintains reliable power supply to steam turbine monitoring systems, enabling real-time analysis of shaft vibration and temperature.
    • Integrates with generator control systems to optimize energy output and prevent equipment failure.
  3. Manufacturing:
    • Powers conveyor belt drives and robotic arms in automotive plants, ensuring precise motion control and reducing downtime.
    • Supports quality control systems by providing stable power to vision inspection cameras and sensors.
  4. Water/Wastewater Treatment:
    • Regulates power to pump stations and chemical dosing systems, ensuring consistent water flow and treatment efficiency.
    • Integrates with SCADA systems for remote monitoring of distributed water treatment facilities.
      3500/15 125840-02

      3500/15 125840-02

Related Products ：BENTLY 3500/15 125840-02

  • BENTLY 3500/22M 129406-01: A vibration monitoring module for measuring shaft displacement and velocity, often paired with the BENTLY 3500/15 125840-02 in machinery protection systems.
  • BENTLY 3500/32 129407-01: A dual-channel speed/torque monitor that interfaces with the BENTLY 3500/15 125840-02 to provide rotational speed data for turbines and generators.
  • BENTLY 3500/42 129408-01: A temperature monitor module that relies on the BENTLY 3500/15 125840-02 for power, enabling real-time temperature analysis of critical components.
  • BENTLY 3500/92 129410-01: A communication gateway module that facilitates data exchange between the BENTLY 3500/15 125840-02 and higher-level control systems.
  • BENTLY 3500/95 129411-01: A rack-mounted power supply module that can be used alongside the BENTLY 3500/15 125840-02 for redundant power configurations.

Installation and Maintenance ：BENTLY 3500/15 125840-02

Pre-installation Preparation:
Before installing the BENTLY 3500/15 125840-02, ensure the following:



  • Verify the input voltage matches the module’s requirements (110–220 VAC) and that the rack is properly grounded to prevent electrostatic discharge (ESD) damage.
  • Use BENTLY’s configuration software to set communication parameters (e.g., baud rate, parity) if RS-485 connectivity is enabled.
  • Secure the module in a 19″ rack using the provided mounting brackets, ensuring adequate airflow for heat dissipation.



Maintenance Recommendations:



  • Routine Inspections: Check front-panel LEDs monthly to confirm normal operation (e.g., green “Power” and “Health” indicators). Clean dust from vents quarterly to maintain optimal cooling.
  • Signal Calibration: Perform annual calibration of the module’s power output using certified test equipment to ensure accuracy.
  • Firmware Updates: Periodically update the module’s firmware via BENTLY’s dedicated software to access new features and security patches.
  • Component Testing: Test overcurrent and thermal protection mechanisms biannually to ensure compliance with safety standards.
    3500/15 125840-02

    3500/15 125840-02

Product Warranty ：BENTLY 3500/15 125840-02

Our company provides a one-year quality warranty for the BENTLY 3500/15 125840-02, covering hardware malfunctions not caused by human factors. During the warranty period, if the product exhibits abnormal performance or functional failure, we will provide replacement services. For discontinued models like the BENTLY 3500/15 125840-02, our global inventory of legacy industrial control parts ensures rapid fulfillment of urgent orders. We also offer post-warranty technical support and repair services through our network of certified technicians, ensuring your critical systems remain operational long after the warranty expires.



Contact Information:
Whatsapp: +86 18859254943
E-mail: sales@ygplc.com



Note: This document is based on technical data derived from BENTLY’s official specifications and industry applications. For detailed operational guidelines, refer to the BENTLY 3500/15 125840-02 user manual or contact our technical support team for personalized assistance.
