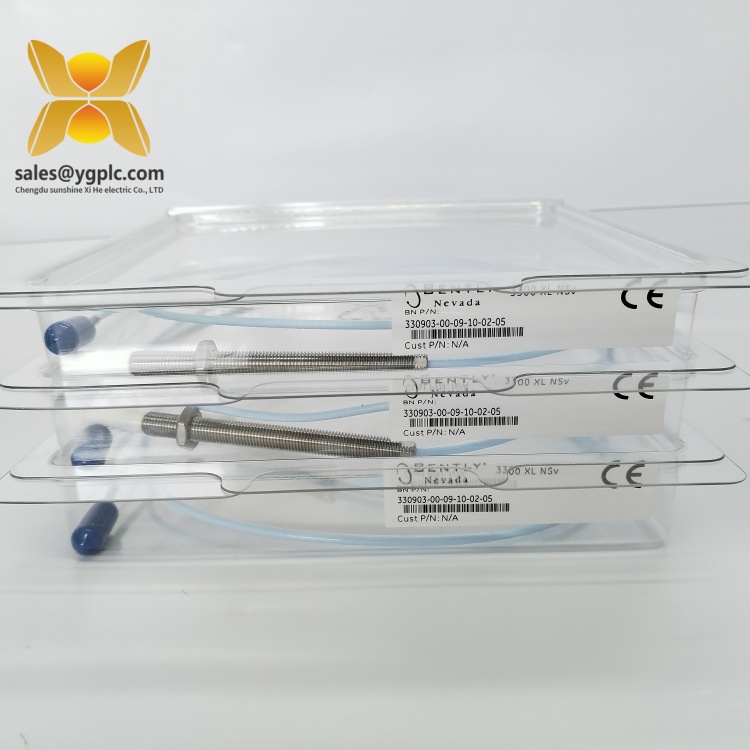

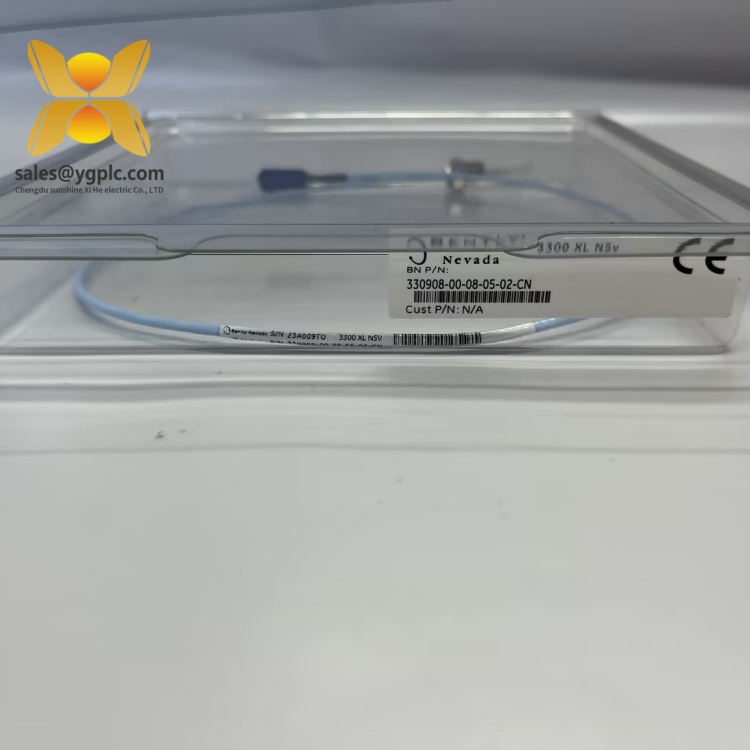

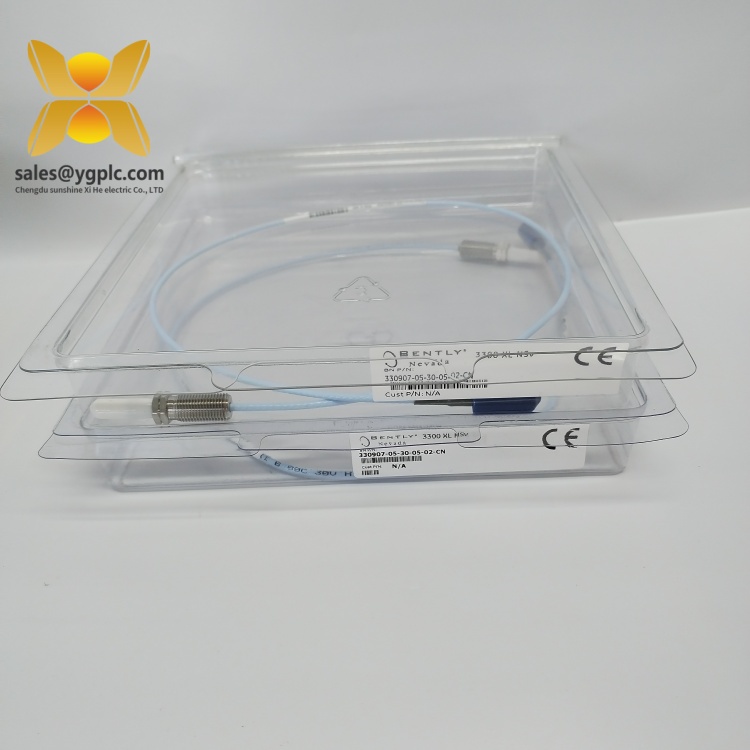

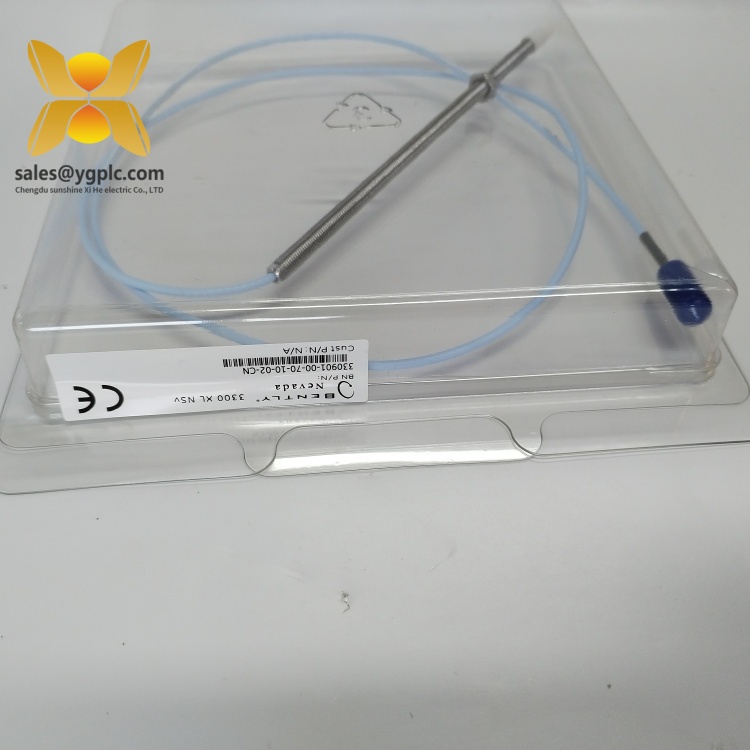

BENTLY 330901-05-32-05-02-00 Vibration Proximity Probe
Product Overview: BENTLY 330901-05-32-05-02-00
The BENTLY 330901-05-32-05-02-00 vibration proximity probe is a high-precision industrial sensor designed for real-time monitoring of shaft vibration and displacement in rotating machinery. As a core component of Bently Nevada’s 3300 Series Machinery Health Monitoring System, this probe utilizes eddy current technology to deliver accurate measurements, enabling early detection of mechanical issues such as misalignment, bearing wear, or imbalance. Engineered for reliability in harsh environments, the 330901-05-32-05-02-00 ensures seamless integration with Bently Nevada’s monitoring modules, providing critical data for predictive maintenance and minimizing unplanned downtime.
Featuring a 5 mm nominal probe diameter and 3.2 m cable length, the 330901-05-32-05-02-00 interfaces seamlessly with Bently Nevada’s 3300/40M Proximitor™ Modules (e.g., 3300/40M 173343-01) to convert mechanical movements into electrical signals for analysis. Its stainless steel construction and IP65 protection rating make it suitable for extreme conditions, with an operating temperature range of -50°C to +177°C. The probe’s linear measurement range of 0–2 mm and sensitivity of 7.87 V/mm (200 mV/mil) ensure precise detection of shaft vibrations, while its rugged design resists corrosion and mechanical stress in industrial settings.
Within automation systems, the 330901-05-32-05-02-00 serves as the frontline sensor for machinery health assessment, feeding critical data to monitoring systems for real-time analysis. Its compatibility with Bently Nevada’s comprehensive suite of modules and software tools enables seamless integration into distributed control systems (DCS) and supervisory control networks, making it essential for industries reliant on reliable equipment operation.
Technical Specifications: BENTLY 330901-05-32-05-02-00
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 330901-05-32-05-02-00 |
| Manufacturer | BENTLY NEVADA |
| Product Type | Vibration Proximity Probe |
| Probe Diameter | 5 mm |
| Cable Length | 3.2 meters |
| Measurement Range | 0–2 mm (linear) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -50°C to +177°C |
| Storage Temperature | -50°C to +200°C |
| Protection Rating | IP65 |
| Material | Stainless steel housing |
| Connector Type | Bently Nevada 18-pin connector |
| Weight | 0.4 kg |
| Country of Origin | United States |
Main Features and Advantages: BENTLY 330901-05-32-05-02-00
High-Precision Eddy Current Technology: The 330901-05-32-05-02-00 employs eddy current principles to measure shaft displacement with micron-level accuracy, critical for detecting minor vibrations that could escalate into major failures. This precision enables early identification of issues like rotor rubs or bearing degradation, supporting proactive maintenance.
Rugged Industrial Design: With a stainless steel probe tip and IP65-rated construction, the sensor withstands harsh environmental factors, including high temperatures, moisture, and dust. Its ability to operate reliably in extreme conditions makes it suitable for power plant turbines, offshore compressors, and other high-vibration applications.
Seamless System Integration: Designed for Bently Nevada’s 3300 Series, the probe ensures compatibility with Proximitor modules and monitoring racks, simplifying system setup and calibration. This integration reduces installation time and minimizes compatibility risks in complex monitoring setups.
Long-Life Performance: The probe’s corrosion-resistant materials and robust cable construction extend its service life in chemically aggressive or high-vibration environments, reducing replacement costs and maintenance frequency. Its durable design enhances overall system reliability in mission-critical applications.
Easy Calibration and Maintenance: The 330901-05-32-05-02-00 supports on-site calibration using Bently Nevada’s standard tools, allowing operators to verify performance without specialized equipment. Its modular design facilitates quick replacement, minimizing downtime during maintenance.
Application Areas: BENTLY 330901-05-32-05-02-00
The BENTLY 330901-05-32-05-02-00 vibration proximity probe is widely applied in industries where machinery reliability is critical:
- Power Generation: Monitors steam turbines, generators, and auxiliary equipment in thermal, hydro, and nuclear power plants. The probe’s high-temperature tolerance ensures accurate measurements in turbine casings and generator shafts.
- Oil and Gas: Deployed in refineries, pipelines, and offshore platforms to monitor compressors, pumps, and motors. Its corrosion resistance makes it suitable for harsh offshore environments and chemically active processing areas.
- Manufacturing: Installed in CNC machines, presses, and robotic arms to detect vibrations that could affect product quality. The probe helps maintain precision in high-speed manufacturing processes, such as automotive assembly lines.
- Water Treatment: Used in pump stations and wastewater treatment plants to monitor pump shafts and impellers, ensuring continuous operation and compliance with environmental regulations.
- Aerospace and Defense: Supports condition monitoring of aircraft engines, ground support equipment, and military machinery, where failure risks must be minimized for mission success.
Related Products: BENTLY 330901-05-32-05-02-00
- BENTLY 3300/40M Proximitor Module (173343-01): Processes signals from the 330901-05-32-05-02-00, converting proximity measurements into standardized outputs for monitoring systems.
- BENTLY 3300/32 Keyphasor Module (125712-01): Provides phase reference signals for the probe, enabling precise vibration analysis and machinery alignment.
- BENTLY 3300/20 Proximitor (177230-01): An alternative Proximitor module with enhanced diagnostic features, compatible with the 330901-05-32-05-02-00 for advanced vibration monitoring.
- BENTLY 3300 Rack (3300/05): A mounting chassis that houses Proximitor modules and other monitoring components, integrating the probe into a comprehensive health monitoring system.
- BENTLY 3500/42M Vibration Monitoring Module: A higher-performance module for complex systems, working with the probe to support multiple vibration channels.
- BENTLY 330901-05-32-10-02-00: A variant with a 10 m cable length, offering flexibility for installations requiring extended probe placement.
Installation and Maintenance: BENTLY 330901-05-32-05-02-00
Pre-installation Preparations:
Before installing the 330901-05-32-05-02-00, verify the installation location meets temperature and environmental requirements. Clean the mounting surface and ensure proper clearance around the probe tip to avoid mechanical interference. Use the provided bracket to secure the probe to the machinery casing, maintaining a perpendicular alignment to the target shaft. Connect the probe cable to the Bently Nevada Proximitor module (e.g., 3300/40M 173343-01), ensuring the connector is tightly secured to prevent signal loss. Calibrate the probe using Bently Nevada’s System 1 software to establish the zero gap and linear range before commissioning.
Before installing the 330901-05-32-05-02-00, verify the installation location meets temperature and environmental requirements. Clean the mounting surface and ensure proper clearance around the probe tip to avoid mechanical interference. Use the provided bracket to secure the probe to the machinery casing, maintaining a perpendicular alignment to the target shaft. Connect the probe cable to the Bently Nevada Proximitor module (e.g., 3300/40M 173343-01), ensuring the connector is tightly secured to prevent signal loss. Calibrate the probe using Bently Nevada’s System 1 software to establish the zero gap and linear range before commissioning.
Maintenance Recommendations:
- Routine Inspections: Monthly visual checks for cable wear, connector corrosion, or physical damage to the probe tip. Use a thermal imager to detect unusual temperature gradients that could indicate probe malfunction.
- Calibration Verification: Annually verify probe sensitivity and linearity using a calibration fixture, adjusting as needed to maintain measurement accuracy. Reference Bently Nevada’s calibration procedures for guidance.
- Environmental Monitoring: Regularly assess the operating environment for changes in temperature, humidity, or vibration levels that could affect probe performance. Install additional protection (e.g., heat shields) if conditions exceed specified limits.
- Spare Parts Management: Keep a spare 330901-05-32-05-02-00 on hand, along with compatible connectors and cables, to facilitate rapid replacement in case of failure. Leverage our global supply chain for quick delivery of components.
Product Guarantee: BENTLY 330901-05-32-05-02-00
Our company provides a 12-month quality warranty for the BENTLY 330901-05-32-05-02-00 vibration proximity probe, covering hardware defects from non-human causes. During the warranty period, we will replace any probe with abnormal sensitivity, cable failures, or structural damage at no cost. For discontinued models or urgent repair needs, our extensive inventory and global logistics network ensure prompt fulfillment, minimizing downtime and supporting continuous industrial operation.
With 17 years of expertise in industrial control distribution, we are committed to reliable products and exceptional service. The 330901-05-32-05-02-00 exemplifies our dedication to quality, offering the precision and durability required for critical machinery monitoring. Contact us today to optimize your predictive maintenance strategy with this advanced vibration probe.
Note: All product names, logos, and brands are property of their owners. This document is informational and does not substitute for Bently Nevada’s official technical manuals.
