Product Overview: BENTLY 330180-50-00

Name: BENTLY 330180-50-00 | Key component | SUNSHINE XIHE
Brand: ABB

In the world of industrial machinery monitoring, where early detection of faults can save millions in downtime and repairs, ABB delivers a solution that sets new standards for precision and reliability: the BENTLY 330180-50-00. As a key component in ABB’s renowned portfolio of vibration monitoring systems, this transducer is engineered to provide real-time insights into machine health, enabling proactive maintenance and ensuring uninterrupted operation across critical industrial processes.

The ABB 330180-50-00 is more than a sensor—it’s a guardian of industrial equipment. Designed to measure vibration, position, and temperature in rotating machinery such as turbines, pumps, motors, and compressors, it translates mechanical signals into actionable data. This data empowers plant managers and engineers to identify wear, misalignment, or imbalance before they escalate into costly failures. Built with ABB’s signature attention to durability, the BENTLY 330180-50-00 thrives in harsh industrial environments, from high-temperature factories to dusty refineries, making it a trusted choice for industries where machinery performance is mission-critical.

Technical Specifications — BENTLY 330180-50-00

Specification	Details
Model Number	BENTLY330180-50-00
Manufacturer	BENTLY
Operating Voltage	18-30V DC
Output Signal	4-20mA (vibration) + 4-20mA (temperature)
Vibration Measurement Range	0-25 mm/s RMS (velocity)
Temperature Measurement Range	-40°C to +120°C (-40°F to +248°F)
Frequency Response	10-1000 Hz (vibration)
Accuracy	±2% of full scale (vibration); ±1°C (temperature)
Housing Material	316 stainless steel
Connection	M12 circular connector (5-pin)
Protection Rating	IP68
Mounting	Threaded (M10 x 1.5)
Weight	Approx. 150g (0.33lbs)
Certifications	CE, ATEX, IECEx, UL
MTBF (Mean Time Between Failures)	>200,000 hours

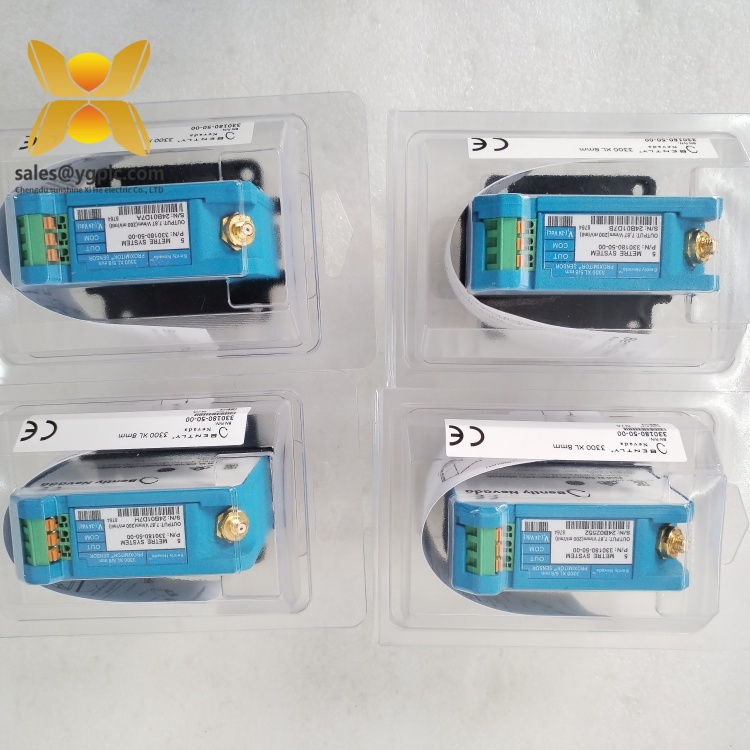

ABB 330180-50-00

Main features and advantages: BENTLY 330180-50-00

The ABB 330180-50-00 stands out in industrial monitoring with features designed to meet the demands of modern machinery management:

Dual Measurement Capability: Unlike single-function sensors, the BENTLY 330180-50-00 simultaneously measures vibration (velocity) and temperature, providing a holistic view of machine health. This dual data stream eliminates the need for separate sensors, reducing installation complexity and costs.
Extreme Environmental Durability: With a 316 stainless steel housing and IP68 protection rating, the BENTLY 330180-50-00 resists water, dust, corrosion, and chemical exposure. It operates reliably in temperatures from -40°C to +120°C, making it suitable for outdoor equipment and high-heat industrial zones.
High Accuracy and Repeatability: Delivering ±2% accuracy for vibration and ±1°C for temperature, the BENTLY 330180-50-00 ensures consistent, trustworthy data. This precision is critical for distinguishing normal wear from early signs of failure, preventing false alarms and missed issues.
Broad Frequency Response: Covering 10-1000 Hz for vibration, the BENTLY 330180-50-00 captures a wide range of mechanical signals, from low-frequency imbalance to high-frequency bearing defects. This versatility makes it compatible with diverse machinery types.
Easy Integration: The 4-20mA output signals simplify connection to PLCs, DCS, and monitoring systems, while the M12 connector enables quick, secure installation. It works with BENTLY’s 3500 series monitors and third-party systems, ensuring flexibility across existing setups.
Low Power Consumption: Operating on 18-30V DC with minimal power draw, the BENTLY 330180-50-00 integrates easily into energy-efficient systems, reducing overall operational costs.
Global Safety Compliance: Certified by CE, ATEX, IECEx, and UL, the BENTLY 330180-50-00 meets international standards for hazardous areas and electromagnetic compatibility (EMC), ensuring safe deployment in explosive environments like oil refineries and chemical plants.

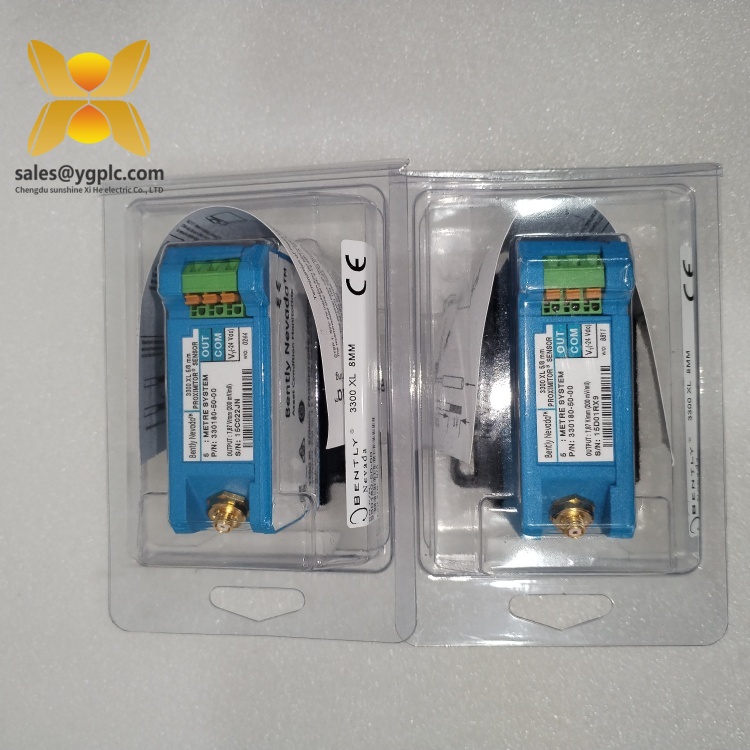

ABB 330180-50-00

Installation and maintenance: BENTLY 330180-50-00

Installing and maintaining the BENTLY 330180-50-00 is designed to be straightforward, ensuring minimal disruption to operations:

Installation Steps:

Mounting: Screw the BENTLY 330180-50-00 into place using the M10 x 1.5 threaded housing, positioning it 1-2mm from the machine’s rotating component (e.g., motor shaft). Ensure the sensor is aligned perpendicular to the vibration source for accurate readings.
Wiring: Connect the M12 5-pin connector to the monitoring system or PLC using a shielded cable (e.g., ABB 330190-070-00-00). Connect power (18-30V DC) to the designated pins, following the wiring diagram in the user manual.
Calibration: The BENTLY 330180-50-00 comes pre-calibrated from the factory. For verification, use ABB’s 3301-CAL calibration tool to check output signals against known vibration and temperature levels.
Testing: Power on the system and monitor initial readings. A stable 4mA signal at rest confirms proper installation; adjust positioning if readings are erratic.

Maintenance Tips:

Semi-Annual Inspections: Check the M12 connector for corrosion or loose pins. Clean the sensor’s surface with a dry cloth to remove dust or oil buildup.
Calibration Checks: Verify calibration annually using BENTLY ’s calibration tools to ensure accuracy, especially in high-vibration environments.
Cable Integrity: Inspect cables for damage (cuts, abrasions) quarterly, as damaged insulation can affect signal quality.
Replacement Guidelines: Replace the BENTLY 330180-50-00 if readings become inconsistent or unresponsive, using only genuine ABB parts to maintain performance.

Application fields: BENTLY 330180-50-00

The ABB 330180-50-00 is indispensable across industries where machinery reliability directly impacts safety, productivity, and profitability:

Power Generation: In thermal, hydro, and wind power plants, the BENTLY 330180-50-00 monitors turbines, generators, and pumps, detecting imbalances or bearing wear to prevent unplanned shutdowns.
Oil and Gas: Deployed in refineries, pipelines, and drilling rigs, it tracks vibration in compressors and pumps, ensuring safe operation in explosive environments (ATEX/IECEx certified).
Manufacturing: In automotive and aerospace factories, the BENTLY 330180-50-00 monitors robotic arms, conveyor motors, and stamping machines, reducing downtime on production lines.
Chemical Processing: It oversees mixers, agitators, and centrifuges, where equipment failure could lead to hazardous material leaks or product contamination.
Marine and Shipping: On ships and offshore platforms, the BENTLY 330180-50-00 withstands saltwater exposure to monitor propulsion systems and auxiliary machinery.

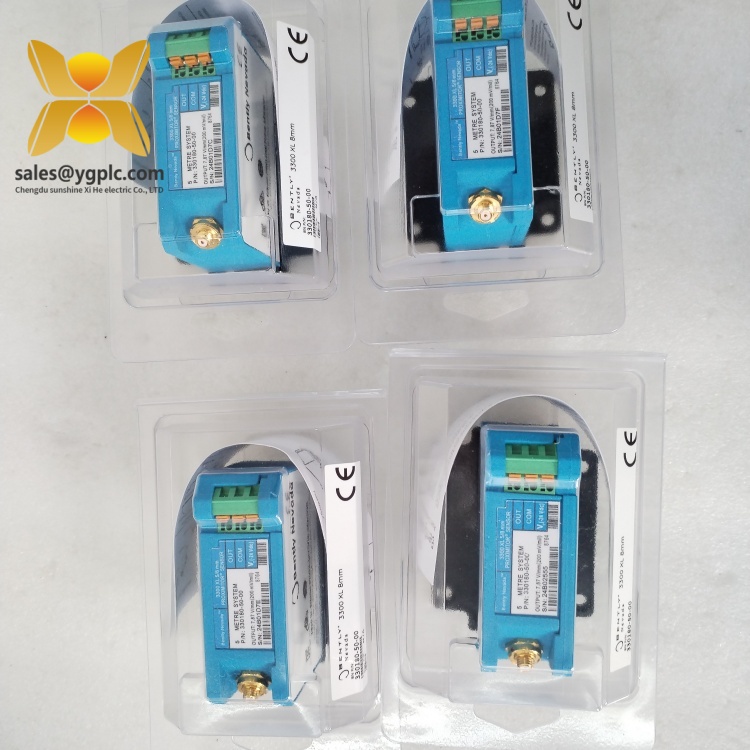

ABB 330180-50-00

Product guarantee: BENTLY 330180-50-00

ABB stands behind the BENTLY 330180-50-00 with a robust warranty and dedicated support to ensure long-term performance:

Warranty Period: The BENTLY 330180-50-00 comes with a 5-year warranty from the date of purchase, covering defects in materials and workmanship under normal operating conditions—the longest in its class.
Technical Support: BENTLY’s global team of vibration monitoring experts provides 24/7 assistance for installation, troubleshooting, and data interpretation. Users can access online resources, including calibration guides and application notes, via BENTLY’s portals.
Replacement Services: For warranty claims, ABB offers next-day replacement of faulty BENTLY 330180-50-00 units, minimizing downtime for critical machinery.
Training Programs: Optional on-site training helps teams maximize the BENTLY 330180-50-00’s capabilities, from sensor placement to data analysis for predictive maintenance.
