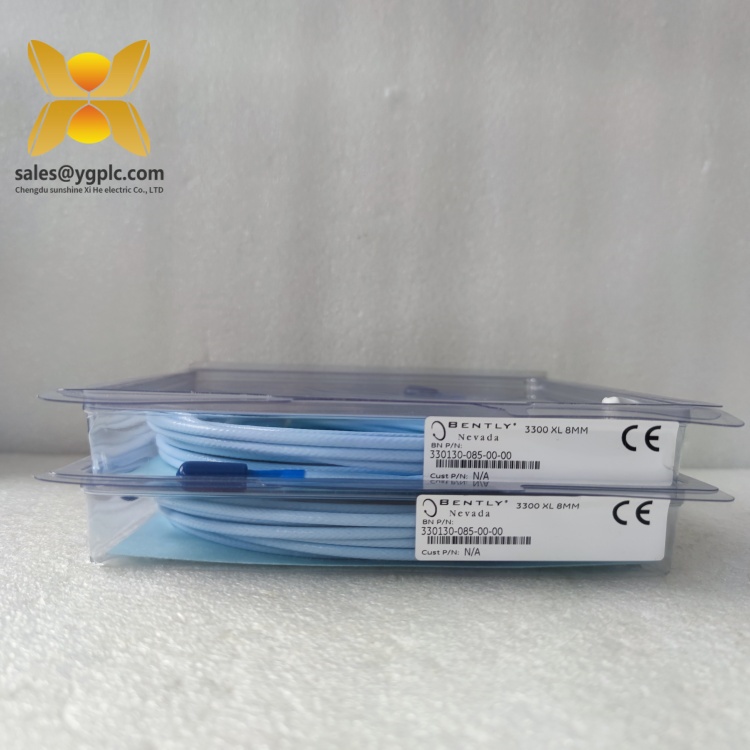

BENTLY 330130-085-00-00 Vibration Proximity Probe
Product Overview: BENTLY 330130-085-00-00
The BENTLY 330130-085-00-00 vibration proximity probe is a high-precision industrial sensor engineered for real-time monitoring of shaft vibration and displacement in rotating machinery. As a core component of Bently Nevada’s 3300 Series Machinery Health Monitoring System, this probe leverages eddy current technology to deliver accurate measurements critical for predictive maintenance and early fault detection. The 330130-085-00-00 is designed to interface seamlessly with Bently Nevada’s Proximitor modules, enabling precise detection of mechanical issues such as misalignment, bearing wear, or imbalance in mission-critical applications.
Featuring a 5 mm nominal probe diameter and 85 mm cable length, the 330130-085-00-00 is optimized for compact installations where space is limited. Its stainless steel construction and IP65 protection rating ensure durability in harsh environments, with an operating temperature range of -50°C to +177°C. The probe’s linear measurement range of 0–2 mm and sensitivity of 7.87 V/mm (200 mV/mil) enable precise detection of shaft movements, while its specialized connector ensures secure, low-noise signal transmission to monitoring systems.
Within automation ecosystems, the 330130-085-00-00 plays a pivotal role in machinery health assessment, feeding real-time data to Bently Nevada’s 3300 Series modules for analysis. Its compatibility with the broader 3300 ecosystem—including rack enclosures, communication gateways, and diagnostic software—makes it an essential tool for industries relying on reliable equipment performance and minimized downtime.
Technical Specifications: BENTLY 330130-085-00-00
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 330130-085-00-00 |
| Manufacturer | BENTLY NEVADA |
| Product Type | Vibration Proximity Probe |
| Probe Diameter | 5 mm |
| Cable Length | 85 mm |
| Measurement Range | 0–2 mm (linear) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -50°C to +177°C |
| Storage Temperature | -50°C to +200°C |
| Protection Rating | IP65 |
| Material | Stainless steel housing |
| Connector Type | Bently Nevada 18-pin connector |
| Weight | 0.2 kg |
| Country of Origin | United States |
Main Features and Advantages: BENTLY 330130-085-00-00
High-Precision Eddy Current Sensing: The 330130-085-00-00 utilizes eddy current technology to measure shaft displacement with micron-level accuracy, enabling early detection of minor vibrations that could escalate into critical failures. This precision supports proactive maintenance strategies, reducing unplanned downtime and repair costs.
Rugged Industrial Design: Constructed with a stainless steel probe tip and IP65-rated shielding, the sensor withstands high temperatures, moisture, and mechanical stress. Its ability to operate reliably in extreme environments—from high-temperature turbine compartments to offshore platforms—makes it suitable for demanding industrial applications.
Compact and Flexible Installation: The 85 mm cable length and 5 mm probe diameter allow installation in tight spaces, ideal for machinery with limited access points. The probe’s lightweight design (0.2 kg) and flexible routing capabilities simplify integration into both new and retrofitted monitoring systems.
Seamless System Integration: Designed for Bently Nevada’s 3300 Series, the 330130-085-00-00 ensures plug-and-play compatibility with Proximitor modules (e.g., 3300/40M), rack enclosures, and diagnostic software. This standardization reduces installation complexity and ensures measurement consistency across monitoring networks.
Low Noise Signal Transmission: The probe’s shielded cable and specialized connector minimize electromagnetic interference, preserving measurement fidelity even in electrically noisy environments. This feature is critical for maintaining data accuracy in complex industrial settings.
Application Areas: BENTLY 330130-085-00-00
The BENTLY 330130-085-00-00 vibration proximity probe is essential for industries where machinery reliability is non-negotiable:
- Power Generation: Monitors steam turbines, generators, and auxiliary equipment in thermal, hydro, and nuclear power plants. The probe’s high-temperature tolerance allows direct installation near turbine shafts for real-time vibration analysis.
- Oil and Gas: Deployed in refineries, pipelines, and offshore platforms to monitor compressors, pumps, and motors. Its corrosion-resistant design ensures reliable operation in harsh, saltwater environments.
- Manufacturing: Installed in CNC machines, robotic arms, and conveyor systems to detect vibrations that could impact product quality. The probe’s precision supports process optimization in automotive, pharmaceutical, and food & beverage production.
- Water Treatment: Used in pump stations and wastewater treatment plants to monitor pump shafts and impellers, ensuring continuous operation and compliance with environmental regulations.
- Aerospace and Defense: Integrates with aircraft engines and ground support equipment, providing critical vibration data for maintenance and mission readiness in military and aviation applications.
Related Products: BENTLY 330130-085-00-00
- BENTLY 3300/40M Proximitor Module (173343-01): Processes signals from the 330130-085-00-00, converting proximity measurements into standardized outputs for monitoring systems.
- BENTLY 3300/32 Keyphasor Module (125712-01): Provides phase reference signals for the probe, enabling precise vibration analysis and machinery alignment.
- BENTLY 3300/05 Rack Enclosure: Houses Proximitor modules and the 330130-085-00-00, forming a comprehensive monitoring system.
- BENTLY 330130-100-00-00: A variant with a 100 mm cable length, offering extended reach for installations requiring greater probe placement flexibility.
- BENTLY 330140-085-00-00: A 8 mm diameter probe variant for applications requiring larger measurement ranges, compatible with the same Proximitor modules.
- BENTLY 330903-000-10-05-02-00: A connector extension cable for the 330130-085-00-00, enabling longer signal transmission in complex setups.
Installation and Maintenance: BENTLY 330130-085-00-00
Pre-installation Preparations:
Before installing the 330130-085-00-00, verify the target shaft’s material (ferrous for optimal eddy current response) and clean the mounting surface to remove debris. Use the provided bracket to secure the probe perpendicular to the shaft, maintaining a minimum clearance of 50 mm around the probe tip to avoid mechanical interference. Connect the 18-pin connector to the Bently Nevada Proximitor module (e.g., 3300/40M 173343-01), ensuring a secure latch and shielded cable routing to minimize EMI. Calibrate the probe using Bently Nevada’s System 1 software to establish zero gap and linear range before commissioning.
Before installing the 330130-085-00-00, verify the target shaft’s material (ferrous for optimal eddy current response) and clean the mounting surface to remove debris. Use the provided bracket to secure the probe perpendicular to the shaft, maintaining a minimum clearance of 50 mm around the probe tip to avoid mechanical interference. Connect the 18-pin connector to the Bently Nevada Proximitor module (e.g., 3300/40M 173343-01), ensuring a secure latch and shielded cable routing to minimize EMI. Calibrate the probe using Bently Nevada’s System 1 software to establish zero gap and linear range before commissioning.
Maintenance Recommendations:
- Routine Inspections: Monthly visual checks for cable abrasion, connector corrosion, or physical damage to the probe tip. Use a thermal imager to detect unusual temperature gradients that may indicate internal wire issues.
- Calibration Verification: Annually validate probe sensitivity using a calibration fixture, adjusting as needed to maintain measurement accuracy. Reference Bently Nevada’s procedures for step-by-step guidance.
- Environmental Monitoring: Regularly assess operating conditions for changes in temperature, humidity, or vibration levels that could affect performance. Install additional shielding if exposure to extreme elements is detected.
- Spare Parts Management: Keep a spare 330130-085-00-00 on hand, along with connector kits, to facilitate rapid replacement. Leverage our global supply chain for quick delivery of discontinued or urgent components.
Product Guarantee: BENTLY 330130-085-00-00
Our company provides a 12-month quality warranty for the BENTLY 330130-085-00-00 vibration proximity probe, covering hardware defects from non-human causes. During the warranty period, we will replace any probe with abnormal sensitivity, cable failures, or structural damage at no cost. For urgent needs or discontinued models, our extensive inventory and global logistics network ensure prompt fulfillment, minimizing downtime and supporting continuous industrial operation.
With 17 years of expertise in industrial control distribution, we prioritize reliable products and exceptional service. The 330130-085-00-00 exemplifies our commitment to quality, offering the precision and durability required for critical machinery monitoring. Contact us today to enhance your predictive maintenance strategy with this advanced vibration probe.
Note: All product names, logos, and brands are property of their owners. This document is informational and does not substitute for Bently Nevada’s official technical manuals.
