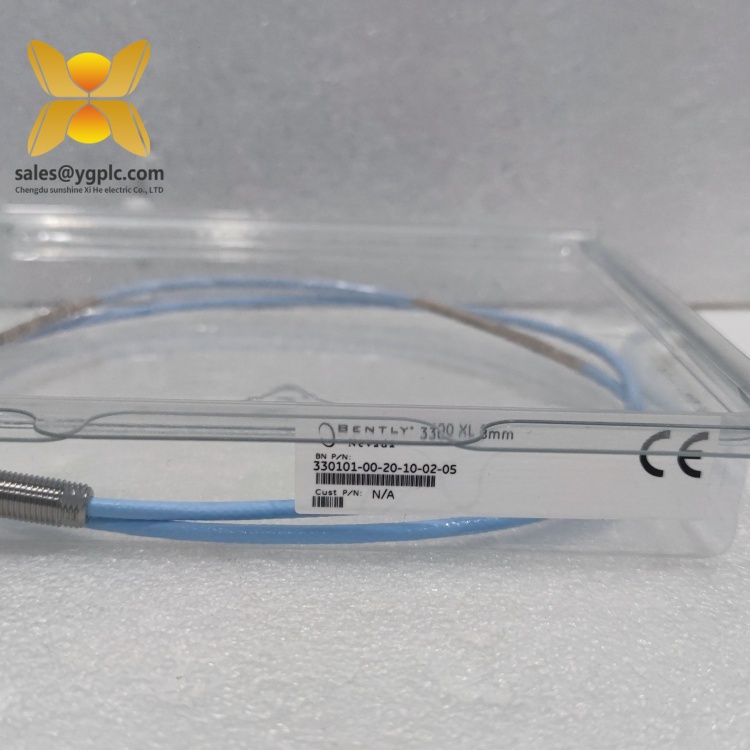

BENTLY 330101-00-20-10-02-05 | Eddy Current Proximity Probe | 330180-X1-CN
BENTLY 330101-00-20-10-02-05 | Eddy Current Proximity Probe | 330180-X1-CN - Image 2
BENTLY 330101-00-20-10-02-05 | Eddy Current Proximity Probe | 330180-X1-CN - Image 3
BENTLY 330101-00-20-10-02-05 | Eddy Current Proximity Probe | 330180-X1-CN - Image 4

BENTLY 330101-00-20-10-02-05 | Eddy Current Proximity Probe | 330180-X1-CN Bently Nevada

Original price was: $560.00.Current price is: $431.00.

Brand model:Bently Nevada
Product Name:330101-00-20-10-02-05
Warranty: 1 year
Size:102 mm (W) × 152 mm (H) × 203 mm (D)
Weight:1.5kg
Origin:USA
Inventory: Spot/Futures
Goods condition: Brand new
Delivery time: 3-4days/1month

Get a Quote
Category: Brand:

Description

BENTLY 330101-00-20-10-02-05 Product Specification

Product Overview

The BENTLY 330101-00-20-10-02-05 is a high-precision eddy current proximity probe designed for BENTLY’s renowned 3300 Series Machinery Protection System. Engineered to monitor shaft displacement, vibration, and position in rotating equipment, this probe serves as a critical component in industrial automation systems across industries such as oil and gas, power generation, and manufacturing. The BENTLY 330101-00-20-10-02-05 features a 5 mm probe diameter and a 2 m PTFE-insulated cable, optimized for close-range measurements in harsh environments. As part of the 3300 Series, it integrates seamlessly with monitor modules to provide real-time data for predictive maintenance, ensuring early detection of machinery anomalies.



This probe utilizes eddy current technology to deliver non-contact measurements with micron-level accuracy, supporting a linear range of 0–2500 μm and a sensitivity of 7.87 V/mm. Its stainless-steel housing and rugged construction resist corrosion, high temperatures, and electromagnetic interference (EMI), making it suitable for operation in extreme conditions. The BENTLY 330101-00-20-10-02-05 connects to BENTLY’s 3300 Series proximitor modules (e.g., 3300/20), enabling real-time monitoring of shaft vibrations, misalignments, and bearing wear. By providing reliable displacement data, this probe helps prevent costly downtime and extends equipment lifespan in mission-critical applications.



In automation systems, the BENTLY 330101-00-20-10-02-05 acts as a frontline diagnostic tool, converting mechanical movements into electrical signals for analysis. Its high-frequency response (0–10 kHz) ensures accurate capture of dynamic movements, while the self-shielded design minimizes cross-talk between adjacent probes. This reliability positions the probe as a cornerstone of modern machinery health management, supporting data-driven maintenance strategies in industrial settings.

Technical Specifications

Parameter Name Parameter Value
Product Model BENTLY 330101-00-20-10-02-05
Manufacturer BENTLY NEVADA
Product Type Eddy Current Proximity Probe
Probe Diameter 5 mm
Cable Length 2 m (PTFE-insulated)
Measurement Range 0–2500 μm (linear)
Sensitivity 7.87 V/mm (200 mV/mil)
Frequency Response 0–10 kHz
Operating Temperature -54°C to +177°C
Housing Material Stainless steel
Connector Type BENTLY 3300 Series compatible (male)
Weight 0.3 kg
Certifications CE, ISO 9001

Main Features and Advantages

High-Precision Eddy Current Technology: The BENTLY 330101-00-20-10-02-05 uses eddy current principles to measure shaft displacement with micron-level accuracy, critical for detecting early signs of wear or misalignment in rotating machinery. Its linear response ensures consistent performance across the entire measurement range, minimizing errors in diagnostic analysis.



Rugged Environmental Resistance: With a stainless-steel housing and PTFE-insulated cable, the probe withstands extreme temperatures, moisture, and EMI, making it suitable for harsh environments like offshore platforms, power plant turbines, and industrial furnaces. The cable’s durability reduces maintenance needs in high-vibration settings.



Seamless System Integration: Designed for BENTLY’s 3300 Series, the BENTLY 330101-00-20-10-02-05 connects directly to modules like the 3300/20 proximitor, enabling real-time data transmission and analysis. This integration streamlines system setup and ensures compatibility with existing BENTLY monitoring platforms.



Self-Shielded Design: The probe’s self-shielding feature minimizes electromagnetic interference from adjacent devices, ensuring reliable measurements in dense installations. This is particularly valuable in multi-probe setups common in large turbines or compressors, where signal integrity is critical.



Wide Frequency Response: Capable of capturing dynamic movements up to 10 kHz, the BENTLY 330101-00-20-10-02-05 is ideal for high-speed rotating machinery, providing accurate feedback on shaft vibrations that could lead to failure if unaddressed.

Application Areas

The BENTLY 330101-00-20-10-02-05 is widely applied in industries where precise monitoring of rotating equipment is essential:



  1. Power Generation:
    • Monitors steam and gas turbine shafts for displacement and vibration, enabling early detection of imbalance or bearing wear.
    • Integrates with generator systems to ensure rotor alignment, optimizing energy production and preventing stator damage in power plants.
  2. Oil and Gas:
    • Controls compressor shafts in refineries and pipeline pumping stations, maintaining optimal flow rates and preventing catastrophic failures.
    • Installed in offshore platforms to monitor drilling equipment under harsh marine conditions, ensuring safe and efficient operations.
  3. Manufacturing:
    • Monitors high-speed rotating machinery in automotive plants, such as engine test stands and conveyor drives, to maintain production quality.
    • Ensures precision in paper mills by measuring roll displacement in production lines, reducing material waste and improving product consistency.
  4. Aerospace and Defense:
    • Used in test facilities to monitor aircraft engine components during performance evaluations.
    • Supports maintenance of military-grade turbines and generators in mobile power units, ensuring reliability in field operations.

Related Products

  • BENTLY 330101-00-50-10-02-05: A 5 mm probe with a longer 5 m cable, suitable for installations requiring greater distance from the monitor module.
  • BENTLY 330102-00-05-10-02-00: A 5 mm probe with a shorter 0.5 m cable, ideal for compact setups.
  • BENTLY 3300/20 129405-01: A dual-channel proximitor module that processes signals from the BENTLY 330101-00-20-10-02-05, providing vibration analysis and alarm functions.
  • BENTLY 330180-90-05: A proximity probe extension cable for adjusting installation depth in tight spaces.
  • BENTLY 3300/95 129411-01: A redundant power supply module ensuring continuous operation of the probe and monitor system.

Installation and Maintenance

Pre-installation Preparation:
Before installing the BENTLY 330101-00-20-10-02-05, ensure the following:



  • Verify the probe’s measurement range (0–2500 μm) matches the application’s requirements and use BENTLY’s installation tools to set the initial gap (typically 1.5 mm) between the probe and shaft.
  • Route the 2 m cable away from high-voltage lines to minimize EMI, securing it with stainless-steel clamps to prevent movement-induced damage.
  • Ensure the mounting bracket allows precise alignment with the target surface, using a feeler gauge to confirm the probe’s initial offset for optimal sensitivity.



Maintenance Recommendations:



  • Routine Inspections: Quarterly visual checks for cable abrasion, connector corrosion, and probe alignment, especially in high-vibration environments. Replace the cable if signs of wear are detected.
  • Calibration: Annual calibration using a BENTLY 3300 System Calibrator to ensure measurement accuracy, adjusting for any drift in sensitivity. Document calibration results for compliance and traceability.
  • Environmental Monitoring: Regularly assess ambient temperature and humidity levels to ensure they remain within the probe’s operational range (-54°C to +177°C), as extreme conditions can affect measurement reliability.
  • System Testing: Biannually simulate vibration conditions to verify the probe’s response and ensure compatibility with the monitor module, using BENTLY’s diagnostic software to analyze signal integrity.

Product Warranty

Our company provides a one-year quality warranty for the BENTLY 330101-00-20-10-02-05, covering hardware defects not caused by misuse or environmental damage. During the warranty period, we will replace any probe that fails to meet performance specifications. For discontinued models like the BENTLY 330101-00-20-10-02-05, our global inventory of legacy industrial parts ensures rapid fulfillment of urgent orders. We also offer post-warranty technical support, including calibration services and repair solutions, to maintain your equipment’s reliability throughout its lifecycle.



Contact Information:
Whatsapp: +86 18859254943
E-mail: sales@ygplc.com



Note: This document is based on technical data derived from BENTLY NEVADA’s official specifications and industry applications. For detailed installation guidelines, refer to the BENTLY 330101-00-20-10-02-05 user manual or contact our technical support team for personalized assistance.
