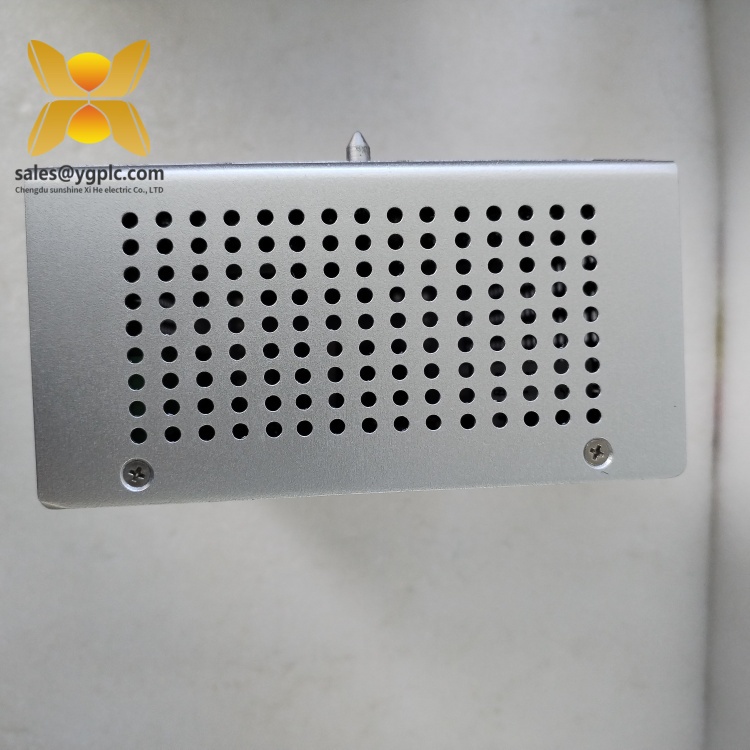

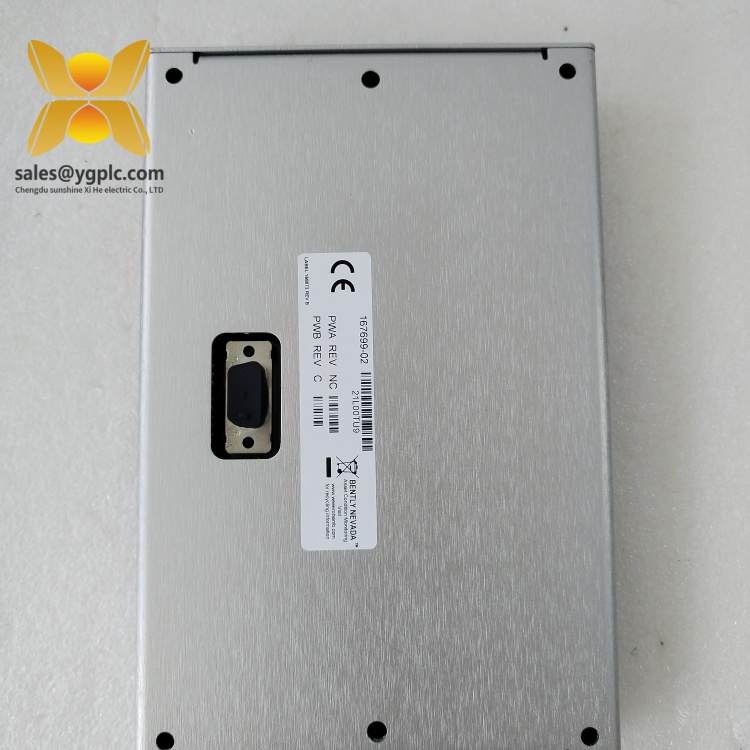

BENTLY 1900/55 Vibration Monitor
Product Overview: BENTLY 1900/55
The BENTLY 1900/55 vibration monitor is a single-channel industrial monitoring solution designed for precise measurement of shaft vibration in rotating machinery. As a core component of Bently Nevada’s 1900 Series, this monitor provides critical vibration analysis for small to medium-sized equipment, enabling early detection of mechanical issues such as imbalance, misalignment, or bearing wear. Engineered for reliability in industrial environments, the 1900/55 combines advanced signal processing with a rugged design to deliver accurate vibration measurements that support predictive maintenance and minimize unplanned downtime.
Featuring a compact 19-inch rack-mount form factor, the 1900/55 interfaces seamlessly with proximity probes (e.g., 106M1081-01) and extension cables (e.g., 135489-03) to convert mechanical vibrations into electrical signals for analysis. Its analog output (4–20 mA) and alarm relay functions enable integration with PLCs, DCS systems, and SCADA platforms, making it an essential component for automation setups that require real-time vibration monitoring. The monitor’s -40°C to +70°C operating temperature range and IP20 protection rating ensure durability in harsh industrial settings, from manufacturing plants to power generation facilities.
In automation systems, the 1900/55 serves as a cost-effective solution for basic vibration monitoring, particularly in applications where full-scale monitoring systems are unnecessary. Its user-friendly interface and straightforward configuration simplify installation and operation, while its compatibility with Bently Nevada’s broader ecosystem of probes and modules allows for system expansion as needs evolve.
Technical Specifications: BENTLY 1900/55
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 1900/55 |
| Manufacturer | BENTLY NEVADA |
| Product Type | Vibration Monitor |
| Channels | 1 (single-channel) |
| Input Type | Proximity probe (eddy current) |
| Measurement Range | 0–500 µm (peak-to-peak shaft vibration) |
| Output Signals | 4–20 mA (analog), relay contacts (alarm/trip) |
| Power Supply | 100–240V AC (50/60 Hz) |
| Physical Dimensions | 483 mm (W) × 133 mm (H) × 292 mm (D) |
| Weight | 4.5 kg |
| Operating Temperature | -40°C to +70°C |
| Mounting Type | 19-inch rack-mount |
| Country of Origin | United States |
Main Features and Advantages: BENTLY 1900/55
Precision Vibration Analysis: The 1900/55 utilizes eddy current technology to measure shaft vibration with high accuracy, enabling early detection of minor anomalies that could escalate into major failures. Its 0–500 µm measurement range suits most industrial rotating equipment, from pumps to small turbines.
Simplified Integration: With standard 4–20 mA analog outputs and relay contacts, the monitor integrates seamlessly with existing control systems, reducing the need for specialized interfaces. This compatibility makes it ideal for retrofitting into older automation setups or the needs of small-scale operations.
Rugged Industrial Design: Built with a metal enclosure and IP20 protection, the 1900/55 withstands dust, moisture, and mechanical stress common in industrial environments. Its wide temperature range ensures reliable operation in both harsh outdoor settings and high-temperature processing areas.
User-Friendly Operation: The monitor’s front-panel indicators and straightforward configuration menu allow operators to quickly set alarm thresholds and view real-time vibration data without extensive training. This simplicity minimizes setup time and reduces the risk of operational errors.
Cost-Effective Solution: As a single-channel monitor, the 1900/55 offers a cost-effective entry point to vibration monitoring for small businesses or applications with limited monitoring needs. Its modular design also allows for cost-efficient system expansion by adding additional channels as requirements grow.
Application Areas: BENTLY 1900/55
The BENTLY 1900/55 vibration monitor is ideally suited for industries seeking reliable, cost-effective vibration analysis:
- Manufacturing: Monitors CNC machines, conveyor systems, and robotic arms to detect vibrations that could affect product quality or cause equipment failure. The monitor’s simplicity makes it suitable for small to medium-sized production facilities.
- Power Generation: Used in auxiliary equipment such as fans, pumps, and small turbines in power plants, ensuring continuous operation by identifying early signs of mechanical issues in non-critical machinery.
- Oil and Gas: Deployed in smaller pumps, compressors, and motors in refineries and on offshore platforms, providing essential vibration data for maintenance planning in harsh, remote environments.
- Water Treatment: Installed in pump stations and treatment plant equipment to monitor vibrations in motors and impellers, supporting continuous operation and regulatory compliance.
- Mining: Monitors crushers, conveyors, and ventilation systems in mining operations, helping to prevent unplanned downtime in rugged underground and open-pit environments.
Related Products: BENTLY 1900/55
- BENTLY 1900/65: A dual-channel variant of the 1900/55, supporting simultaneous monitoring of two vibration points for more complex machinery setups.
- BENTLY 1900/70: A four-channel vibration monitor with enhanced diagnostic features, suitable for larger systems requiring multi-point monitoring.
- BENTLY 106M1081-01 Proximity Probe: A 配套使用 probe that connects to the 1900/55, providing precise shaft vibration measurements.
- BENTLY 135489-03 Extension Cable: Extends the reach of the proximity probe to the 1900/55, enabling installation in hard-to-reach areas.
- BENTLY 1900/06 Rack Mount Kit: Provides mounting hardware for the 1900/55, ensuring secure installation in control cabinets.
- BENTLY 1900/90 Communication Module: Adds Ethernet connectivity to the 1900/55, enabling remote monitoring and data logging via SCADA systems.
Installation and Maintenance: BENTLY 1900/55
Pre-installation Preparations:
Before installing the 1900/55, ensure the control cabinet is properly grounded and ventilated to maintain ambient temperatures between -40°C and +70°C. Mount the monitor in a 19-inch rack using the provided brackets, leaving at least 50 mm of clearance for heat dissipation. Connect the power supply (100–240V AC) to the terminal block, ensuring proper polarity. Link the proximity probe (e.g., 106M1081-01) to the monitor’s input via an extension cable (e.g., 135489-03), and wire the 4–20 mA outputs and alarm relays to the control system as per the wiring diagram.
Before installing the 1900/55, ensure the control cabinet is properly grounded and ventilated to maintain ambient temperatures between -40°C and +70°C. Mount the monitor in a 19-inch rack using the provided brackets, leaving at least 50 mm of clearance for heat dissipation. Connect the power supply (100–240V AC) to the terminal block, ensuring proper polarity. Link the proximity probe (e.g., 106M1081-01) to the monitor’s input via an extension cable (e.g., 135489-03), and wire the 4–20 mA outputs and alarm relays to the control system as per the wiring diagram.
Maintenance Recommendations:
- Routine Inspections: Monthly visual checks for loose connections, damaged cables, or overheating. Verify that the front-panel LED indicators show normal operation (green for power, amber for alarm conditions).
- Calibration Verification: Annually calibrate the 1900/55 using a vibration calibrator to ensure measurement accuracy. Reference Bently Nevada’s calibration procedures to adjust sensitivity and zero settings.
- Environmental Monitoring: Regularly assess the operating environment for dust, moisture, or temperature extremes that could affect performance. Clean the monitor’s vents with compressed air to prevent dust buildup.
- Spare Parts Management: Keep a spare 1900/55 on hand, along with replacement fuses and connectors, to facilitate quick replacement in case of failure. Leverage our global supply chain for rapid delivery of discontinued components.
Product Guarantee: BENTLY 1900/55
Our company provides a 12-month quality warranty for the BENTLY 1900/55 vibration monitor, covering hardware defects from non-human causes. During the warranty period, we will replace any monitor with abnormal output, relay failures, or display issues at no cost. For discontinued models or urgent needs, our extensive inventory and global logistics network ensure prompt fulfillment, minimizing downtime and supporting continuous industrial operation.
With 17 years of expertise in industrial control distribution, we are committed to reliable products and exceptional service. The 1900/55 exemplifies our dedication to quality, offering affordable vibration monitoring for a wide range of industrial applications. Contact us today to enhance your maintenance strategy with this robust vibration monitor.
Note: All product names, logos, and brands are property of their owners. This document is informational and does not substitute for Bently Nevada’s official technical manuals.
