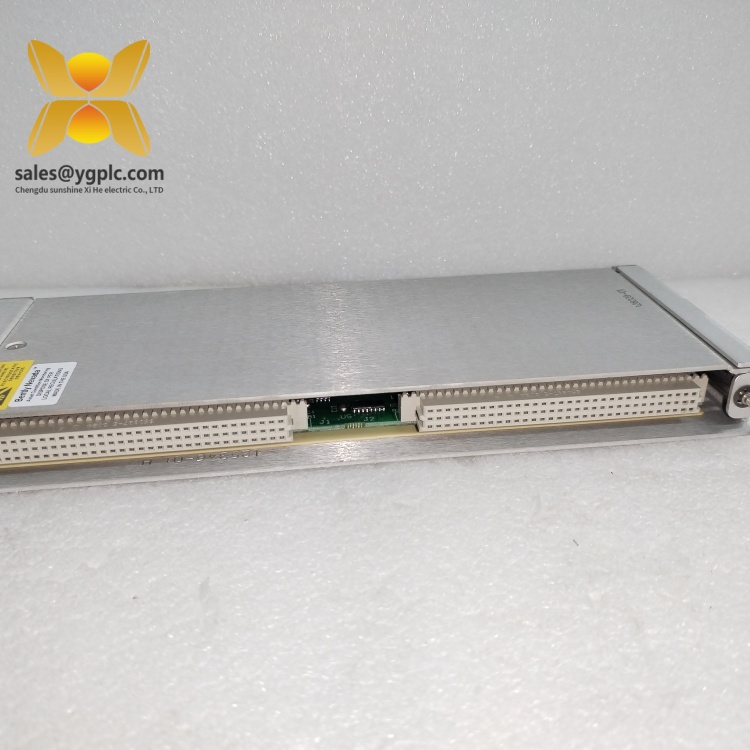

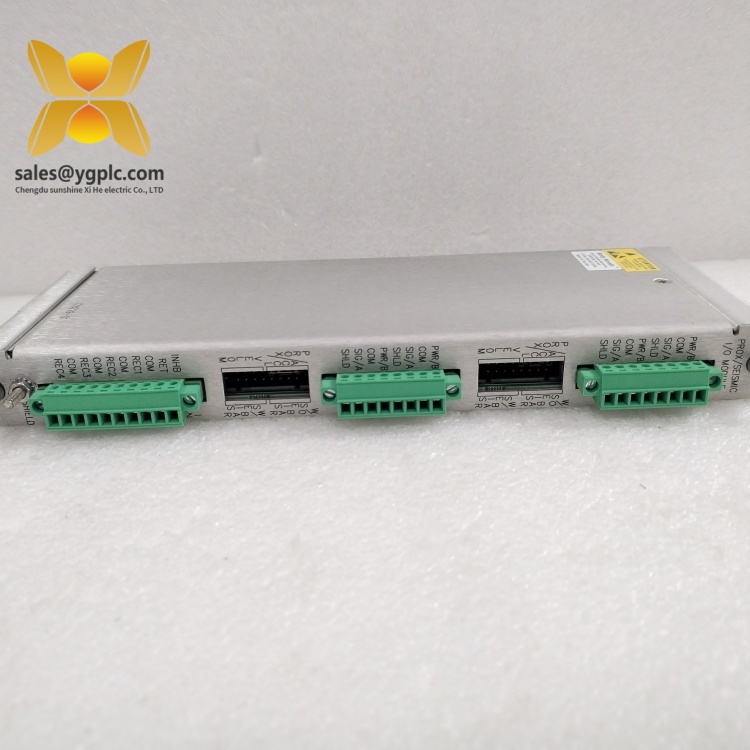

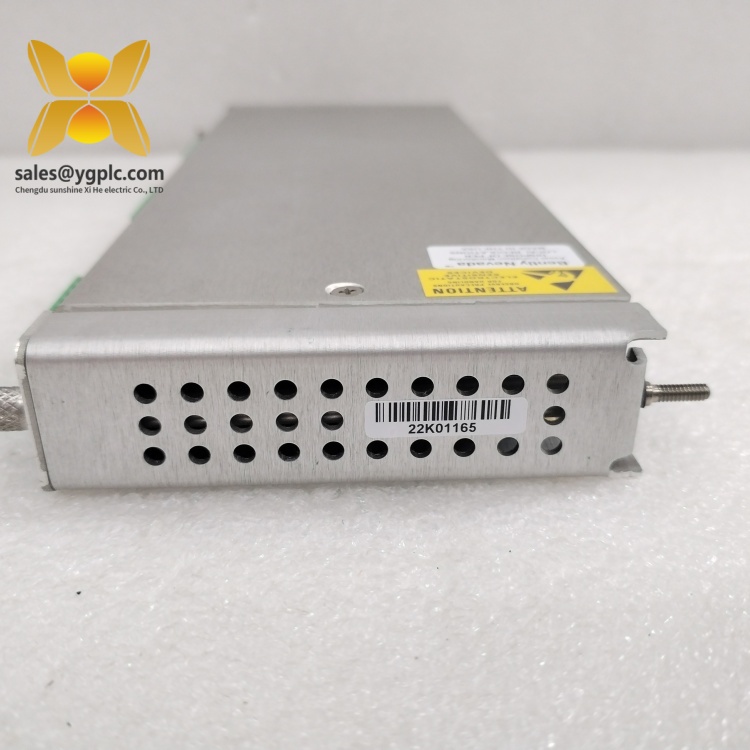

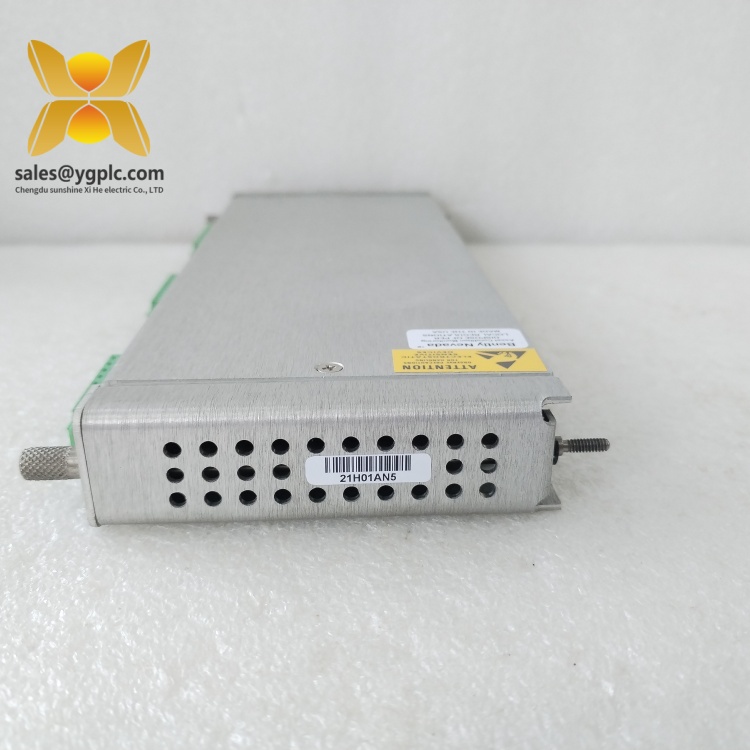

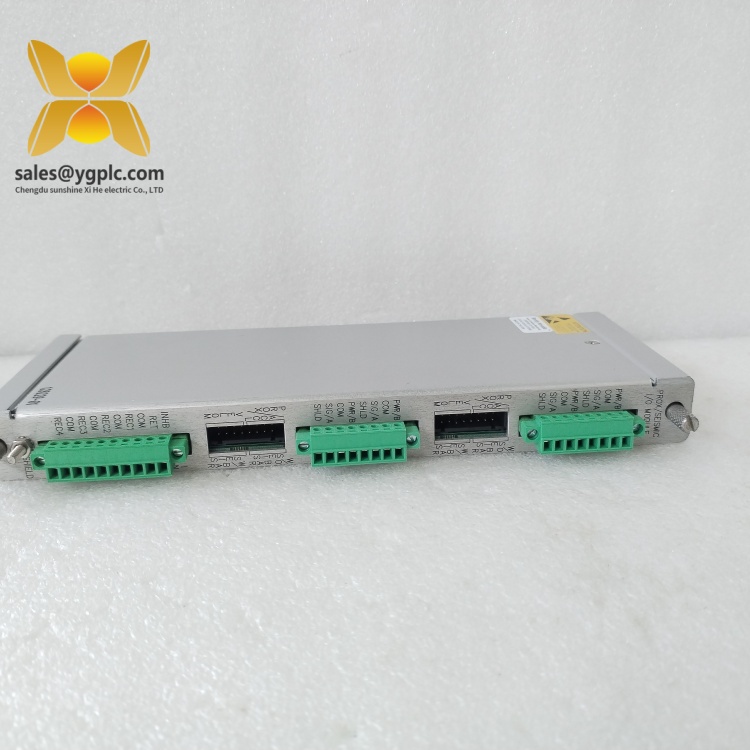

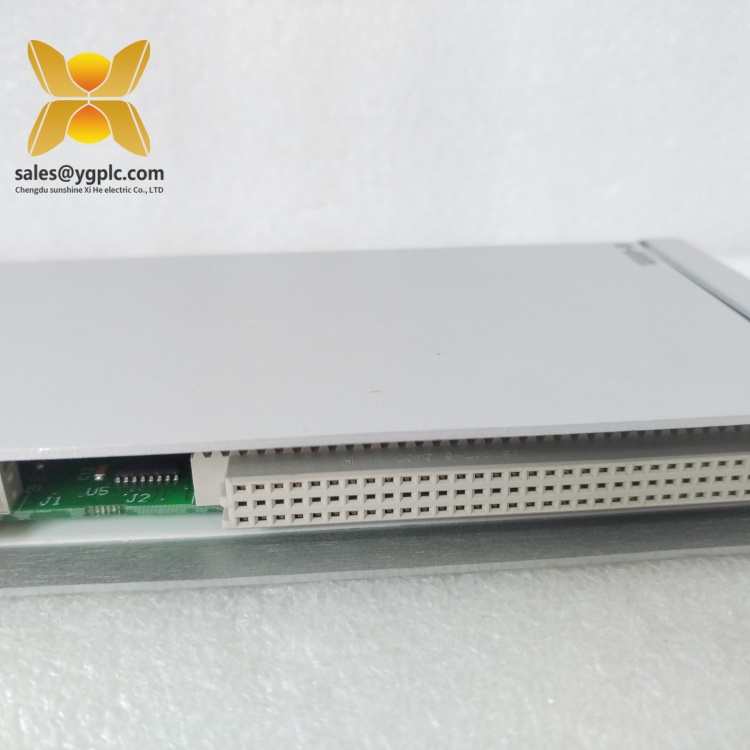

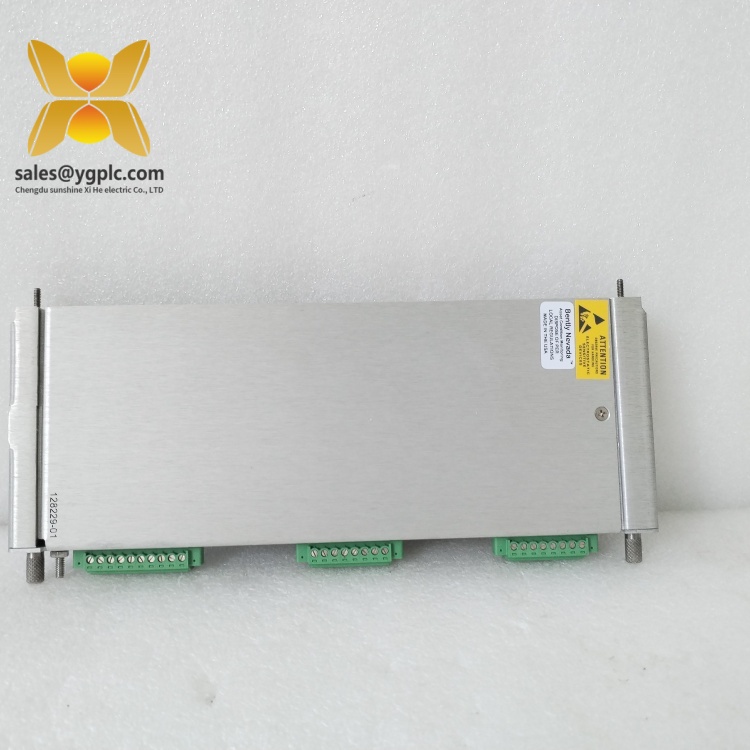

BENTLY 128085-01 3500/92 Communication Gateway Module
Product Overview: BENTLY 128085-01
The BENTLY 128085-01 is a high-performance communication gateway module designed for seamless integration of machinery health monitoring systems with industrial automation architectures. As a critical component of Bently Nevada’s 3500 Series Machinery Health Monitoring System, this module acts as a bridge between the 3500 monitoring rack and external control systems, enabling real-time data exchange and remote diagnostics in mission-critical industrial environments. Engineered for reliability and versatility, the 128085-01 supports multiple communication protocols, ensuring compatibility with diverse automation setups while maintaining precise data integrity for rotating equipment monitoring.
Featuring a dual-channel communication architecture (Modbus TCP/IP and RS485), the 128085-01 facilitates bidirectional data flow between the 3500 Series rack and supervisory control systems, such as SCADA, DCS, or PLC platforms. Its rugged metal enclosure with an IP20 protection rating ensures durability in harsh industrial settings, while the -40°C to +85°C operating temperature range allows reliable performance in extreme conditions. The module’s hot-swappable design enables maintenance without system shutdown, a critical feature for minimizing downtime in continuous production environments.
Within automation ecosystems, the 128085-01 plays a pivotal role in enabling predictive maintenance strategies by translating vibration, displacement, and process data from 3500 Series modules into actionable insights for operators. Its compatibility with Bently Nevada’s System 1 software and third-party analytics tools enhances system intelligence, allowing proactive identification of equipment anomalies before they escalate into costly failures.
Technical Specifications: BENTLY 128085-01
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 128085-01 |
| Manufacturer | BENTLY NEVADA |
| Product Type | Communication Gateway Module |
| Communication Protocols | Modbus TCP/IP, RS485 (Modbus RTU) |
| Interface Types | 1 x RJ45 (Ethernet), 2 x DB9 (RS485) |
| Power Supply | 24V DC (±10%) |
| Physical Dimensions | 160 mm (H) × 110 mm (W) × 250 mm (D) |
| Weight | 1.8 kg |
| Operating Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | 3500 Series rack-mounted |
| Redundancy | Dual communication channels |
| Country of Origin | United States |
Main Features and Advantages: BENTLY 128085-01
Multi-Protocol Connectivity: The 128085-01 supports both Modbus TCP/IP and RS485, enabling seamless integration with legacy and modern control systems. This versatility eliminates the need for additional gateways, simplifying system design and reducing integration costs in mixed-technology environments.
Redundant Communication Paths: With dual independent channels, the module ensures continuous data transmission even if one path fails. This redundancy is critical for industries like power generation and oil & gas, where downtime risks significant operational losses.
Industrial-Grade Durability: Built with a rugged metal enclosure and wide temperature tolerance, the 128085-01 withstands harsh conditions, including vibration, dust, and extreme temperatures. Its IP20 rating protects against solid particles and accidental contact, ensuring long-term reliability.
Hot-Swappable Design: The module can be replaced without powering down the system, reducing maintenance downtime. This feature is essential for 24/7 operations in sectors like pharmaceuticals and water treatment, where uninterrupted monitoring is non-negotiable.
Advanced Diagnostics: Built-in LED indicators and self-diagnostic functions provide real-time visibility into communication status, power health, and error conditions. This proactive monitoring reduces troubleshooting time and enhances system availability.
Application Areas: BENTLY 128085-01
The BENTLY 128085-01 excels in industries requiring robust data integration for machinery health management:
- Power Generation: Integrates with steam turbines, generators, and auxiliary equipment in thermal, hydro, and renewable energy plants. Enables remote monitoring of vibration parameters to optimize maintenance schedules and prevent unplanned outages.
- Oil and Gas: Deployed in refineries, offshore platforms, and pipelines to connect compressor and pump monitoring systems with safety shutdown networks. Supports real-time data exchange for process optimization and regulatory compliance.
- Manufacturing: Connects CNC machines, robotic arms, and conveyor systems in automotive and food & beverage facilities, translating vibration data into actionable insights for quality control and productivity enhancement.
- Water Treatment: Manages data flow from pumps and blowers in wastewater treatment plants, ensuring continuous operation and compliance with environmental regulations through predictive maintenance.
- Aerospace and Defense: Supports condition monitoring of aircraft ground support equipment and military machinery, where reliability is critical for mission readiness.
Related Products: BENTLY 128085-01
- BENTLY 3500/90 Communication Gateway (125710-01): A legacy model with similar functionality, suitable for retrofitting older systems.
- BENTLY 3500/92M Enhanced Communication Module (136180-01): An upgraded variant with expanded protocol support and higher data throughput.
- BENTLY 3500/25 Keyphasor Module (125847-01): Works alongside the 128085-01 to provide phase reference signals for precise vibration analysis.
- BENTLY 3500/05 Rack Enclosure (125740-01): Houses the 128085-01 and other 3500 Series modules, ensuring mechanical support and power distribution.
- BENTLY 3500/15 Power Supply Module (125731-01): Provides redundant power to the 128085-01 and rack components for stable operation.
- BENTLY 3500/42M Vibration Monitoring Module (176459-01): Supplies vibration data to the 128085-01 for transmission to higher-level systems.
Installation and Maintenance: BENTLY 128085-01
Pre-installation Preparations:
Before installing the 128085-01, verify the 3500 Rack is properly grounded and the power supply (24V DC) matches module requirements. Clean the rack slot and ensure no debris is present. Slide the module into the designated slot, securing it with retention brackets. Connect the power cables to the terminal block, following Bently Nevada’s wiring diagrams, and establish communication links using shielded Ethernet and RS485 cables. Configure the module’s IP address and communication parameters via the 3500 Rack Configuration Software.
Before installing the 128085-01, verify the 3500 Rack is properly grounded and the power supply (24V DC) matches module requirements. Clean the rack slot and ensure no debris is present. Slide the module into the designated slot, securing it with retention brackets. Connect the power cables to the terminal block, following Bently Nevada’s wiring diagrams, and establish communication links using shielded Ethernet and RS485 cables. Configure the module’s IP address and communication parameters via the 3500 Rack Configuration Software.
Maintenance Recommendations:
- Routine Checks: Monthly visual inspections for loose connections, damaged cables, or overheating. Verify LED indicators (power, communication, fault) for normal operation.
- Firmware Updates: Periodically update firmware using Bently Nevada’s official tools to access new features and security patches.
- Communication Testing: Quarterly verify data transmission integrity using loopback tests and protocol analyzers.
- Environmental Monitoring: Ensure ambient temperature remains within -40°C to +85°C and humidity does not exceed 95%. Install additional cooling if necessary.
Product Guarantee: BENTLY 128085-01
Our company offers a 12-month quality warranty for the BENTLY 128085-01 communication gateway module, covering non-human-induced hardware defects. During the warranty period, we promptly replace any module with communication failures or power supply issues at no cost. For discontinued models or urgent needs, our global supply chain ensures rapid delivery of spare parts, minimizing downtime and supporting continuous industrial operations.
With 17 years of expertise in industrial control distribution, we prioritize reliability and customer support. The 128085-01 exemplifies our commitment to quality, enabling seamless data integration for predictive maintenance. Contact us today to optimize your machinery health monitoring with this advanced gateway module.
Note: All product names and brands are properties of their owners. This document is informational and does not substitute for official manuals.
