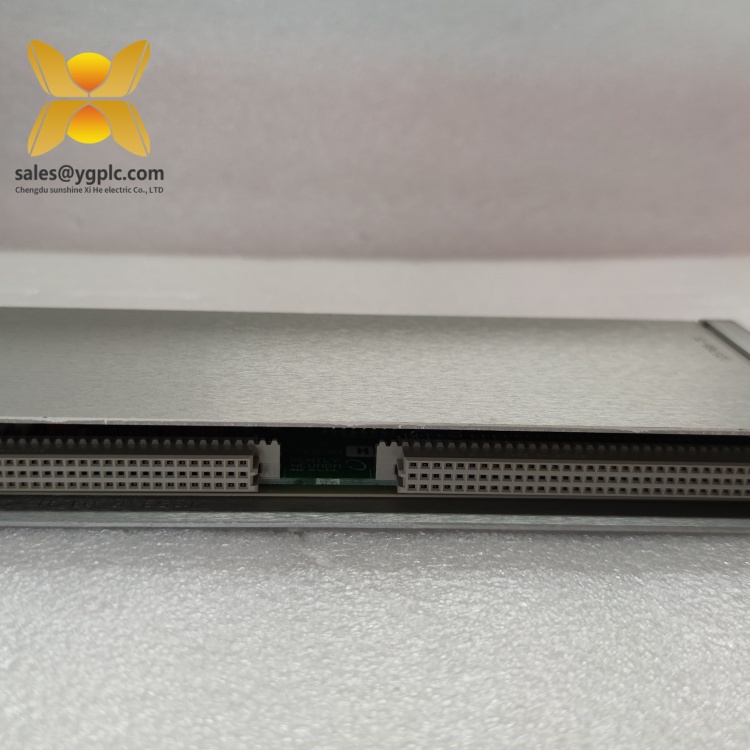

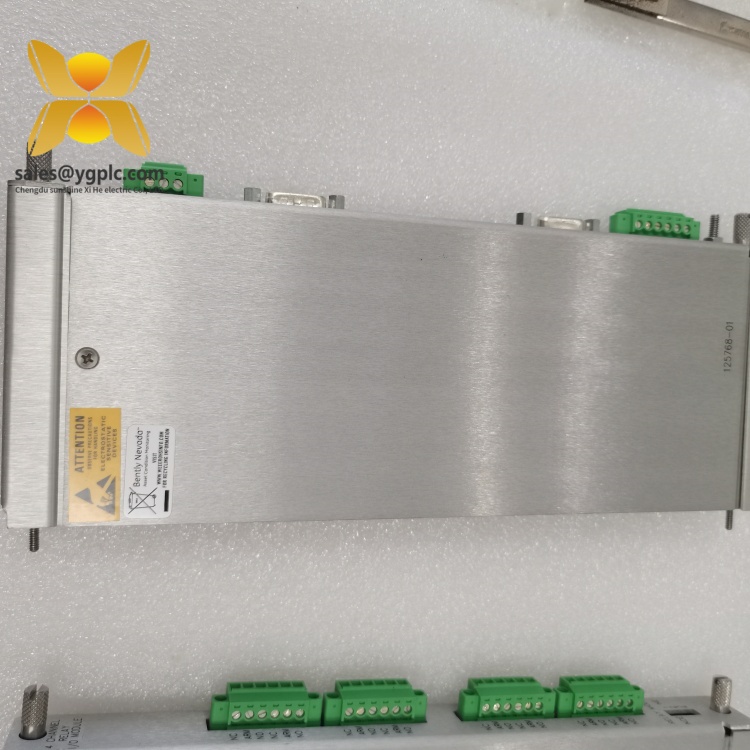

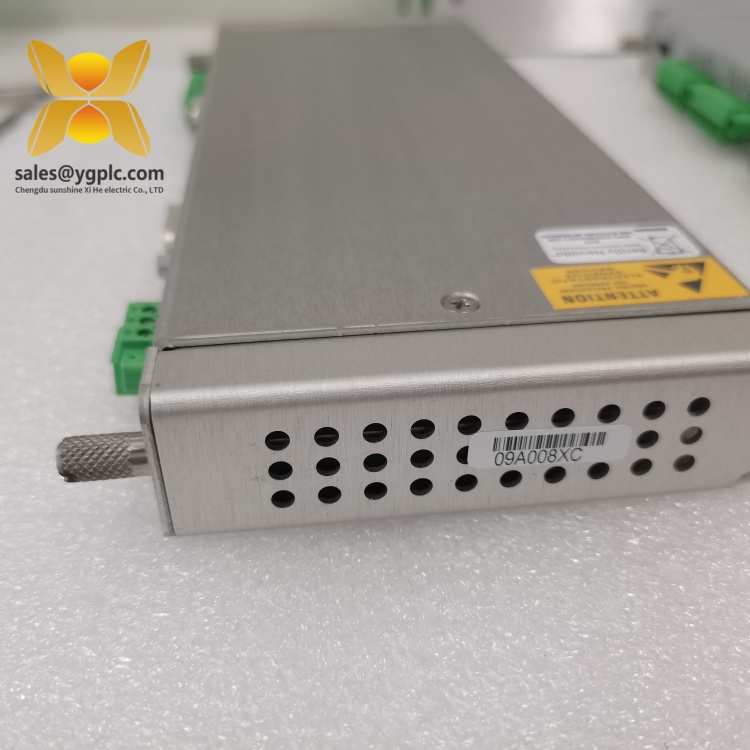

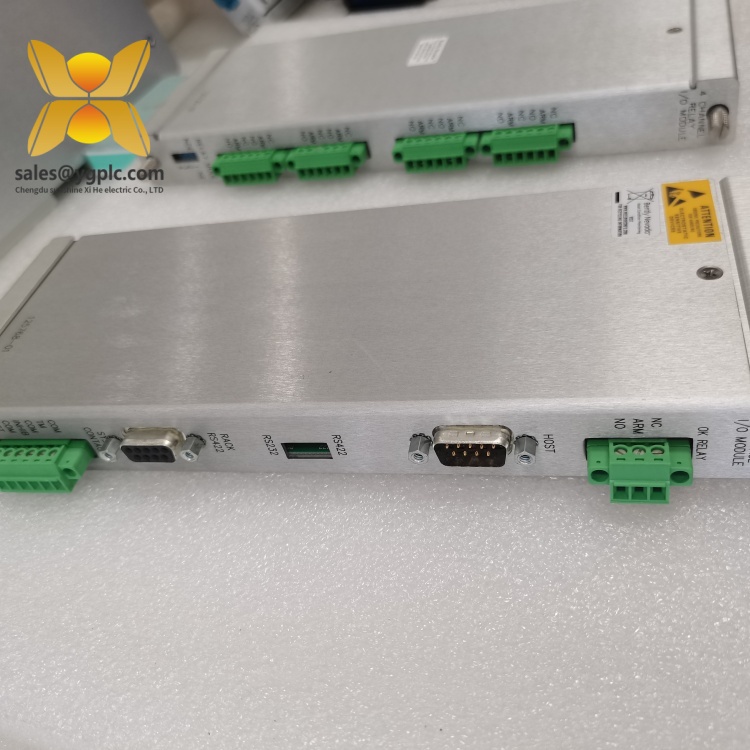

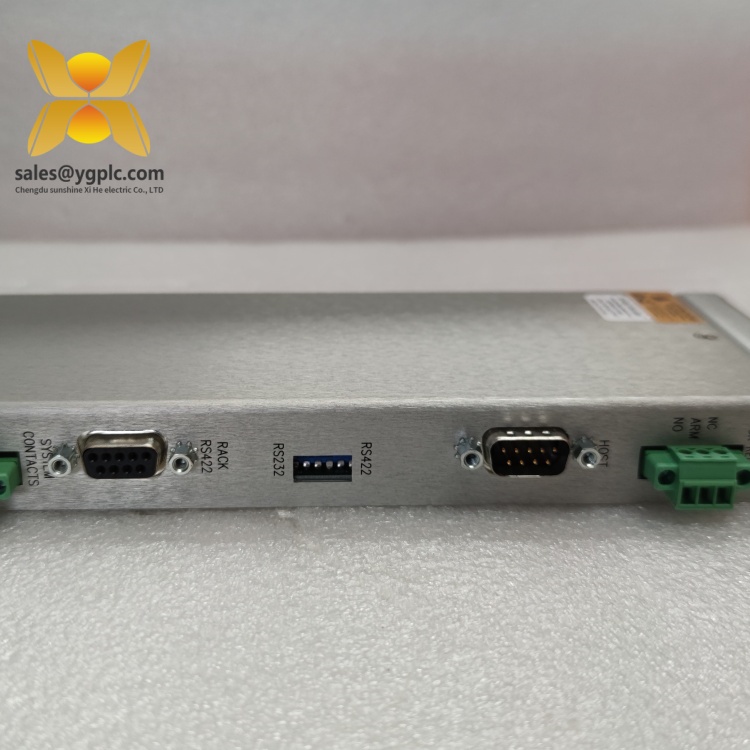

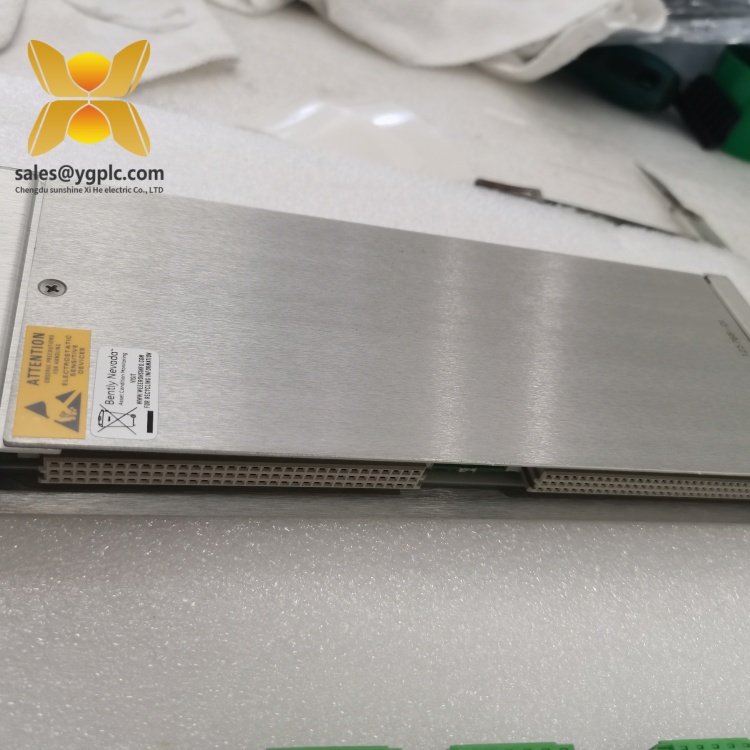

BENTLY 125768-01 Proximitor™ Module
Product Overview: BENTLY 125768-01
The BENTLY 125768-01 Proximitor™ Module is a high-precision industrial sensor interface designed for real-time monitoring of shaft vibration and displacement in rotating machinery. As a critical component of Bently Nevada’s 3500 Series Machinery Health Monitoring System, this module converts eddy current probe signals into standardized electrical outputs, enabling precise measurement of mechanical parameters such as shaft position, vibration amplitude, and keyphasor timing. Engineered for reliability in harsh industrial environments, the 125768-01 combines advanced signal conditioning technology with a rugged design to deliver consistent performance in mission-critical applications.
Featuring a dual-channel configuration, the 125768-01 supports two proximity probes simultaneously, enhancing system redundancy and coverage for complex machinery setups. Its 24V DC power input and standardized 4–20 mA output ensure compatibility with most industrial control systems, while the built-in self-diagnostic functions monitor probe health and signal integrity in real time. The module’s compact design (160 mm x 110 mm x 250 mm) and DIN rail mounting facilitate integration into control cabinets, while its -40°C to +85°C operating temperature range ensures resilience in extreme industrial conditions.
Within automation ecosystems, the 125768-01 serves as a foundational element for predictive maintenance strategies, providing critical data to identify early signs of machinery degradation. Its compatibility with Bently Nevada’s 3500 Rack System (e.g., 3500/05) and System 1 software enables seamless integration with distributed control systems (DCS) and supervisory control and data acquisition (SCADA) platforms, making it essential for industries reliant on uninterrupted machinery operation.
Technical Specifications: BENTLY 125768-01
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 125768-01 |
| Manufacturer | BENTLY NEVADA |
| Product Type | Proximitor™ Module (Eddy Current Interface) |
| Channels | 2 independent channels |
| Input Voltage | 24V DC (±10%) |
| Output Signals | 4–20 mA, 0–10 V DC |
| Measurement Range | 0–2 mm (linear for 5 mm probe) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Physical Dimensions | 160 mm (H) × 110 mm (W) × 250 mm (D) |
| Weight | 1.2 kg |
| Operating Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | 3500 Rack or DIN rail |
| Country of Origin | United States |
Main Features and Advantages: BENTLY 125768-01
Dual-Channel Precision: The 125768-01 supports two proximity probes, enabling simultaneous monitoring of multiple mechanical parameters (e.g., vertical and horizontal vibration) in a single module. This dual-channel design reduces rack space requirements and simplifies wiring in complex systems.
Advanced Signal Conditioning: The module converts eddy current probe signals into stable, noise-resistant outputs, ensuring accurate measurement of shaft displacement and vibration. Its high-resolution analog-to-digital conversion (16-bit) minimizes measurement errors, critical for detecting minor mechanical deviations before they escalate.
Robust Diagnostic Capabilities: Built-in self-test functions continuously monitor probe health, cable integrity, and signal validity, with LED indicators providing real-time status feedback. This proactive diagnostics feature reduces troubleshooting time and enhances system reliability.
Industrial-Grade Durability: With a rugged metal enclosure and wide temperature tolerance, the 125768-01 withstands harsh environments, including high vibration, dust, and moisture. Its IP20 protection rating safeguards against accidental contact and debris, ensuring long-term performance in industrial settings.
Seamless System Integration: Designed for Bently Nevada’s 3500 Series, the module integrates seamlessly with rack systems, communication gateways (e.g., 3500/92), and monitoring software, enabling scalable automation solutions. Its standardized outputs (4–20 mA) are compatible with most PLC and DCS platforms, reducing integration complexity.
Application Areas: BENTLY 125768-01
The BENTLY 125768-01 Proximitor™ Module is widely applied in industries where machinery health monitoring is critical:
- Power Generation: Monitors steam turbines, generators, and auxiliary pumps in thermal, hydro, and nuclear power plants. The module’s precision supports early detection of rotor imbalance or bearing wear, ensuring uninterrupted power production.
- Oil and Gas: Deployed in refineries, offshore platforms, and pipelines to monitor compressors, pumps, and motors. Its durability in harsh environments makes it suitable for offshore and chemical processing applications.
- Manufacturing: Installed in CNC machines, presses, and robotic systems to detect vibrations that could affect product quality. The module helps maintain precision in high-speed manufacturing processes, such as automotive assembly lines.
- Water Treatment: Manages pumps and blowers in water/wastewater plants, ensuring continuous operation and regulatory compliance. Its reliability supports 24/7 monitoring of critical treatment equipment.
- Aerospace and Defense: Used in aircraft engine testing facilities and military machinery, where precise vibration analysis is essential for mission-critical equipment maintenance.
Related Products: BENTLY 125768-01
- BENTLY 3500/40M Proximitor (173343-01): A single-channel variant of the 125768-01, suitable for simpler monitoring setups with reduced channel requirements.
- BENTLY 106M1081-01 Vibration Proximity Probe: A 配套使用 eddy current probe that interfaces with the 125768-01, providing precise shaft displacement measurements.
- BENTLY 3500/32 Keyphasor Module (125712-01): Provides phase reference signals for the 125768-01, enabling accurate vibration analysis and machinery alignment.
- BENTLY 3500/05 Rack Enclosure: Houses the 125768-01 and other 3500 Series modules, offering mechanical support and power distribution.
- BENTLY 3500/92 Communication Gateway (136180-01): Enables Ethernet-based communication for the 125768-01, facilitating remote monitoring and data integration with SCADA systems.
- BENTLY 3500/22M Interface Module: Connects the 125768-01 to field sensors, providing signal conditioning for vibration and displacement measurements.
Installation and Maintenance: BENTLY 125768-01
Pre-installation Preparations:
Before installing the 125768-01, verify the power supply (24V DC) and ensure the 3500 Rack or DIN rail is properly grounded. Clean the mounting surface and secure the module using the provided brackets, leaving adequate space for ventilation. Connect the power cables to the terminal block, ensuring correct polarity, and link the proximity probes to the input ports using shielded cables to minimize electromagnetic interference. Configure the module address and output parameters via the 3500 Rack Configuration Software, calibrating each channel with a known reference to ensure measurement accuracy.
Before installing the 125768-01, verify the power supply (24V DC) and ensure the 3500 Rack or DIN rail is properly grounded. Clean the mounting surface and secure the module using the provided brackets, leaving adequate space for ventilation. Connect the power cables to the terminal block, ensuring correct polarity, and link the proximity probes to the input ports using shielded cables to minimize electromagnetic interference. Configure the module address and output parameters via the 3500 Rack Configuration Software, calibrating each channel with a known reference to ensure measurement accuracy.
Maintenance Recommendations:
- Routine Inspections: Monthly checks include verifying LED status indicators, tightening cable connections, and cleaning the module’s surface to prevent dust accumulation. Use a thermal imager to detect unusual heat patterns that may indicate internal faults.
- Calibration Verification: Annually calibrate the 125768-01 using Bently Nevada’s calibration fixtures, adjusting sensitivity and linearity to maintain measurement precision. Reference the user manual for step-by-step calibration procedures.
- Firmware Updates: Periodically update the module’s firmware via the 3500 Rack software to access new features and bug fixes, ensuring compatibility with the latest monitoring systems.
- Spare Parts Management: Keep a spare 125768-01 on hand, along with compatible probes and cables, to facilitate rapid replacement in case of failure. Leverage our global supply chain for quick delivery of discontinued or urgent components.
Product Guarantee: BENTLY 125768-01
Our company provides a 12-month quality warranty for the BENTLY 125768-01 Proximitor™ Module, covering hardware defects from non-human causes. During the warranty period, we will replace any module with abnormal output signals, diagnostic failures, or physical damage at no cost. For discontinued models or urgent repair needs, our extensive inventory and global logistics network ensure prompt fulfillment, minimizing downtime and supporting continuous industrial operation.
With 17 years of expertise in industrial control distribution, we are committed to reliable products and exceptional service. The 125768-01 exemplifies our dedication to quality, offering the precision and durability required for critical machinery monitoring. Contact us today to optimize your predictive maintenance strategy with this advanced Proximitor module.
Note: All product names, logos, and brands are property of their owners. This document is informational and does not substitute for Bently Nevada’s official technical manuals.
