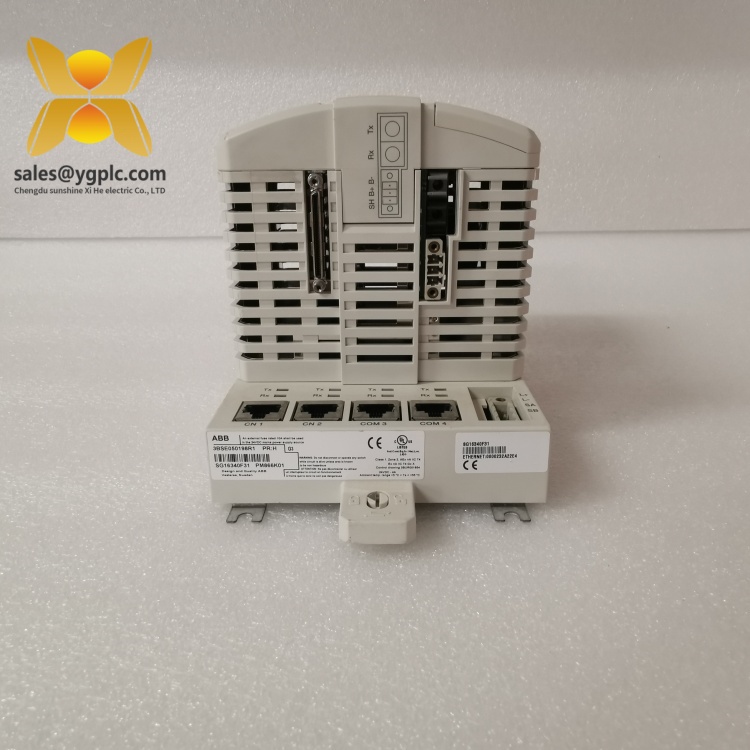

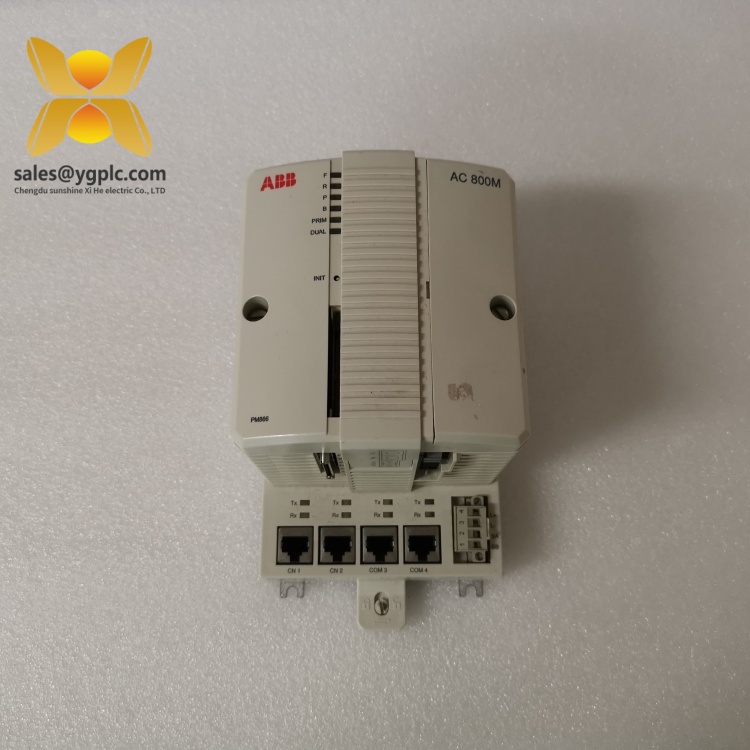

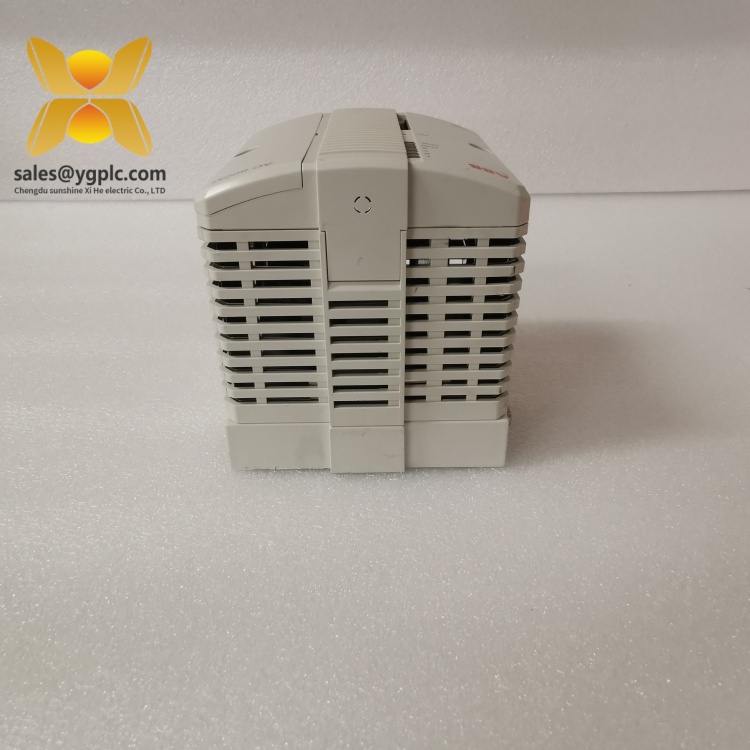

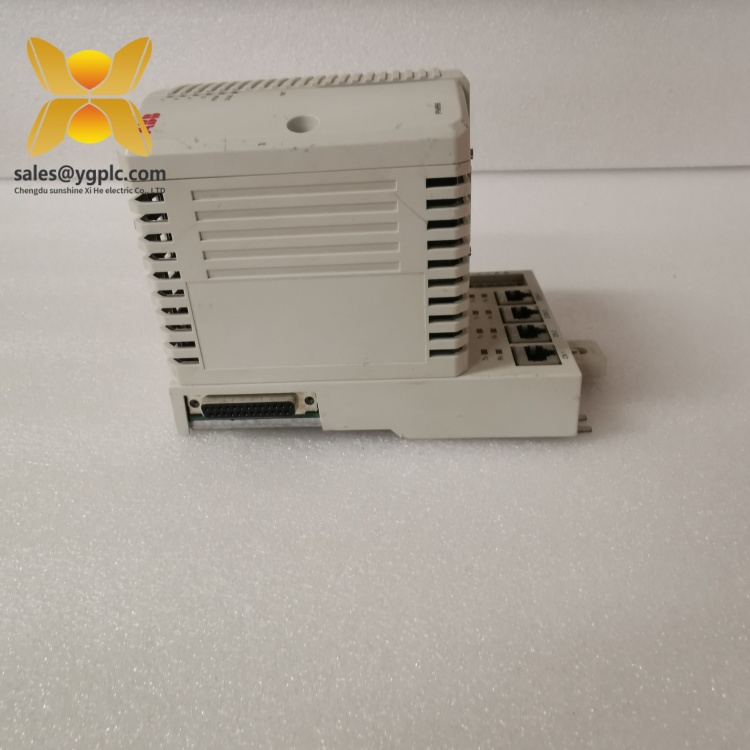

Product Overview: ABB PM866K01 3BSE050198R1
The ABB PM866K01 is a compact, high-performance processor unit for the AC800M family. It combines a responsive CPU, onboard memory and robust I/O interfaces to run control logic for mid-to-large automation tasks. This module is supplied as a processor kit for rail mounting and is built to operate inside industrial control cabinets where deterministic performance and reliable networking matter. It is commonly used as the central controller in AC800M installations, handling control algorithms, communication with field modules and logging of event data.
Key Features: ABB PM866K01
Fast control performance with ample runtime memory for complex strategies and recipe handling. Flexible communications — Ethernet and Profibus are supported through the AC800M architecture — allowing seamless integration into existing plant networks. Modular, rail-mounted format simplifies spares management and field replacement. Built with industrial-grade components and designed to meet EMC and environmental requirements for cabinet-mounted controllers.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product type | AC800M Processor Unit / Central Controller |
| Model / Part number | PM866K01 3BSE050198R1 |
| CPU & memory | High-performance CPU; typical memory: 64 MB RAM, ~51.4 MB flash (firmware/storage). |
| Included kit items | PM866 CPU, TP830 front module, baseplate (width 115 mm), required terminators (varies by kit). |
| Net / shipping weight | Typical net weight ≈ 1.2 kg; shipping pack ~2 kg (kit dependent). |
| Power / supply | 24 V DC logic supply (AC800M system standards). |
| Interfaces | Ethernet, Profibus (via chassis/modules); modulebus and CEX-bus terminators included in kit options. |
| Protection rating | IP20 (panel/internal cabinet mounting). |
| Operating temperature | Industrial class (typical −20 °C to +55 °C); verify with datasheet for extended ranges. |
| Mounting | DIN-rail / rail-mounted module within AC800M compact control chassis. |
PM866K01
Typical Applications: ABB PM866K01
Used across process and discrete industries, the ABB PM866K01 commonly controls chemical reactors, pulp and paper lines, power-plant auxiliaries and water treatment plants. It suits brownfield and greenfield projects where a compact, modular controller is needed and where integration with Ethernet or Profibus networks is required for supervisory systems. The module’s event logging and stable runtime make it a good fit where traceable alarms and deterministic control loops are essential.
PM866K01
Installation & Commissioning: ABB PM866K01
Pre-installation: confirm the kit variant and check the baseplate width (115 mm) and connector layout to ensure it matches your AC800M chassis. Verify the cabinet provides regulated 24 V DC and that terminators for ModuleBus/CEX are present as required by the node layout. Commissioning: load the approved firmware and application project, capture baseline logs, and validate communication with field I/O and engineering tools. Keep a configuration backup and one tested spare module to reduce MTTR
Warranty & Availability: ABB PM866K01
We offer a one-year quality warranty covering manufacturing defects, excluding damage from mishandling or improper installation. For obsolete or end-of-life controllers, we maintain a global sourcing network to locate scarce parts quickly. If you require longer support or spare management programs, contact our sales team for tailored stock and service options.
