ABB TU830V1 3BSE013234R1 | Extended Module Termination Unit (MTU) | ABB

$250.00

The ABB TU830V1 3BSE013234R1 is a high-reliability extended module termination unit designed exclusively for the ABB S800 I/O system. It provides secure field wiring connection, signal distribution, and power interfacing between field devices and I/O modules, solving challenges of signal integrity, wiring complexity, and system protection in industrial automation.
Brand model：ABB
Product Name:TU830V1 3BSE013234R1
Warranty: 1 year
Origin:USA
HS code：85389000.00
Inventory: Spot/Futures
Goods condition: Brand new
Delivery time: 3-4days/1month

Get a Quote
Category: Brand:

Description

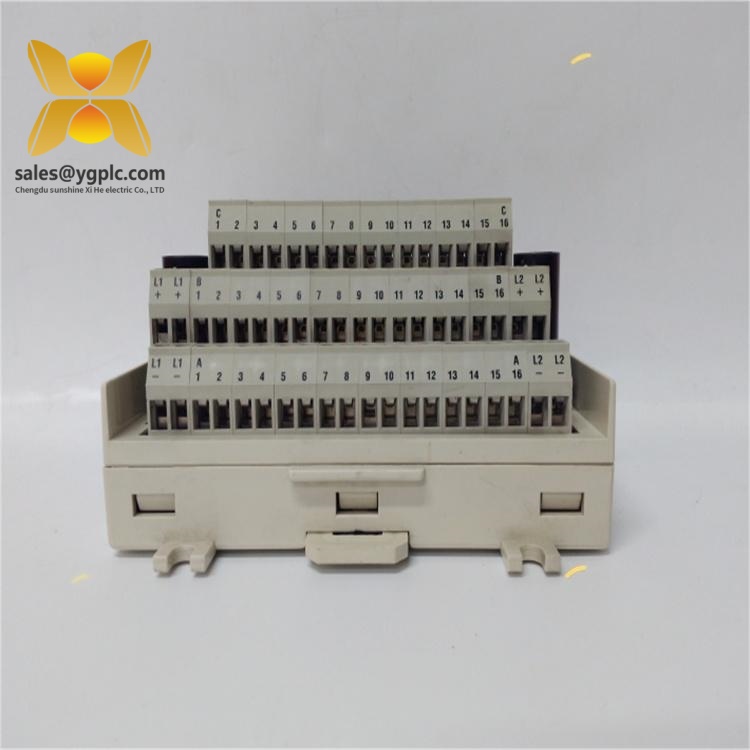

ABB TU830V1 3BSE013234R1 – Extended Module Termination Unit (MTU)

Product Overview

The ABB TU830V1 3BSE013234R1 is a high-reliability extended module termination unit designed exclusively for the ABB S800 I/O system. It provides secure field wiring connection, signal distribution, and power interfacing between field devices and I/O modules, solving challenges of signal integrity, wiring complexity, and system protection in industrial automation. This passive unit integrates ModuleBus connectivity and supports up to 16 field signal channels, ensuring stable and error‑free communication in harsh industrial environments.

Technical Specifications

Parameter Details
Brand ABB
Model TU830V1 3BSE013234R1
Warranty One Year
Condition 100% New & Original
Type Extended Module Termination Unit (MTU)
Compatibility ABB S800 I/O system
Channels Up to 16 field I/O signal channels
Rated Voltage Max 50 VDC
Channel Current Max 2 A per channel
Fuse Protection 6.3 A per isolated group
Isolation Dual isolated process voltage groups
Connection Terminal block + 2×25‑pin D‑sub male
Mounting DIN‑rail mounting with grounding latch
Operating Temp 0°C to +55°C
Protection IP20
Weight Approx. 0.2 kg
Compliance EMC EN 61000‑6‑4 / EN 61000‑6‑2
TU830V1 3BSE013234R1

TU830V1 3BSE013234R1

Main Features and Advantages

The ABB TU830V1 3BSE013234R1 delivers robust signal termination and power management for S800 I/O systems, enhancing installation efficiency and operational safety.
mechanical keying: Prevents incorrect I/O module insertion, eliminating wiring errors and module damage during installation and maintenance.
dual isolated power groups: Two electrically isolated process voltage sections with 6.3 A fuses protect field wiring and I/O modules from overcurrent and short‑circuit risks.
wiring efficiency: Supports 3‑wire connections and integrated power distribution, simplifying field cabling and reducing assembly time.
ModuleBus integration: Embeds part of the ModuleBus for direct communication with I/O modules, ensuring high‑speed and stable data transmission.
compact and robust: Lightweight, industrial‑grade build with DIN‑rail mounting and IP20 protection, ideal for confined control cabinets and harsh plant environments.
The ABB TU830V1 3BSE013234R1 improves system reliability, lowers maintenance costs, and supports long‑term stable operation of automated processes.

Application Areas

The ABB TU830V1 3BSE013234R1 is widely deployed in process industries requiring stable signal termination and I/O expansion for ABB S800 I/O systems.
  • Oil and Gas Refineries: Used in distributed control systems to terminate analog and digital signals from sensors, valves, and transmitters, ensuring safe and accurate process monitoring.
  • Power Generation Plants: Integrated into boiler and turbine control systems for reliable field wiring termination, supporting continuous and stable power generation operations.
  • Chemical and Petrochemical Facilities: Provides isolated signal termination in corrosive and high‑interference environments, maintaining signal integrity for reaction control and safety interlock systems.
