ABB TU810V1 | Module Termination Unit

Description

Product Overview Table

ABB TU810V1 Product Overview

The ABB TU810V1 is a high-performance Module Termination Unit (MTU) designed for the AC 800M series control systems. It serves as an interface between process field devices and the control system’s I/O modules, ensuring reliable signal transmission and organized wiring management. Engineered with industrial-grade components, the TU810V1 offers superior electrical performance, robust mechanical structure, and excellent compatibility with a wide range of automation applications.

This MTU provides a solid platform for connecting field signals to the corresponding I/O modules without requiring direct wiring to the controller. Its compact design allows for efficient space utilization in control cabinets, while its high durability ensures stable operation even under demanding industrial conditions.

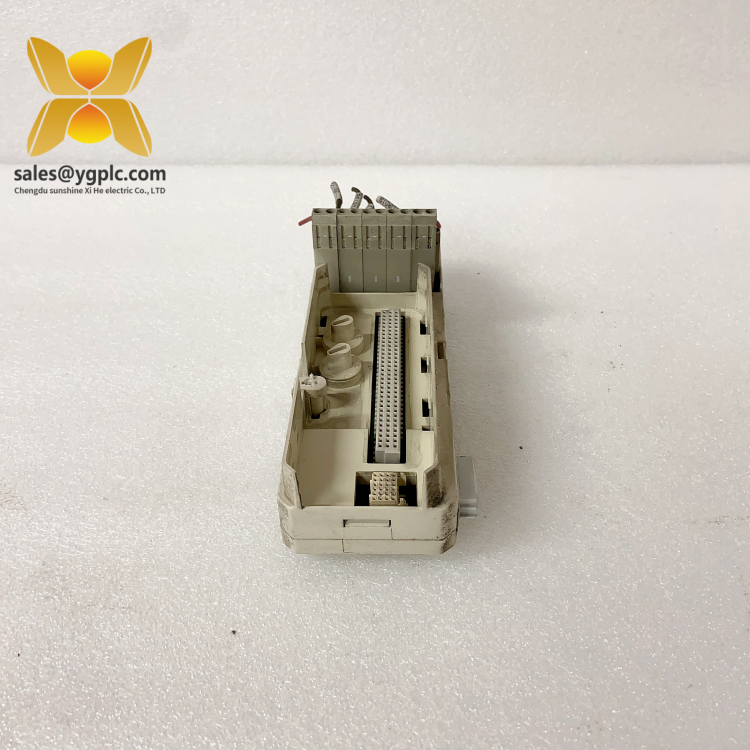

ABB TU810V1

Technical Specifications

• Model Number: TU810V1

• Function: I/O signal connection and distribution

• Compatible Systems: ABB AC 800M series

• Connection Type: Screw terminals for secure wiring

• Signal Types: Analog and digital

• Power Supply: 24V DC nominal

• Operating Temperature: -20°C to +55°C

• Material: Industrial-grade flame-retardant housing

• Mounting: DIN rail

• Dimensions: Compact, optimized for control cabinet installation

Key Features & Benefits

• High Reliability: Designed for continuous industrial operation with minimal maintenance.

• Ease of Installation: Simple DIN rail mounting and clear terminal labeling reduce installation time.

• Improved Safety: Built-in short-circuit protection and surge suppression.

• Optimized Wiring: Organized layout minimizes wiring errors and simplifies troubleshooting.

• Full Compatibility: Works seamlessly with ABB’s AC 800M automation platform.

• Compact Design: Saves valuable space in control panels without sacrificing performance.

Application Scenarios

• Process Automation Systems – Integrates smoothly into ABB DCS installations for oil & gas, chemical, and power industries.

• Factory Automation – Enhances efficiency in manufacturing environments requiring reliable I/O signal handling.

• Infrastructure Projects – Suitable for water treatment plants, transportation systems, and energy management facilities.

Installation & Maintenance Guidelines

1. Mount the TU810V1 securely on a standard DIN rail.

2. Ensure all wiring is completed according to ABB’s installation manual.

3. Verify correct polarity and terminal assignments before powering up.

4. Perform periodic inspections to check for loose connections or wear.

5. Store spare units in a clean, dry environment to maintain performance.

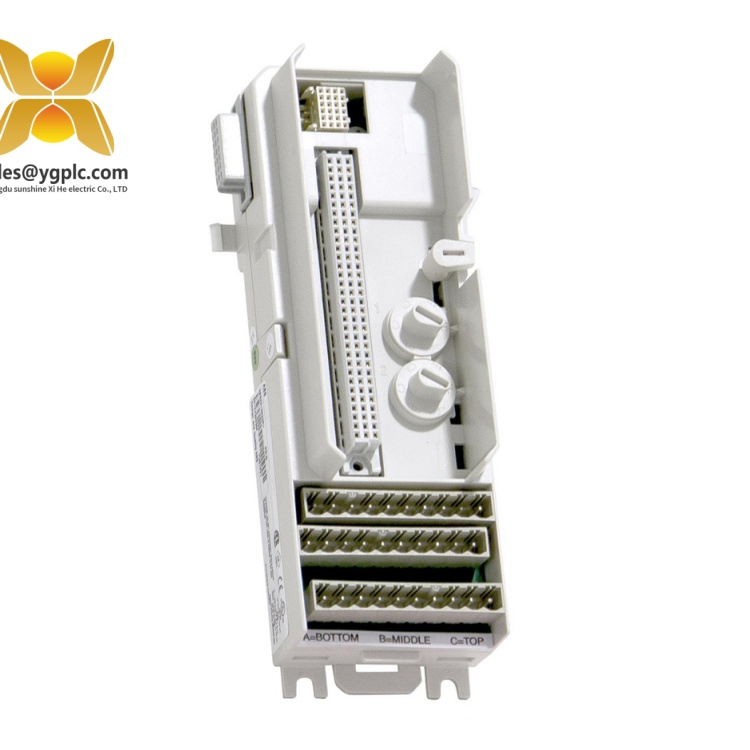

   ABB TU810V1

Related Products

• ABB AI810 – Analog input module for AC 800M systems, offering high-precision data acquisition.

• ABB DO810 – Digital output module for control and switching applications.

• ABB DI810 – Digital input module providing reliable signal detection.

• ABB TU812 – MTU variant with extended wiring capacity.

Warranty: Provided by Chengdu Sunshine Xi He Electric Co., LTD, not ABB official warranty.
