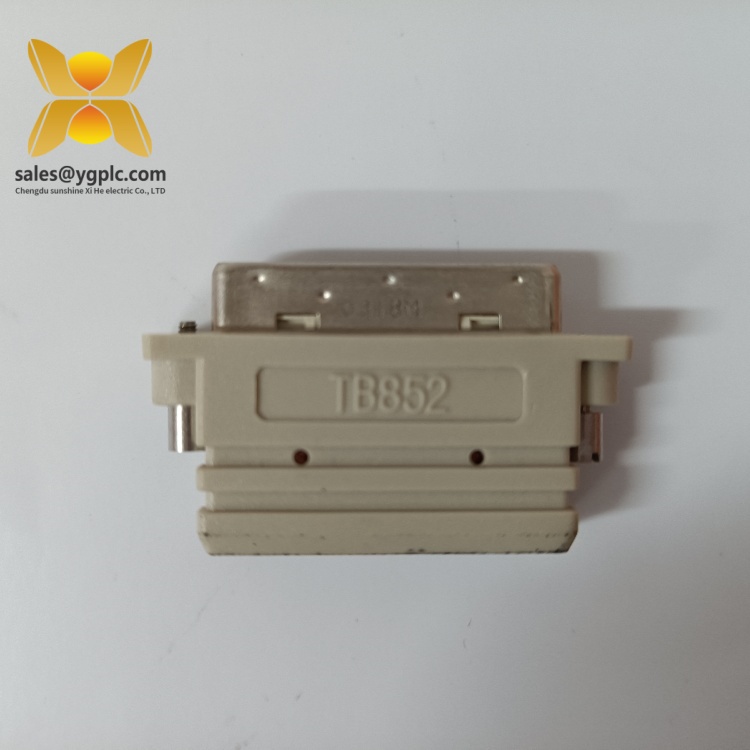

Product Overview: ABB TB852
Engineered by ABB, a global leader in power and automation technologies, the ABB TB852 is a high-performance RCU Link Terminator designed to optimize communication integrity in industrial automation systems. Part of ABB’s AC 800M and 800xA distributed control system (DCS) ecosystem, this module ensures seamless termination of communication links, minimizing signal reflections and enhancing data transmission reliability.
The ABB TB852 excels in demanding industrial environments, where consistent and accurate data exchange is critical for process control, monitoring, and safety. Its compact design and rugged construction make it suitable for retrofitting into existing setups or integrating into new systems, delivering long-term performance backed by ABB’s decades of expertise in automation solutions.
Technical Specifications — ABB TB852
| Parameter | Details |
|---|---|
| Product Type | RCU Link Terminator |
| Model Number | 3BSC950263R1 |
| Operating Voltage | Passive (no external power required) |
| Impedance Matching | 120 ohms |
| Communication Protocol | Supports RCU Link communication standards |
| Dimensions (WxHxD) | 5.1 cm x 2.5 cm x 7.6 cm |
| Weight | 0.4 kg |
| Enclosure Rating | IP20 (standard); suitable for indoor use |
| Compatibility | AC 800M controllers, S800 I/O modules, and 800xA systems |
| Temperature Range | -20°C to +60°C |
| Certifications | CE, UL, CSA |

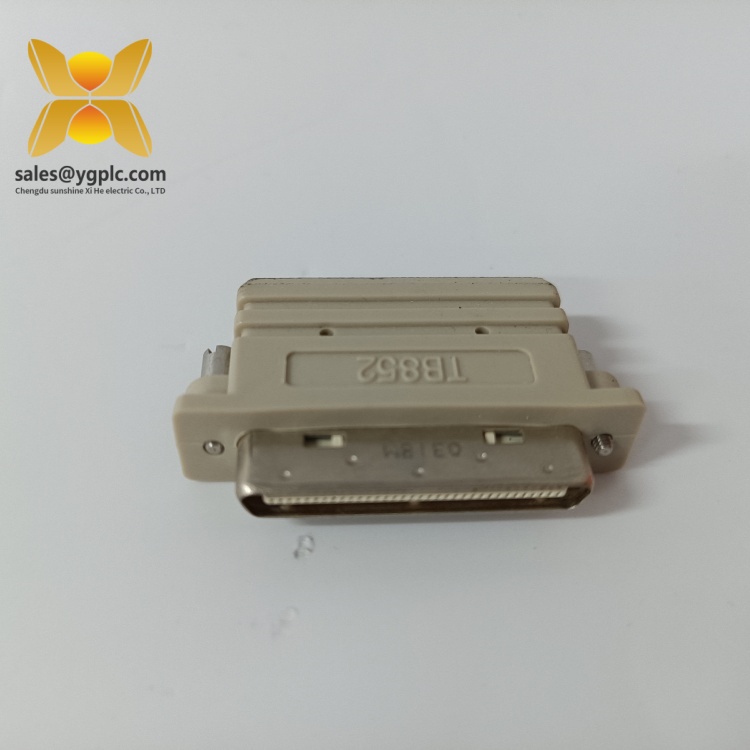

ABB TB852
Main Features and Advantages: ABB TB852
The ABB TB852 stands out for its blend of simplicity and reliability, offering key benefits for industrial operations:
-
Signal Integrity: The built-in termination resistor ensures precise impedance matching, eliminating signal reflections and distortions in RCU communication networks. This is critical for maintaining accurate data flow in real-time control systems .
-
Plug-and-Play Design: As a passive device, the ABB TB852 requires no external power or configuration, simplifying installation and reducing setup time. It seamlessly connects to standard RCU cables, minimizing complexity for technicians .
-
Robust Construction: Engineered to withstand harsh industrial conditions, including temperature fluctuations and electromagnetic interference (EMI), the TB852 ensures consistent performance in challenging environments .
-
Scalability: Compatible with ABB’s extensive range of AC 800M and 800xA components, the TB852 supports modular system expansions, making it ideal for growing automation needs.
-
Cost Efficiency: By reducing downtime caused by communication errors, the TB852 lowers maintenance costs and extends the lifespan of connected devices, providing a high return on investment.
Related Products: ABB TB852
For users seeking complementary solutions within ABB’s automation portfolio, the ABB TB852 works seamlessly with:
- TB850/851/853: CEX-Bus terminators for ABB’s distributed I/O systems
- PM857/PM863 Controllers: SIL 3-certified controllers for safety-critical applications
- S800 I/O Modules: Modular input/output systems for real-time data acquisition
These products share ABB’s commitment to interoperability and reliability, ensuring cohesive performance across industrial setups.

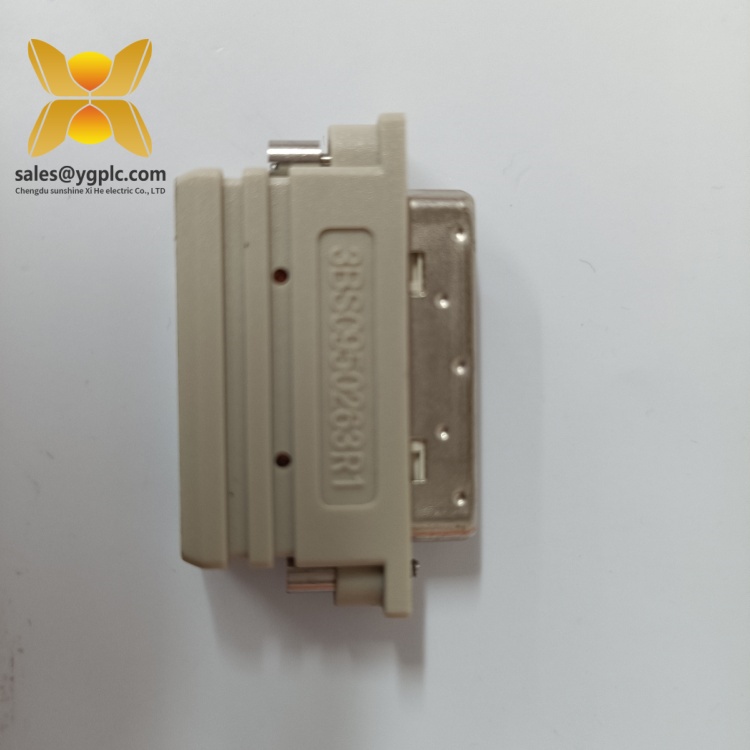

ABB TB852
Installation and Maintenance: ABB TB852
Installing the ABB TB852 is straightforward: simply terminate the RCU communication cable at both ends using the module. No additional tools or software are required. ABB provides detailed guidelines for proper cable routing and grounding to optimize signal quality.
Maintenance requirements are minimal, thanks to the TB852’s passive design and durable components. Routine checks involve inspecting connections for physical damage and ensuring cable integrity. For complex issues, ABB’s global service network offers prompt technical support, minimizing downtime.
Application Fields: ABB TB852
The ABB TB852 plays a vital role in a wide range of industrial sectors, including:
- Manufacturing: Ensuring reliable communication in conveyor systems, robotic assembly lines, and quality control stations.
- Power Generation: Stabilizing data transmission in turbine control systems and power plant SCADA networks .
- Oil and Gas: Supporting real-time monitoring of wellheads, pipelines, and refinery processes in harsh offshore environments.
- Water Treatment: Optimizing control loops for pumps, valves, and filtration systems in wastewater treatment plants.
- Process Automation: Enhancing signal integrity in distributed control systems (DCS) for chemical and pharmaceutical production.

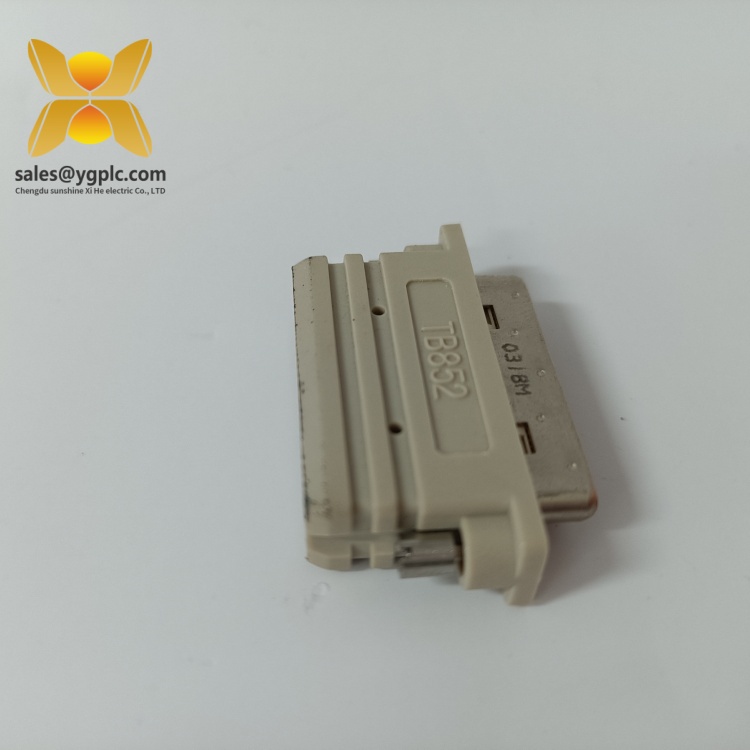

ABB TB852
Product Guarantee: ABB TB852
The ABB TB852 comes with a 12-month warranty from the date of installation, covering defects in materials and workmanship. ABB’s rigorous testing protocols ensure each unit meets strict quality standards before leaving the factory.
For technical support, replacement parts, or warranty claims, customers can contact ABB’s authorized partners or reach out directly via:
- Email: support@ygplc.com
- WhatsApp +86 18859254943
Whether you’re upgrading legacy systems or building next-gen automation infrastructure, the ABB TB852 delivers the performance and dependability that industrial operations demand.
