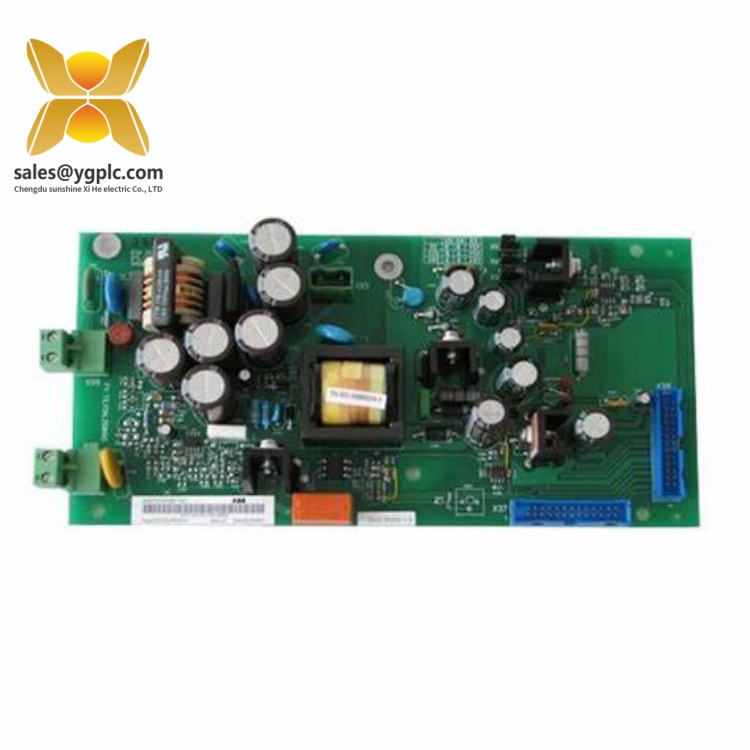

ABB SDCS-PIN48-SD | Pulse Interface Board

Description

Product Overview
The ABB SDCS-PIN48-SD is a high-performance pulse interface board designed for use in ABB DC drive systems, particularly within the DCS 500 and DCS 600 series. It serves as a crucial interface between the control electronics and the thyristor power module, ensuring accurate firing pulse transmission and reliable operation of the drive. By delivering precise synchronization between the control unit and power section, the SDCS-PIN48-SD enhances the drive’s ability to manage high-power DC motors with exceptional accuracy and stability.

Engineered for industrial environments, the SDCS-PIN48-SD is built with robust components that withstand electrical noise, temperature variations, and demanding load cycles. Its role in signal conversion and isolation protects sensitive control electronics from high-voltage disturbances, prolonging system life and minimizing downtime.

This module is often used in industries such as metals, pulp & paper, mining, and marine propulsion, where DC drive reliability is mission-critical. For customers seeking dependable spare parts to maintain ABB drive systems, the SDCS-PIN48-SD is a proven, field-tested solution.

Technical Specifications

Parameter	Value
Product Model	ABB SDCS-PIN48-SD
Product Type	Pulse Interface Board
Function	Transmits firing pulses from control electronics to thyristor power modules
Compatible Drive Series	ABB DCS 500, DCS 600
Pulse Output Channels	6 channels (typical)
Input Signal Type	TTL/CMOS compatible control signals
Output Signal Type	Optically isolated firing pulses
Power Supply Voltage	24 V DC (nominal)
Isolation Voltage	≥ 2.5 kV between control and power sections
Operating Temperature Range	0°C to +55°C
Storage Temperature Range	–25°C to +70°C
Relative Humidity	5%–95% non-condensing
PCB Coating	Protective conformal coating
Mounting Method	DIN rail or panel mounting
Dimensions (H × W × D)	Approx. 120 × 90 × 35 mm
Weight	~0.25 kg
Compliance Standards	CE, RoHS
Country of Origin	Finland
Manufacturer	ABB (part supplied as spare by third-party distributor)

SDCS-PIN48-SD

Key Features and Benefits

1. High-accuracy firing pulse generation – Maintains precise synchronization between the control section and thyristor valves, essential for stable motor torque and speed control.

2. Optical isolation for system safety – Protects the control board from high-voltage transients, extending the lifespan of sensitive electronics.

3. Wide compatibility – Works seamlessly with ABB DCS 500 and DCS 600 drive series, ensuring straightforward integration into existing systems.

4. Robust construction – Designed for continuous operation in harsh industrial environments, with protective coating to resist moisture and dust.

5. Easy installation – Compact form factor with standard mounting options reduces replacement time during maintenance.

6. Reduced downtime – Reliable performance minimizes unexpected failures, keeping production lines running smoothly.

7. Proven in demanding sectors – Trusted by industries that cannot afford unplanned stoppages, including steel mills, chemical plants, and marine propulsion systems.

Application Scenarios

• Metallurgical production lines – Controls large DC rolling mill motors with high torque precision, ensuring consistent product quality.

• Pulp and paper industry – Maintains reliable drive performance for continuous production processes, minimizing downtime losses.

• Mining operations – Powers conveyor systems, crushers, and hoists that require strong starting torque and load handling.

• Marine propulsion – Supports ship propulsion systems where smooth torque control and operational reliability are critical.

• Retrofit and modernization projects – Ideal for upgrading existing ABB DCS 500/DCS 600 systems without complete system replacement.



  SDCS-PIN48-SD

Related Products

• ABB SDCS-IOB-23 – Input/output board for signal processing and communication between control logic and drive peripherals.

• ABB SDCS-PIN-205C – High-capacity pulse interface board for heavy-duty DC drives requiring advanced firing control.

• ABB SDCS-PIN51 – Compact pulse interface module optimized for mid-range DC drives.

• ABB SDCS-CON-3 – Control board responsible for core drive logic, process control, and communication functions.

• ABB SDCS-POW-1 – Power supply module delivering regulated voltages to control and interface boards.

• ABB SDCS-FEX-31 – Field exciter module managing DC motor field currents for optimal torque regulation.

Installation and Maintenance Guidelines

• Pre-installation checks – Verify that the SDCS-PIN48-SD part number matches the required drive specification. Inspect the board for visible damage before installation.

• Handling precautions – Use ESD (Electrostatic Discharge) protection while handling to prevent damage to sensitive components.

• Mounting – Install the board in the designated drive slot or on a DIN rail as per ABB drive manual instructions. Ensure secure electrical connections to both control and power sections.

• Wiring – Follow ABB’s wiring diagram for pulse signal routing. Avoid running control cables parallel to high-voltage lines to reduce interference.

• Routine inspection – Periodically check for loose connections, discoloration, or damaged components.

• Cleaning – Use dry, oil-free compressed air to remove dust. Do not use moisture-based cleaning agents.

• Replacement – In case of failure, replace the board immediately with an identical model to maintain drive performance and avoid compatibility issues.

Product Warranty

This product is supplied as an authentic ABB spare part by our company. We provide a 12-month warranty covering defects in materials and workmanship under normal industrial operating conditions. Warranty service includes repair or replacement at our discretion. This warranty is offered exclusively by our company, not by ABB directly, and is valid from the date of delivery.
