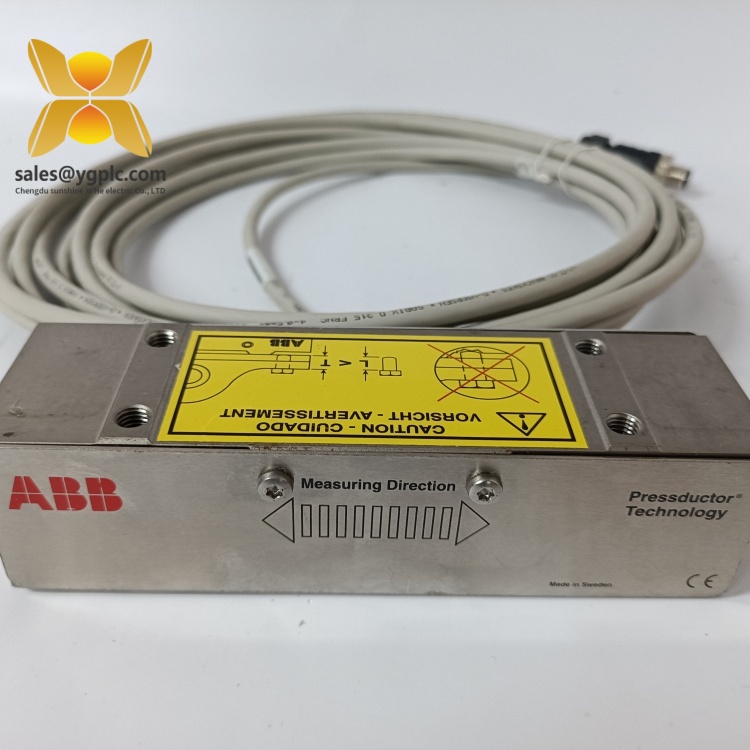

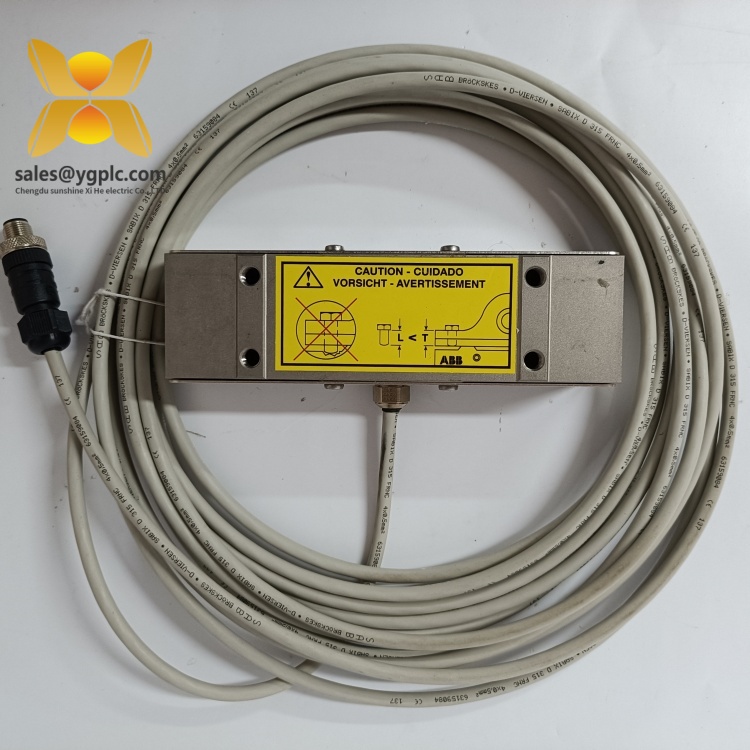

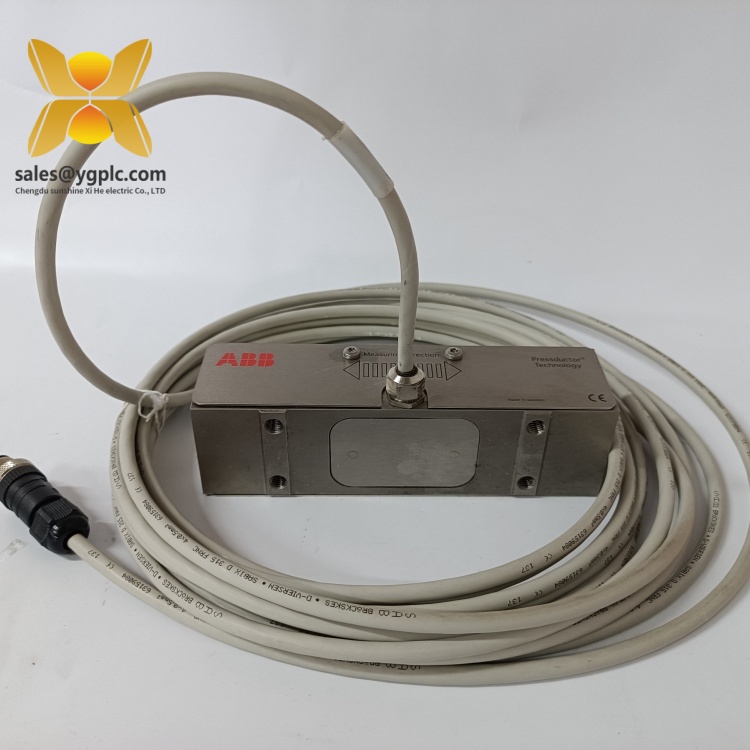

ABB PFTL301E 3BSE019050R1000 1.0KN: Precision Load Cell for Industrial Force Measurement
Product Overview
The ABB PFTL301E 3BSE019050R1000 1.0KN is a high-performance load cell engineered by ABB, a global leader in industrial automation, to deliver precise force measurement in critical industrial applications. As a key component of ABB’s PFTL series, this model is designed to convert mechanical force into electrical signals with exceptional accuracy, making it indispensable for process control, quality assurance, and safety monitoring systems.
The ABB PFTL301E 3BSE019050R1000 1.0KN is specifically rated for a maximum load of 1.0 kilonewton (kN), making it ideal for medium-force measurement scenarios where precision is non-negotiable. Its robust construction and advanced sensing technology ensure reliable performance even in harsh industrial environments, where factors like vibration, temperature fluctuations, and mechanical stress can compromise accuracy. By integrating the ABB PFTL301E 3BSE019050R1000 1.0KN into automation setups, industries gain real-time insights into force dynamics, enabling data-driven decisions that optimize efficiency, reduce waste, and enhance operational safety.
Whether deployed in manufacturing lines, material handling systems, or testing equipment, the ABB PFTL301E 3BSE019050R1000 1.0KN stands out for its seamless compatibility with ABB’s broader automation ecosystem, including PLCs and SCADA systems. This integration capability simplifies system design and ensures consistent data flow, reinforcing its position as a trusted solution for industries demanding both precision and durability.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product Type | Industrial Load Cell (Tension/Compression) |
| Physical Dimensions | Length: 120 mm; Diameter: 30 mm; Mounting Thread: M12 x 1.75 |
| Weight | 350 grams |
| Maximum Load Capacity | 1.0 kN (102 kgf) |
| Output Signal | 4-20 mA analog output; 0-10 V optional |
| Excitation Voltage | 10-30 VDC |
| Accuracy Class | 0.1% of full scale (FS) |
| Operating Temperature | -20°C to +80°C |
| Protection Rating | IP67 (dust-tight and water-resistant) |
| Material | Stainless steel (316L) for corrosion resistance |
PFTL301E 3BSE019050R1000
Related Products
- ABB PFTL301E 3BSE019050R2000 2.0KN: A higher-capacity variant of the PFTL301E series, rated for 2.0 kN, suitable for heavier force measurement tasks.
- ABB PFCL201 3BSE022369R1: A signal conditioner designed to interface with the PFTL301E 3BSE019050R1000 1.0KN, enhancing signal stability and noise reduction.
- ABB PFRL101 3BSE030095R1: A mounting adapter kit optimized for secure installation of the PFTL301E 3BSE019050R1000 1.0KN in tension applications.
- ABB PFTL501E 3BSE032699R1000 5.0KN: A rugged load cell in ABB’s PFTL501E series, offering 5.0 kN capacity for heavy-duty industrial use.
- ABB AC500 PLC PM554-R: A programmable logic controller compatible with the PFTL301E 3BSE019050R1000 1.0KN for centralized data processing.
- ABB PFTL201E 3BSE018975R1000 0.5KN: A lower-capacity model (0.5 kN) in the PFTL series, ideal for delicate force measurement in precision manufacturing.
- ABB TB521 3BSE013236R1: A terminal block for safe and organized wiring of the PFTL301E 3BSE019050R1000 1.0KN in control cabinets.
- ABB PFBL101 3BSE028949R1: A calibration tool specifically designed to verify the accuracy of the PFTL301E 3BSE019050R1000 1.0KN during maintenance.
Main Features and Advantages
The ABB PFTL301E 3BSE019050R1000 1.0KN delivers exceptional precision, with an accuracy class of 0.1% FS, ensuring that even minor force variations are captured reliably. This level of precision is critical in applications like material testing, where small deviations can impact product quality or safety. Its stainless steel 316L construction provides superior corrosion resistance, making it suitable for use in humid, chemical-exposed environments such as food processing, pharmaceuticals, and wastewater treatment.
Another standout feature is its robust environmental tolerance. The ABB PFTL301E 3BSE019050R1000 1.0KN operates efficiently across a wide temperature range (-20°C to +80°C) and carries an IP67 rating, protecting it from dust ingress and temporary water immersion. This durability minimizes downtime caused by environmental damage, a key advantage in continuous-production industries.
The load cell’s versatile design supports both tension and compression measurement, eliminating the need for separate sensors for different force directions. Its compatibility with standard analog outputs (4-20 mA, 0-10 V) ensures easy integration with existing control systems, reducing setup time and costs. Additionally, the ABB PFTL301E 3BSE019050R1000 1.0KN includes built-in overload protection, with a safe overload limit of 150% FS and an ultimate overload limit of 300% FS, preventing damage from accidental force spikes.
PFTL301E 3BSE019050R1000
Installation and Maintenance
Pre-installation preparations: Before installing the ABB PFTL301E 3BSE019050R1000 1.0KN, verify that the mounting surface is flat, clean, and free of debris to ensure proper force transmission. Check the load direction (tension or compression) and select the appropriate mounting hardware, such as the ABB PFRL101 adapter, to avoid misalignment, which can affect accuracy. Calibrate the load cell using a certified calibration tool like the ABB PFBL101 before initial use to confirm alignment with system requirements.
Maintenance suggestions: Conduct regular visual inspections of the ABB PFTL301E 3BSE019050R1000 1.0KN to check for signs of corrosion, physical damage, or loose connections. Clean the sensor housing with a dry cloth to prevent dust buildup, especially in dusty environments. Re-calibrate the load cell annually, or more frequently in high-vibration settings, using traceable standards to maintain accuracy. Avoid exposing the load cell to forces exceeding its ultimate overload limit, as this can permanently damage the sensing element.
Application Fields
The ABB PFTL301E 3BSE019050R1000 1.0KN finds extensive use across industries requiring precise force measurement. In automotive manufacturing, it monitors clamping forces in assembly lines, ensuring consistent torque application in bolt tightening processes to prevent component failure. In food and beverage production, its corrosion-resistant stainless steel design makes it ideal for measuring filling pressures in packaging machines, ensuring portion control and reducing product waste.
In material handling systems, the ABB PFTL301E 3BSE019050R1000 1.0KN is integrated into conveyor belts to monitor load distribution, preventing overloading and reducing equipment wear. It also plays a key role in material testing laboratories, where it measures tensile and compressive strengths of materials like plastics, metals, and textiles, providing data critical for quality control.
In pharmaceutical manufacturing, the load cell ensures precise force application in tablet presses, guaranteeing uniform tablet weight and hardness, which are essential for drug efficacy. Additionally, in wastewater treatment plants, it monitors sludge dewatering processes by measuring filter press pressures, optimizing water removal efficiency and reducing energy consumption.
Product Guarantee
Our company offers a one-year quality warranty service for the ABB PFTL301E 3BSE019050R1000 1.0KN, covering hardware malfunctions not caused by human factors. During the warranty period, if the product exhibits abnormal performance or functional failure, we will provide replacement services to minimize operational disruptions. As a leading import and export trade distribution company with 17 years of experience, we maintain a large stock of industrial control spare parts, including the ABB PFTL301E 3BSE019050R1000 1.0KN and related models, ensuring quick delivery to meet urgent customer needs. Our technical support team is available to assist with installation guidance, calibration, and troubleshooting, leveraging our expertise in ABB products to ensure seamless integration and long-term reliability of your industrial systems.
