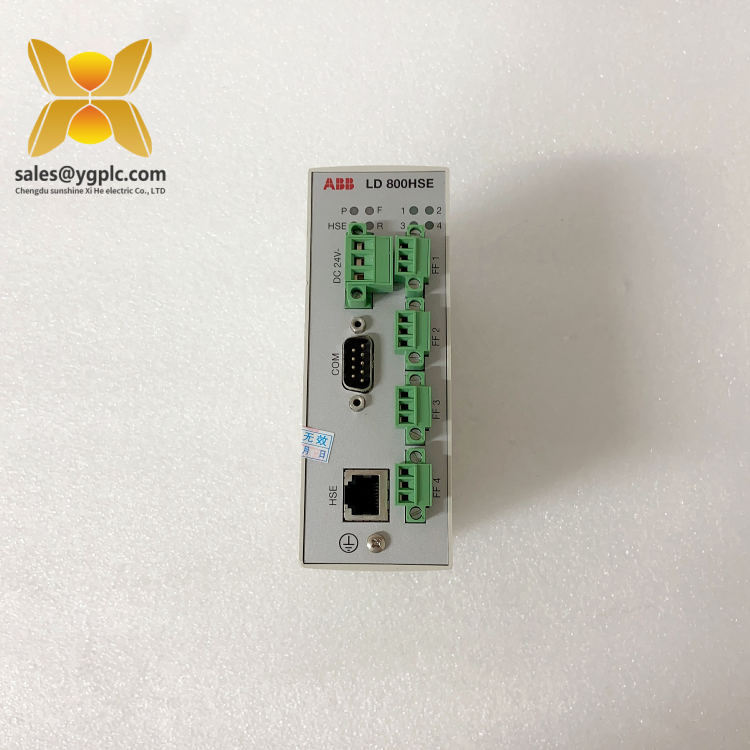

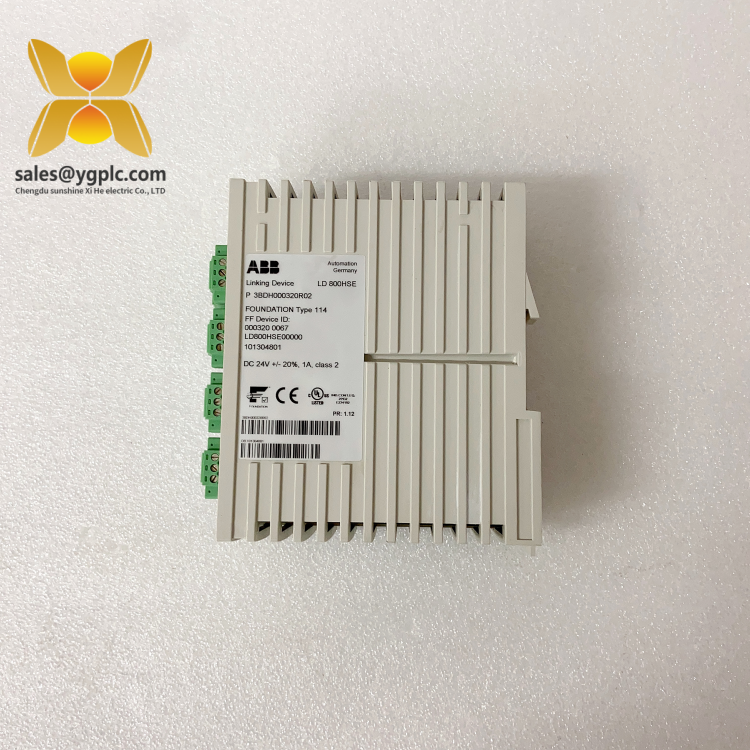

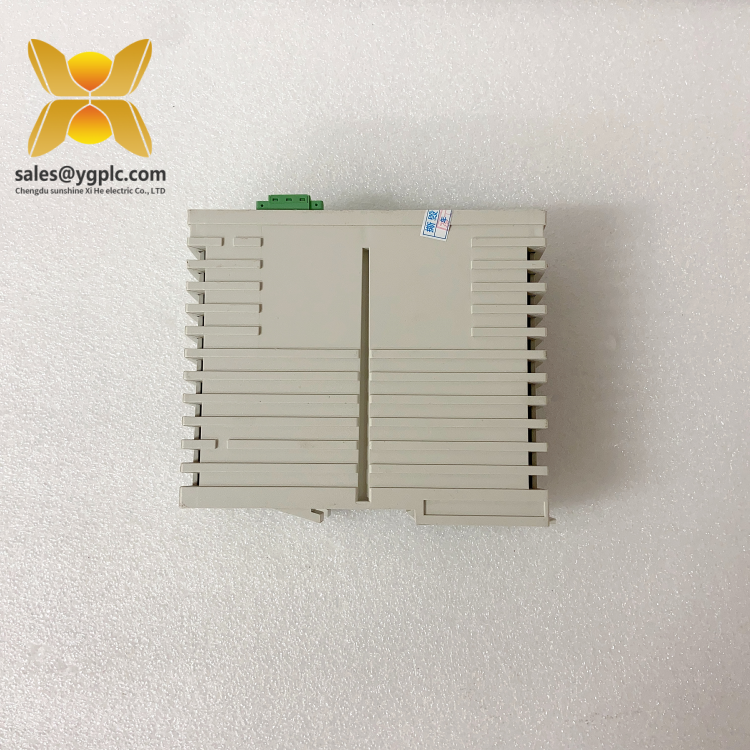

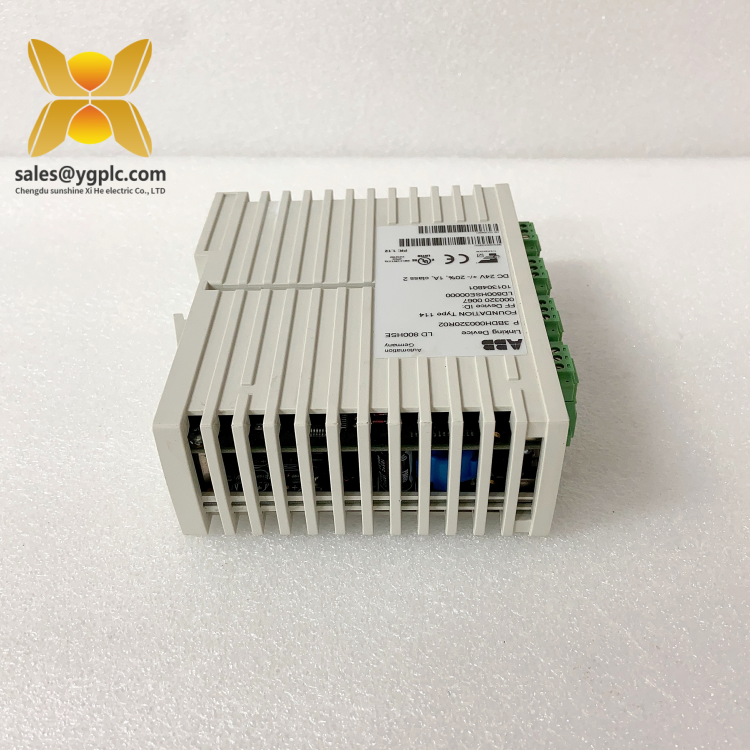

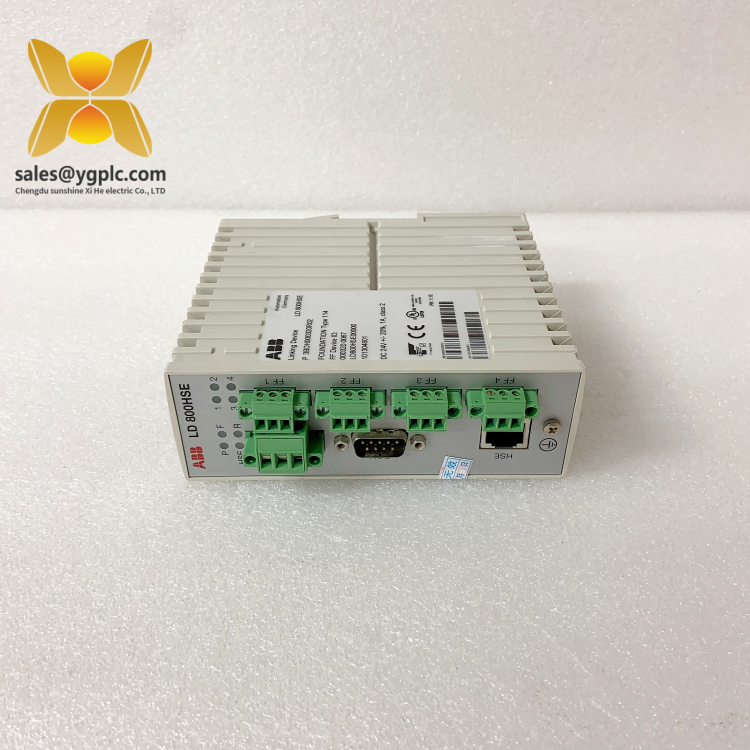

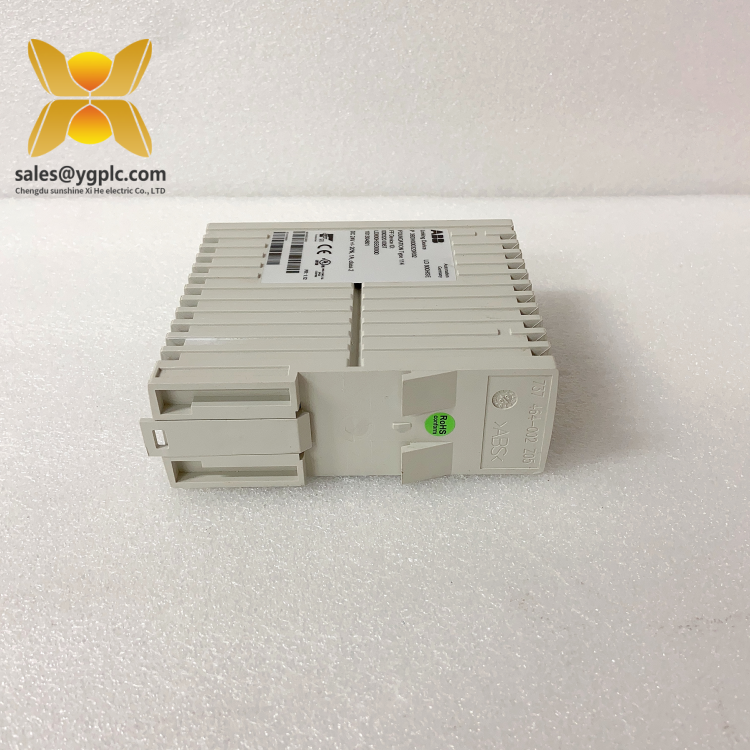

ABB LD800HSE 3BDH000320R02 | High-Speed Ethernet (HSE) Communication Interface Module

Description

ABB LD800HSE 3BDH000320R02 Product Description

Product Overview
The ABB LD800HSE 3BDH000320R02 is a high-speed Ethernet communication module designed for integration within ABB’s Industrial IT and Symphony Plus systems. This module enables seamless connectivity between process controllers, field devices, and higher-level control systems by leveraging High-Speed Ethernet (HSE) standards. It is engineered for demanding industrial environments, offering robust performance, high data throughput, and reliable communication across distributed control system (DCS) architectures.

By supporting modern networking protocols and redundant network topologies, the LD800HSE significantly enhances the scalability and resilience of process automation systems. It is ideal for industries requiring continuous operation, such as oil & gas, petrochemical, power generation, and pulp & paper. With its compact form factor and ABB’s rigorous quality standards, this module ensures ease of installation, long service life, and minimal downtime.

Technical Specifications

Parameter	Description
Model	ABB LD800HSE 3BDH000320R02
Product Type	High-Speed Ethernet (HSE) Communication Interface Module
Manufacturer	ABB
Network Protocol	High-Speed Ethernet (HSE), TCP/IP, UDP/IP
Data Transfer Rate	100 Mbps full-duplex
Supported Topologies	Redundant Ethernet, Star, Ring
Interface Ports	Dual RJ-45 Ethernet ports
Power Supply Voltage	24 V DC nominal
Power Consumption	< 10 W
Operating Temperature	-20°C to +55°C
Storage Temperature	-40°C to +85°C
Humidity Tolerance	5–95% RH, non-condensing
Dimensions (H × W × D)	130 mm × 25 mm × 120 mm
Weight	Approx. 0.35 kg
Mounting Type	DIN rail or cabinet mount
Certification	CE, UL, CSA, RoHS compliant

LD800HSE 3BDH000320R02

Key Features and Benefits

• High-Speed Data Communication – 100 Mbps full-duplex Ethernet ensures minimal latency and fast data exchange across networked devices.

• Dual-Port Redundancy – Built-in redundancy capability enhances network reliability and eliminates single points of failure.

• Robust Industrial Design – Designed to operate in harsh environments with wide temperature tolerance and high vibration resistance.

• Flexible Network Integration – Supports multiple Ethernet topologies to adapt to diverse plant layouts.

• Seamless ABB System Compatibility – Fully integrates with ABB’s Symphony Plus and Industrial IT platforms for consistent control and monitoring.

• Low Power Consumption – Efficient design minimizes energy use without compromising performance.

• Long-Term Availability – ABB’s global supply network ensures spare parts and support over the module’s lifecycle.

Application Scenarios

1. Oil & Gas – Connecting process controllers, wellhead monitoring systems, and SCADA platforms for real-time operational control.

2. Power Generation – Linking turbine control modules and substation automation systems in large power plants.

3. Petrochemical – Facilitating reliable communication between distributed process units and central control rooms.

4. Pulp & Paper – Ensuring synchronized operation of paper machines, chemical treatment units, and quality control systems.

5. Water Treatment – Supporting automated plant operations, remote monitoring, and network redundancy for critical infrastructure.



   LD800HSE 3BDH000320R02

Related Products

• ABB PM864AK01 – High-performance CPU module for AC 800M controllers, delivering advanced processing power for complex control tasks.

• ABB AI810 – Analog input module providing precise measurement capabilities for process variables such as temperature and pressure.

• ABB DO810 – Digital output module used to control actuators, valves, and other on/off field devices.

• ABB CI854AK01 – Communication interface module enabling Profibus-DP network integration with ABB control systems.

• ABB TB820V2 – Module termination unit offering secure and organized wiring for AC 800M controllers.

Installation and Maintenance Guidelines

• Pre-Installation – Ensure the control cabinet or DIN rail is clean, vibration-free, and meets ABB’s environmental specifications.

• Mounting – Insert the LD800HSE module onto the DIN rail or mounting bracket until it locks into position.

• Wiring – Use shielded twisted-pair Ethernet cables for optimal data integrity. Connect to redundant network paths where possible.

• Power Connection – Supply 24 V DC from a stable and regulated source to avoid voltage fluctuations.

• Commissioning – Configure network settings via ABB’s engineering tools, ensuring proper IP addressing and redundancy setup.

• Maintenance – Inspect periodically for dust accumulation, loose wiring, or damaged connectors. Use ABB-approved cleaning materials.

• Firmware Updates – Apply ABB-released firmware updates to maintain security and compatibility with evolving system requirements.



  LD800HSE 3BDH000320R02

Product Warranty

ABB provides a standard 12-month warranty for the LD800HSE 3BDH000320R02, starting from the date of shipment. This warranty covers defects in materials and workmanship under normal use and service conditions. Extended warranty and service agreements are available upon request, ensuring long-term system performance and operational reliability. All warranty claims are subject to ABB’s global terms and conditions.
