Product Overview: ABB DSSR122 4899001-NK
In the realm of industrial control systems, where precision and reliability directly impact operational success, ABB continues to set benchmarks with innovative solutions. Introducing the ABB DSSR122 4899001-NK—a high-performance control module engineered to elevate efficiency and dependability in critical automation processes. As a cornerstone of ABB’s renowned portfolio, the ABB DSSR122 4899001-NK embodies the brand’s legacy of excellence, combining cutting-edge technology with rugged design to thrive in the most demanding industrial environments.
Designed as a versatile control and protection module, the ABB DSSR122 4899001-NK serves as a vital interface between sensors, actuators, and central control systems, ensuring seamless data flow and precise command execution. Whether deployed in power distribution networks, manufacturing lines, or heavy machinery, this module delivers consistent performance, even amid temperature fluctuations, electrical noise, and mechanical stress. For engineers and plant managers seeking to minimize downtime and maximize productivity, the ABB DSSR122 4899001-NK emerges as a trusted solution, backed by ABB’s decades of expertise in industrial automation.
Technical Specifications — ABB DSSR122 4899001-NK
| Specification | Details |
|---|---|
| Model Number | ABB DSSR122 4899001-NK |
| Manufacturer | ABB |
| Operating Voltage | 110-240V AC ±10% / 24V DC ±10% |
| Power Consumption | Max 20W |
| Operating Temperature | -25°C to +70°C (-13°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Communication Protocol | Modbus RTU, Profibus DP, Ethernet/IP |
| Inputs | 12 digital inputs (24V DC), 4 analog inputs (0-10V / 4-20mA) |
| Outputs | 6 relay outputs (10A @ 250V AC), 2 analog outputs (4-20mA) |
| Dimensions (WxHxD) | 145mm x 210mm x 90mm (5.71in x 8.27in x 3.54in) |
| Weight | Approx. 750g (1.65lbs) |
| Protection Rating | IP20 (panel-mounted) with conformal coating option |
| Certifications | CE, UL, CSA, ATEX, IECEx |
| MTBF (Mean Time Between Failures) | >150,000 hours |

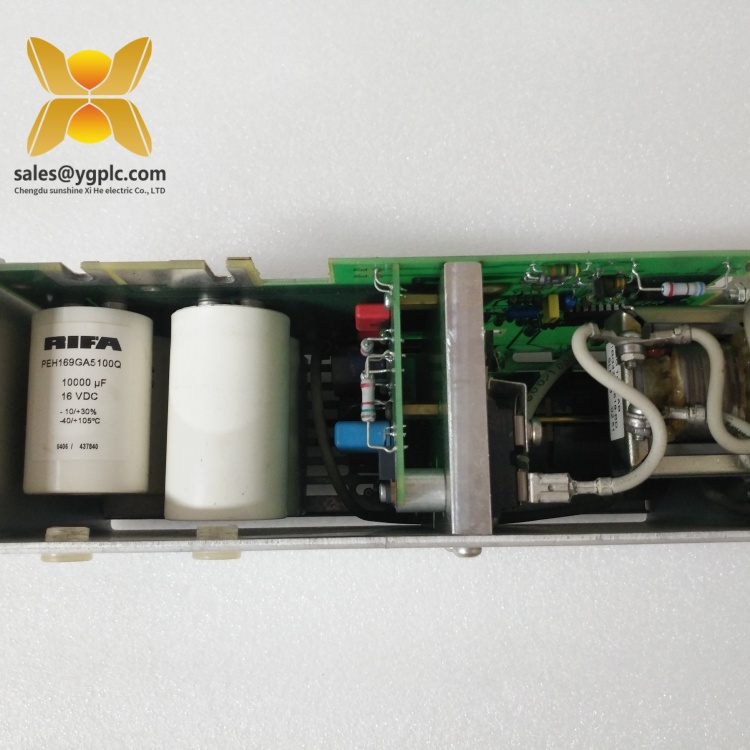

ABB DSSR122 4899001-NK
Related products: ABB DSSR122 4899001-NK
The ABB DSSR122 4899001-NK is part of ABB’s integrated ecosystem of industrial control components, designed to work harmoniously with complementary products for complete system solutions. Key related products include:
- ABB DSSR112 4899000-JL: A compact sibling with reduced I/O capacity, ideal for space-constrained applications.
- ABB DSSR132 4899002-MP: A high-end variant with enhanced communication protocols, including Modbus TCP/IP and BACnet.
- ABB PS865-60: A robust power supply unit, perfectly matched to the voltage requirements of the ABB DSSR122 4899001-NK.
- ABB CI858K01: A communication interface module that extends the ABB DSSR122 4899001-NK’s connectivity in large-scale industrial networks.
- ABB CM572: A monitoring module that pairs with the ABB DSSR122 4899001-NK to provide advanced analytics and remote diagnostics.
Like the ABB DSSR122 4899001-NK, these products adhere to ABB’s strict quality and safety standards, ensuring interoperability and long-term reliability in unified systems.
Main features and advantages: ABB DSSR122 4899001-NK
The ABB DSSR122 4899001-NK stands out in industrial automation with features tailored to meet modern operational demands:
-
Extreme Environmental Resilience: Built to withstand temperatures from -25°C to +70°C and resist vibration, dust, and humidity, the ABB DSSR122 4899001-NK ensures uninterrupted operation in harsh settings—from outdoor power substations to factory floors. Its optional conformal coating adds extra protection against moisture and contaminants.
-
Multi-Protocol Communication: Equipped with Modbus RTU, Profibus DP, and Ethernet/IP, the ABB DSSR122 4899001-NK integrates seamlessly with legacy and modern control systems alike. This flexibility eliminates the need for costly protocol converters, simplifying system upgrades.
-
Versatile I/O Configuration: With 12 digital inputs, 4 analog inputs, 6 relay outputs, and 2 analog outputs, the ABB DSSR122 4899001-NK handles diverse control tasks—from monitoring pressure sensors to regulating motor speeds—with precision. Its inputs support both voltage and current signals, adapting to varied sensor types.
-
Energy-Efficient Operation: Operating at a maximum of 20W, the ABB DSSR122 4899001-NK minimizes energy consumption, contributing to lower operational costs and aligning with sustainability goals in industrial facilities.
-
Plug-and-Play Integration: Designed for quick setup, the ABB DSSR122 4899001-NK mounts easily on standard DIN rails and connects via color-coded terminals, reducing installation time and minimizing workflow disruptions.
-
Advanced Diagnostics: Built-in self-monitoring tools track voltage levels, communication status, and output performance in real time. Alerts are sent via connected systems, enabling proactive maintenance and reducing unplanned downtime.
-
Global Compliance: Certified by CE, UL, CSA, ATEX, and IECEx, the ABB DSSR122 4899001-NK meets international safety, electromagnetic compatibility (EMC), and hazardous area standards, ensuring seamless deployment across global industrial markets.
Installation and maintenance: ABB DSSR122 4899001-NK
Installing and maintaining the ABB DSSR122 4899001-NK is designed to be straightforward, even for technical teams with basic automation experience. Follow these guidelines for optimal performance:
Installation Steps:
- Mounting: Secure the ABB DSSR122 4899001-NK on a standard 35mm DIN rail in a control cabinet. Ensure the mounting location is dry, well-ventilated, and free from direct sunlight or excessive vibration.
- Power Connection: Connect the power supply (110-240V AC or 24V DC) to the labeled terminals, using insulated cables rated for industrial use. Double-check polarity to avoid damage.
- I/O Wiring: Connect sensors and actuators to the input/output terminals, following the wiring diagram in the user manual. Use shielded cables for analog signals to reduce electrical interference.
- Communication Setup: Configure the desired protocol (Modbus RTU, Profibus DP, or Ethernet/IP) via the module’s front-panel DIP switches or ABB’s Control Builder software. Test connectivity with the main PLC/HMI to confirm data transmission.
- Startup Test: Power on the system and verify the status LED—steady green indicates normal operation. Refer to the manual for troubleshooting if the LED flashes red or remains off.
Maintenance Tips:
- Quarterly Inspections: Check terminal connections for tightness and corrosion. Clean dust from vents to prevent overheating.
- Firmware Updates: Periodically update the ABB DSSR122 4899001-NK’s firmware via ABB’s official software to access new features and performance improvements.
- Environmental Control: Maintain operating temperatures within the specified range to avoid thermal stress on internal components.
- Replacement Guidelines: In case of failure, replace with a genuine ABB ABB DSSR122 4899001-NK unit to ensure compatibility and safety. Contact authorized suppliers for replacements.
ABB DSSR122 4899001-NK
Application fields: ABB DSSR122 4899001-NK
The ABB DSSR122 4899001-NK excels across diverse industries where precise control and reliability are critical:
- Power Distribution: In substations and electrical grids, the ABB DSSR122 4899001-NK monitors circuit breakers, transformers, and load levels, triggering protective actions during overloads or faults to prevent outages.
- Manufacturing: On assembly lines for automotive, aerospace, and electronics, it controls conveyor systems, robotic grippers, and quality inspection tools, ensuring consistent production cycles.
- Oil and Gas: In upstream drilling and downstream refining, the module withstands hazardous environments to regulate pumps, valves, and pressure sensors, enhancing operational safety.
- Water and Wastewater: It manages filtration systems, chemical dosing pumps, and flow meters in treatment plants, ensuring compliance with water quality regulations.
- Renewable Energy: In solar farms and wind turbines, the ABB DSSR122 4899001-NK optimizes energy conversion and grid integration, maximizing power output while protecting equipment from voltage fluctuations.
Product guarantee: ABB DSSR122 4899001-NK
ABB stands behind the ABB DSSR122 4899001-NK with a comprehensive warranty and dedicated support to ensure long-term operational confidence:
- Warranty Period: The ABB DSSR122 4899001-NK comes with a 3-year warranty from the date of purchase, covering defects in materials and workmanship under normal operating conditions.
- Technical Support: ABB’s global network of engineers provides 24/7 assistance for installation, troubleshooting, and system optimization. Users can access manuals, video tutorials, and FAQs via ABB’s online resources.
- Replacement Services: For warranty claims, ABB offers expedited replacement of faulty ABB DSSR122 4899001-NK units, minimizing downtime for critical operations.
- Extended Support Plans: Optional extended warranties include on-site service, priority technical hotlines, and preventive maintenance checks to extend the module’s lifespan.
