Product Overview: ABB DCF506-0140-51

Technical Specifications — ABB DCF506-0140-51

Parameter	Specification
Model Number	DCF506-0140-51
Brand	ABB
Type	Digital Control Module
Operating Voltage	24V DC ±10%
Power Consumption	Max 5W
Processing Speed	32-bit microprocessor, 100 MHz
Input Channels	8 digital inputs (24V DC)
Output Channels	4 relay outputs (max 250V AC, 5A)
Communication Protocols	Modbus RTU, Profibus DP, Ethernet/IP
Operating Temperature Range	-20°C to +60°C (-4°F to +140°F)
Storage Temperature Range	-40°C to +85°C (-40°F to +185°F)
Humidity Resistance	5% to 95% RH (non-condensing)
Protection Rating	IP20 (panel-mounted)
Dimensions (W x H x D)	120mm x 80mm x 150mm
Weight	Approx. 350g
Certification	CE, UL, RoHS

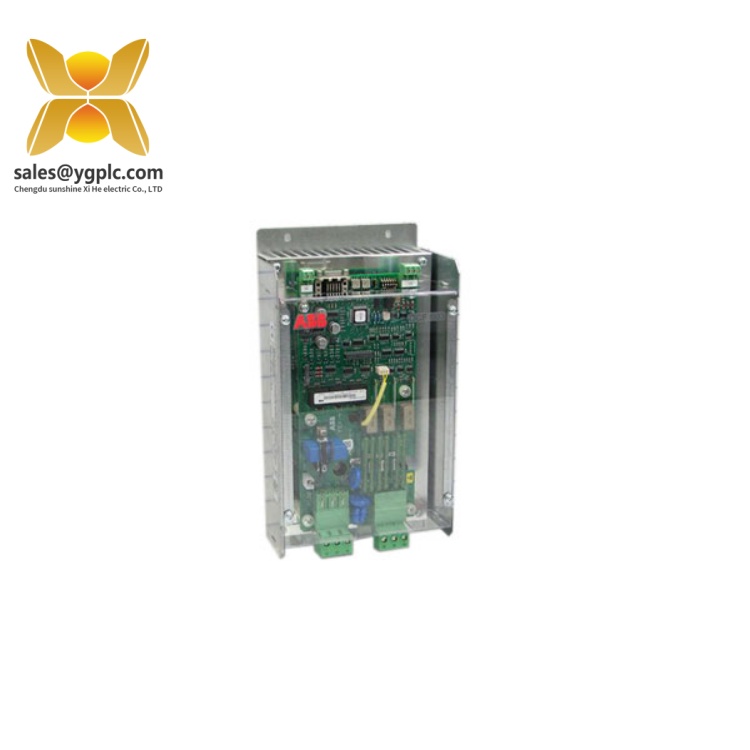

ABB DCF506-0140-51

Related products: ABB DCF506-0140-51

• ABB AC500 PLC Series: A robust programmable logic controller that integrates with the ABB DCF506-0140-51 for enhanced system control and data management.
• ABB DSQC651 Digital Input Module: Ideal for expanding input capabilities when paired with the ABB DCF506-0140-51 in high-input industrial environments.
• ABB HMI Panel 600: A user-friendly human-machine interface that provides real-time visualization of data processed by the ABB DCF506-0140-51.
• ABB 3HAC031683-001 Servo Drive: Works in tandem with the ABB DCF506-0140-51 to regulate motor operations with precision in manufacturing and robotics applications.

Main features and advantages: ABB DCF506-0140-51

1. High-Speed Data Processing: Equipped with a 32-bit microprocessor running at 100 MHz, the ABB DCF506-0140-51 processes input signals and executes control logic in milliseconds. This speed ensures that critical system adjustments are made instantly, preventing process deviations and maintaining stability.
2. Versatile Communication: Supporting multiple industry-standard protocols—including Modbus RTU, Profibus DP, and Ethernet/IP—the ABB DCF506-0140-51 integrates effortlessly with a wide range of control systems, sensors, and devices. This versatility eliminates compatibility issues, making it suitable for diverse industrial setups.
3. Durable Design: Built to withstand harsh industrial conditions, the ABB DCF506-0140-51 operates reliably in temperatures ranging from -20°C to +60°C and resists humidity up to 95% RH. Its rugged construction ensures longevity, even in dusty, vibration-prone environments.
4. Flexible I/O Configuration: With 8 digital inputs and 4 relay outputs, the ABB DCF506-0140-51 offers flexibility to adapt to varying system requirements. The relay outputs, capable of handling up to 250V AC and 5A, make it suitable for controlling a range of actuators, valves, and motors.
5. Energy Efficiency: Consuming a maximum of 5W, the ABB DCF506-0140-51 minimizes power usage, contributing to lower operational costs and reduced environmental impact—a key consideration for modern, sustainable industrial practices.
6. Easy Integration and Maintenance: The module’s compact design (120mm x 80mm x 150mm) allows for easy panel mounting, while its plug-and-play functionality simplifies installation. Diagnostic LEDs provide quick status checks, reducing troubleshooting time and maintenance efforts.
7. Global Compliance: Certified by CE, UL, and RoHS, the ABB DCF506-0140-51 meets international safety and environmental standards, ensuring it can be deployed in industrial facilities worldwide without regulatory hurdles.

Installation and maintenance: ABB DCF506-0140-51

1. Prepare the Mounting Surface: Ensure the panel or mounting location is clean, dry, and free from excessive vibration. The ABB DCF506-0140-51 requires a flat surface to prevent damage to internal components.
2. Secure the Module: Use the provided mounting holes to fix the ABB DCF506-0140-51 to the panel. Torque screws to 0.5 Nm to avoid over-tightening.
3. Connect Power: Supply 24V DC (±10%) to the power input terminals, ensuring correct polarity to prevent short circuits.
4. Wire Inputs/Outputs: Connect sensors to the digital input terminals and actuators to the relay output terminals, following the wiring diagram in the user manual. Double-check connections to avoid misalignment.
5. Establish Communication: Use appropriate cables to connect the ABB DCF506-0140-51 to the main control system via the desired protocol (Modbus RTU, Profibus DP, or Ethernet/IP).
6. Power On and Test: Switch on the power and verify the module’s status via the diagnostic LEDs. Perform a test run to ensure inputs are detected and outputs respond correctly.

• Regular Inspections: Check connections quarterly to ensure they are tight and free from corrosion. Dust accumulation can affect performance, so gently clean the module with compressed air if needed.
• Temperature Monitoring: Ensure the operating environment remains within the specified range (-20°C to +60°C). Avoid direct exposure to heat sources or cold drafts.
• Software Updates: Periodically check for firmware updates via ABB’s official channels to keep the ABB DCF506-0140-51 running with the latest features and security patches.
• Troubleshooting: If issues arise, refer to the user manual for error codes indicated by the LEDs. For persistent problems, contact ABB technical support or authorized service providers.

Application fields: ABB DCF506-0140-51

• Manufacturing: In automotive, electronics, and consumer goods production lines, the ABB DCF506-0140-51 controls conveyor belts, robotic arms, and assembly stations, ensuring consistent product quality and throughput.
• Energy and Utilities: Power plants, water treatment facilities, and renewable energy installations use the ABB DCF506-0140-51 to monitor and regulate pumps, valves, and turbines, optimizing energy efficiency and reducing waste.
• Food and Beverage: The module’s ability to operate in controlled environments makes it ideal for regulating temperature, mixing, and packaging processes, adhering to strict hygiene and safety standards.
• Oil and Gas: In upstream and downstream operations, the ABB DCF506-0140-51 withstands harsh conditions to control pipeline valves, pressure sensors, and processing equipment, ensuring safe and efficient operations.
• Pharmaceuticals: Precision is critical in pharmaceutical manufacturing, and the ABB DCF506-0140-51 delivers accurate control over mixing, blending, and packaging processes, complying with stringent regulatory requirements.
• Mining: From material handling to ore processing, the ABB DCF506-0140-51 robust design and reliable performance make it suitable for the dusty, high-vibration environments of mining operations.

Product guarantee: ABB DCF506-0140-51

• Warranty Period: The ABB DCF506-0140-51 comes with a 2-year warranty from the date of purchase, covering defects in materials and workmanship under normal operating conditions.
• Technical Support: ABB’s global network of technical experts provides assistance with installation, troubleshooting, and maintenance. Customers can access support via phone, email, or the ABB online portal.
• Replacement and Repair: In the event of a warranty claim, ABB offers prompt replacement or repair of the ABB DCF506-0140-51, ensuring minimal downtime for your operations.
• Genuine Parts: Only genuine ABB parts are used for repairs, guaranteeing compatibility and maintaining the module’s original performance standards.
