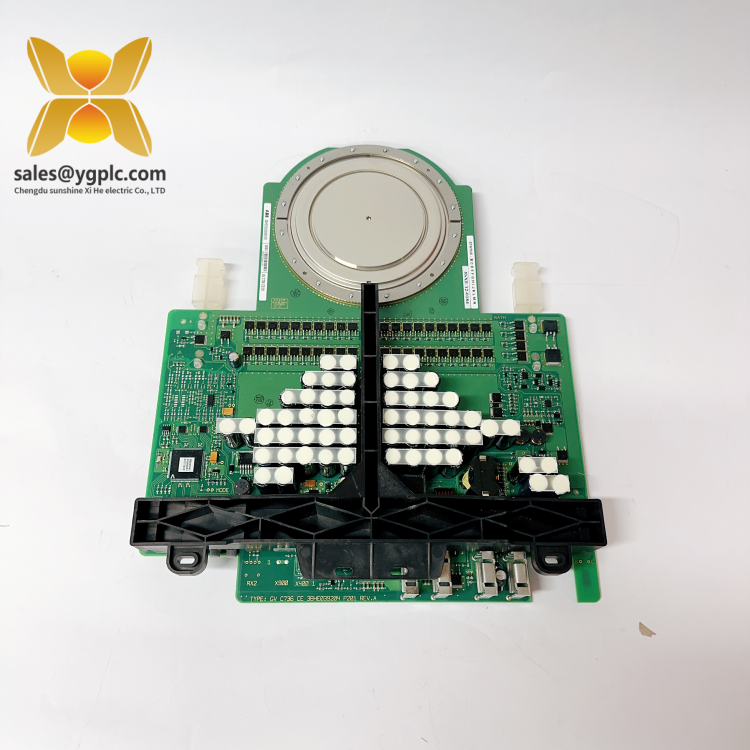

ABB 5SHY4045L0004 – High-Performance Thyristor Power Module

(Warranty Provided by Xiamen Xiongba E-commerce Co., Ltd., Not ABB)

1. Product Overview

The ABB 5SHY4045L0004 thyristor power module is engineered for demanding industrial automation and high-power control applications. Built to handle substantial electrical loads with stability and reliability, this module offers superior thermal performance and long operational life. Its robust construction ensures dependable operation in environments where precision, efficiency, and durability are critical.

Commonly used in Distributed Control Systems (DCS), high-power drives, and heavy-duty motor control circuits, the 5SHY4045L0004 is designed to integrate seamlessly into both new systems and retrofit projects. This makes it a preferred choice for engineers and maintenance teams seeking dependable replacement parts for ABB’s advanced control systems.

Our company, Xiamen Xiongba E-commerce Co., Ltd., supplies this product with a professional warranty independent of ABB. Every unit is tested before shipment to ensure it meets strict quality requirements.

2. Technical Specifications

Parameter	Description
Manufacturer	ABB
Model Number	5SHY4045L0004
Component Type	Thyristor Power Module
Voltage Rating	4500 V
Current Rating	3150 A
Cooling Method	Air / Liquid Cooling (depending on configuration)
Mounting Type	Panel / Chassis Mount
Dimensions	Standard ABB module size
Weight	Approx. 6.8 kg
Operating Temperature	–40°C to +125°C
Storage Temperature	–55°C to +150°C
Country of Origin	Sweden
Warranty Provider	Xiamen Xiongba E-commerce Co., Ltd. (Not ABB)

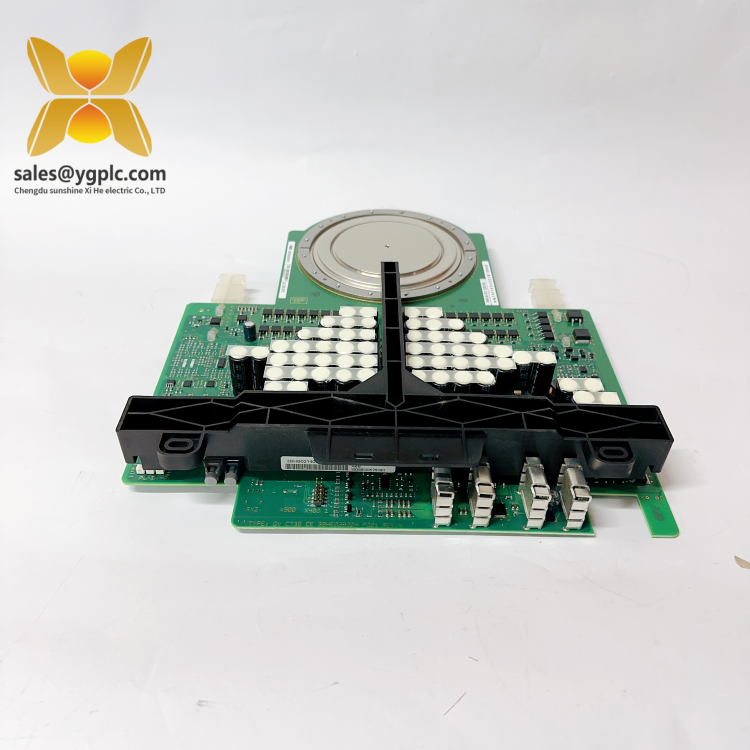

ABB 5SHY4045L0004

3. Key Features & Benefits

• High Voltage Capacity – Rated for up to 4500 volts, enabling safe and stable operation in high-power industrial environments.

• Exceptional Current Handling – Supports continuous currents of 3150 amps, suitable for heavy-duty applications.

• Durable Build Quality – Constructed with industrial-grade materials for extended service life.

• Optimized Thermal Management – Designed for efficient heat dissipation to prevent overheating during prolonged operation.

• Easy Integration – Compatible with existing ABB DCS and motor control systems, reducing downtime during replacements.

• Proven Reliability – Rigorously tested for resistance to vibration, shock, and environmental stress.

• Flexible Cooling Options – Supports both air and liquid cooling configurations.

• Maintenance-Friendly – Modular design allows for quick installation and replacement.

• Global Applicability – Meets international electrical and safety standards.

• Independent Warranty – Supplied with warranty from Xiamen Xiongba E-commerce Co., Ltd., ensuring customer protection without dependency on ABB.

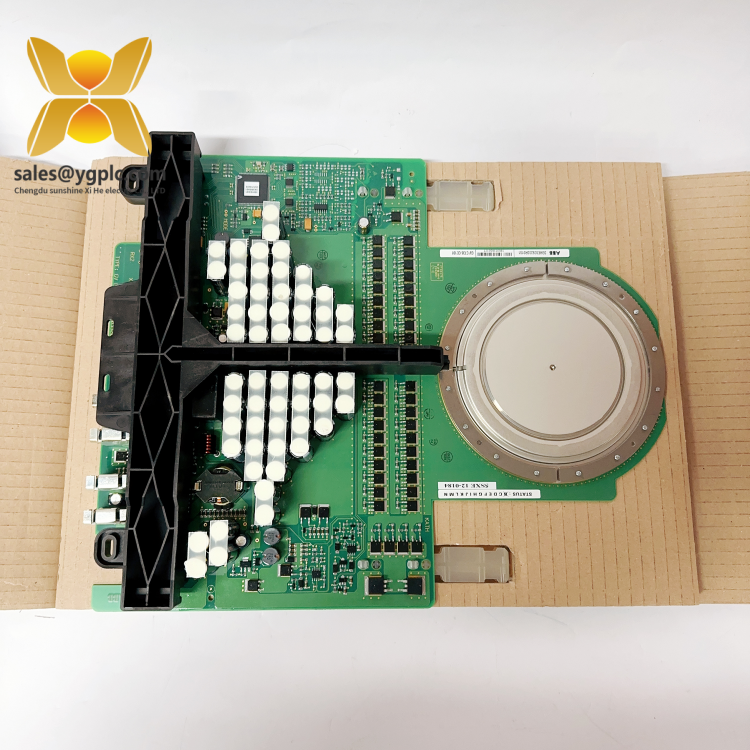

  ABB 5SHY4045L0004

4. Typical Applications

The ABB 5SHY4045L0004 module is widely adopted across multiple industrial sectors:

• Power Generation Plants – Used in excitation systems and turbine control.

• Steel & Metal Processing – Controls high-power rolling mills and electric arc furnaces.

• Chemical & Petrochemical Industries – Drives large compressors and pumps.

• Mining Operations – Powers heavy-duty conveyor belts and crushers.

• Marine Engineering – Supports propulsion and auxiliary power systems.

• Renewable Energy – Integrated into large-scale wind and hydro power control systems.

5. Installation & Maintenance Guidelines

1. Pre-Installation Check – Verify compatibility with system specifications.

2. Mounting – Secure the module firmly to the panel or chassis, ensuring adequate cooling clearance.

3. Electrical Connections – Use appropriately rated cables and follow torque specifications.

4. Cooling Setup – Implement proper airflow or liquid circulation for heat management.

5. Testing – Conduct initial power-on tests at reduced load to ensure correct operation.

6. Regular Inspection – Schedule quarterly checks for signs of wear, dust accumulation, or connection loosening.

7. Preventive Maintenance – Keep module clean, monitor operating temperature, and replace thermal pads if needed.

6. Warranty & After-Sales Service

• Warranty Coverage: Provided by Xiamen Xiongba E-commerce Co., Ltd., not by ABB.

• Warranty Period: 12 months from date of shipment.

• Support Services: Technical consultation, troubleshooting assistance, and prompt replacement for defective units.

• Quality Assurance: Each module is fully tested before delivery.

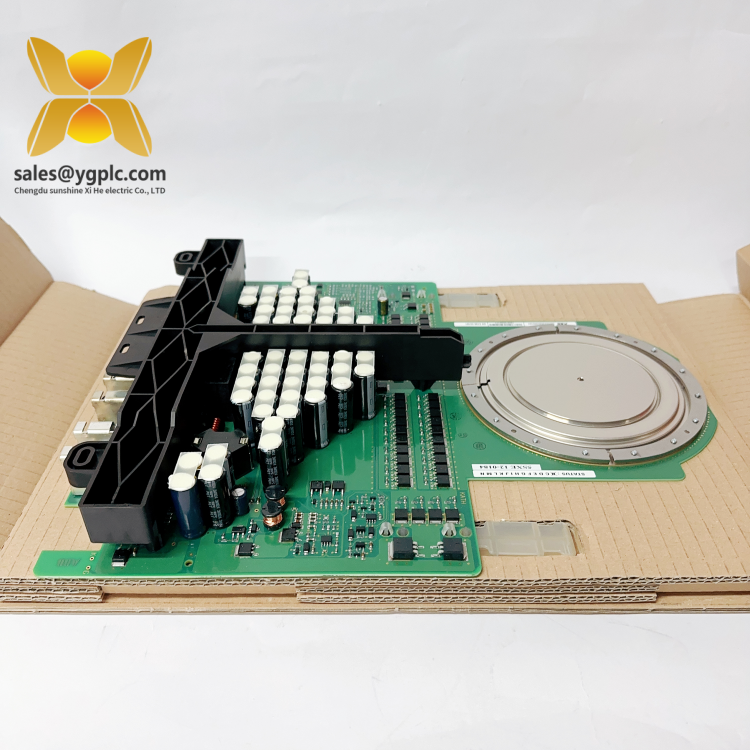

  ABB 5SHY4045L0004

7. Conclusion & Call-to-Action

The ABB 5SHY4045L0004 thyristor power module delivers the perfect combination of high electrical capacity, robust design, and operational reliability for industrial control systems. Customers can confidently source this part knowing they will receive dependable quality and dedicated after-sales support.

📩 Contact us today to inquire about stock availability, technical specifications, or bulk purchase pricing for the ABB 5SHY4045L0004.
