ABB 5SHY3545L0005 IGCT Module – Conflicting Specifications and Identity Verification Guide

Critical Disclaimer: The distributor listings for this part number are irreconcilably contradictory. At least three mutually exclusive device identities circulate: a symmetric IGCT rated 3500 V / 4500 A, an asymmetric IGCT rated 4500 V / 3500 A, and a low-current IGCT rated 4.5 kV / 450 A. The parameter table below consolidates the most technically coherent asymmetric IGCT claims, but it must not be treated as an ABB-official datasheet. Verify the physical module, gate driver part number, and drive manual before any procurement or replacement decision.

Parameter Table: ABB 5SHY3545L0005 (Asymmetric IGCT Claim Set)

Manufacturer: ABB
Product Type: Asymmetric Integrated Gate-Commutated Thyristor (IGCT), press-pack
Alternate Order Code: 3BHB013085R0005 (cited by some listings)
Rated Blocking Voltage (V DRM): 4500 V
Rated Current (I TGM): 3500 A (one listing set); conflicting listings claim 4500 A, 3300 A, 4000 A, or 450 A
Device Structure: Asymmetric — no reverse blocking capability; external anti-parallel diode required for bidirectional current flow
On-State Voltage (V T0): 1.62 V typical
Surge Current (I TSM): 75,000 A non-repetitive (per one listing); another source states 45 kA at 10 ms
Switching Frequency: Up to approximately 1 kHz; typical operating range around 500 Hz
Gate Interface: Low-inductance hard-drive gate connection; optical fiber trigger input
Cooling: Press-pack clamped to heat sinks; double-sided liquid cooling compatibility
Operating Junction Temperature: −40 °C to +125 °C
Typical Applications: ABB ACS6000 medium-voltage drives, HVDC transmission, STATCOM, SVC, large industrial inverters

Identity Conflict Summary

Three distinct claim sets compete for this part number:

The symmetric IGCT listing claims 3500 V bidirectional blocking, 4500 A continuous current, 25 kA surge, and 9.8 kg weight, positioning it as a drop-in for ACS5000 four-quadrant drives . The asymmetric IGCT listings claim 4500 V forward blocking, 3500 A current, 1.62 V on-state voltage, and external diode requirement, targeting ACS6000 and HVDC applications . A third listing claims 4.5 kV / 450 A with integrated gate driver, 140 × 100 × 40 mm dimensions, and ACS1000/5000/6000 compatibility . Additional outlier claims include 4000 A continuous current , 3300 A , and a 500 g “distributed control system” module with automatic voltage regulation .

The “symmetric IGCT” claim is internally inconsistent with ABB’s 5SHY naming convention, which designates asymmetric devices. The 450 A claim conflicts with the “3545” designation (typically 3500 A / 4500 V class). The 500 g control-module listing describes a fundamentally different product category and should be disregarded.

Usage Note: For procurement or replacement, anchor on the order code 3BHB013085R0005 and cross-check the gate driver unit (GDU) part number against the drive’s spare-parts list. Press-pack IGCTs require calibrated clamping force and OEM-specified thermal interface materials; standard thermal grease will cause hot spots under pressure . Do not mix L0004 and L0005 revisions within the same power stack, as fiber-optic connector keying and switching characteristics differ .

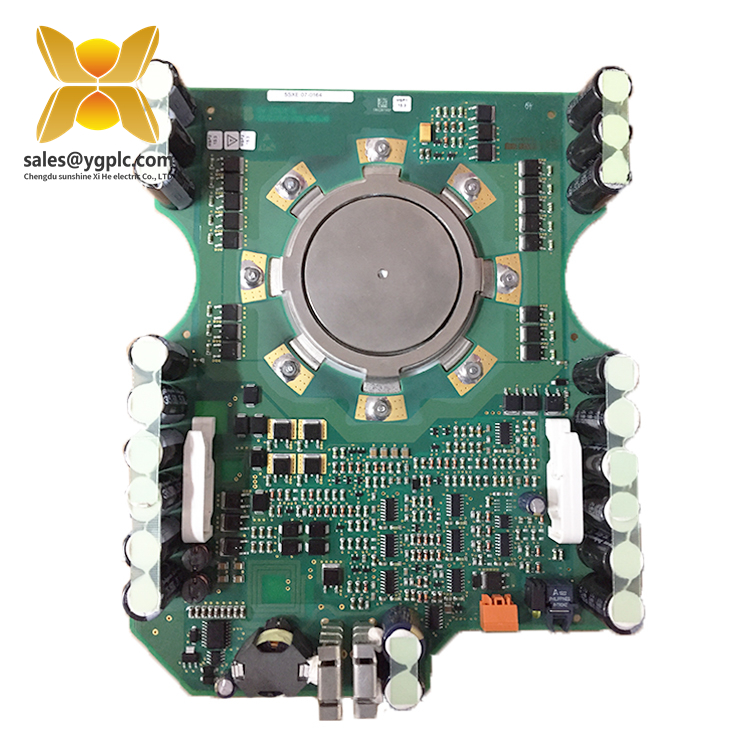

ABB IGCT Module | ABB ACS6000 | ABB PCS6000

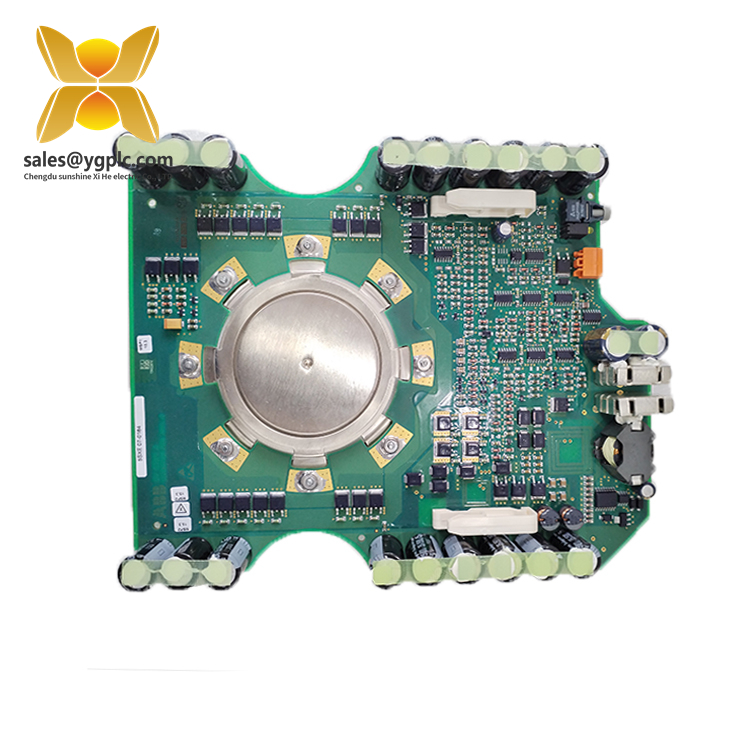

ABB IGCT Module | ABB ACS6000 | ABB PCS6000

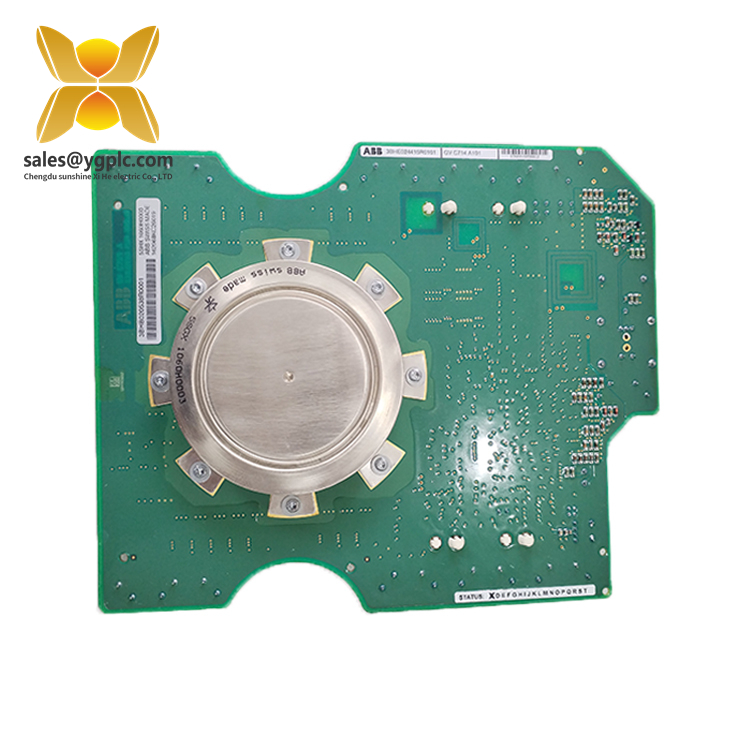

ABB IGCT Module | ABB ACS6000 | ABB PCS6000
