Product Overview: ABB 3BSE042237R2 PP836A

Name: ABB 3BSE042237R2 PP836A | High-performance industrial..
Brand: ABB

The ABB 3BSE042237R2 PP836A is a high-performance industrial process panel designed by ABB, a global pioneer in automation and power technologies with a proven track record of engineering reliable solutions for complex industrial environments. As a key component in ABB’s AC800M controller family, this process panel serves as a critical interface for monitoring and controlling industrial processes, bridging the gap between field devices and higher-level control systems.

Engineered for precision and durability, the ABB 3BSE042237R2 PP836A combines advanced processing capabilities with robust connectivity, making it ideal for applications where real-time data processing and seamless communication are essential. Whether deployed in manufacturing lines, chemical plants, or energy facilities, it delivers consistent performance even in harsh conditions, including temperature fluctuations, electrical noise, and mechanical vibration.

What defines the ABB 3BSE042237R2 PP836A is its balance of power and flexibility. Its modular design allows easy integration into existing automation systems, reducing setup time and operational costs. Backed by ABB’s rigorous quality standards, this panel ensures long-term reliability, minimizing downtime and maximizing productivity for industrial operations worldwide.

Technical Specifications — ABB 3BSE042237R2 PP836A

Parameter	Details
Model Number	3BSE042237R2 PP836A
Manufacturer	ABB
Operating Voltage	24V DC ±10%
Power Consumption	Max 25W
Processor	32-bit RISC, 800 MHz
Memory	512 MB RAM, 1 GB Flash
Communication Protocols	Profibus DP, Ethernet/IP, Modbus TCP
I/O Interface	2 x Ethernet ports, 1 x Profibus port, 1 x USB port
Operating Temperature	-10°C to +60°C (14°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Humidity Resistance	5% to 95% RH (non-condensing)
Vibration Resistance	10-500Hz, 5g acceleration (IEC 60068-2-6)
Enclosure Rating	IP20 (panel-mounted)
Dimensions (W x H x D)	150mm x 220mm x 90mm (5.91″ x 8.66″ x 3.54″)
Weight	Approx. 750g (1.65 lbs)
Certification	CE, UL, IEC 61131-2, RoHS

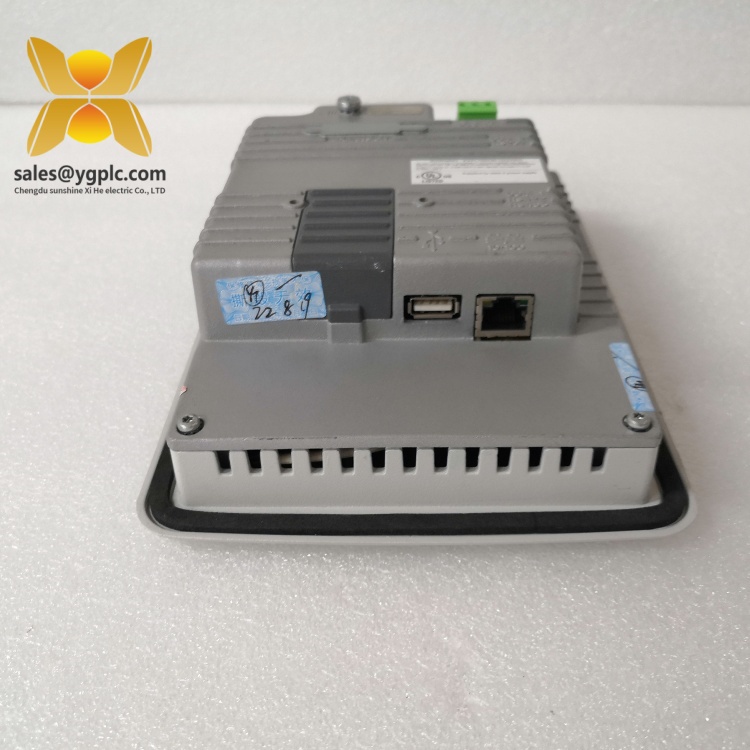

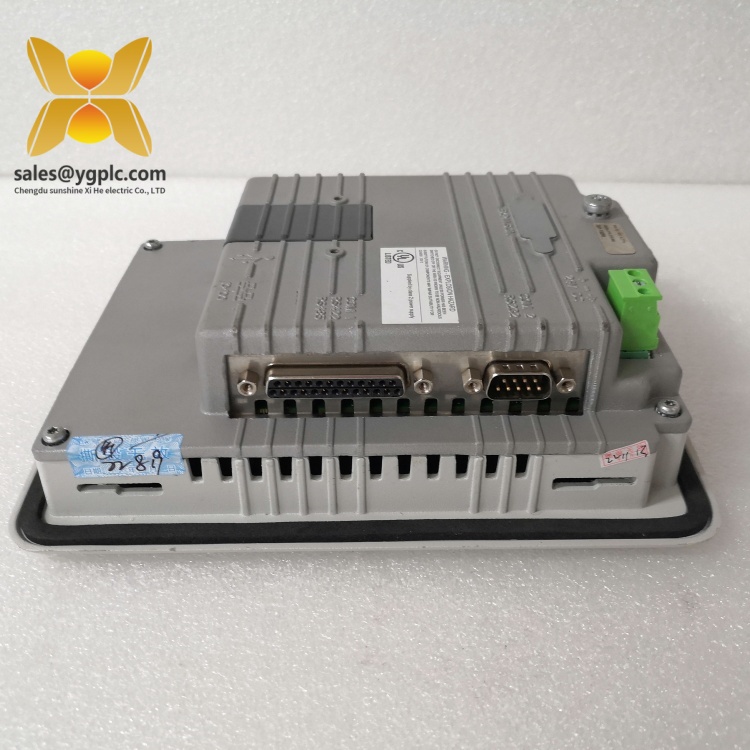

ABB 3BSE042237R2 PP836A

Main features and advantages: ABB 3BSE042237R2 PP836A

The ABB 3BSE042237R2 PP836A stands out with features tailored for industrial efficiency:

High-Speed Processing: Equipped with an 800 MHz 32-bit RISC processor, the ABB 3BSE042237R2 PP836A handles complex control algorithms and real-time data processing with minimal latency, critical for time-sensitive applications.
Multi-Protocol Connectivity: Support for Profibus DP, Ethernet/IP, and Modbus TCP ensures the ABB 3BSE042237R2 PP836A integrates seamlessly with diverse field devices and control systems, eliminating compatibility barriers.
Rugged Construction: Tested to withstand extreme temperatures (-10°C to +60°C) and vibration, the ABB 3BSE042237R2 PP836A operates reliably in harsh industrial settings, from factory floors to outdoor installations.
Scalable Design: With 512 MB RAM and 1 GB Flash memory, the ABB 3BSE042237R2 PP836A accommodates expanding system requirements, supporting future upgrades without major overhauls.
Easy Integration: Plug-and-play compatibility with ABB’s AC800M controllers reduces installation time, while USB and Ethernet ports simplify configuration and data transfer for the ABB 3BSE042237R2 PP836A.
Energy Efficiency: Designed to consume just 25W max, the ABB 3BSE042237R2 PP836A lowers energy costs, aligning with sustainable industrial practices.
Global Certifications: CE, UL, and IEC 61131-2 certifications ensure the ABB 3BSE042237R2 PP836A meets international safety and performance standards, facilitating global deployment

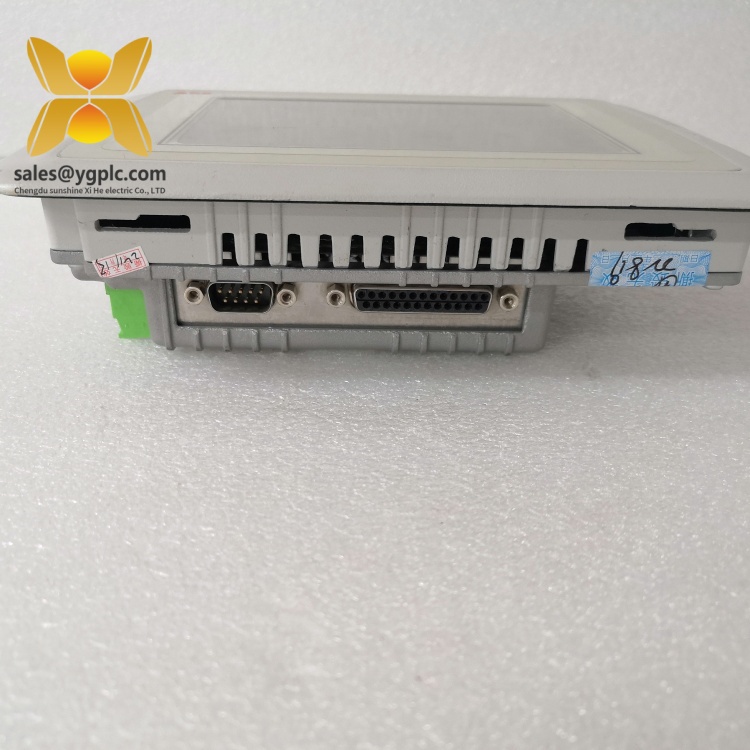

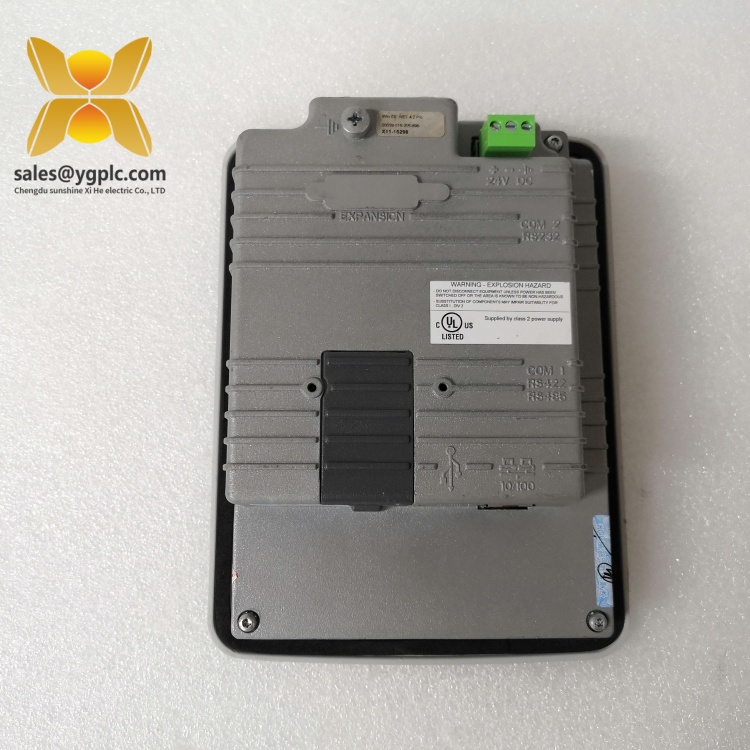

ABB 3BSE042237R2 PP836A

Product guarantee: ABB 3BSE042237R2 PP836A

ABB backs the ABB 3BSE042237R2 PP836A with comprehensive support to ensure reliability:

Warranty Period: 36 months from delivery, covering defects in materials and workmanship. ABB will repair or replace the ABB 3BSE042237R2 PP836A at no cost for issues arising from manufacturing faults.
Technical Support: A global network of ABB engineers provides 24/7 assistance for installation, configuration, and troubleshooting of the ABB 3BSE042237R2 PP836A.
Spare Parts: Genuine replacement parts for the ABB 3BSE042237R2 PP836A are available through authorized distributors, minimizing downtime in case of component failure.
