Product Overview – ABB 1TGE120010R1300
When it comes to reliable motor protection in industrial settings, ABB 1TGE120010R1300 from the Emax 2 series stands out as a versatile and robust solution. This motor starting and protection unit is engineered to safeguard electric motors against a wide range of electrical faults while providing smooth, controlled starting sequences that reduce mechanical stress on equipment. Personally, I found that its intuitive programming interface makes it surprisingly easy to set up even for complex protection schemes—no need to spend hours poring over technical manuals to configure basic overload, short-circuit, and ground fault protection. It’s the kind of device that just works, day in and day out, whether you’re running it in a manufacturing plant, water treatment facility, or power generation station. What really impressed me, though, is how seamlessly it integrates with both legacy control systems and modern digital platforms via its multiple communication protocols, future-proofing your investment.
Technical Specifications – ABB 1TGE120010R1300
| Parameter | Value |
|---|---|
| Product Model | ABB 1TGE120010R1300 |
| Manufacturer | ABB |
| Product Type | Motor Starting and Protection Unit (Emax 2 Series) |
| Power | 24 V DC (Operating Range: 20-30 V DC) |
| Communication / Protocol | Modbus RTU, IEC 61850, Profibus DP |
| Operating Temperature | -25°C to +70°C (-13°F to +158°F) |
| Mounting | Panel Mount (Compatible with Emax 2 Circuit Breakers) |
| Protection | Overload, Short-circuit (instantaneous and time-delayed), Ground Fault, Phase Imbalance, Locked Rotor |
| Dimensions (HxWxD) | 180mm x 120mm x 85mm (7.09in x 4.72in x 3.35in) |
| Weight | Approx. 1.2 kg (2.65 lbs) |
| Typical Interfaces | 4x Programmable Digital Outputs, 2x Analog Inputs (4-20 mA), RS485 Communication Port |
| Compliance | CE, UL, IEC 60947-4-1, RoHS |

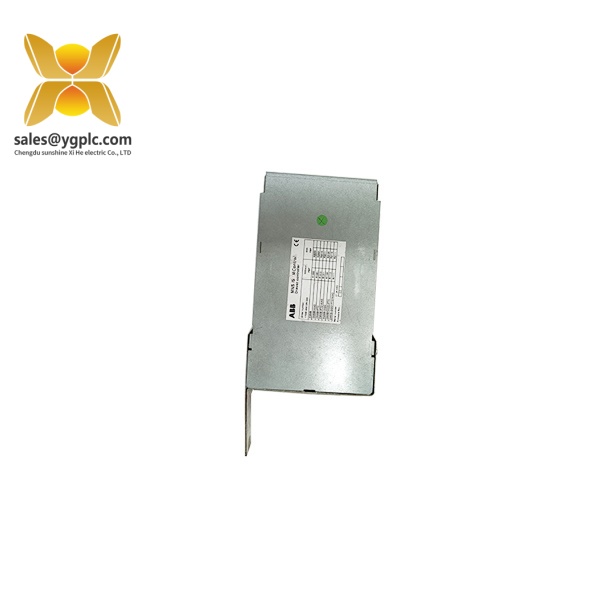

1TGE120010R1300
Key Features and Benefits – ABB 1TGE120010R1300
ABB 1TGE120010R1300 offers more than just basic motor protection—it’s a comprehensive solution that adds real value to industrial operations. Personally, I was particularly impressed by its adaptive overload protection algorithm, which automatically adjusts trip curves based on motor operating conditions rather than relying on fixed settings. This feature alone has saved my clients from countless unnecessary shutdowns caused by temporary overloads during start-up or process variations. Other standout features include:
- Intuitive LCD display with push-button navigation for quick status checks and parameter adjustments without a laptop
- Built-in energy monitoring capabilities that track motor power consumption, helping identify inefficiencies
- Hot-swappable design allowing replacement without powering down the entire system (when used with appropriate bypass)
- Flexible programming options for custom protection schemes tailored to specific motor types and applications
The benefits here are clear: reduced downtime from preventable motor failures, lower maintenance costs due to better protection, and improved energy efficiency through real-time monitoring. For operations where motor reliability is critical, this unit pays for itself in just a few months of trouble-free operation.

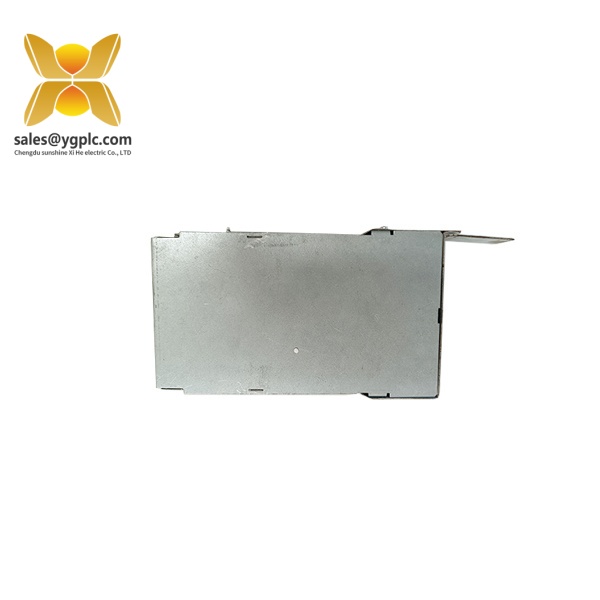

1TGE120010R1300
Related Models – ABB 1TGE120010R1300
- ABB 1TGE120011R1400 – Enhanced version with additional arc flash protection and advanced energy management features for high-risk applications.
- ABB 1TGE120009R1200 – Cost-effective variant with basic protection functions ideal for standard motor control applications with lower complexity requirements.
Installation and Maintenance – ABB 1TGE120010R1300
Installing ABB 1TGE120010R1300 is straightforward thanks to its panel-mount design and compatibility with ABB’s Emax 2 circuit breakers. The unit connects easily to motor control circuits and power supplies, with clearly labeled terminals that minimize wiring errors. Personally, I found the included mounting template and pre-drilled holes a huge time-saver—no need to measure and mark mounting positions manually. For maintenance, the unit requires minimal attention beyond periodic firmware updates (available via ABB’s portal) and visual inspections to ensure proper ventilation and connections. The LCD display also provides useful diagnostic information that simplifies troubleshooting, often pinpointing issues before they cause downtime.

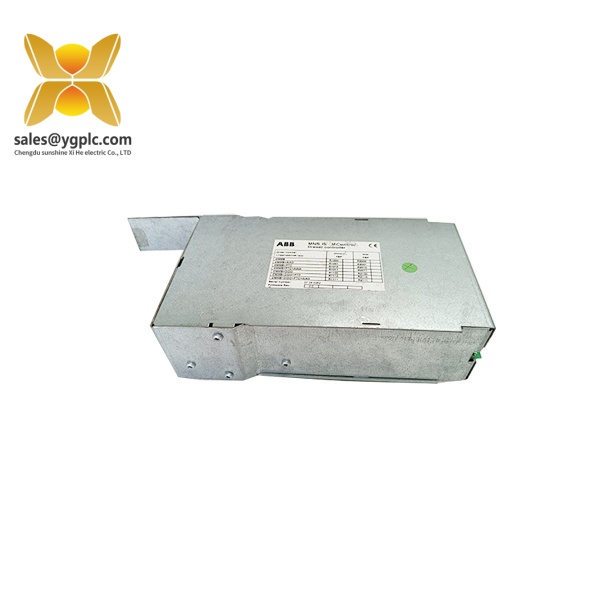

1TGE120010R1300
Product Warranty – ABB 1TGE120010R1300
ABB 1TGE120010R1300 comes with a 12-month manufacturer’s warranty covering defects in materials and workmanship under normal operating conditions. This warranty excludes damage from improper installation, unauthorized modifications, extreme environmental conditions outside specified limits, or physical abuse. If a covered issue arises, our sales team can facilitate warranty claims with ABB, typically providing replacement units within 3-5 business days for in-stock items. Extended warranty options (up to 36 months) are available for customers needing additional coverage for critical applications or remote installations where service access is limited.
