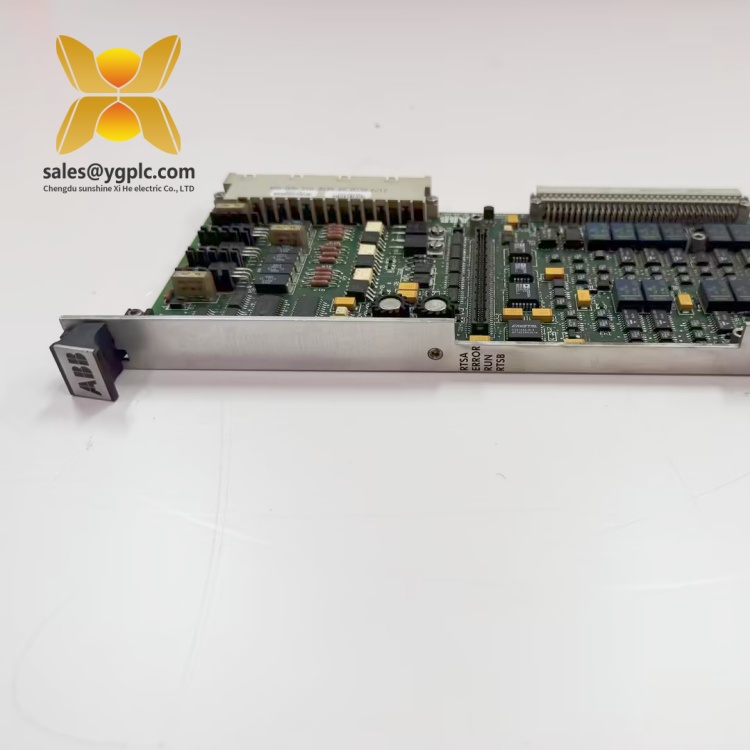

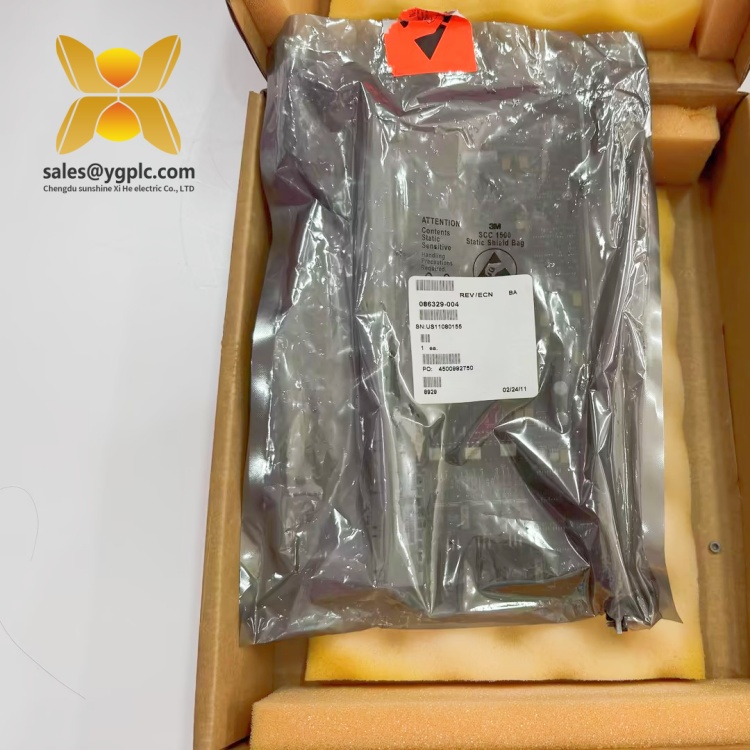

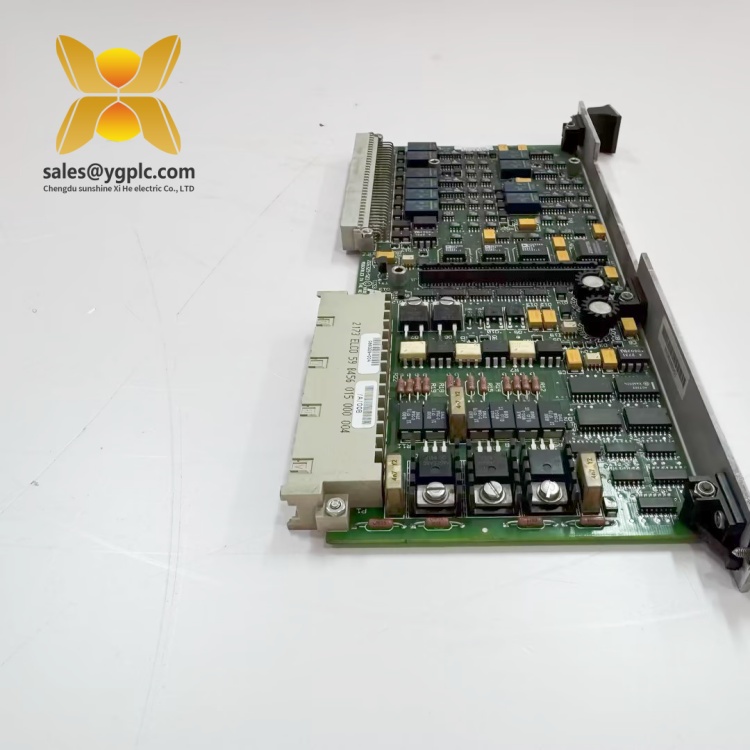

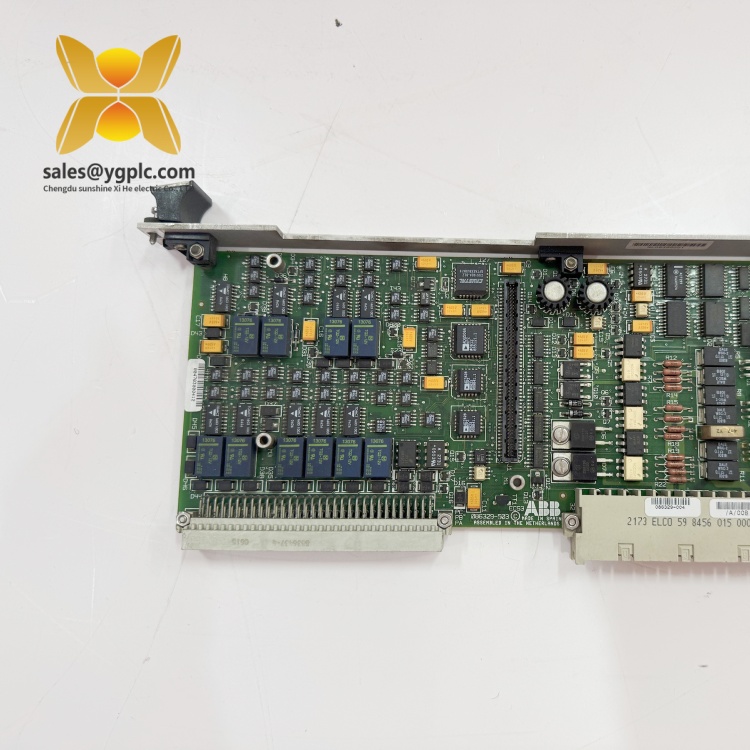

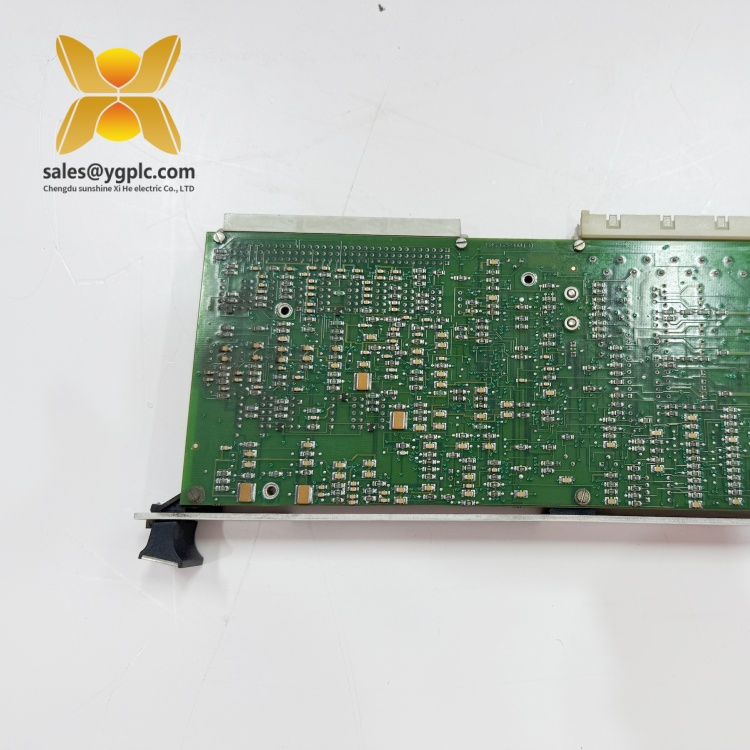

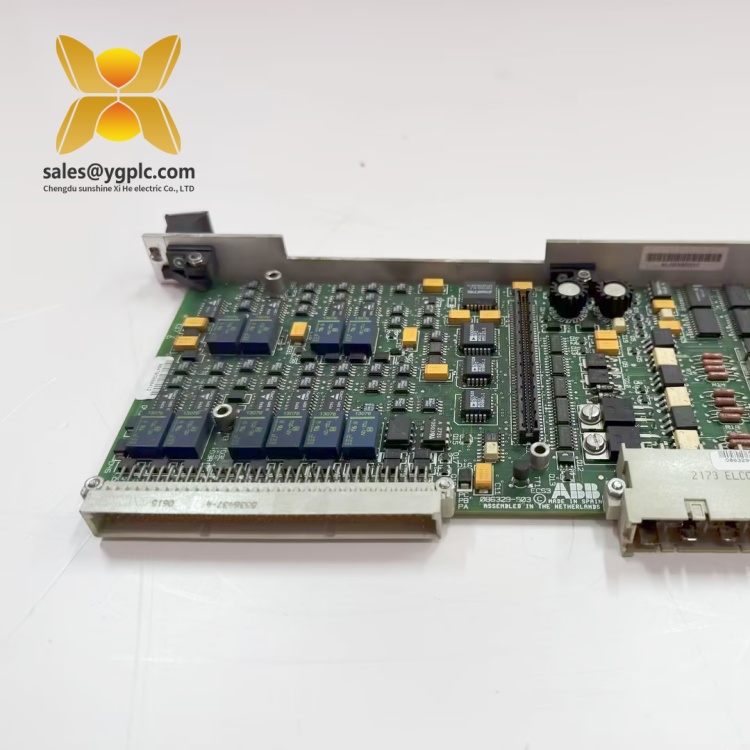

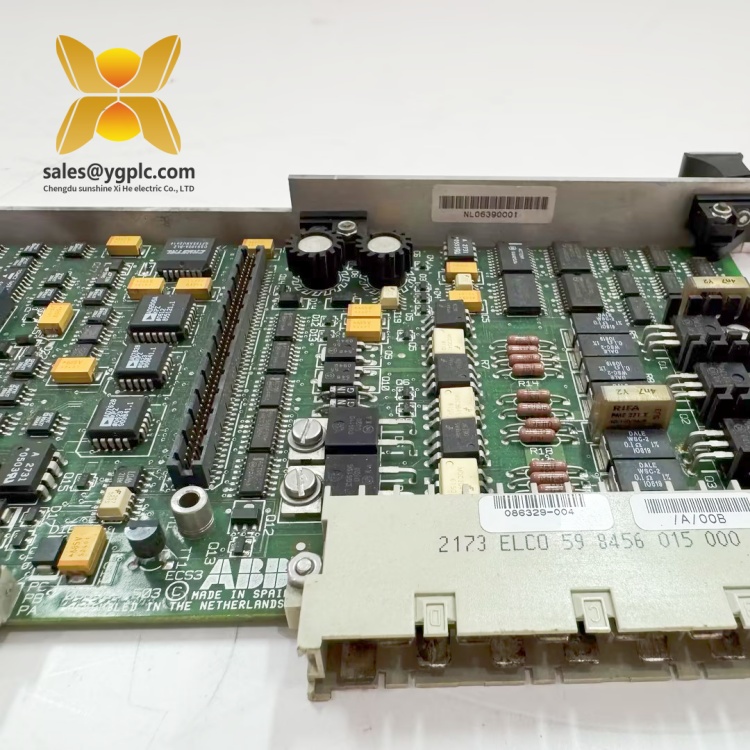

Product Overview ：ABB 086329-004
The ABB 086329-004 End Column Sensor Module is a high-performance industrial automation component designed for precise position monitoring and control in mission-critical applications. As part of ABB’s ECS (End Column Sensor) system, this module serves as a core element for tracking the position of end columns in industrial machinery, ensuring optimal performance and safety in robotics, automated assembly lines, and machine tool operations12.
Engineered for rugged durability, the 086329-004 features a compact PCB design with a 24V DC power input and supports analog signal processing for accurate position detection. Its IP20-rated enclosure protects against dust and debris, while the DB-25 pin connectors provide secure connectivity for sensor inputs and control outputs17. The module’s lightweight construction (0.26 kg) and 153mm x 10mm x 3mm dimensions facilitate easy integration into space-constrained industrial control cabinets1.
Within automation systems, the 086329-004 acts as a vital component for predictive maintenance strategies. By continuously monitoring end column position, it helps identify potential misalignments or mechanical failures early, reducing downtime and maintenance costs. Its compatibility with ABB’s Ability™ System 800xA software allows for remote diagnostics and real-time data analysis, enhancing operational flexibility in complex industrial environments6. This module is widely used in manufacturing, automotive, and heavy machinery sectors, where precision and reliability are critical to production continuity.
Technical Specifications ：ABB 086329-004
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 086329-004 |
| Manufacturer | ABB |
| Product Type | End Column Sensor Module |
| Input Voltage | 24V DC |
| Output Signal | 4–20mA analog output |
| Connector Type | DB-25 pin |
| Physical Dimensions | 153mm x 10mm x 3mm |
| Weight | 0.26 kg |
| Operating Temperature | -20°C to +60°C |
| Humidity | 5–95% non-condensing |
| Protection Rating | IP20 |
| Position Accuracy | ±0.1mm |
| Response Time | <5ms |
| Mounting Type | Panel-mountable |
Key Features and Advantages ：ABB 086329-004
Precision Position Monitoring: The 086329-004 delivers ±0.1mm accuracy in end column position detection, ensuring precise alignment in automated machinery. Its analog 4–20mA output provides seamless integration with PLCs and SCADA systems, enabling real-time process control17.
Rugged Industrial Design: Built with an IP20-rated enclosure and industrial-grade components, the module withstands harsh environmental conditions, including vibration, dust, and temperature extremes. This durability ensures reliable performance in demanding manufacturing and automotive assembly lines17.
Easy Integration: The DB-25 pin connectors simplify wiring and installation, while the module’s compact size allows for flexible mounting in control cabinets. Compatibility with ABB’s Ability™ System 800xA software streamlines system configuration and diagnostics6.
Predictive Maintenance Capabilities: By analyzing real-time position data, the 086329-004 alerts operators ，enabling proactive maintenance. This reduces unplanned downtime and extends equipment lifespan in high-value applications like robotics and machine tools12.
Cost-Effective Solution: The module’s robust design and long lifespan minimize replacement costs, while its compatibility with existing automation systems reduces integration expenses. ABB’s global support network ensures quick access to technical assistance and spare parts112.
Application Areas ：ABB 086329-004
The ABB 086329-004 End Column Sensor Module is ideally suited for industries requiring precise position monitoring and control:
- Manufacturing: Deployed in automated assembly lines to monitor the position of robotic arms and conveyor belts, ensuring accurate part placement and reducing production errors.
- Automotive Industry: Used in car manufacturing plants to track the alignment of welding robots and press machines, enhancing product quality and production efficiency.
- Machine Tools: Integrates with CNC machines to monitor tool positioning and workpiece alignment, improving machining accuracy and reducing material waste.
- Robotics: Supports industrial robots in pick-and-place operations by providing real-time position feedback, ensuring smooth and precise movements.
- Packaging: Monitors end column positions in packaging machinery to optimize product handling and prevent jams in high-speed production lines.
Related Products ：ABB 086329-004
- ABB 086329-003: A similar end column sensor module with expanded input channels, ideal for applications requiring simultaneous monitoring of multiple positions.
- ABB 086345-004: A specialized module for fiber optic communication, enabling long-distance data transmission in distributed automation systems.
- ABB 086362-001: A bulk DC power supply module that provides stable voltage to the 086329-004, ensuring reliable operation in power-critical environments.
- ABB 086444-005: A direct fiber optic module compatible with the 086329-004, enhancing communication reliability in noisy industrial settings.
- ABB 086370-001: A control module that interfaces with the 086329-004 to manage complex automation sequences in robotics and machine tool applications.
- ABB 086329-503: An upgraded version, suitable for high-vibration environments like automotive assembly lines.
- ABB 086329-104: A predecessor model replaced by the 086329-004, offering backward compatibility for legacy systems.
Installation and Maintenance ：ABB 086329-004
Installation Preparation:
Before installing the 086329-004, verify the power supply matches the 24V DC input requirement. Clean the mounting surface and ensure proper grounding to minimize electromagnetic interference. Align the module with the control panel and secure it using the provided screws. Connect sensor inputs and control outputs to the DB-25 connectors, following ABB’s wiring guidelines. Finally, configure the module using ABB’s Ability™ System 800xA software to ensure compatibility with the existing control system67.
Before installing the 086329-004, verify the power supply matches the 24V DC input requirement. Clean the mounting surface and ensure proper grounding to minimize electromagnetic interference. Align the module with the control panel and secure it using the provided screws. Connect sensor inputs and control outputs to the DB-25 connectors, following ABB’s wiring guidelines. Finally, configure the module using ABB’s Ability™ System 800xA software to ensure compatibility with the existing control system67.
Maintenance Recommendations:
- Routine Inspections: Quarterly checks include verifying LED status indicators, inspecting connectors for corrosion, and cleaning the module’s surface to prevent dust accumulation.
- Sensor Calibration: Annually calibrate attached sensors using ABB’s calibration tools to ensure accurate position measurements.
- Firmware Updates: Periodically update the module’s firmware via ABB’s official software to access new features and security patches.
- Vibration Testing: Semi-annually test the module’s vibration resistance by simulating operational conditions and verifying signal stability.
086329-004
Product Warranty ：ABB 086329-004
We provide a 12-month quality warranty for the ABB 086329-004 End Column Sensor Module, covering hardware defects caused by non-human factors. During the warranty period, we will replace any malfunctioning module free of charge. For discontinued models or urgent requirements, our global supply chain network ensures rapid fulfillment of scarce spare parts, supporting continuous operation of industrial systems12.
With 17 years of expertise in industrial control parts distribution, we guarantee competitive pricing, fast delivery, and reliable technical support. Contact us today to optimize your automation system with the 086329-004 End Column Sensor Module.
Note: All product names, logos, and brands are property of their respective owners. This document is for informational purposes only and does not constitute an official technical manual. Always refer to the manufacturer’s documentation for detailed specifications and installation guidelines.
