Product Overview: ABB 5SHX2645L0004 3BHL000389P0104
The ABB 5SHX2645L0004 3BHL000389P0104 is a high-performance IGBT power module developed by ABB, a global leader in power and automation technologies. As a core component in industrial power conversion systems, this module integrates advanced semiconductor technology with robust design to deliver efficient, reliable power control in demanding industrial environments. Engineered for high-voltage and high-current applications, the ABB 5SHX2645L0004 3BHL000389P0104 ensures stable energy conversion, making it a trusted choice for critical power systems.
Technical Specifications — ABB 5SHX2645L0004 3BHL000389P0104
| Specification | Details |
|---|---|
| Brand | ABB |
| Model Number | 5SHX2645L0004 3BHL000389P0104 |
| Product Type | IGBT Power Module |
| Rated Voltage | 1700V DC |
| Rated Current | 2400A (Collector Current) |
| Collector-Emitter Saturation Voltage | ≤2.2V @ 1200A, 25°C |
| Gate-Emitter Voltage | ±20V |
| Switching Frequency | Up to 10kHz |
| Isolation Voltage | 4.5kVrms |
| Operating Junction Temperature | -40°C to +150°C |
| Storage Temperature | -55°C to +150°C |
| Thermal Resistance (Junction to Case) | 0.018 K/W |
| Package Type | Press Pack IGBT |
| Dimensions | 190mm × 140mm × 35mm (L×W×H) |
| Weight | Approximately 1.2kg |
| Protection Features | Overcurrent, Overvoltage, Overtemperature |
| Certifications | CE, UL, RoHS, IEC 60747 |
| Mounting Type | Screw Mount |
| Cooling Method | Liquid Cooling Compatible |

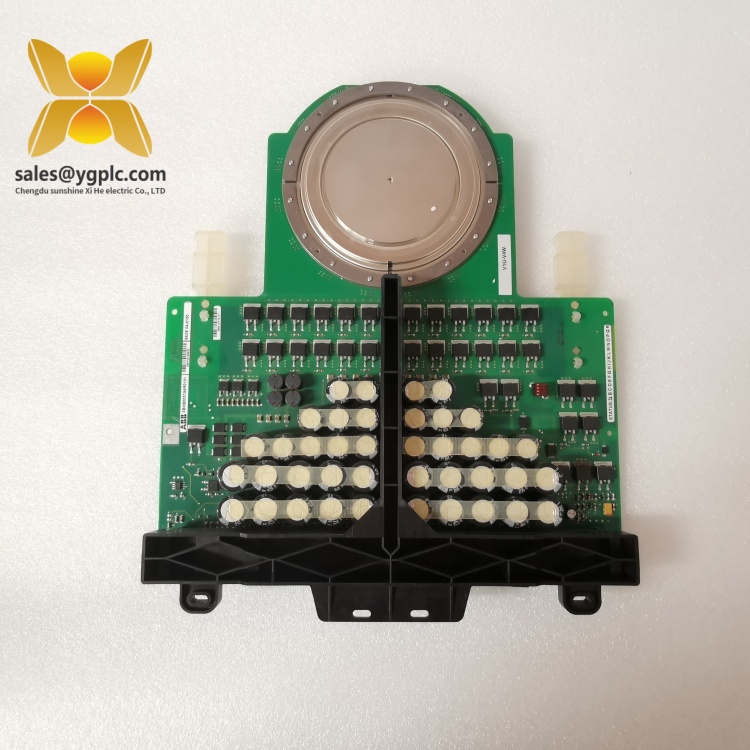

ABB 5SHX2645L0004 3BHL000389P0104
Related products: ABB 5SHX2645L0004 3BHL000389P0104
- ABB 5SHX1445L0002 3BHL000387P0102: A 1700V, 1400A compact IGBT module ideal for medium-power industrial conversion systems.
- ABB 5SHX3545L0005 3BHL000390P0105: A high-capacity 1700V, 3500A module designed for heavy-duty power applications.
- ABB FS450R17KE3/AGDR-71C: A dedicated gate driver unit optimized to control ABB 5SHX2645L0004 3BHL000389P0104 modules efficiently.
- ABB CM-MPS-12: A power management system that monitors and protects IGBT modules including ABB 5SHX2645L0004 3BHL000389P0104.
- ABB ACS880 Drive Series: Industrial drives that seamlessly integrate with ABB 5SHX2645L0004 3BHL000389P0104 for motor control applications.
- ABB T2000 Thermal Interface Material: A high-performance thermal pad enhancing heat transfer from ABB 5SHX2645L0004 3BHL000389P0104 to cooling systems.
Main features and advantages: ABB 5SHX2645L0004 3BHL000389P0104
The ABB 5SHX2645L0004 3BHL000389P0104 offers standout features for high-performance power conversion:
- High Power Density: With 2400A current and 1700V voltage ratings, the ABB 5SHX2645L0004 3BHL000389P0104 delivers exceptional power output in a compact design, saving space in control setups.
- Superior Thermal Management: Its low 0.018 K/W thermal resistance and liquid cooling compatibility ensure efficient heat dissipation, maintaining stability under continuous high loads.
- Comprehensive Protection: Built-in overcurrent, overvoltage, and overtemperature safeguards protect the ABB 5SHX2645L0004 3BHL000389P0104 and connected systems, reducing downtime risks.
- Fast Switching Performance: Capable of up to 10kHz switching, the module minimizes power losses, boosting overall system efficiency.
- Enhanced Isolation: 4.5kVrms isolation ensures safe operation in high-voltage environments, meeting strict industrial safety standards.
- Durable Construction: The press pack design and high-quality materials make the ABB 5SHX2645L0004 3BHL000389P0104 resistant to vibration, temperature fluctuations, and mechanical stress.
- Easy Integration: Standard mounting dimensions and clear terminal labeling simplify installation into existing systems, reducing setup time.

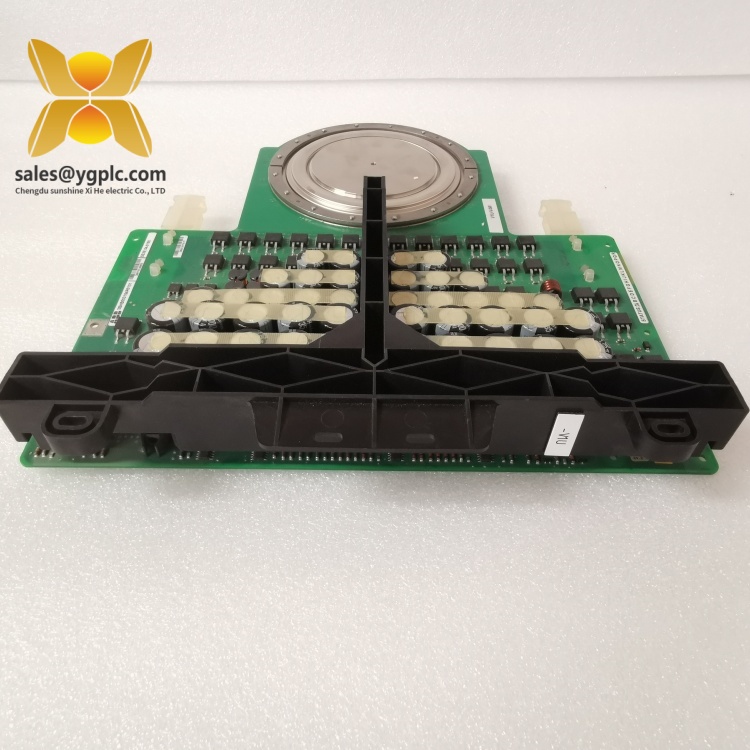

ABB 5SHX2645L0004 3BHL000389P0104
Installation and maintenance: ABB 5SHX2645L0004 3BHL000389P0104
Installing the ABB 5SHX2645L0004 3BHL000389P0104 is straightforward with its screw-mount design, ensuring secure attachment to cooling plates or heat sinks. ABB recommends using torque wrenches to achieve specified torque values for optimal thermal contact—critical for performance. Clear terminal labeling reduces wiring errors, while alignment guides prevent incorrect mounting.
For maintenance, the ABB 5SHX2645L0004 3BHL000389P0104 requires minimal upkeep due to its rugged build. Regular checks should focus on cooling system performance, ensuring no debris blocks airflow or coolant paths. Periodic resistance tests between terminals help detect early degradation signs.
Integrated protection features provide real-time fault alerts, which can connect to monitoring systems for remote notifications. When needed, the module’s modular design allows easy replacement without extensive system disassembly. ABB provides detailed manuals and global technical support to assist with ABB 5SHX2645L0004 3BHL000389P0104 installation and maintenance.
Application fields: ABB 5SHX2645L0004 3BHL000389P0104
The ABB 5SHX2645L0004 3BHL000389P0104 serves diverse industries requiring high-power conversion:
- Renewable Energy: Converts DC from solar arrays and wind turbines to AC for grid integration, optimizing energy transfer in inverters.
- Industrial Drives: Powers large motor drives in pumps, compressors, and conveyors, providing precise speed and torque control in manufacturing.
- Power Transmission: Enables efficient voltage conversion in HVDC systems and FACTS, stabilizing power grids for reliable distribution.
- Railway Traction: Controls power conversion in electric locomotives and high-speed trains, performing reliably under varying loads.
- Metallurgy: Powers electric arc furnaces and rolling mill drives, handling high current demands in metal processing.
- Marine Applications: Converts power in ship propulsion and offshore drilling systems, withstanding harsh marine conditions.
- Energy Storage: Manages power flow between batteries and grids in large-scale storage installations, optimizing energy usage.

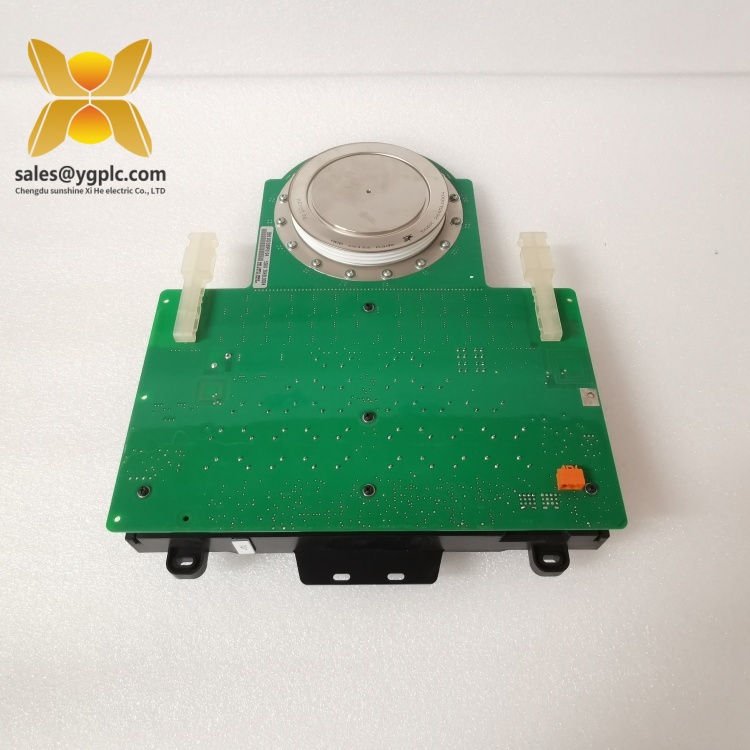

ABB 5SHX2645L0004 3BHL000389P0104
Product guarantee: ABB 5SHX2645L0004 3BHL000389P0104
The ABB 5SHX2645L0004 3BHL000389P0104 comes with a 2-year manufacturer’s warranty covering material and workmanship defects under normal operation. This warranty reflects ABB’s commitment to quality, ensuring prompt support for any issues.
Every ABB 5SHX2645L0004 3BHL000389P0104 undergoes rigorous testing—including thermal cycling, power cycling, and extreme condition verification—before leaving the factory. It complies with international standards like IEC 60747, CE, and UL, ensuring global compatibility.
