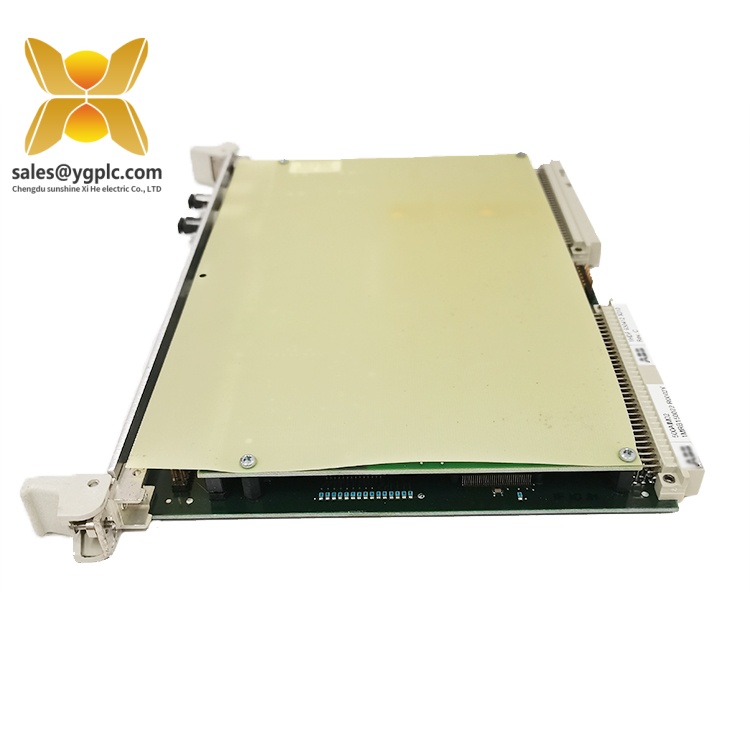

ABB 500AIM02 1MRB150022 R0002 1HDF 930412 X010 – Analog Input Module for Industrial Control Systems
Product Overview
The ABB 500AIM02 1MRB150022 R0002 1HDF 930412 X010 is a high-precision analog input module designed for ABB’s industrial control systems, primarily used to convert analog signals from field sensors into digital signals for processing by PLCs or DCS. It solves the industrial challenge of inaccurate signal conversion and transmission in harsh industrial environments, ensuring reliable data collection for critical control processes. Engineered to integrate seamlessly with ABB’s AC 500 PLC series, this module delivers stable performance, supporting precise monitoring and control in mission-critical industrial applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | ABB |
| Model | ABB 500AIM02 1MRB150022 R0002 1HDF 930412 X010 |
| Warranty | One Year |
| Condition | 100% New & Original |
| Module Type | Analog Input Module |
| Input Channels | 8 differential analog input channels |
| Input Signal Type | 4-20mA, 0-10V DC |
| Accuracy | ±0.1% of full scale |
| Operating Temp | -25°C ~ 60°C |
| Communication | Integrated with ABB AC 500 PLC backplane |
| Protection Level | IP20 (for control cabinet mounting) |
| Insulation Class | F 级 (F-class) |
ABB 500AIM02 1MRB150022 R0002 1HDF 930412 X010
Main Features and Advantages
High measurement accuracy: It offers ±0.1% full-scale accuracy, ensuring precise conversion of analog signals from sensors (such as temperature, pressure, and flow sensors) into digital data. This accuracy is critical for industrial processes that require tight control over operational parameters, reducing errors in data collection and improving overall system reliability.
Robust insulation and protection: With F-class insulation, the module provides strong resistance to high temperatures and electrical interference, adapting to harsh industrial environments. Its IP20 protection level ensures protection against dust and accidental contact, suitable for long-term installation in control cabinets.
Seamless system integration: Designed specifically for ABB AC 500 PLC series, it integrates seamlessly with the PLC backplane, eliminating compatibility issues and simplifying system setup. The module supports hot-swapping, allowing for maintenance and replacement without shutting down the entire control system, reducing operational downtime.
Flexible input compatibility: It supports both 4-20mA current signals and 0-10V voltage signals, compatible with a wide range of industrial sensors. This flexibility allows it to be used in diverse industrial scenarios, adapting to different signal requirements without additional signal converters.
Application Areas
It is widely applied in industrial sectors that require precise analog signal collection and processing, particularly in industries relying on ABB control systems. It excels in harsh environments, ensuring accurate data transmission and supporting stable operation of control systems.
- Power Generation: Used in thermal power plants to collect analog signals from temperature, pressure, and flow sensors in boiler and turbine systems. It converts these signals into digital data for the PLC, enabling precise control of power generation processes and ensuring operational safety.
- Oil and Gas Industry: Applied in refineries and pipeline systems to monitor process parameters such as fluid pressure, temperature, and flow rate. Its high accuracy and interference resistance ensure reliable data collection in the harsh, high-noise environment of oil and gas facilities.
- Chemical Manufacturing: Utilized in chemical plants to collect analog signals from reaction vessels, pipelines, and monitoring equipment. It supports precise control of chemical processes, ensuring product quality and reducing the risk of operational hazards.
ABB 500AIM02 1MRB150022 R0002 1HDF 930412 X010
Related Products
- ABB 500AOM01 1MRB150023 R0001: An analog output module in the same 500 series, complementary to it, used to convert digital signals from PLCs into analog signals for controlling actuators and valves.
- ABB 500DI80 1MRB150017 R0001: A digital input module compatible with it, responsible for collecting digital signals from switches and sensors, working together to form a complete signal collection system.
- ABB 500DO80 1MRB150018 R0001: A digital output module that pairs with it, used to send digital control signals to external equipment, supporting comprehensive control of industrial processes.
- ABB AC500-CPU-C10: A CPU module for ABB AC 500 PLC series, which works with it to process analog data and execute control logic, serving as the core of the control system.
