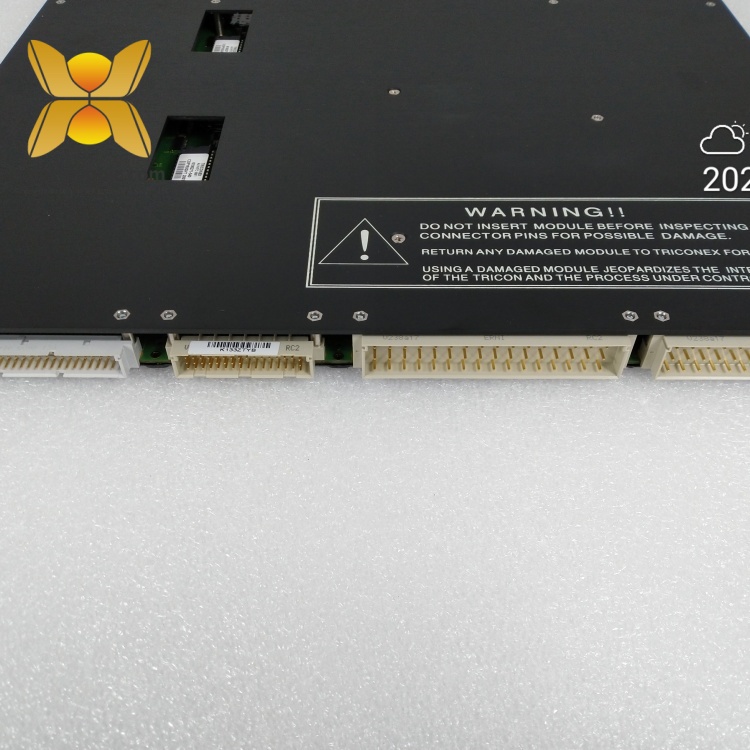

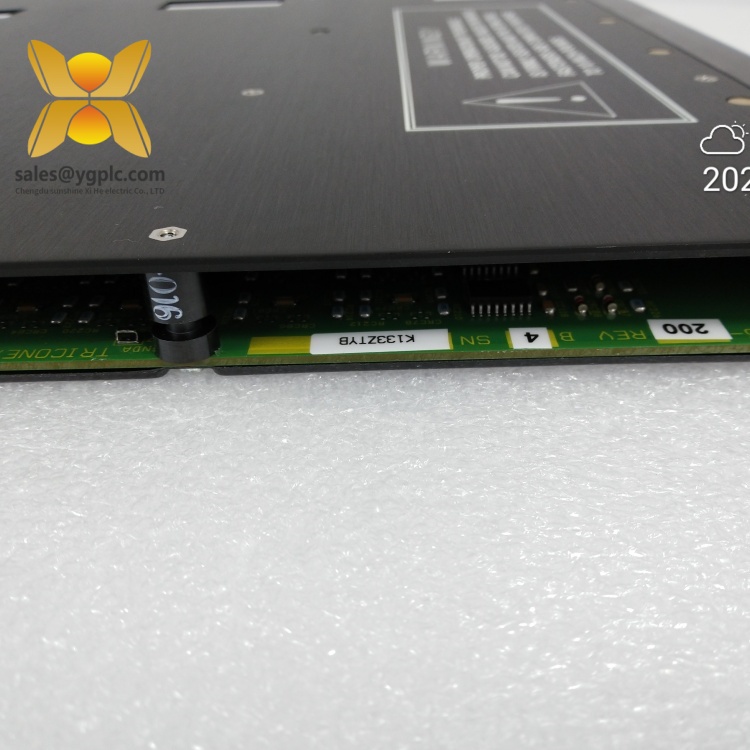

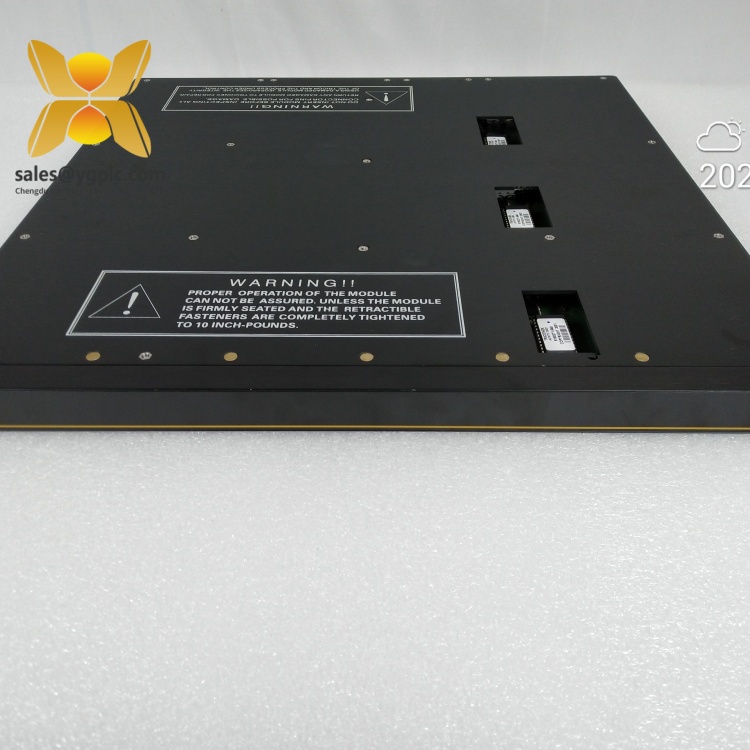

TRICONEX 3706A Digital Input Module
Product Overview
The TRICONEX 3706A is a critical digital input module engineered for safety-critical industrial automation systems, specifically designed to integrate with Triple Modular Redundancy (TMR) architectures. As a core component of the TRICONEX Tricon safety system, this module serves as the interface between field sensors—such as pressure switches, temperature detectors, and emergency stop buttons—and the central control system, ensuring reliable data acquisition in high-risk environments. Certified to SIL 3 under IEC 61508 and IEC 61511 standards, the TRICONEX 3706A meets the strictest safety requirements, making it indispensable for applications like emergency shutdown systems (ESD), fire and gas monitoring, and process interlock systems in oil and gas, chemical processing, and power generation industries.
Equipped to handle 24VDC input signals, the TRICONEX 3706A features 16 isolated input channels, each capable of detecting dry contact or voltage-based sensor inputs with high precision. Its compact design (12.7 cm x 20.3 cm x 8.9 cm) and lightweight build (0.8 kg) allow seamless integration into existing Tricon racks, supporting both new installations and system upgrades. The module’s advanced diagnostic capabilities, combined with a -40°C to +70°C operating temperature range, ensure consistent performance in harsh industrial conditions, minimizing the risk of data loss or system failure. By providing real-time, redundant data acquisition, the TRICONEX 3706A forms the foundation of reliable safety logic execution, enabling rapid response to critical field events.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | TRICONEX |
| Product Type | Digital Input Module |
| Input Voltage | 24VDC (nominal); 16–32VDC (operating range) |
| Number of Channels | 16 isolated channels |
| Physical Dimensions | 12.7 cm (height) x 20.3 cm (width) x 8.9 cm (depth) |
| Weight | 0.8 kg |
| Communication Interface | Integrated with Tricon backplane (no external protocol required) |
| Operating Temperature | -40°C to +70°C |
| Safety Integrity Level | SIL 3 (IEC 61508/IEC 61511) |
| Isolation | 1500VAC galvanic isolation between channels and backplane |
| Response Time | <10 ms typical for input state changes |
3706A
Related Products
- TRICONEX 3700A: A 32-channel digital input module for high-density sensor monitoring applications.
- TRICONEX 3701A: Supports 120VAC input signals, ideal for legacy systems using alternating current sensors.
- TRICONEX 3702A: Features non-supervised inputs for simplified wiring in non-critical auxiliary systems.
- TRICONEX 3703A: Includes channel-to-channel isolation for enhanced noise immunity in high-interference environments.
- TRICONEX 3704A: Designed for 48VDC inputs, suitable for industrial settings with higher voltage sensor networks.
- TRICONEX 3705A: Offers diagnostic loopback testing for proactive fault detection in mission-critical loops.
- TRICONEX 4351B: A communication module enabling data transfer between Tricon systems and SCADA platforms.
Main Features and Advantages
The TRICONEX 3706A is defined by its TMR architecture, which duplicates critical components across three independent channels. This redundancy ensures that any single-channel fault is automatically detected and compensated for, eliminating single points of failure and maintaining system availability. Its SIL 3 certification validates its ability to reduce risk in high-hazard processes, providing compliance with global safety regulations.
A key advantage of the TRICONEX 3706A is its advanced diagnostic suite, which continuously monitors input integrity, channel health, and backplane communication. This allows operators to identify issues such as open circuits, short circuits, or sensor degradation before they impact system performance. The module’s hot-swap capability further enhances operational flexibility, enabling replacement without powering down the Tricon rack—a critical feature for continuous-process industries where unplanned downtime is costly.
Environmental resilience is another standout feature. The TRICONEX 3706A operates reliably in extreme temperatures, high humidity (up to 95% non-condensing), and high-vibration environments, making it suitable for offshore platforms, refineries, and chemical plants. Its rugged design and long-term stability reduce maintenance requirements, lowering lifecycle costs for end-users.
Installation and Maintenance
Pre-installation Preparations:
Before installing the TRICONEX 3706A, verify that the Tricon rack is powered off and properly grounded to prevent electrical damage. Inspect the module for physical defects, such as bent pins or damaged connectors. Confirm compatibility with the Tricon system’s firmware version and ensure the backplane connectors are clean and free of corrosion. Use the module’s guide rails to align it with the rack slots, applying gentle pressure to seat the connectors fully—avoid excessive force to prevent backplane damage.
Before installing the TRICONEX 3706A, verify that the Tricon rack is powered off and properly grounded to prevent electrical damage. Inspect the module for physical defects, such as bent pins or damaged connectors. Confirm compatibility with the Tricon system’s firmware version and ensure the backplane connectors are clean and free of corrosion. Use the module’s guide rails to align it with the rack slots, applying gentle pressure to seat the connectors fully—avoid excessive force to prevent backplane damage.
3706A
Maintenance Suggestions:
Regularly review system diagnostics via the Tricon configuration software to monitor TRICONEX 3706A channel status and detect anomalies early. Perform firmware updates as released by TRICONEX to address security enhancements and performance improvements. Clean the module’s exterior quarterly with a dry, lint-free cloth to remove dust, which can impede heat dissipation. For long-term storage, keep the module in an anti-static bag in a dry environment with temperatures between 0°C and 50°C. If a fault is detected, replace the module with a certified spare to maintain TMR integrity.
Regularly review system diagnostics via the Tricon configuration software to monitor TRICONEX 3706A channel status and detect anomalies early. Perform firmware updates as released by TRICONEX to address security enhancements and performance improvements. Clean the module’s exterior quarterly with a dry, lint-free cloth to remove dust, which can impede heat dissipation. For long-term storage, keep the module in an anti-static bag in a dry environment with temperatures between 0°C and 50°C. If a fault is detected, replace the module with a certified spare to maintain TMR integrity.
Application Fields
The TRICONEX 3706A is widely deployed in safety instrumented systems (SIS) across high-risk industries. In oil and gas refineries, it monitors pressure relief valve status, flame detectors, and emergency shutdown triggers, ensuring rapid response to overpressure or fire events. In chemical plants, it integrates with toxic gas sensors and reactor temperature switches, enabling automated isolation of hazardous materials during upsets.
Power generation facilities rely on the TRICONEX 3706A to monitor turbine vibration sensors, boiler level switches, and generator protection relays, supporting safe shutdown sequences during equipment malfunctions. It also finds use in pharmaceutical manufacturing, where it monitors cleanroom pressure sensors and sterile process interlocks to maintain regulatory compliance. By providing accurate, redundant input data, the TRICONEX 3706A ensures safety systems make informed decisions, protecting personnel, equipment, and the environment.
3706A
Product Guarantee
