Bently Nevada 3500/22M 288055 – 01 | 3500/94M 184826-01 | 3500/91M 190782-01

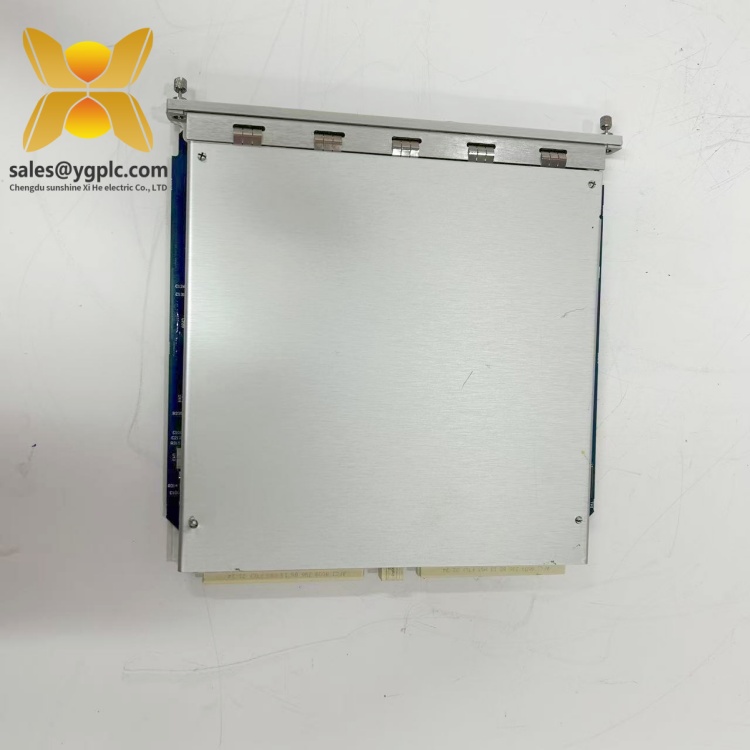

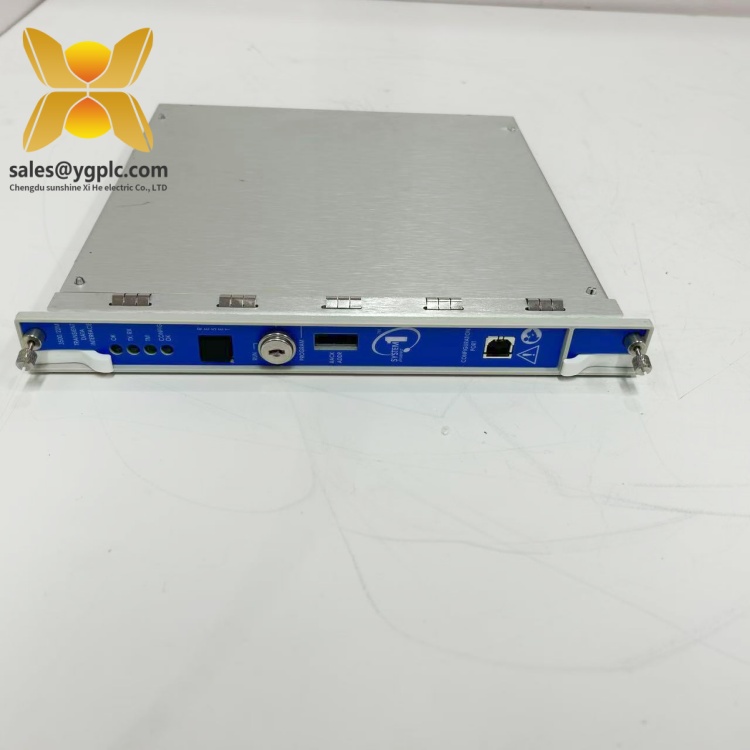

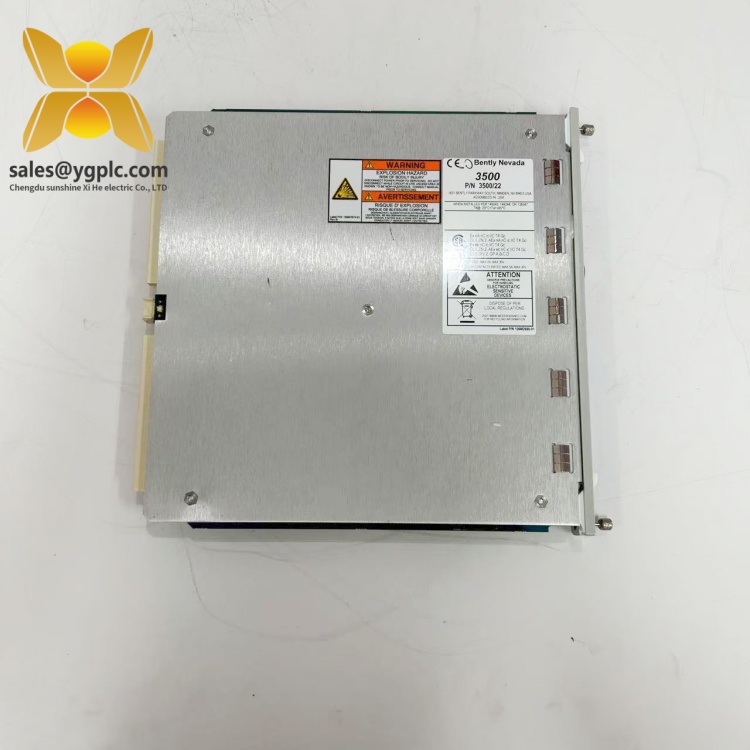

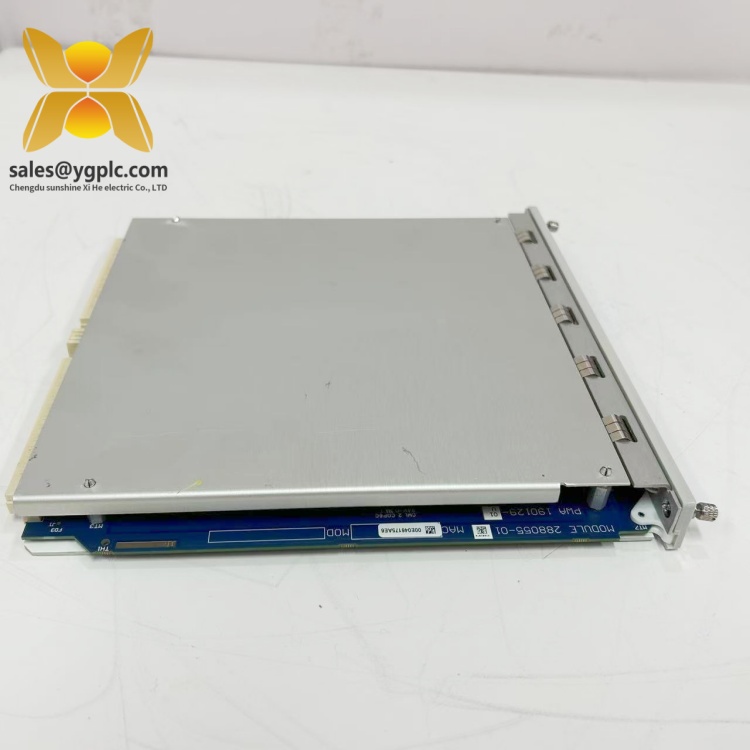

The Bently Nevada 3500/22M 288055 – 01 Transient Data Interface Module is a sophisticated and crucial component within industrial monitoring and control ecosystems. As part of Bently Nevada’s renowned 3500 series, the Bently Nevada 3500/22M 288055 – 01 plays a pivotal role in enabling seamless data transfer and communication between the 3500 monitoring system and compatible software solutions.

This module serves as a high – speed, bi – directional interface, effectively acting as a bridge that allows for the collection and transmission of transient data from a wide array of sources. These sources can include vibration sensors, accelerometers, and proximity probes, which are essential for comprehensively monitoring the health and performance of industrial machinery. By combining the functions of a 3500/20 rack interface module (RIM) with the data collection capabilities of a communication processor similar to Tdxnet, the 3500/22M 288055 – 01 offers enhanced functionality and efficiency.

In an industrial automation system, the Bently Nevada 3500/22M 288055 – 01 is positioned as a key enabler for predictive maintenance strategies. It continuously monitors and captures steady – state and transient dynamic (waveform) data from connected sensors. This data is then relayed through an ethernet link to host software, such as GE’s System 1 machinery management software. The insights derived from this data help in early detection of potential machinery issues, reducing unplanned downtime and maintenance costs.

The 3500/22M 288055 – 01 offers a data transfer rate of 100 Mbps, ensuring rapid and efficient exchange of transient data. This high – speed transfer is crucial for real – time monitoring applications, where timely access to data is essential for making informed decisions. Whether it’s detecting sudden changes in vibration patterns or monitoring the performance of high – speed rotating machinery, the fast data transfer rate enables prompt responses.

With support for time – based, event – based, and threshold – based triggering, the module provides flexibility in data collection. For example, it can be configured to start collecting data when a specific event occurs, such as a sudden increase in vibration levels beyond a predefined threshold. This allows for targeted data capture, reducing the amount of unnecessary data storage and analysis.

Built to withstand the harsh conditions of industrial environments, the module features a rugged design. It can operate within a wide temperature range from – 40 °C to + 70 °C and tolerate humidity levels from 5% to 95% non – condensing. The use of high – quality materials and components ensures long – term reliability, minimizing the risk of failures and disruptions in critical monitoring operations.

As an integral part of the 3500 series, the Bently Nevada 3500/22M 288055 – 01 easily integrates with other modules in the 3500 monitoring system, such as the m series monitors (3500/40M, 3500/42M, etc.). It also interfaces well with compatible software, providing a unified solution for machinery health monitoring and control.

In power plants, the Bently Nevada 3500/22M 288055 – 01 is used to monitor the condition of turbines, generators, and other rotating equipment. By continuously collecting transient data from vibration and temperature sensors, it helps in detecting early signs of component wear, imbalance, or misalignment. This enables power plant operators to schedule maintenance proactively, ensuring stable power generation and minimizing the risk of costly outages.

Petrochemical plants rely on a vast network of pumps, compressors, and motors. The 3500/22M 288055 – 01 module plays a vital role in monitoring the health of this equipment. It can detect abnormal vibrations or temperature variations in pumps handling corrosive fluids or high – pressure compressors. By providing real – time data, it allows plant managers to take preventive measures, such as replacing worn – out seals or bearings before they cause major failures, thus maintaining the integrity of the production process.

In manufacturing facilities, the module is used to monitor the performance of large – scale machinery like conveyor belts, industrial mixers, and machine tools. For instance, in a metal – processing factory, it can monitor the vibration of a large – capacity rolling mill. By analyzing the transient data, manufacturers can optimize the operation of the machinery, improve product quality, and reduce energy consumption.

In the mining industry, where equipment operates in challenging conditions, the Bently Nevada 3500/22M 288055 – 01 is used to monitor crushers, conveyors, and ventilation fans. It helps in detecting mechanical problems such as misaligned conveyor belts or worn – out bearings in crushers. By providing early warnings, it enables mining companies to plan maintenance activities during scheduled downtime, maximizing equipment availability and productivity.

Before installing the Bently Nevada 3500/22M 288055 – 01, ensure that the power supply meets the DC 9 – 32 V requirement. Check the physical dimensions of the installation location to ensure a proper fit, as the module has dimensions of 9.5 x 6.7 x 2.2 inches. Verify that the ethernet connection, whether it’s 10base – T, 100base – Tx, or optional 100 base – Fx fiber – optic, is correctly configured and has the necessary bandwidth to support the 100 Mbps data transfer rate. Also, make sure that the 3500 rack where the module will be installed is in a clean and well – ventilated area, free from excessive dust and moisture.

Regularly inspect the module for any signs of physical damage, such as cracks in the casing or loose connectors. Check the LED indicators on the module to ensure proper operation; abnormal lighting patterns may indicate issues with data transfer or power supply. Periodically, test the data transfer functionality by sending sample data to the host software and verifying its integrity. Update the module’s firmware as recommended by Bently Nevada to benefit from the latest features, bug fixes, and improved compatibility. Also, clean the module gently using a soft, dry cloth to remove any accumulated dust, which could potentially affect its performance in the long run.

Our company provides a comprehensive 12 – month quality warranty for the Bently Nevada 3500/22M 288055 – 01 module. This warranty covers all hardware defects that occur due to non – human factors. In the event that the product shows any signs of performance anomalies or functional failures during this period, we will arrange for a prompt replacement. Given our extensive experience of 17 years in the industrial control parts distribution business, we have established a vast global supply chain network. This enables us to respond swiftly to customer demands, even for discontinued models or in case of urgent requirements. We are committed to ensuring that your industrial systems can operate continuously and stably, with the 3500/22M 288055 – 01 module playing its part reliably.
