Product Overview
The Elmo G-TUB30-480ERSS0 is a high-performance servo drive belonging to Elmo’s Gold Tuba series, designed for demanding industrial automation applications. As a core component of motion control systems, this drive combines advanced power conversion technology with intelligent control algorithms to deliver precise and reliable performance. With its compact design and robust architecture, the G-TUB30-480ERSS0 enables seamless integration into various industrial setups, making it an ideal choice for applications requiring high dynamic response and energy efficiency.
Engineered to handle a wide range of motor types, including permanent magnet synchronous motors, DC brush motors, and linear motors, the Elmo G-TUB30-480ERSS0 supports multiple control modes, such as current, velocity, and position control. It features a high-power density, delivering up to 30 kW of continuous power with peak performance capabilities, ensuring optimal operation even in high-load scenarios. The drive’s built-in regenerative braking system efficiently recovers energy, reducing overall power consumption and operational costs.
As part of Elmo’s Gold line, the G-TUB30-480ERSS0 benefits from advanced networking capabilities, supporting both EtherCAT and CANopen communication protocols. This allows for real-time data exchange and synchronization with other devices in a distributed control system, enhancing system-wide efficiency and scalability. Whether used in standalone applications or integrated into complex multi-axis systems, this drive ensures smooth coordination and high precision, making it a cornerstone of modern industrial automation.Whatsapp:+86 18859254943.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | G-TUB30-480ERSS0 |
| Manufacturer | Elmo |
| Product Type | Servo Drive |
| Input Voltage | 3x 480 VAC ±10% (3-phase) |
| Continuous Output Current | 30 A |
| Peak Output Current | 60 A (for 1 second) |
| Communication Protocols | EtherCAT, CANopen |
| Feedback Interfaces | Incremental encoder, resolver, absolute encoder, Hall sensors |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Physical Dimensions (W x H x D) | 145 mm x 220 mm x 120 mm |
| Mounting Method | DIN-rail or panel-mounted |
| Protection Class | IP20 |
| Power Consumption | ≤150 W |

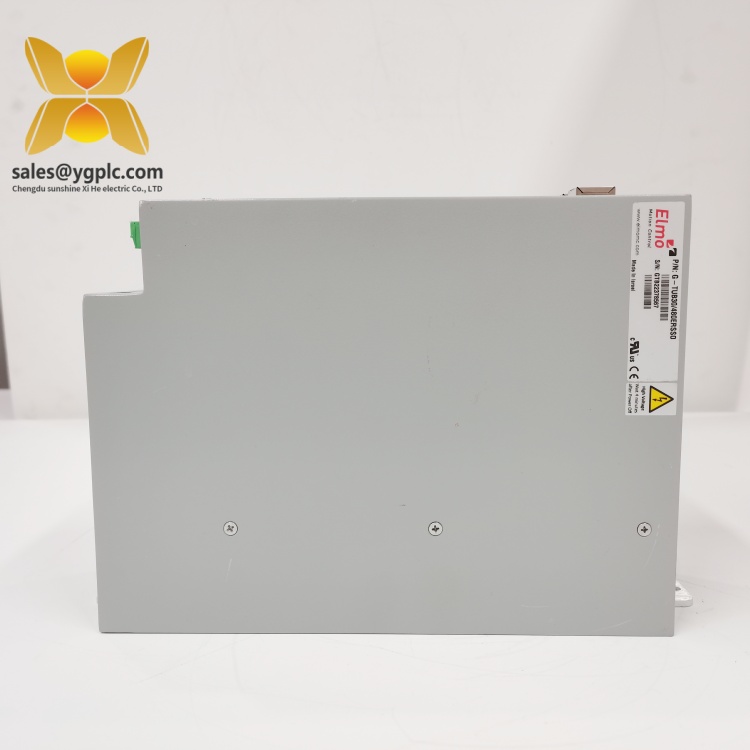

G-TUB30-480ERSS0
Main Features and Advantages
High-Power Density and Efficiency
The Elmo G-TUB30-480ERSS0 stands out for its exceptional power density, delivering up to 30 kW of continuous power in a compact form factor. This allows for space-saving installations without compromising performance. Its regenerative braking capability efficiently recovers energy during deceleration, reducing heat dissipation and lowering operational costs. The drive’s high-efficiency design (≈99%) minimizes power losses, making it suitable for energy-conscious applications.
Advanced Motion Control Capabilities
Equipped with Elmo’s proprietary control algorithms, the G-TUB30-480ERSS0 offers precise current, velocity, and position control. It supports advanced features such as dual-loop control, gantry synchronization, and multi-axis coordination, enabling complex motion profiles in robotics, packaging machinery, and semiconductor manufacturing. The drive’s high servo bandwidth ensures rapid response to dynamic changes, enhancing system stability and accuracy.Whatsapp:+86 18859254943.
Flexible Communication and Networking
With native support for EtherCAT and CANopen protocols, the G-TUB30-480ERSS0 integrates seamlessly into modern industrial networks. EtherCAT provides deterministic real-time communication, ideal for high-speed, multi-axis applications, while CANopen offers flexibility for simpler setups. The drive also supports USB and Ethernet interfaces for configuration and diagnostics via Elmo’s Application Studio software, simplifying system commissioning and maintenance.
Robust Design for Harsh Environments
Designed to withstand industrial conditions, the G-TUB30-480ERSS0 features a rugged enclosure with IP20 protection against dust and debris. It operates reliably across a wide temperature range (-10°C to +50°C) and is resistant to electromagnetic interference, ensuring stable performance in challenging environments. The drive’s modular design allows for easy replacement of components, minimizing downtime during maintenance.

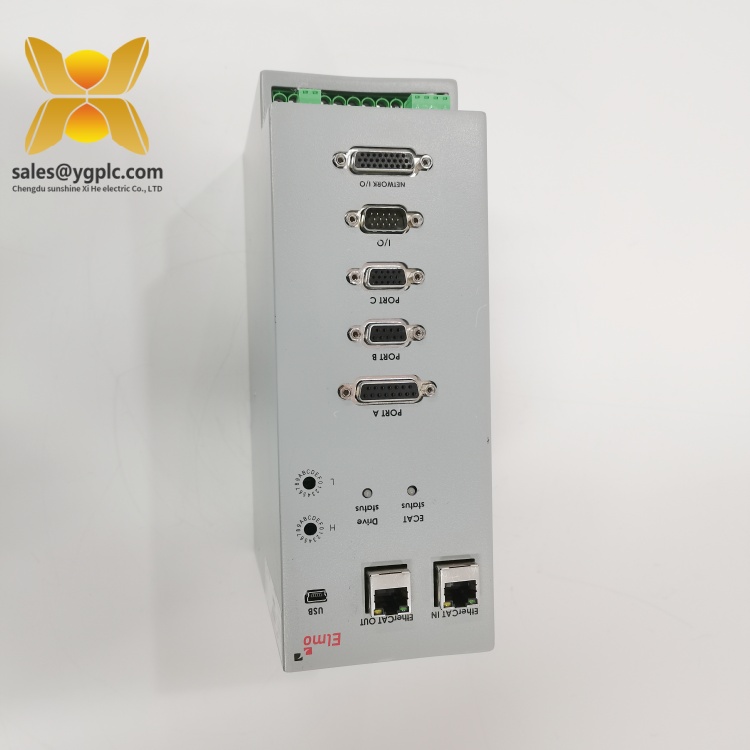

G-TUB30-480ERSS0
Comprehensive Safety Features
The Elmo G-TUB30-480ERSS0 incorporates multiple safety mechanisms, including STO (Safe Torque Off) and SS1 (Safe Stop 1), compliant with EN 61800-5-2 standards. These features ensure safe operation and rapid response to fault conditions, protecting personnel and equipment. The drive also includes overvoltage, undervoltage, and overheating protection, further enhancing system reliability.
Application Areas
Industrial Robotics
The Elmo G-TUB30-480ERSS0 is widely used in robotic systems for precise motion control. Its high dynamic response and multi-axis coordination capabilities enable smooth and accurate movements in pick-and-place applications, assembly lines, and material handling systems. For example, in automotive manufacturing, it drives robotic arms to perform welding, painting, and quality inspection tasks with micron-level precision.
Semiconductor Manufacturing
In semiconductor fabrication, the G-TUB30-480ERSS0 plays a critical role in wafer handling and inspection equipment. Its high precision and reliability ensure delicate semiconductor wafers are transported and processed without damage. The drive’s regenerative braking system reduces energy consumption in cleanroom environments, aligning with the industry’s sustainability goals.
Packaging and Printing Machinery
For packaging and printing applications, the Elmo G-TUB30-480ERSS0 provides the speed and accuracy required for high-volume production. It controls conveyors, labeling systems, and printing presses, ensuring consistent product quality and throughput. The drive’s ability to synchronize multiple axes enables complex packaging processes, such as filling and sealing, to operate seamlessly.
Material Handling and Logistics
In automated warehouses and distribution centers, the G-TUB30-480ERSS0 powers AGVs (Automated Guided Vehicles) and conveyor systems. Its real-time communication capabilities allow for dynamic route adjustments and load balancing, optimizing logistics operations. The drive’s energy-efficient design helps reduce operational costs in 24/7 warehouse environments.

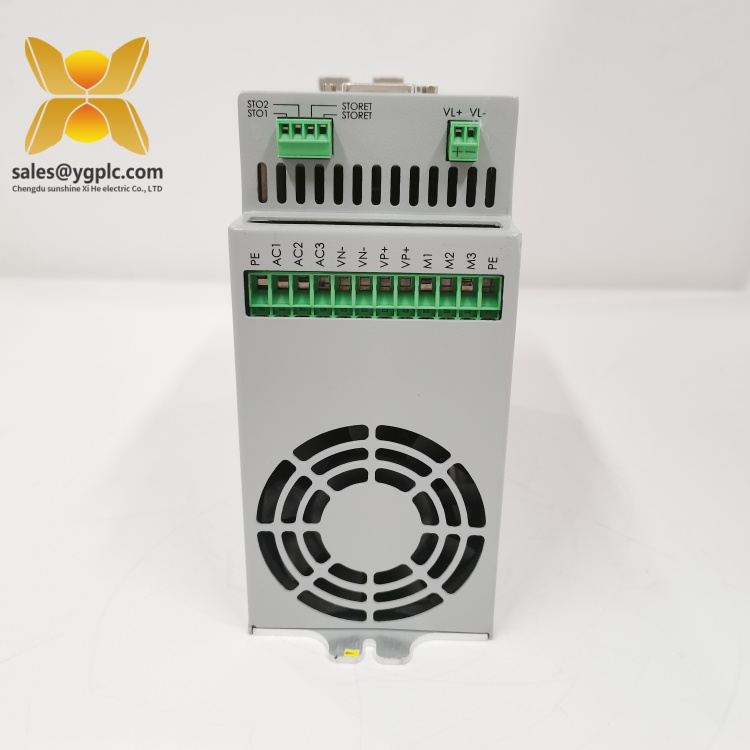

G-TUB30-480ERSS0
Renewable Energy Systems
The G-TUB30-480ERSS0 is also used in renewable energy applications, such as solar tracking systems and wind turbines. Its high torque output and precise control enable solar panels to follow the sun’s movement, maximizing energy capture. In wind turbines, the drive ensures smooth blade pitch adjustment to optimize power generation in varying wind conditions.
Related Products
- Elmo G-TUB40-480ERSS0: An upgraded version with higher continuous output current (40 A), suitable for applications requiring greater power. It shares the same communication protocols and control features as the G-TUB30-480ERSS0 but offers increased performance for heavy-duty machinery.
- Elmo G-TUB30-230ERSS0: A variant designed for 230 VAC input, ideal for regions with lower voltage supplies. It provides the same power output as the G-TUB30-480ERSS0 but adapts to different electrical infrastructure requirements.
- Elmo Gold Oboe: A compact servo drive supporting 480 VAC input, offering 10 A continuous current. It is suitable for smaller-scale applications where space is limited, such as medical devices and laboratory equipment.
- Elmo Gold Bassoon: A 230 VAC servo drive with 10 A continuous current, designed for cost-sensitive applications requiring basic motion control capabilities.
- Elmo Gold Drum HV: A high-voltage servo drive supporting up to 800 VDC input, delivering 100 A continuous current. It is optimized for high-power applications like industrial cranes and marine systems.
Installation and Maintenance
Installation Preparations:
Before installing the Elmo G-TUB30-480ERSS0, ensure the power supply matches the drive’s input requirements (3x 480 VAC ±10%). Verify the physical dimensions and mounting method (DIN-rail or panel) to ensure proper fitment. Connect the motor cables, feedback sensors, and communication links according to the wiring diagram provided in the user manual. Use appropriate torque settings for terminal connections to prevent loose contacts.
Before installing the Elmo G-TUB30-480ERSS0, ensure the power supply matches the drive’s input requirements (3x 480 VAC ±10%). Verify the physical dimensions and mounting method (DIN-rail or panel) to ensure proper fitment. Connect the motor cables, feedback sensors, and communication links according to the wiring diagram provided in the user manual. Use appropriate torque settings for terminal connections to prevent loose contacts.
Maintenance Recommendations:
Regularly inspect the G-TUB30-480ERSS0 for signs of physical damage or loose connections. Clean the enclosure with a dry cloth to remove dust and debris, avoiding harsh solvents that may damage the surface. Monitor the drive’s operating temperature and ensure adequate ventilation. Check the status of communication links and motor performance using Elmo’s Application Studio software. Replace worn-out components, such as cooling fans, as recommended in the maintenance schedule.Whatsapp:+86 18859254943.

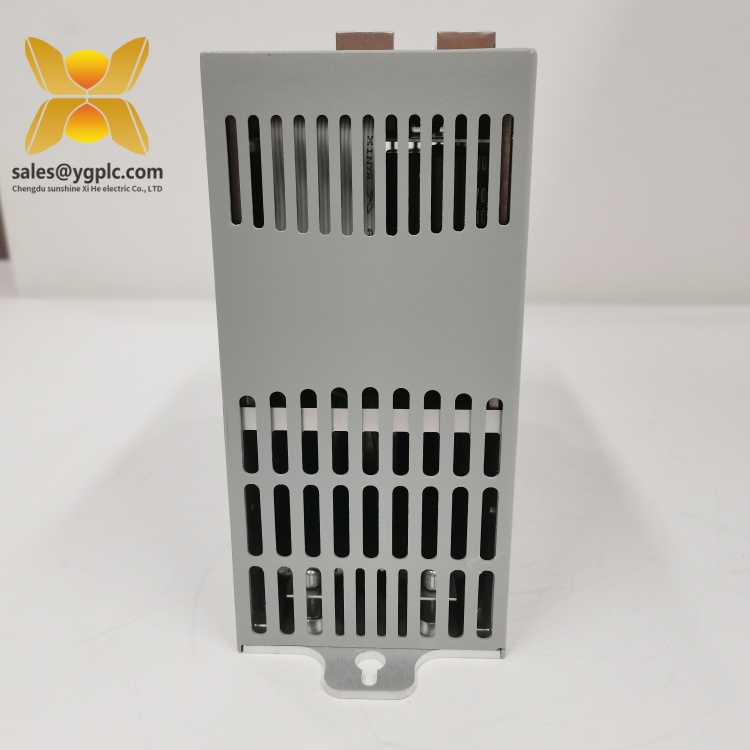

G-TUB30-480ERSS0
Product Assurance
Our company provides a one-year quality warranty for the Elmo G-TUB30-480ERSS0, covering hardware failures due to non-human factors. During this period, if the product shows any performance anomalies or functional failures, we will promptly provide replacement services. For discontinued models or urgent needs, our extensive global supply chain network enables us to quickly respond to customers’ requests for scarce spare parts. With 17 years of experience in the industrial control industry, we are committed to ensuring that the G-TUB30-480ERSS0 and all the products we sell contribute to the stable and continuous operation of industrial systems.E-mail :sales@ygplc.com.
