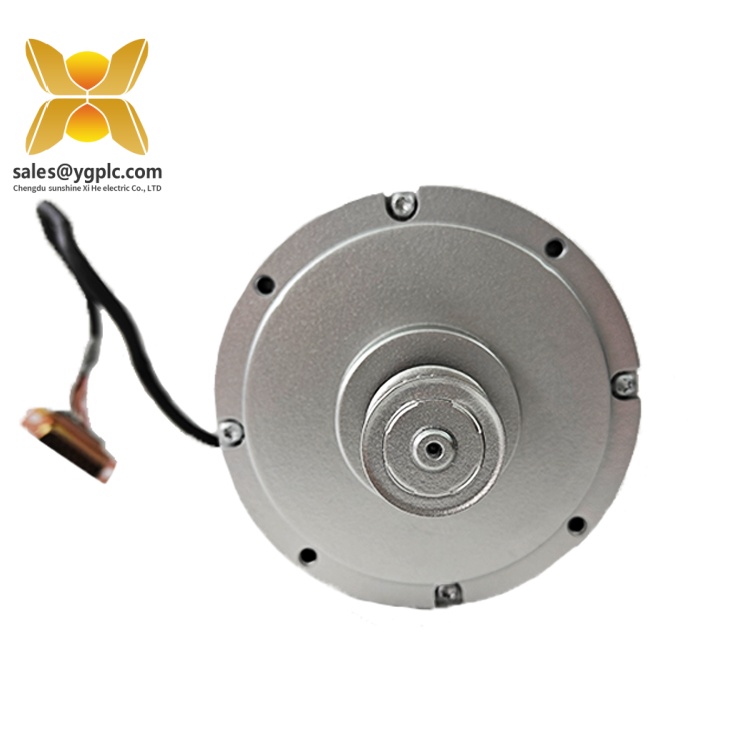

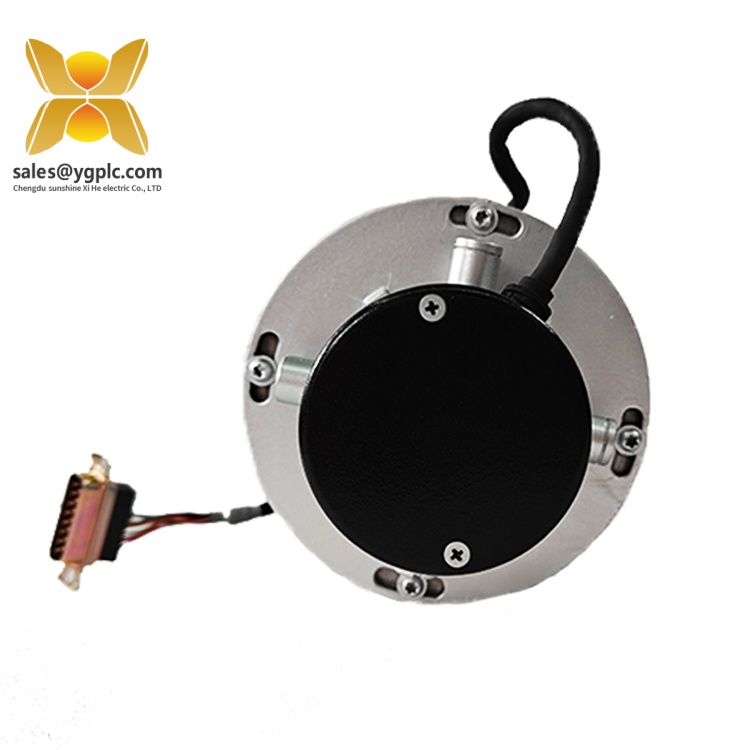

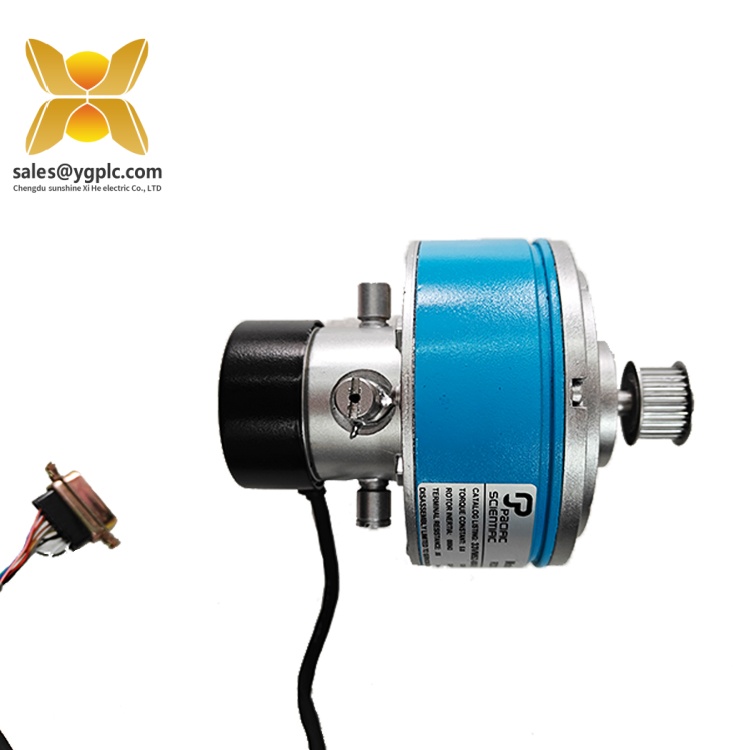

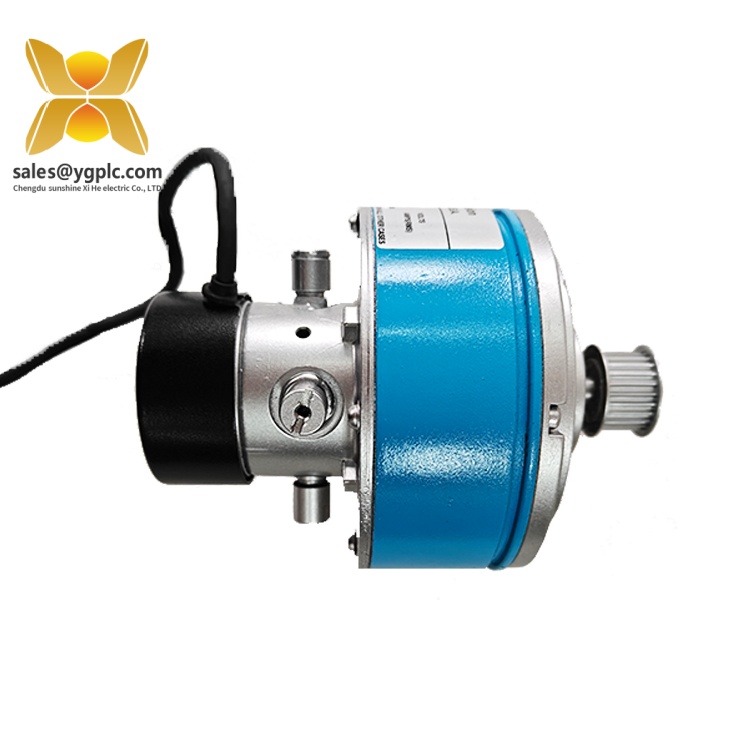

PACIFIC SCIENTIFIC 33VM52-000-29 | E32NCHA-LNN-NS-00 | H32NCHA-LNN-NS-00

Description

Product Overview

Technical Specifications

Parameter Name	Parameter Value
Product Model	33VM52-000-29
Manufacturer	PACIFIC SCIENTIFIC
Product Type	Low-Inertia PMDC Servo Motor
Rated Voltage	18–36 V DC
Continuous Current	3.1–5.7 A
Power Rating	Up to 200 W
Speed Range	0–5,000 RPM
Torque Output	Up to 0.5 N·m
Rotor Inertia	0.0005 kg·m²
Weight	1.2 kg
Operating Temperature	-20°C to +60°C
Insulation Class	Class B
Mounting Type	Flange-mounted (IEC standard)

33VM52-000-29

Key Features and Advantages

Energy Efficiency: The PMDC design ensures high efficiency and low power consumption, reducing operational costs over the motor’s lifespan. Its regenerative braking capability further optimizes energy usage in dynamic applications.

33VM52-000-29

Application Areas

• Robotics: Used in robotic arms and automated guided vehicles (AGVs) for smooth, repeatable motion control. For example, in a logistics warehouse, the 33VM52-000-29 enables AGVs to navigate tight spaces with pinpoint accuracy.
• CNC Machining: Supports high-speed milling and turning operations by delivering precise spindle control and rapid tool positioning. Its low inertia minimizes overshoot, ensuring dimensional accuracy in machined parts.E-mail :sales@ygplc.com.
• Packaging Machinery: Powers conveyor belts, labeling systems, and pick-and-place robots in packaging lines. The motor’s quick response time helps maintain production rates while reducing material waste.
• Medical Devices: Integrates into diagnostic equipment and surgical robots, where smooth, controlled motion is essential for patient safety and procedural success.
• Textile Industry: Drives weaving machines and fabric cutting systems, ensuring consistent tension and alignment in textile production.

Related Products

1. 5240-006 Drive: A compact servo drive 配套使用 with the 33VM52-000-29, providing precise motor control and power management.
2. 5630-023 Stepper Drive: Ideal for applications requiring lower precision, offering cost-effective motion control for basic automation tasks.
3. 6445-001-K-N AC Servo Drive: Supports higher power requirements, enabling the 33VM52-000-29 to operate in heavy-duty industrial environments.
4. 33VM52-000-4 Motor: A variant with a different voltage rating (220 V AC), suitable for applications with alternative power supply requirements.
5. CU 832-001 Servo Drive: Features advanced feedback control, enhancing the 33VM52-000-29’s performance in closed-loop systems.
6. 6410-006-N-N-N Stepper Drive: Offers microstepping capabilities for applications requiring ultra-fine motion resolution.
7. DA 12A-500 Generator: Provides backup power for critical systems, ensuring uninterrupted operation of the 33VM52-000-29 during outages.
8. 33VM52-000-29 Replacement Parts: Includes bearings, brushes, and seals for routine maintenance, extending the motor’s service life.


   33VM52-000-29

Installation and Maintenance

• Routine Inspections: Check for loose connections, unusual noise, or excessive heat during operation. Clean the motor housing and cooling vents quarterly to prevent dust accumulation.
• Lubrication: The 33VM52-000-29 is lubricated for life and requires no additional grease. However, inspect the bearings for wear during annual maintenance.
• Brush Replacement: If equipped with brushes, replace them every 2,000–3,000 hours of operation to maintain optimal performance. Use PACIFIC SCIENTIFIC-certified replacement parts.
• Encoder Check: If integrated with an encoder, periodically verify its alignment and calibration to ensure accurate position feedback.


  33VM52-000-29
