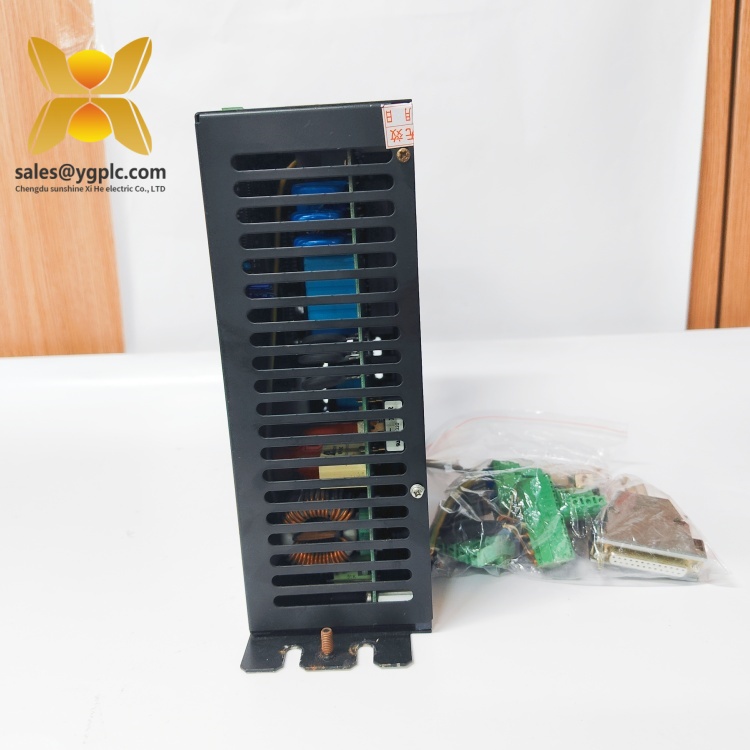

HIMA Z7116 Safety Controller
Product Overview ：HIMA Z7116
The HIMA Z7116 is a high-reliability Safety Controller designed for critical industrial applications requiring fail-safe operation in Safety Instrumented Systems (SIS). As a core component of HIMA’s HiSAS 3000 safety platform, the Z7116 integrates advanced triple modular redundancy (TMR) architecture to ensure continuous operation and fault tolerance in hazardous environments. Engineered to meet IEC 61508 SIL 3 and IEC 61511 standards, this controller serves as the central processing unit for managing safety-critical logic, such as emergency shutdown systems (ESD), fire & gas detection, and machinery protection across industries like oil & gas, chemical processing, and power generation.
The HIMA Z7116 features a rugged design with hot-swappable capabilities, allowing maintenance without system downtime. Its dual-core processor with hardware-based voting ensures accurate execution of safety algorithms while monitoring self-diagnostics in real time. The controller supports seamless integration with HIMA’s I/O modules (e.g., Z6100 series) and communication gateways (e.g., Z7216), enabling scalable configurations for small-scale to large industrial plants. By combining deterministic processing with advanced cybersecurity features, the Z7116 minimizes the risk of unplanned outages and protects against cyber threats, making it a cornerstone of modern safety-critical automation systems.
In industrial ecosystems, the Z7116 acts as the brain of safety systems, receiving input signals from sensors, executing predefined logic, and triggering actuators to mitigate risks. Its modular design and support for HIMA’s HiMAC programming language (IEC 61131-3 compliant) simplify system configuration and validation, reducing engineering time and costs. Whether deployed in standalone safety loops or complex distributed architectures, the HIMA Z7116 delivers unmatched reliability, ensuring compliance with global safety standards and safeguarding personnel, assets, and the environment.
Technical Specifications ：HIMA Z7116
| Parameter Name | Parameter Value |
|---|---|
| Product Model | Z7116 |
| Manufacturer | HIMA |
| Product Type | Safety Controller (TMR Architecture) |
| Safety Integrity Level | SIL 3 (IEC 61508), SIL CL 3 (IEC 61511) |
| Processor | Dual-core with triple modular redundancy (TMR) |
| Input/Output Capacity | Up to 256 I/O points (via expansion modules) |
| Power Supply | 24 V DC ±20% (dual redundant inputs) |
| Physical Dimensions | 150 mm (H) × 100 mm (W) × 200 mm (D) |
| Weight | 1.2 kg |
| Operating Temperature | -25°C to +60°C |
| Communication Interfaces | Ethernet (10/100 Mbps), PROFIBUS DP, RS-485 |
| Certifications | ATEX, IECEx, UL, CSA |
| Programming Language | HiMAC (IEC 61131-3: LD, FBD, ST, SFC) |
Z7116
Key Features and Advantages ：HIMA Z7116
Triple Modular Redundancy (TMR): The Z7116’s TMR architecture provides hardware-level redundancy, where three independent processor cores vote on every operation to detect and reject single-point faults. This design ensures zero single-fault failures, meeting the highest safety integrity requirements for critical processes.
Hot-Swappable Design: The controller supports live replacement of modules without powering down the system, minimizing downtime during maintenance or component failure. This feature is critical for industries where uninterrupted operation is non-negotiable, such as offshore platforms or continuous manufacturing lines.
Advanced Cybersecurity: Built-in security features include encrypted communication protocols, secure boot, and anti-tamper mechanisms, protecting the Z7116 against unauthorized access and cyber attacks. This aligns with modern industrial cybersecurity standards (e.g., IEC 62443).
Scalable and Flexible: The Z7116 integrates with HIMA’s extensive range of I/O modules and communication gateways, allowing users to scale systems from simple standalone applications to complex, multi-zone safety networks. Its support for distributed architectures enables efficient management of large-scale facilities.
Comprehensive Diagnostics: The controller continuously monitors its own health, including processor status, power supply, and communication links. Real-time diagnostic feedback via LED indicators and built-in logging simplifies troubleshooting and reduces mean time to repair (MTTR).
Regulatory Compliance: Certified to global safety standards (ATEX, IECEx, UL), the Z7116 ensures compliance in diverse regional markets, streamlining the certification process for end-users and reducing project complexity.
Application Areas ：HIMA Z7116
The HIMA Z7116 is ideally suited for industries where safety failures could lead to catastrophic consequences:
- Oil & Gas: Deployed in upstream production facilities, refineries, and pipelines to manage emergency shutdown systems, gas detection, and wellhead control. The Z7116 ensures rapid response to leaks, overpressure, or fire incidents, preventing environmental disasters and downtime.
- Chemical and Petrochemical: Used in batch and continuous processing plants to monitor reactor safety, valve positions, and hazardous material handling. Its TMR architecture provides the necessary reliability for processes involving flammable or toxic substances.
- Power Generation: Integrates with turbine control systems, generator protection relays, and boiler safety systems in thermal and nuclear power plants, ensuring compliance with strict safety regulations and grid stability requirements.
- Marine and Offshore: Installed in marine propulsion systems, rig safety systems, and offshore platforms to withstand harsh environmental conditions (salt mist, vibration, extreme temperatures) while delivering fail-safe performance.
Specific applications include:
- Emergency Shutdown Systems (ESD): Rapidly isolating hazardous areas in response to critical events.
- Fire and Gas (F&G) Systems: Coordinating sensor inputs and actuator outputs to activate suppression systems and evacuate personnel.
- Machinery Trip Systems: Monitoring vibration, temperature, and speed of rotating equipment to prevent mechanical failures.
Related Products ：HIMA Z7116
- HIMA Z7100: A single-channel safety controller for non-redundant applications, suitable for smaller-scale systems requiring basic safety logic.
- HIMA Z7216: A communication gateway module that enables the Z7116 to interface with higher-level systems (e.g., DCS, SCADA) via protocols like OPC UA or Modbus TCP.
- HIMA Z6108: An 8-channel digital input module compatible with the Z7116, designed for connecting discrete sensors (e.g., limit switches, pressure switches).
- HIMA Z6208: A digital output module for driving actuators (e.g., solenoid valves, motor starters), ensuring fail-safe operation in conjunction with the Z7116.
- HIMA Z7316: A redundancy module that enables dual-controller configurations for the Z7116, providing hot standby functionality for mission-critical systems.
- HIMA Z8116: An advanced safety controller with increased processing power and memory, suitable for large-scale applications requiring complex logic.
- HIMA Z5116: A compact power supply module designed to support the Z7116, offering redundant power input and surge protection.
- HIMA Z9116: A configuration tool and programming interface for the Z7116, featuring a user-friendly GUI for logic development and system commissioning.
Installation and Maintenance ：HIMA Z7116
Installation Preparation:
Before installing the HIMA Z7116, ensure the control cabinet is properly grounded and ventilated to meet the module’s thermal requirements. Verify compatibility with selected I/O modules and communication gateways, and plan cabling to separate power and signal wires to minimize electromagnetic interference. Mount the controller on a DIN rail using the provided brackets, ensuring secure mechanical fixation. Connect redundant 24 V DC power supplies and configure network settings (IP address, subnet mask) using HIMA’s HiVision software.
Before installing the HIMA Z7116, ensure the control cabinet is properly grounded and ventilated to meet the module’s thermal requirements. Verify compatibility with selected I/O modules and communication gateways, and plan cabling to separate power and signal wires to minimize electromagnetic interference. Mount the controller on a DIN rail using the provided brackets, ensuring secure mechanical fixation. Connect redundant 24 V DC power supplies and configure network settings (IP address, subnet mask) using HIMA’s HiVision software.
Maintenance Recommendations:
- Routine Inspections: Perform quarterly visual checks for loose connections, damaged cables, or overheating. Use HIMA’s diagnostic tools to review system logs for undetected faults or communication errors.
- Firmware Updates: Periodically update the controller’s firmware to incorporate security patches and new features, following HIMA’s official release notes and procedures. Back up existing configurations before initiating updates to prevent data loss.
- Redundancy Testing: Conduct annual functional tests of redundant components (e.g., power supplies, communication links) to ensure failover mechanisms operate correctly. Validate safety logic using HIMA’s HiTEST tool to confirm compliance with design specifications.
- Environmental Management: Clean the controller’s enclosure and cooling vents biannually to prevent dust accumulation, which can affect thermal performance. Maintain a controlled environment (humidity: 30–70% RH) to avoid condensation or corrosion.
Product Warranty ：HIMA Z7116
Our company provides a 12-month quality warranty for the HIMA Z7116, covering hardware defects under normal use. In the event of performance issues or functional failures, we offer prompt replacement services to minimize downtime. For discontinued models or urgent requirements, our global supply chain network ensures rapid availability of genuine spare parts, supported by 24/7 technical assistance for installation, troubleshooting, and system optimization. We stand behind the reliability of our products, delivering peace of mind through robust warranty coverage and dedicated customer support to keep your industrial systems operating safely and efficiently.
For inquiries, contact our team via email at sales@ygplc.com or visit our website for more information.
