Description

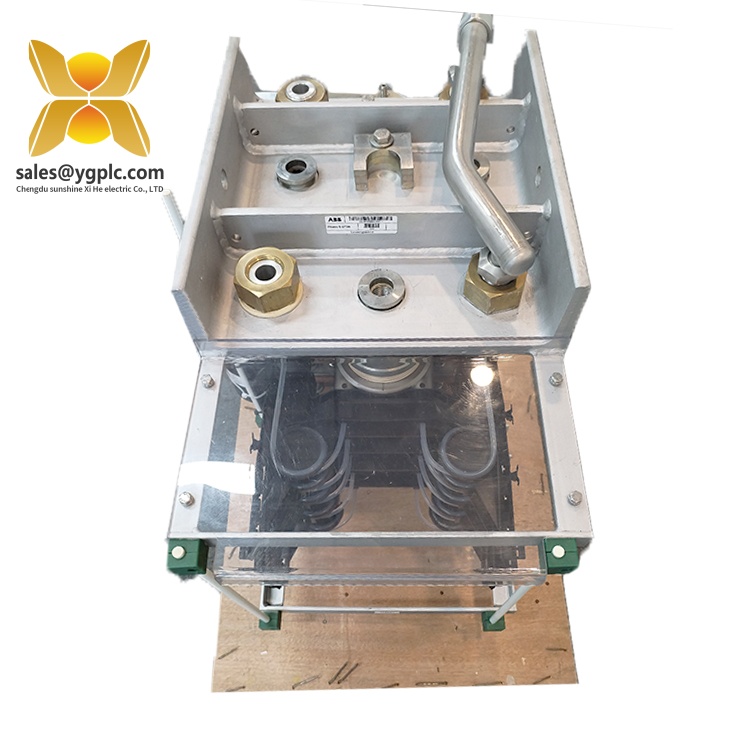

ABB S-093M 3BHB009885R0063 Parameter Table (ACS6000 Phase Module)

Parameter	Specification
Product Type	Phase module (power stage) for medium-voltage drive cabinets
Compatible Platform	ABB ACS6000 / PCS 6000 medium-voltage drive systems
Semiconductor Technology	IGCT (Integrated Gate-Commutated Thyristor) based; ACS6000 utilizes a three-level topology
Control Platform Compatibility	Works within ACS6000’s Direct Torque Control (DTC) framework for motor speed and torque regulation
Power Interface	Supplied from the host drive DC link; gate/control circuits are isolated, with no separate mains input on the module itself
Signal & Diagnostic I/O	Fiber-optic gate/control links; temperature and diagnostic feedback; bolted power busbar connections
Cooling Method	Cabinet-variant dependent; many ACS/PCS 6000 configurations are liquid-cooled
Operating Ambient Temperature	Typically 0–40 °C inside the drive cabinet (per host drive specification)
Approximate Dimensions	~85 × 55 × 65 cm (S-093M family envelope); shipping envelope ~100 × 70 × 90 cm
Approximate Weight	~190 kg net; ~222 kg shipping weight
Installation Interface	Mounted inside the ABB MV cabinet; bolted busbars, fiber-optic links, and guided lifting points provided
Revision-Specific Note (R0063)	Revision suffix generally reflects updated components and minor maintainability/performance adjustments while preserving the S-093M mechanical footprint and cabinet compatibility
Country of Origin	Switzerland (CH), for most S-093M variants
Communication / Fieldbus	Not resident on the phase module itself; fieldbus and system-level communication reside in the drive control unit (COU)

Practical notes for verification and use

The table above reflects the S-093M phase-module interpretation, which aligns with the physical scale (≈190 kg) and the ACS6000 system architecture. Two points deserve emphasis during verification. First, the R0063 revision is not a standalone product family; it is best understood as a revision index within the S-093M phase-module lineage, and its mechanical interchangeability with adjacent revisions (such as R0013 or R0014) should be confirmed against ABB’s official spare-part documentation rather than inferred from the part number alone. Second, cooling configuration is cabinet-defined: the module itself does not fix whether the host system uses liquid cooling or forced air, so the cooling entry must be read together with the specific ACS6000 cabinet variant. For procurement, the safest path is to cross-check the nameplate on the existing module and obtain a written ABB interchangeability confirmation before ordering.
