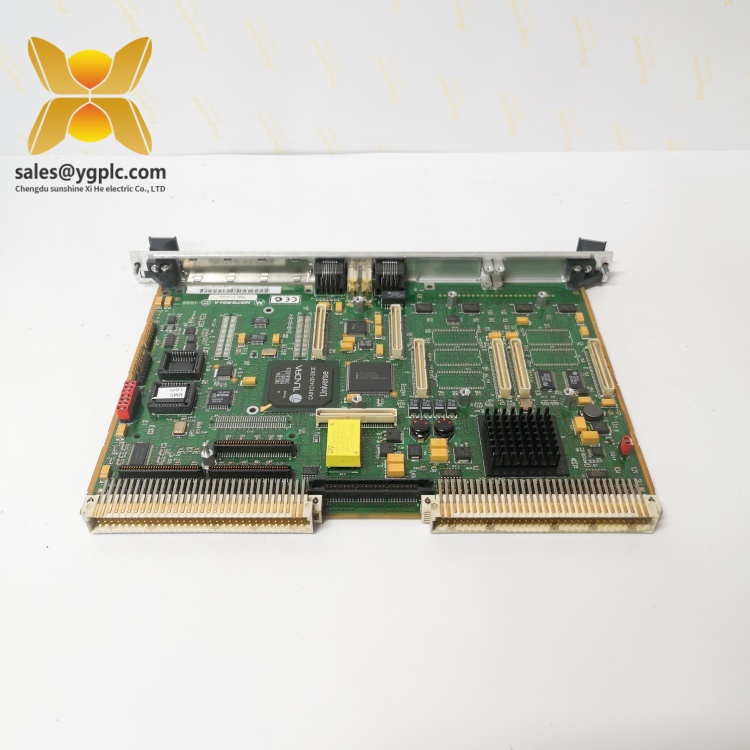

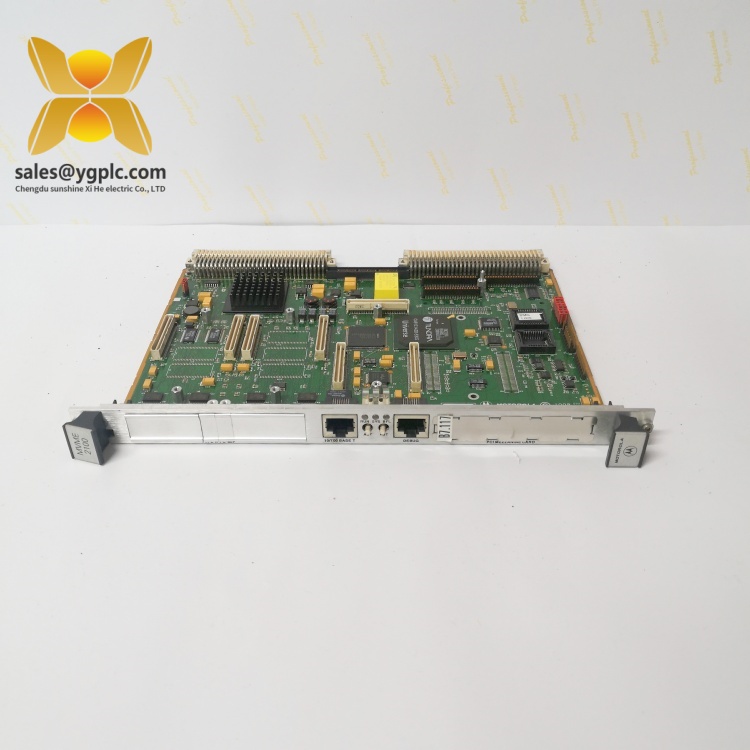

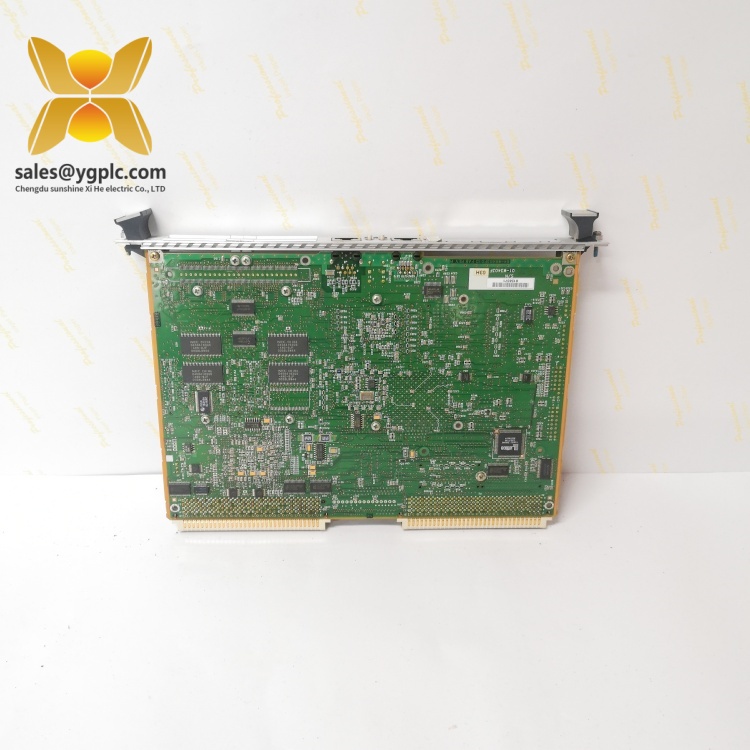

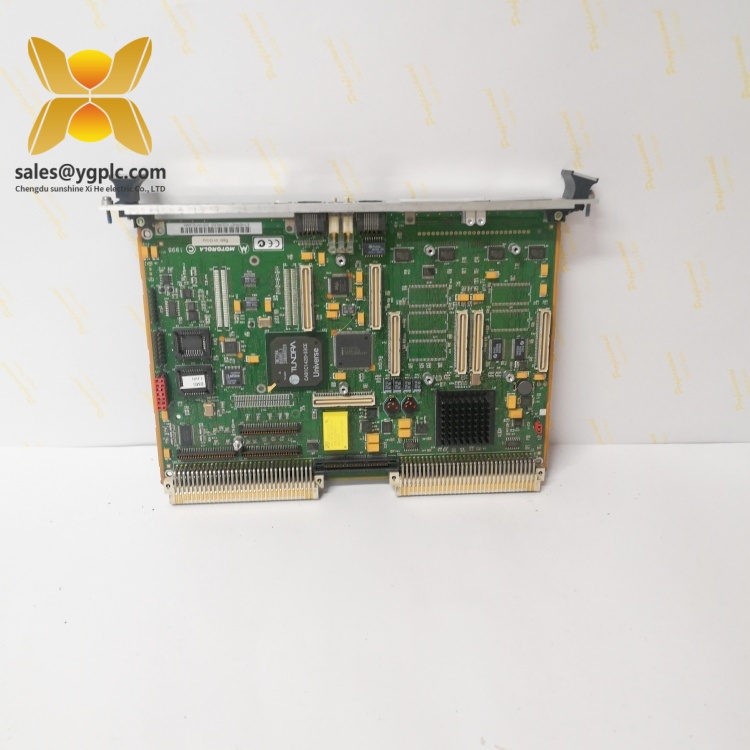

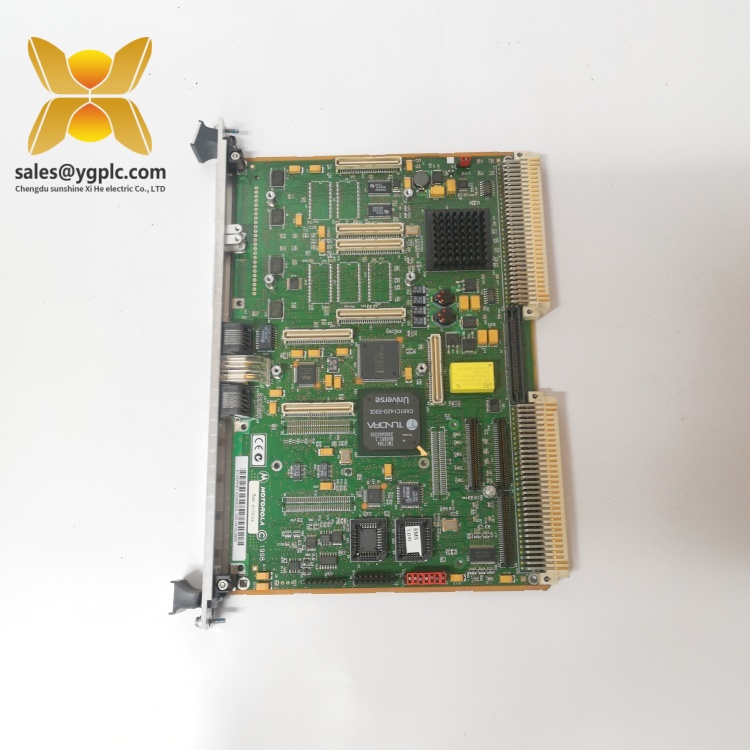

Motorola MVME2100 Single-Board Computer (SBC)

Product Overview：Motorola MVME2100

The Motorola MVME2100 is a high-performance single-board computer (SBC) designed for rugged industrial and embedded computing applications. As part of Motorola’s MVME (Motorola VersaModule Eurocard) series, this module combines robust hardware with versatile connectivity, making it ideal for real-time control, data acquisition, and communication in harsh environments. The MVME2100 features a PowerPC 750CXe processor running at 667 MHz, delivering reliable computing power for mission-critical systems in industries such as manufacturing, aerospace, and energy.

Built on the CompactPCI architecture, the Motorola MVME2100 supports hot-swappable functionality and offers multiple I/O interfaces, including Ethernet, USB, and serial ports, enabling seamless integration with sensors, actuators, and other field devices. Its rugged design—with extended temperature tolerance (-40°C to +85°C) and resistance to vibration and shock—ensures reliable operation in demanding industrial settings. The module’s support for real-time operating systems (RTOS) like VxWorks and QNX further enhances its suitability for applications requiring deterministic performance, such as machine control and process automation.

In industrial automation ecosystems, the MVME2100 serves as a central processing unit (CPU) for PLC or DCS systems, managing complex control logic and data communication. Its dual 10/100/1000 Mbps Ethernet ports facilitate high-speed network connectivity, while the PCI-X bus supports expansion with specialized cards for analog/digital I/O, motion control, or vision processing. By combining computational power, ruggedness, and scalability, the Motorola MVME2100 ensures continuous operation and minimizes downtime, making it a cornerstone for industrial digitization and smart manufacturing initiatives.

Technical Specifications：Motorola MVME2100

Parameter Name	Parameter Value
Product Model	MVME2100
Manufacturer	Motorola
Product Type	Single-Board Computer (SBC), CompactPCI Module
Processor	PowerPC 750CXe (G3), 667 MHz
Memory	512 MB DDR SDRAM (expandable to 1 GB)
Storage	256 MB CompactFlash, SATA interface for external storage
I/O Interfaces	2 x Gigabit Ethernet, 2 x USB 2.0, 2 x RS-232/422/485, PCI-X bus (64-bit/133 MHz)
Power Supply	+5 V DC (CompactPCI bus-powered), 20 W typical power consumption
Physical Dimensions	160 mm (H) × 100 mm (W) × 30 mm (D) (3U CompactPCI form factor)
Weight	0.8 kg
Operating Temperature	-40°C to +85°C (extended industrial range)
Shock/Vibration	IEC 60068-2-27 (50 g peak, 11 ms), IEC 60068-2-6 (2 g, 5–2000 Hz)
Certifications	CE, FCC Class A, MIL-STD-202 (for vibration/shock)

MVME2100

Key Features and Advantages：Motorola MVME2100

High-Performance Processing: The MVME2100’s PowerPC 750CXe processor delivers 667 MHz of computing power, capable of handling complex algorithms and real-time data processing. This makes it suitable for applications requiring high throughput, such as robotics, aerospace avionics, and high-speed data acquisition.

Rugged Industrial Design: Engineered to withstand extreme temperatures, vibration, and shock, the Motorola MVME2100 is ideal for harsh environments like factory floors, oil rigs, and railway systems. Its conformal coating and robust enclosure protect against dust, moisture, and electromagnetic interference (EMI).

Flexible Connectivity: With dual Gigabit Ethernet ports, USB 2.0, and serial interfaces, the module supports seamless integration with both legacy and modern industrial devices. The PCI-X bus allows expansion with specialized cards (e.g., analog input modules, CAN bus controllers) to tailor the system to specific application needs.

Hot-Swappable Capability: As a CompactPCI-compliant module, the MVME2100 supports hot swapping, enabling maintenance or upgrades without powering down the entire system. This feature minimizes downtime and enhances operational efficiency in critical applications.

Long-Term Availability: Part of Motorola’s long-standing MVME series, the MVME2100 benefits from extended lifecycle support, ensuring reliable supply for legacy systems. This is particularly valuable for industries with long equipment lifecycles, such as power generation and transportation.

Real-Time OS Compatibility: The module’s support for RTOS platforms like VxWorks and QNX ensures deterministic performance, critical for applications where timing precision is non-negotiable, such as industrial automation and defense systems.

MVME2100

Application Areas：Motorola MVME2100

The Motorola MVME2100 is deployed across diverse industries where reliable and rugged computing is essential:

Industrial Automation: Serves as a control core for PLC systems, managing conveyor belts, robotic arms, and assembly lines in manufacturing facilities. Its real-time processing capabilities enable precise coordination of machine components.
Aerospace and Defense: Used in avionics systems, unmanned vehicles, and military equipment for data processing, navigation, and communication. Its rugged design meets military standards for shock and vibration resistance.
Energy and Utilities: Monitors and controls power generation systems, such as wind turbines and solar inverters, ensuring stable energy production. Also used in oil and gas pipelines for remote data acquisition and leak detection.
Transportation: Powers train control systems, traffic management systems, and intelligent transportation infrastructure (ITS), providing real-time data processing for safety and efficiency.
Medical Equipment: Supports diagnostic machines and medical imaging systems, requiring reliable computing for data analysis and system control.

Specific applications include:

Machine Vision Systems: Processes high-resolution images from cameras for quality inspection in manufacturing.
SCADA Systems: Manages supervisory control and data acquisition in distributed industrial networks, enabling remote monitoring and control.
Test and Measurement: Controls automated test equipment in research and development labs, ensuring accurate and repeatable results.

Installation and Maintenance：Motorola MVME2100

Pre-installation Preparation:
Before installing the Motorola MVME2100, ensure the CompactPCI rack is properly grounded and ventilated. Verify compatibility with the existing backplane and power supply, ensuring they meet the module’s 5 V DC power requirement. Use anti-static precautions when handling the module to prevent electrostatic discharge (ESD) damage. Install the appropriate RTOS or software drivers on the CompactFlash storage, and configure network settings (e.g., IP addresses, subnet masks) for seamless integration with the control network.

Maintenance Recommendations:

Routine Inspections: Periodically check the module for loose connections or physical damage, particularly in high-vibration environments. Clean the enclosure with a dry, non-conductive cloth to remove dust and debris that may affect heat dissipation.
Firmware Updates: Regularly update the module’s firmware to address security vulnerabilities and enhance functionality, following Motorola’s official guidelines. Back up critical data before performing updates to prevent loss.
Spare Parts Management: Maintain a spare MVME2100 module in a controlled environment (temperature: 10–30°C, humidity: 20–80% RH) to quickly replace faulty units and minimize downtime.
Environmental Monitoring: Use built-in diagnostics to monitor operating temperature and voltage levels. If anomalies are detected, investigate promptly to avoid potential failures.
MVME2100

Product Warranty：Motorola MVME2100

Our company offers a 12-month quality warranty for the Motorola MVME2100, covering hardware defects under normal use. During the warranty period, we will provide replacement services for modules experiencing performance issues or functional failures unrelated to misuse or environmental damage. For discontinued models or urgent requirements, our global supply chain network ensures rapid delivery of scarce components, supporting continuous operation of industrial systems. Our technical support team is available 24/7 to assist with installation, troubleshooting, and system optimization, ensuring reliable performance throughout the product lifecycle.
