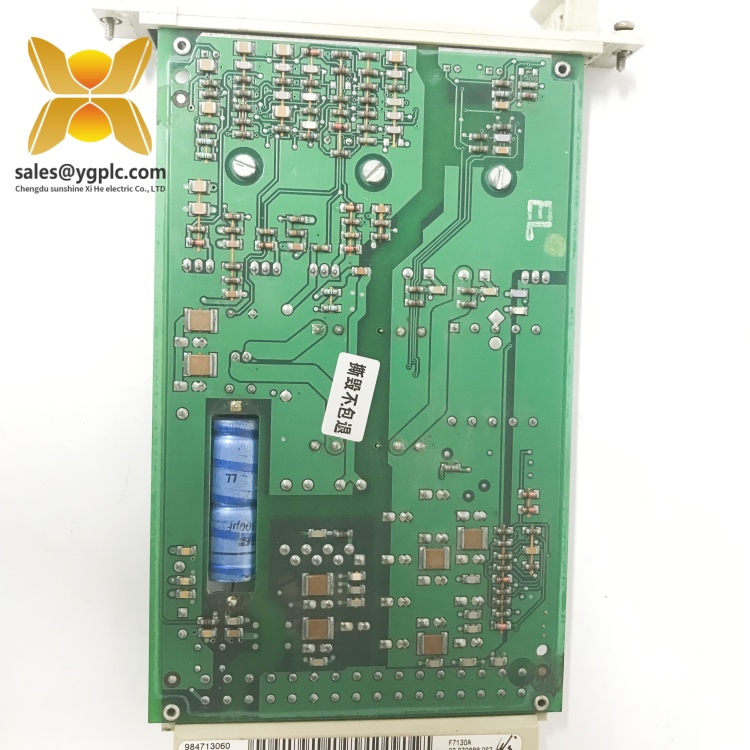

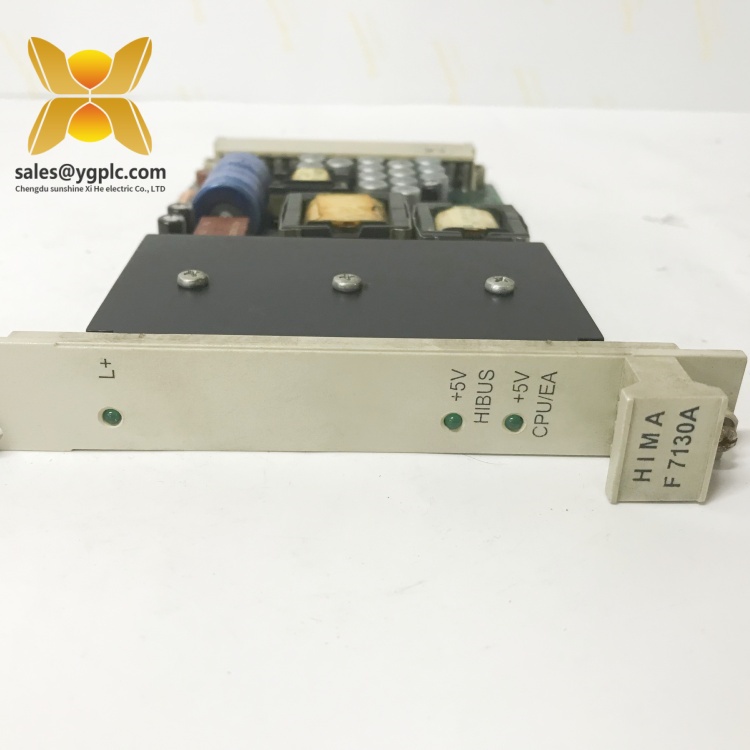

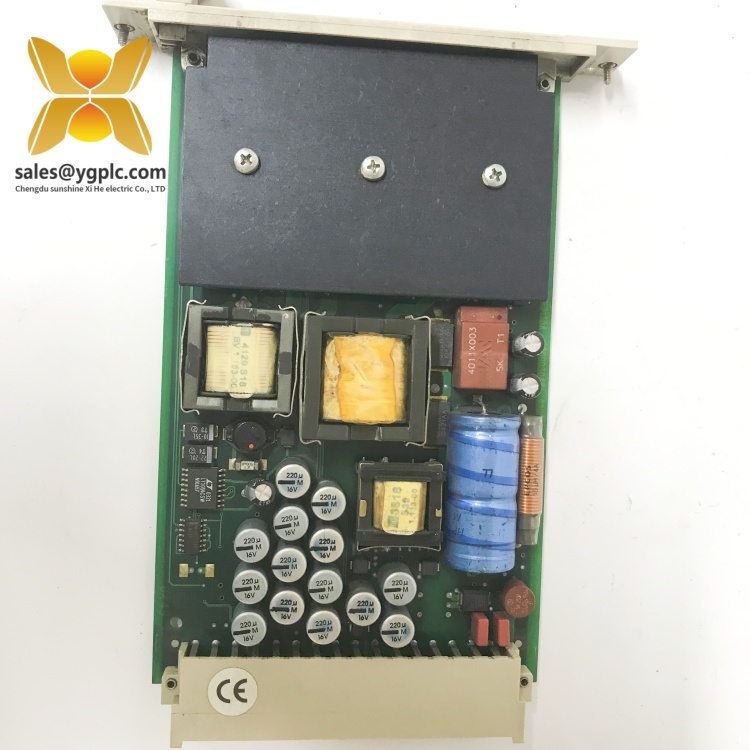

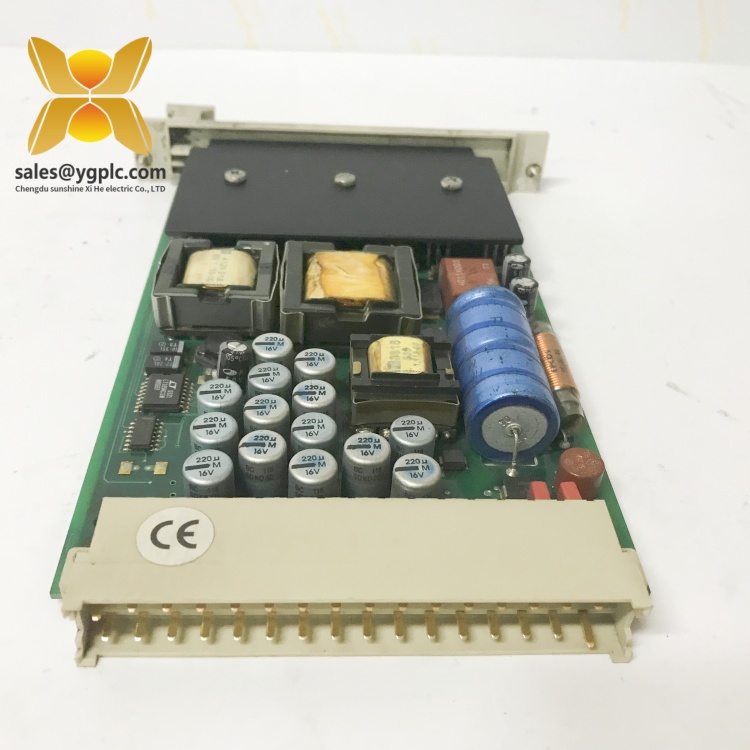

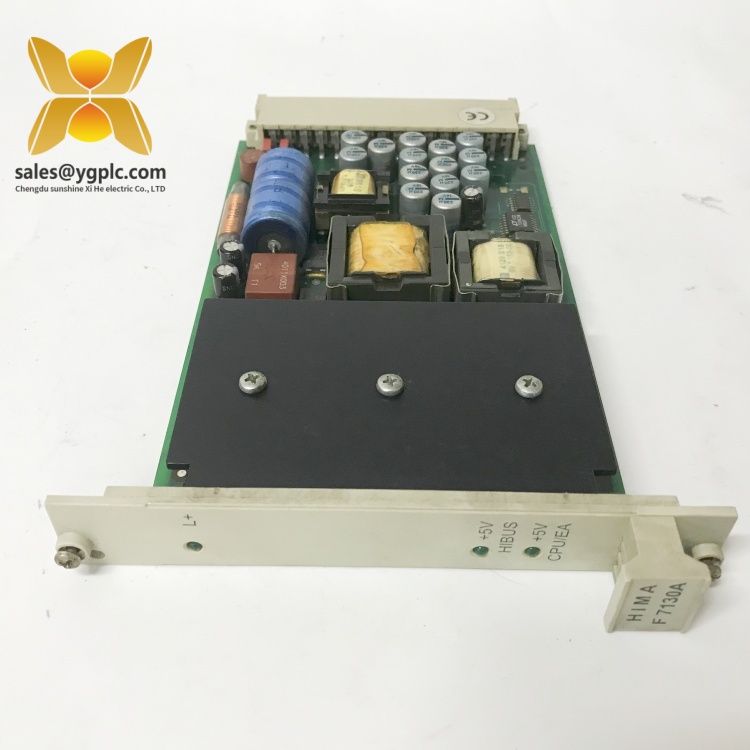

HIMA F7130A 984713060 Safety Controller Module
Product Overview：HIMA F7130A 984713060
The HIMA F7130A 984713060 is a high-reliability Safety Controller Module designed for mission-critical industrial applications requiring stringent safety standards. As a core component of HIMA’s HiGuard series—a leading platform for safety instrumented systems (SIS)—this module provides deterministic control and monitoring for processes in industries such as oil & gas, chemical, and power generation. The F7130A 984713060 integrates advanced fail-safe logic, redundant architecture, and real-time diagnostics to ensure seamless operation in environments where system downtime could lead to safety hazards or operational losses.
Featuring a modular design, the HIMA F7130A 984713060 supports configurable input/output (I/O) channels and communicates with field devices and higher-level systems via secure protocols. Its primary functions include executing safety logic, monitoring process variables, and triggering protective actions (e.g., shutdowns, alarms) when predefined thresholds are exceeded. The module’s compliance with international safety standards (IEC 61508, IEC 61511) makes it suitable for SIL 3 applications, ensuring maximum integrity in safety-critical scenarios.
In automation ecosystems, the F7130A 984713060 serves as the central processing unit for safety systems, bridging field sensors (e.g., pressure transmitters, flame detectors) and actuators (e.g., emergency shutdown valves). Its dual-core processor and hardware redundancy eliminate single points of failure, while hot-swappable capabilities enable maintenance without disrupting operations. By combining high-speed processing with robust fault tolerance, this module optimizes safety performance and reduces lifecycle costs for industrial facilities worldwide.
Technical Specifications：HIMA F7130A 984713060
| Parameter Name | Parameter Value |
|---|---|
| Product Model | F7130A 984713060 |
| Manufacturer | HIMA |
| Product Type | Safety Controller Module |
| Processor | Dual-core 32-bit RISC |
| I/O Capacity | Up to 256 digital/analog channels (expandable via extension modules) |
| Communication Protocols | PROFIBUS DP, Ethernet/IP, Modbus RTU |
| Power Supply | 24 V DC ±15% (dual redundant inputs) |
| Physical Dimensions | 150 mm (H) × 100 mm (W) × 200 mm (D) |
| Weight | 1.2 kg |
| Operating Temperature | -25°C to +60°C |
| Certifications | IEC 61508 (SIL 3), IEC 61511, ATEX, CSA |
| Mounting | DIN rail (35 mm) or rack-mounted |
HIMA F7130A 984713060(
Key Features and Advantages：HIMA F7130A 984713060
High Safety Integrity: The HIMA F7130A 984713060 is certified for SIL 3 applications, providing a fault tolerance of 1 (FT=1) and a low probability of dangerous failure (PFHd). Its dual-core architecture with lockstep comparison ensures that logic execution is verified in real time, minimizing the risk of undetected errors.
Redundant Design: The module supports hardware redundancy for power supplies, communication interfaces, and I/O channels, ensuring continuous operation during component failures. Hot redundancy allows for seamless switching between active and standby modules without process interruption.
Flexible System Integration: With support for multiple communication protocols, the F7130A 984713060 integrates effortlessly with existing DCS, PLC, and SCADA systems. Its modular design enables easy expansion of I/O capacity through compatible extension modules (e.g., HIMA F7230), adapting to evolving process requirements.
Real-Time Diagnostics: Built-in self-diagnostic functions monitor module health, communication integrity, and power supply status. Diagnostic coverage exceeds 99%, providing early warning of potential issues and reducing mean time to repair (MTTR).
Compact and Rugged Construction: Despite its high-performance capabilities, the module’s compact footprint (150 × 100 × 200 mm) optimizes space in control panels. Its rugged enclosure resists vibration, humidity, and electromagnetic interference, ensuring reliability in harsh industrial environments.
User-Friendly Engineering: Configured using HIMA’s HiDesigner software, the module supports IEC 61131-3 programming languages (Ladder Logic, Function Block Diagram), enabling intuitive setup and debugging. Predefined function blocks for safety logic (e.g., shutdown sequences, timer relays) accelerate project execution.
HIMA F7130A 984713060(
Application Areas：HIMA F7130A 984713060
The HIMA F7130A 984713060 is ideally suited for industries where safety and operational continuity are non-negotiable:
- Oil & Gas: Deployed in offshore platforms, refineries, and pipelines to manage emergency shutdown (ESD) systems, fire and gas detection, and compressor protection. The module’s SIL 3 certification ensures compliance with API RP 14C and other industry safety standards.
- Chemical and Petrochemical: Manages safety-critical processes such as reactor control, distillation units, and storage tank monitoring. Its redundancy features prevent cascading failures in complex chemical plants.
- Power Generation: Used in thermal and nuclear power plants to monitor turbine safety systems, boiler controls, and generator protection. The module’s deterministic processing ensures rapid response to abnormal conditions.
- Pharmaceutical and Food Processing: Ensures compliance with regulatory requirements (e.g., FDA, GMP) by providing fail-safe control of sterilization processes, batch reactors, and critical utility systems.
Specific applications include:
- Safety Instrumented Systems (SIS): Executes logic for emergency shutdowns, interlocks, and safety loops, reducing risk exposure as defined by ISO 26262 and IEC 62061.
- Machine Safety: Controls access guards, emergency stops, and overload protection in manufacturing equipment, aligning with EN 50155 and EN 60204-1 standards.
- Process Automation: Integrates with flow meters, level switches, and pressure transmitters to maintain process variables within safe limits, supporting predictive maintenance strategies.
Related Products：HIMA F7130A 984713060
- HIMA F7120 984712060: A cost-effective variant with reduced I/O capacity (128 channels), suitable for smaller-scale safety applications.
- HIMA F7230 984723060: An I/O extension module that adds 32 digital input/output channels to the F7130A 984713060, enabling scalable system design.
- HIMA F8650 984865060: A communication gateway module that facilitates integration with cloud-based monitoring systems via OPC UA or MQTT.
- HIMA F3380 984338060: A power supply module with dual redundant inputs, ensuring stable power delivery to the F7130A 984713060 and associated components.
- HIMA F7450 984745060: A temperature input module designed for direct connection to RTDs and thermocouples, expanding the system’s process variable monitoring capabilities.
- HIMA F7350 984735060: A relay output module for driving actuators in safety-critical loops, featuring fail-safe relay technology.
- HIMA F9000 Series: Next-generation safety controllers with advanced cybersecurity features, offering backward compatibility with the F7130A 984713060 for seamless upgrades.
HIMA F7130A 984713060(
Installation and Maintenance：HIMA F7130A 984713060
Installation Preparation:
Before installing the HIMA F7130A 984713060, ensure the control panel is properly grounded and ventilated to meet thermal requirements. Verify that the power supply meets the module’s specifications (24 V DC ±15%) and that all field cables are shielded to minimize electromagnetic interference. Mount the module on a DIN rail or rack using the provided hardware, ensuring secure mechanical and electrical connections. Configure network settings (e.g., PROFIBUS address, IP parameters) using HiDesigner software to establish communication with other system components.
Before installing the HIMA F7130A 984713060, ensure the control panel is properly grounded and ventilated to meet thermal requirements. Verify that the power supply meets the module’s specifications (24 V DC ±15%) and that all field cables are shielded to minimize electromagnetic interference. Mount the module on a DIN rail or rack using the provided hardware, ensuring secure mechanical and electrical connections. Configure network settings (e.g., PROFIBUS address, IP parameters) using HiDesigner software to establish communication with other system components.
Maintenance Recommendations:
- Routine Inspections: Perform quarterly visual checks for loose connections, damaged cables, or overheating. Use the module’s diagnostic LEDs to verify operational status (e.g., power, communication, fault indicators).
- Firmware Updates: Regularly update the module’s firmware to incorporate security patches and performance improvements, following HIMA’s official procedures to avoid data loss or system disruptions.
- Functional Testing: Conduct annual SIL validation tests to ensure the module’s logic execution and response times meet design specifications. Document test results for compliance with audit requirements.
- Spare Parts Management: Maintain a spare F7130A 984713060 module in a controlled environment (temperature: 10–30°C, humidity: 30–70% RH) to minimize downtime in case of failure. Replace batteries in backup memory modules as recommended by the manufacturer.
HIMA F7130A 984713060(
Product Warranty：HIMA F7130A 984713060
Our company provides a 12-month quality warranty for the HIMA F7130A 984713060, covering hardware defects under normal use. In the event of performance issues or functional failures, we offer prompt replacement services to minimize operational disruption. For discontinued models or urgent requirements, our global supply chain network ensures rapid sourcing of rare components, supporting uninterrupted system operation. Our technical support team is available 24/7 to assist with installation, troubleshooting, and software configuration, ensuring optimal performance and long-term reliability.
For inquiries, contact us via email at sales@ygplc.com or via WhatsApp at +86 18859254943.
