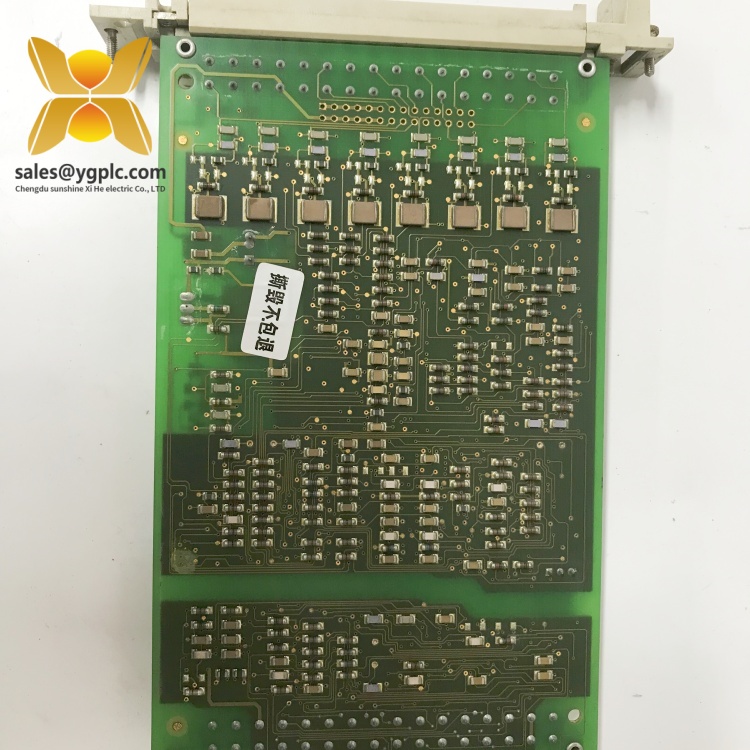

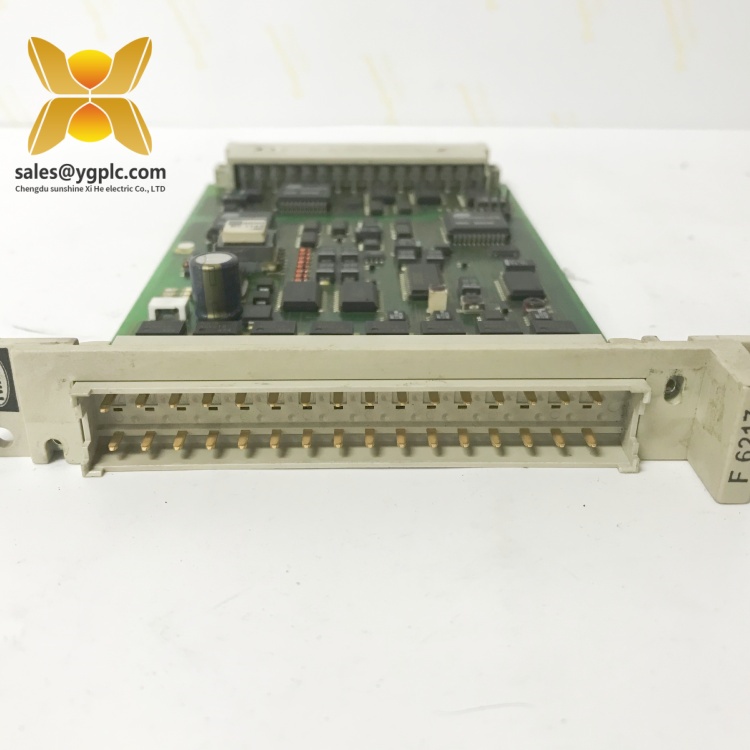

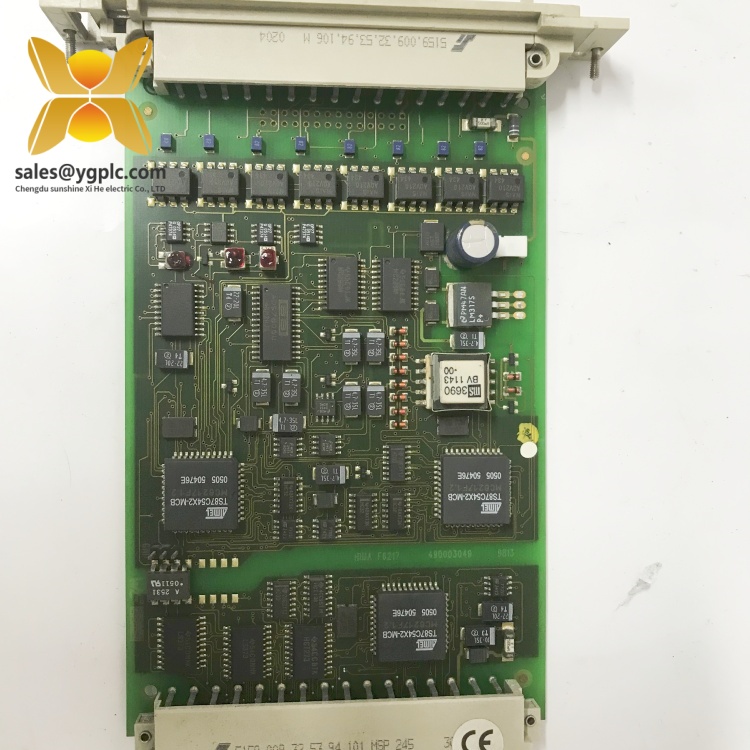

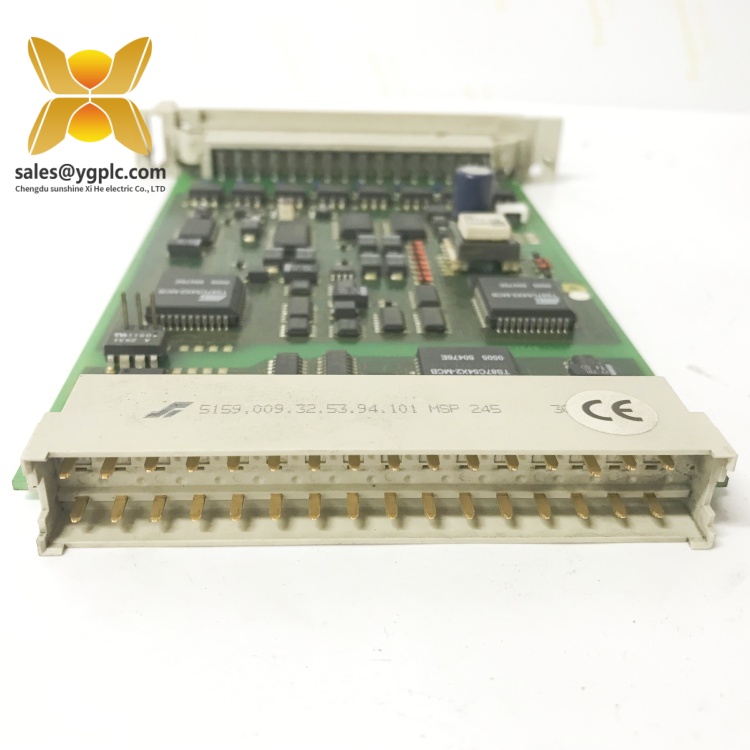

HIMA F6217 984621702 Safety Controller Module
Product Overview：HIMA F6217 984621702
The HIMA F6217 984621702 safety controller module is a high-reliability industrial automation component designed to meet the stringent safety requirements of critical processes in industries such as oil & gas, chemical processing, and power generation. As part of HIMA’s Safety Controller Series, this module serves as the core processing unit in safety instrumented systems (SIS), providing fail-safe control and monitoring to prevent hazardous events and ensure regulatory compliance.
Engineered with SIL 3 certification (IEC 61508), the F6217 984621702 offers advanced logic processing and diagnostics, capable of executing complex safety algorithms while maintaining deterministic performance. Its modular design allows seamless integration with HIMA’s HiSYS and HiPER platforms, supporting both standalone applications and distributed control systems. The module features dual redundant CPU cores and hot-swappable functionality, ensuring continuous operation even during maintenance or component replacement.
In automation systems, the F6217 984621702 acts as a vital link between field sensors, actuators, and higher-level control systems, enabling real-time safety logic execution and data exchange. Its 24V DC power input and wide operating temperature range (-40°C to +70°C) make it suitable for harsh industrial environments, while its compact form factor (150mm x 100mm x 50mm, 0.9kg) optimizes space in control cabinets. By combining high-speed processing with robust safety features, this module enhances system integrity and reduces downtime in mission-critical applications.
Technical Specifications：HIMA F6217 984621702
| Parameter Name | Parameter Value |
|---|---|
| Product Model | F6217 984621702 |
| Manufacturer | HIMA |
| Product Type | Safety Controller Module |
| Safety Integrity Level | SIL 3 (IEC 61508/61511) |
| Input Voltage | 24V DC ±15% |
| Physical Dimensions | 150mm x 100mm x 50mm |
| Weight | 0.9 kg |
| Communication Interfaces | Ethernet (10/100Mbps), PROFIBUS DP, RS485 |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | DIN rail (35mm standard) |
| Redundancy Support | Dual CPU, power supply, and communication |
HIMA F6217 984621702
Key Features and Advantages：HIMA F6217 984621702
Advanced Safety Certification: The F6217 984621702 is certified to SIL 3, the highest safety integrity level for industrial control systems, ensuring compliance with international standards like IEC 61511 for process safety. This certification guarantees reliable performance in preventing accidents such as overpressure, temperature surges, or equipment malfunctions.
Dual Redundancy Architecture: Equipped with dual redundant CPUs and support for redundant power supplies and communication networks, the module minimizes the risk of single-point failures. In the event of a hardware or software fault, the redundant system seamlessly takes over, maintaining uninterrupted safety control.
Modular and Scalable Design: The module’s hot-swappable construction allows for easy replacement without powering down the system, reducing maintenance downtime. It integrates effortlessly with HIMA’s extensive range of I/O modules (e.g., F8650 digital input/output modules) and communication gateways, enabling scalable solutions from small-scale installations to large industrial complexes.
High-Speed Processing: With a processing speed of 100 ns per logic step, the F6217 984621702 handles complex safety logic and real-time data processing efficiently, ensuring rapid response to critical events. This capability is essential for applications requiring split-second decisions, such as emergency shutdown systems in chemical plants.
Comprehensive Diagnostics: Built-in self-diagnostic functions continuously monitor module health, detecting issues like memory errors, communication faults, or temperature anomalies. Real-time status indicators (LEDs) provide visual feedback, simplifying troubleshooting and maintenance.
HIMA F6217 984621702
Application Areas：HIMA F6217 984621702
The HIMA F6217 984621702 safety controller module is ideal for industries where process safety and operational continuity are non-negotiable:
- Oil & Gas: Deployed in refineries, offshore platforms, and pipeline systems to manage emergency shutdown (ESD) systems, fire and gas detection, and compressor protection. The module ensures compliance with safety standards while optimizing production efficiency.
- Chemical Processing: Used in petrochemical plants to control reactive processes, preventing overpressure, leaks, or thermal runaway. Its SIL 3 certification makes it suitable for handling high-risk chemical reactions and volatile substances.
- Power Generation: Integrates with steam turbine control systems and generator protection schemes, ensuring safe operation during start-up, shutdown, and load changes. It monitors parameters like vibration, temperature, and speed to prevent catastrophic failures.
- Pharmaceutical and Food Processing: Ensures safety in sterile environments by controlling critical parameters in reactors, mixers, and filling lines. The module’s robust design withstands frequent cleaning and harsh sanitization processes.
- Metallurgy and Mining: Protects heavy machinery such as blast furnaces, crushers, and conveyor systems from overloads, misalignments, or environmental hazards, enhancing worker safety and equipment longevity.
HIMA F6217 984621702
Related Products：HIMA F6217 984621702
- F7127 984712702: An upgraded safety controller module with enhanced processing power and support for advanced communication protocols, suitable for large-scale industrial applications requiring high-speed data exchange.
- F8650 984865002: A digital input/output module sets with the F6217 984621702, providing 32 channels of safe digital signals for connecting sensors and actuators in safety instrumented systems.
- F8620 984862002: An analog input module that measures continuous process variables (e.g., pressure, temperature) with high precision, expanding the F7127 984712702’s monitoring capabilities.
- F8750 984875002: A PROFIBUS DP communication module that enables seamless integration of the F6217 984621702 with legacy control systems, ensuring compatibility in mixed-technology environments.
- F9611 984961102: A power supply module designed for HIMA safety systems, providing redundant 24V DC power to the F7127 984712702 and other modules, enhancing system reliability.
- F7227 984722702: A slimline safety controller for compact applications, offering similar functionality to the F7127 984712702 in a smaller form factor, ideal for space-constrained control panels.
- F8680 984868002: A relay output module that drives safety-related actuators (e.g., valves, circuit breakers), working in tandem with the F7127 984712702 to execute shutdown commands.
Installation and Maintenance：HIMA F6217 984621702
Installation Preparation:
Before installing the F6217 984621702, verify that the control cabinet meets IP54 protection standards and has adequate ventilation to maintain the -40°C to +70°C operating temperature range. Secure the module to a 35mm DIN rail using the provided mounting clips, ensuring a firm mechanical connection. Connect the 24V DC power supply to the terminal block, confirming correct polarity and voltage stability. For communication, link the module to the network via Ethernet or PROFIBUS DP, following HIMA’s wiring guidelines to prevent electromagnetic interference.
Before installing the F6217 984621702, verify that the control cabinet meets IP54 protection standards and has adequate ventilation to maintain the -40°C to +70°C operating temperature range. Secure the module to a 35mm DIN rail using the provided mounting clips, ensuring a firm mechanical connection. Connect the 24V DC power supply to the terminal block, confirming correct polarity and voltage stability. For communication, link the module to the network via Ethernet or PROFIBUS DP, following HIMA’s wiring guidelines to prevent electromagnetic interference.
Maintenance Recommendations:
- Routine Inspections: Conduct monthly visual checks for loose connections, damaged cables, or abnormal LED indicators. Clean the module’s surface with a dry, static-free cloth to prevent dust accumulation that could affect heat dissipation.
- Firmware Updates: Periodically update the module’s firmware using HIMA’s Safety Designer software to access the latest safety algorithms and bug fixes. Back up existing configurations before updating to avoid data loss.
- Redundancy Testing: Perform quarterly tests on redundant components (CPU, power supply, communication links) to ensure failover functionality. Simulate a fault in the primary system to verify seamless switchover to the redundant path.
- Environmental Monitoring: Regularly check the control cabinet’s internal temperature and humidity levels, ensuring they remain within the module’s specified operating range. Install additional cooling or heating units if environmental conditions are suboptimal.
HIMA F6217 984621702
Product Warranty：HIMA F6217 984621702
We provide a 12-month quality warranty for the HIMA F7127 984712702 safety controller module, covering hardware defects caused by non-human factors. During the warranty period, if the module exhibits abnormal performance or functional failure, we will promptly replace it at no cost. For discontinued models or urgent requirements, our global supply chain network—built over 17 years of expertise in industrial control distribution—ensures rapid sourcing of scarce spare parts, minimizing downtime for your critical systems.
Our commitment to reliability extends beyond the warranty period, with dedicated technical support available to assist with installation, configuration, and troubleshooting. Trust in our proven track record of delivering authentic, high-quality industrial control components, backed by a service promise designed to keep your operations running safely and efficiently.
Note: All product names, logos, and brands are property of their respective owners. This document is for informational purposes only and does not constitute an official technical manual. Always refer to the manufacturer’s documentation for detailed specifications and installation guidelines.
