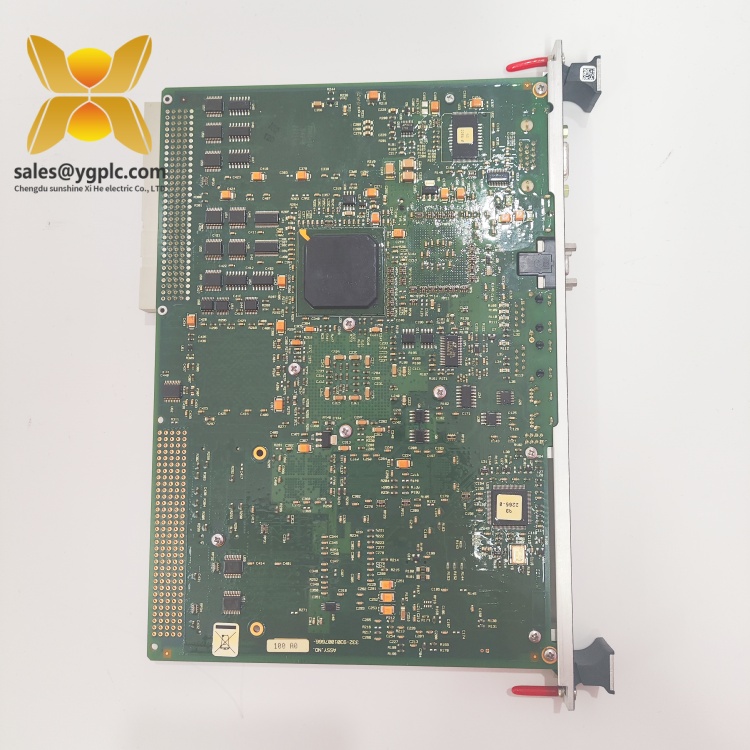

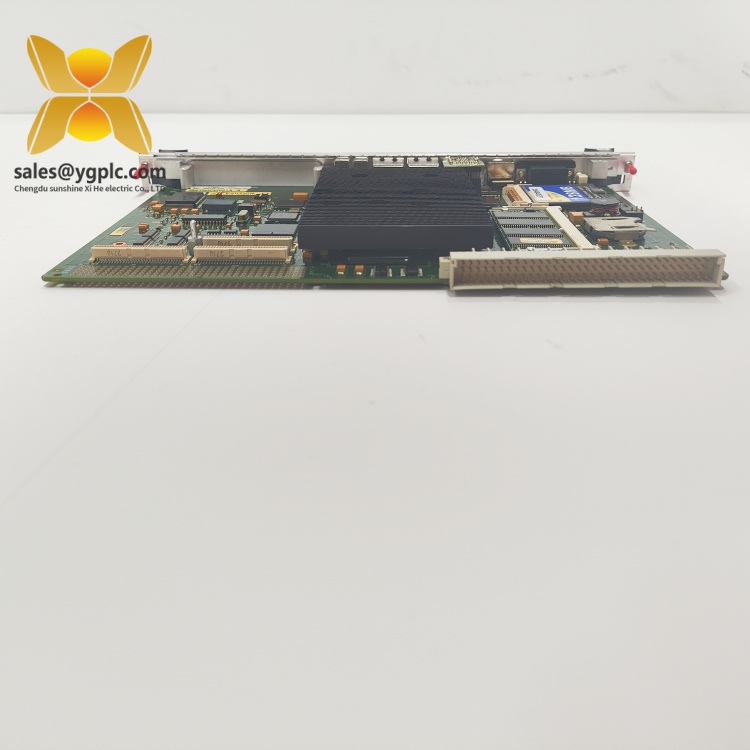

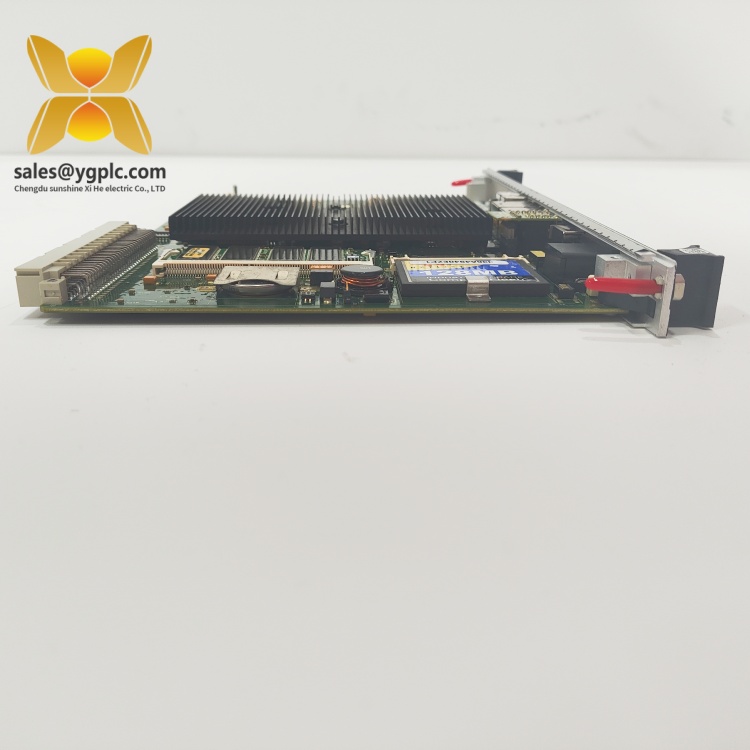

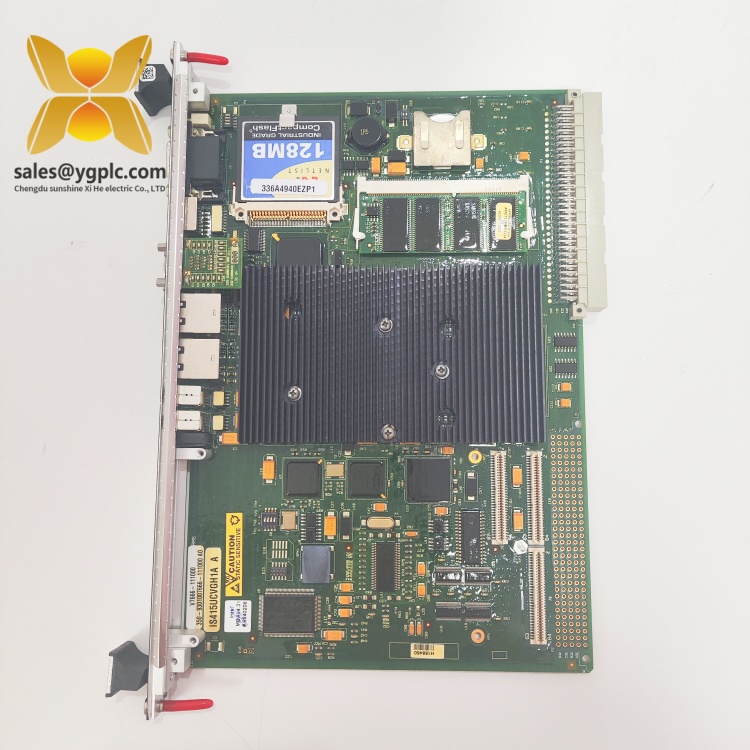

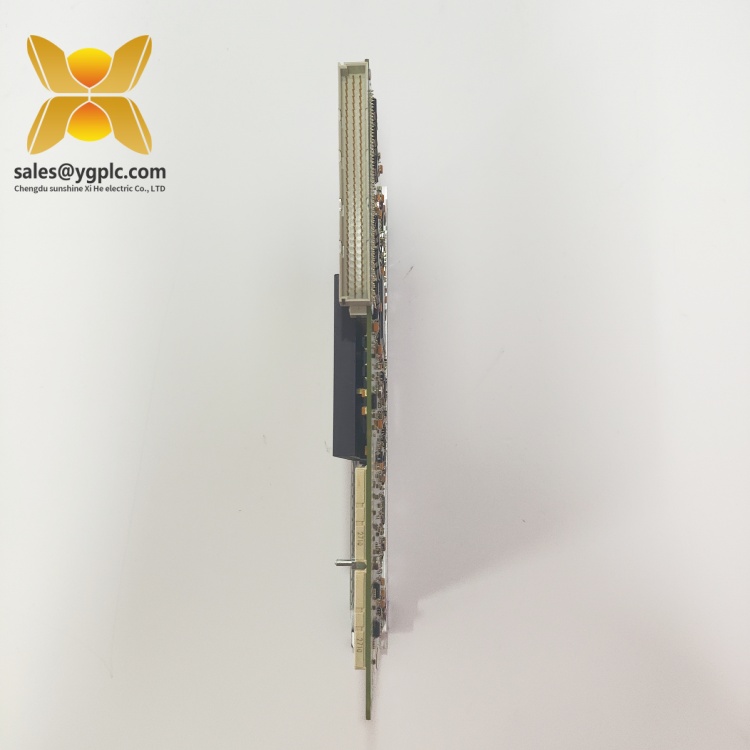

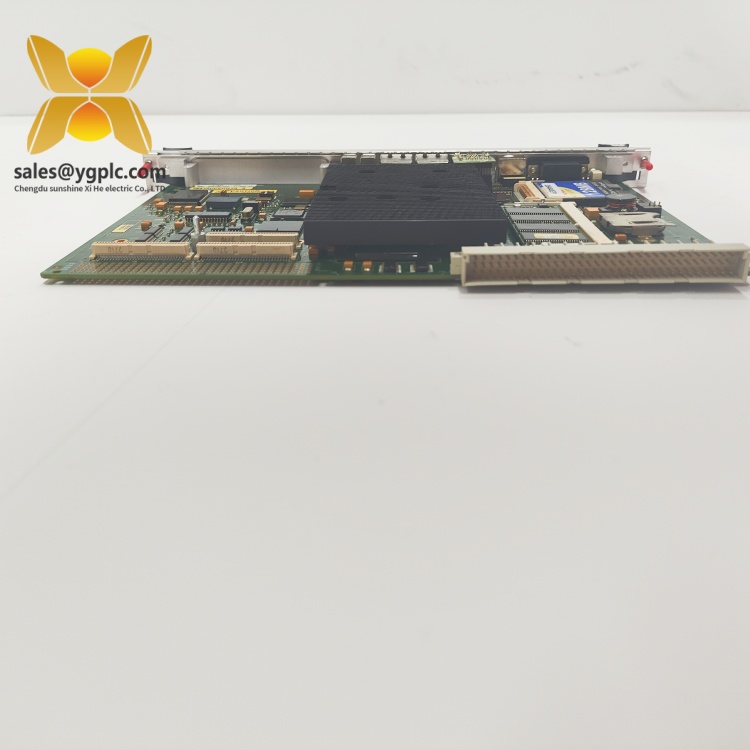

Product Overview：GE IS415UCVGH1A V7666-111000
The GE IS415UCVGH1A V7666-111000 is a highly advanced VME controller card that plays a pivotal role in industrial automation systems. As part of GE’s renowned Mark VI series, this single – slot board is engineered to deliver top – notch performance and reliability.
Equipped with an Intel Ultra Low Voltage Celeron 650 MHz processor, the IS415UCVGH1A V7666-111000 has 128 MB of SDRAM, ensuring smooth and efficient operation even under heavy – duty workloads. It serves as a central control unit, coordinating various functions within the system. In an industrial automation setup, it acts as the brain, processing data from multiple sensors and devices, and then sending out control signals to actuators. This allows for seamless operation of complex machinery, optimizing production processes and enhancing overall system productivity.

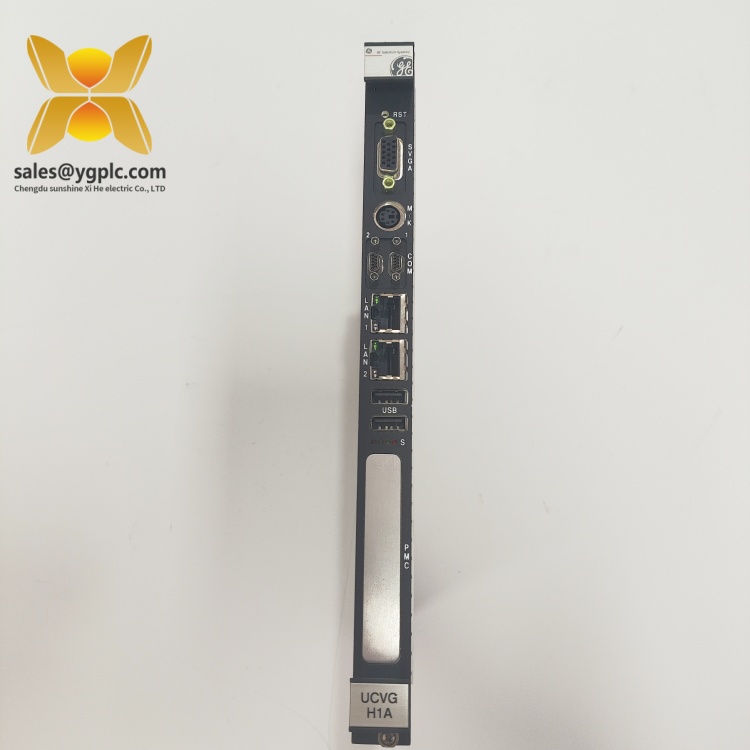

Connectivity is a strong suit of the GE IS415UCVGH1A V7666-111000. It features two 10BaseT/100BaseTX (RJ – 45 connection) Ethernet ports. The first Ethernet connection enables peer – to – peer communication and configuration with the Universal Data Highway (UDH), while the second can be utilized for private Ethernet Global Data (EGD) networks or Modbus on a different IP logical subnet. This flexibility in connectivity makes it easy to integrate into existing industrial networks, whether they are simple local setups or large – scale, distributed systems.
Technical Specifications：GE IS415UCVGH1A V7666-111000
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS415UCVGH1A V7666-111000 |
| Manufacturer | GE |
| Product Type | VME Controller Card |
| Microprocessor | Intel Ultra Low Voltage Celeron 650 MHz |
| Memory | 128 MB SDRAM |
| Operating System | QNX |
| Primary Ethernet | 10BaseT/100BaseTX |
| Power Requirements | +5 V DC |
| Operating Temperature | 0°C to 70°C |
| Communication Protocols | Modbus, Ethernet – based protocols |
| Physical Dimensions | [Dimensions not found in the provided sources, but typical VME single – slot boards are compact, around 100 – 200 mm in length and 100 – 150 mm in width] |
| Weight | [Weight not found in the provided sources, but generally lightweight for easy installation, perhaps around 0.5 – 1 kg] |
| Input/Output Interfaces | Multiple digital and analog interfaces (details not fully specified in sources, but common for VME controller cards to support various sensor and actuator connections) |
IS415UCVGH1A V7666-111000
Key Features and Advantages：GE IS415UCVGH1A V7666-111000
High – Performance Processing
The GE IS415UCVGH1A V7666-111000’s Intel Ultra Low Voltage Celeron 650 MHz processor provides sufficient computing power to handle complex control algorithms. This ensures quick response times to changes in the industrial process, such as adjusting the speed of a motor or regulating the flow of a chemical in a pipeline. The 128 MB of SDRAM further aids in smooth data processing, allowing the card to manage multiple tasks simultaneously without significant lag.
Versatile Connectivity
With two Ethernet ports, the IS415UCVGH1A V7666-111000 offers unparalleled flexibility in network integration. The ability to use one port for UDH communication and the other for private EGD networks or Modbus connections means it can adapt to different network topologies. This is crucial in industries where existing infrastructure needs to be utilized, or when different levels of network security and data separation are required.
Reliable Operation
Built as part of GE’s Mark VI series, the IS415UCVGH1A V7666-111000 is designed to operate in harsh industrial environments. With an operating temperature range of 0°C to 70°C, it can withstand the heat generated in industrial plants or the cold in outdoor installations. The use of high – quality components and rigorous testing during manufacturing ensures long – term reliability, reducing the risk of unexpected system failures and costly downtime.
Easy Configuration
The card can be configured using the Toolbox software provided by GE. Every time the rack is powered up, the controller verifies the Toolbox configuration versus the installed hardware. This self – verification process simplifies the setup and maintenance of the system, as it helps to quickly identify any discrepancies between the intended configuration and the actual hardware in place.
IS415UCVGH1A V7666-111000
Application Areas：GE IS415UCVGH1A V7666-111000
Power Generation
In power plants, the GE IS415UCVGH1A V7666-111000 is used to control gas turbines. It monitors various parameters such as temperature, pressure, and rotational speed of the turbine. By accurately processing this data, it can adjust the fuel supply and other control mechanisms to optimize the turbine’s performance, ensuring efficient power generation. For example, it can detect early signs of turbine blade wear based on vibration data and take preventive measures to avoid catastrophic failures.
Manufacturing
In manufacturing facilities, this VME controller card is used to manage production lines. It can control the operation of conveyor belts, robotic arms, and other automated machinery. By coordinating the movement and function of these devices, it ensures a smooth and efficient production process. For instance, it can synchronize the movement of a robotic arm to pick and place components precisely on an assembly line, improving the accuracy and speed of production.
Oil and Gas
In the oil and gas industry, the IS415UCVGH1A V7666-111000 is deployed in refineries and oil platforms. It controls the operation of pumps, compressors, and other critical equipment. It can monitor the flow rate of oil or gas, adjust the pressure in pipelines, and ensure the safe and efficient operation of the entire system. In an oil refinery, it may be used to control the distillation process, ensuring that the right fractions of oil are separated at the correct temperatures.
Chemical Processing
In chemical plants, the GE IS415UCVGH1A V7666-111000 plays a vital role in controlling chemical reactions. It monitors and adjusts parameters such as temperature, pressure, and chemical composition in reactors. By precisely controlling these variables, it helps to ensure the quality of chemical products and prevent dangerous situations such as over – pressure or runaway reactions.
IS415UCVGH1A V7666-111000
Related Products：GE IS415UCVGH1A V7666-111000
- GE IS415UCVHH1A: This is also a VME control board from GE’s Mark VIe family. It supports simplex, dual – redundancy, and triple – redundancy systems, offering more flexibility in system configuration compared to the IS415UCVGH1A V7666-111000 which may be more focused on standard single – system setups.
- GE DS200TCQEG2A: An I/O processor in GE’s product lineup. It works in tandem with the IS415UCVGH1A V7666-111000 in industrial control systems, handling the input and output functions related to various sensors and actuators, while the IS415UCVGH1A V7666-111000 focuses on overall control and data processing.
- GE DS200TCQFF1A PROM: A programmable read – only memory module. It stores crucial system configuration and control algorithms that can be used by the IS415UCVGH1A V7666-111000 during its operation, enhancing the customization and functionality of the overall control system.
- GE DS200TCQFG1A TC2000 Analog I/O Ex: An analog input/output expansion module. It expands the I/O capabilities of the system, allowing the IS415UCVGH1A V7666-111000 to interface with more analog – based sensors and actuators, increasing the system’s adaptability to different industrial processes.
- GE DS200TCQFG1B MK V Card TC QF: Another card in the GE product range that can be used in similar industrial control setups. It may offer different features or compatibility options compared to the IS415UCVGH1A V7666-111000, such as different communication protocols or I/O handling capabilities, providing users with more choices depending on their specific application requirements.
IS415UCVGH1A V7666-111000
Installation and Maintenance：GE IS415UCVGH1A V7666-111000
Installation Preparation
Before installing the GE IS415UCVGH1A V7666-111000, ensure that the power supply in the installation area provides a stable +5 V DC. Check the physical dimensions of the intended installation location to ensure that the card can be properly mounted. Since it is a VME single – slot board, verify that the VME rack is in good working condition and has an available slot for the IS415UCVGH1A V7666-111000. When connecting the Ethernet cables, make sure to use the correct cables (Cat5e or higher for 100BaseTX) and that the connections are secure. Also, ensure that the Toolbox software is installed on a compatible computer that will be used for configuration.
Maintenance Recommendations
Regularly check the temperature of the area where the IS415UCVGH1A V7666-111000 is installed to ensure it remains within the 0°C to 70°C operating range. Periodically inspect the Ethernet connections for any signs of wear or looseness. Once a year, consider performing a software – based diagnostic check using the Toolbox software to verify the integrity of the card’s configuration and its communication with other devices in the system. If there are any software updates available for the card from GE, carefully follow the provided instructions to update the card’s firmware, as this can improve performance and fix any known bugs.
IS415UCVGH1A V7666-111000
Product Warranty：GE IS415UCVGH1A V7666-111000
We offer a comprehensive one – year quality warranty for the GE IS415UCVGH1A V7666-111000. This warranty covers all hardware failures that are not due to improper use or abuse by the customer. In the unlikely event that the product experiences performance issues or functional failures within the warranty period, we will promptly provide a replacement unit. Our company, with 17 years of experience in the industrial control industry, has an extensive global supply chain network. This enables us to quickly respond to customers’ needs, especially in cases of discontinued models or urgent requirements for scarce spare parts. We are committed to ensuring that your industrial systems can operate continuously and stably with the support of our reliable products and services.
